Short USB-A to Micro-USB Cable from Crystalfontz

Product

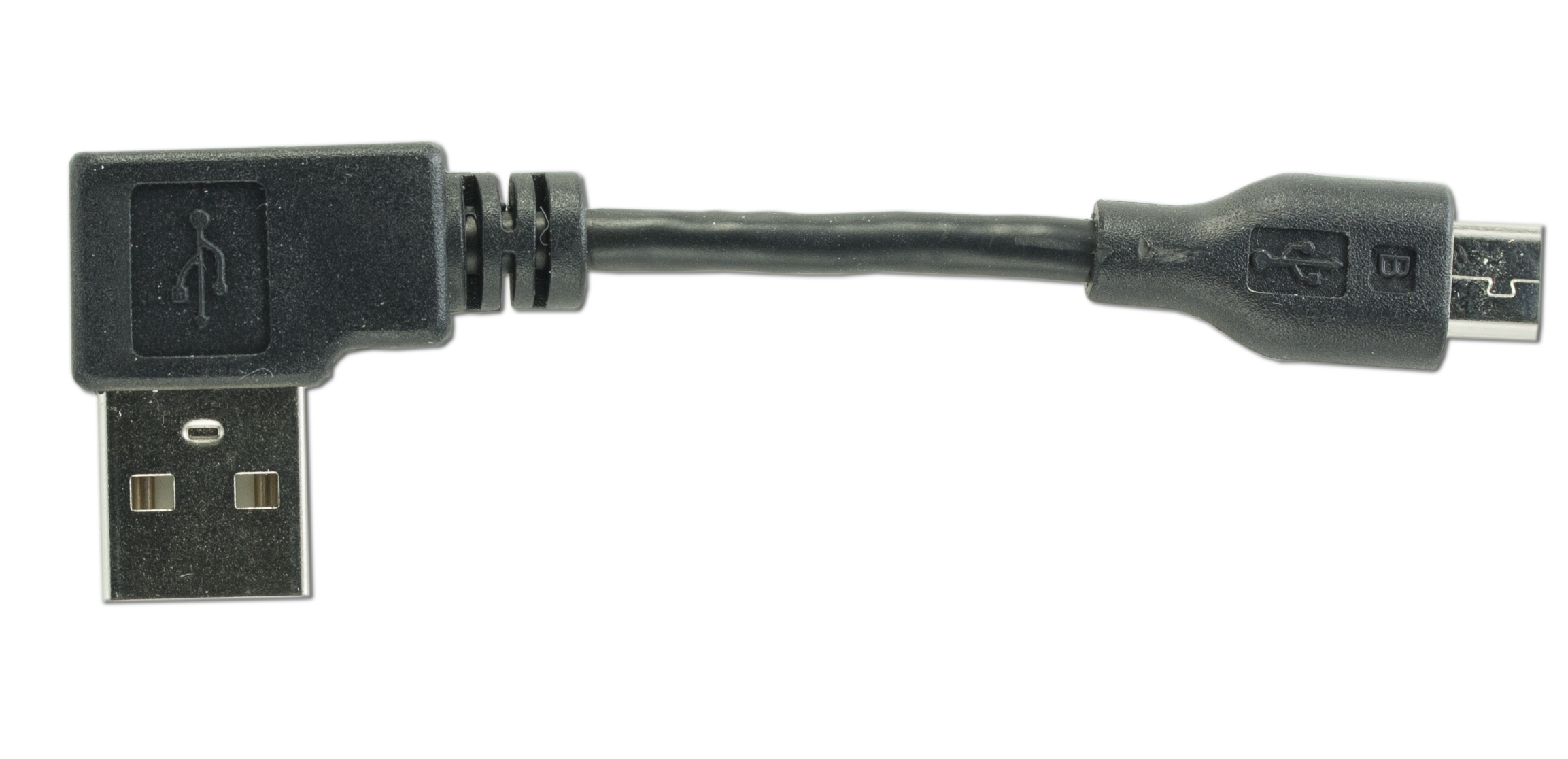

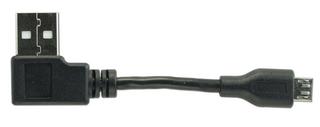

            Short USB-A to Micro-USB Cable
            Part Number: WR-USB-Y46

                        Short Micro-USB to USB-A cable for connecting the touchscreen from the 800x480 Resistive Touchscreen Display to a Raspberry Pi, or any scenario that requires a USB-A to Micro-USB in less than 4 inches.

 square_foot Physical Characteristics
Physical Characteristics

    Overall Cable Length        Length

        millimeters
        79 mm

        inches
         3.10 in.

    Flexible Cable (FFC/FPC)        length

        millimeters
        35

        inches
        1.378

        Weight
            7.6g

download Files and Downloads

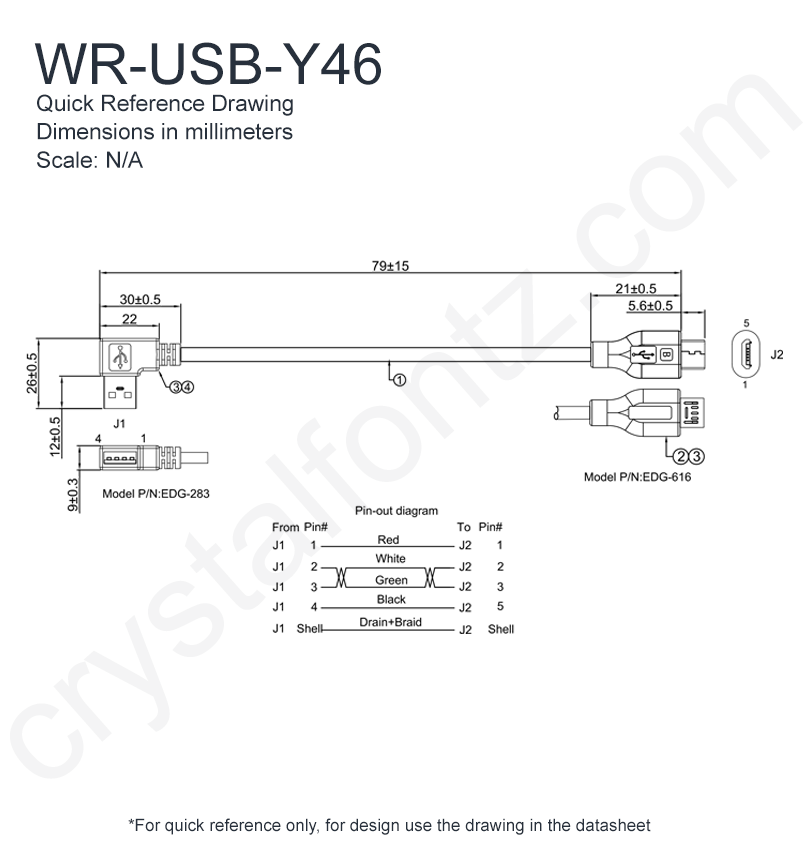

picture_as_pdf Other Document - Mechanical Drawing
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:

Price:

            Quantity
            Unit Price

            1
            $6.27

            20 *
            $5.01

            50 *
            $4.39

7 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.

Overall Cable Length	Length
millimeters	79 mm
inches	3.10 in.

Flexible Cable (FFC/FPC)	length
millimeters	35
inches	1.378

Quantity	Unit Price
1	$6.27
20 *	$5.01
50 *	$4.39

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11347: Manufacturing Location and Molding Dimensions

Product Affected:	WR-USB-Y46
Date Issued:	June 16, 2025
Summary:	Manufacturing Location and Molding Dimensions
Description:	Changing the manufacturer. The replacement cable is overall the same length, but the new molding is different.
Reason:	Large MOQs are driving this change.
Impact:	Dimensions change
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
