                This display is not recommended for new designs.  Once stock is depleted it will no longer be available. If you are looking for alternative parts, please see CFAG12864Q1-TFH-E1 or CFAG12864Q1-TFH-E1-2.

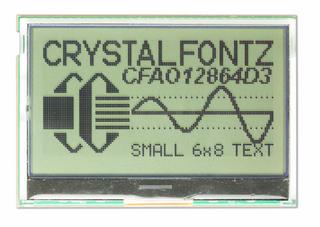

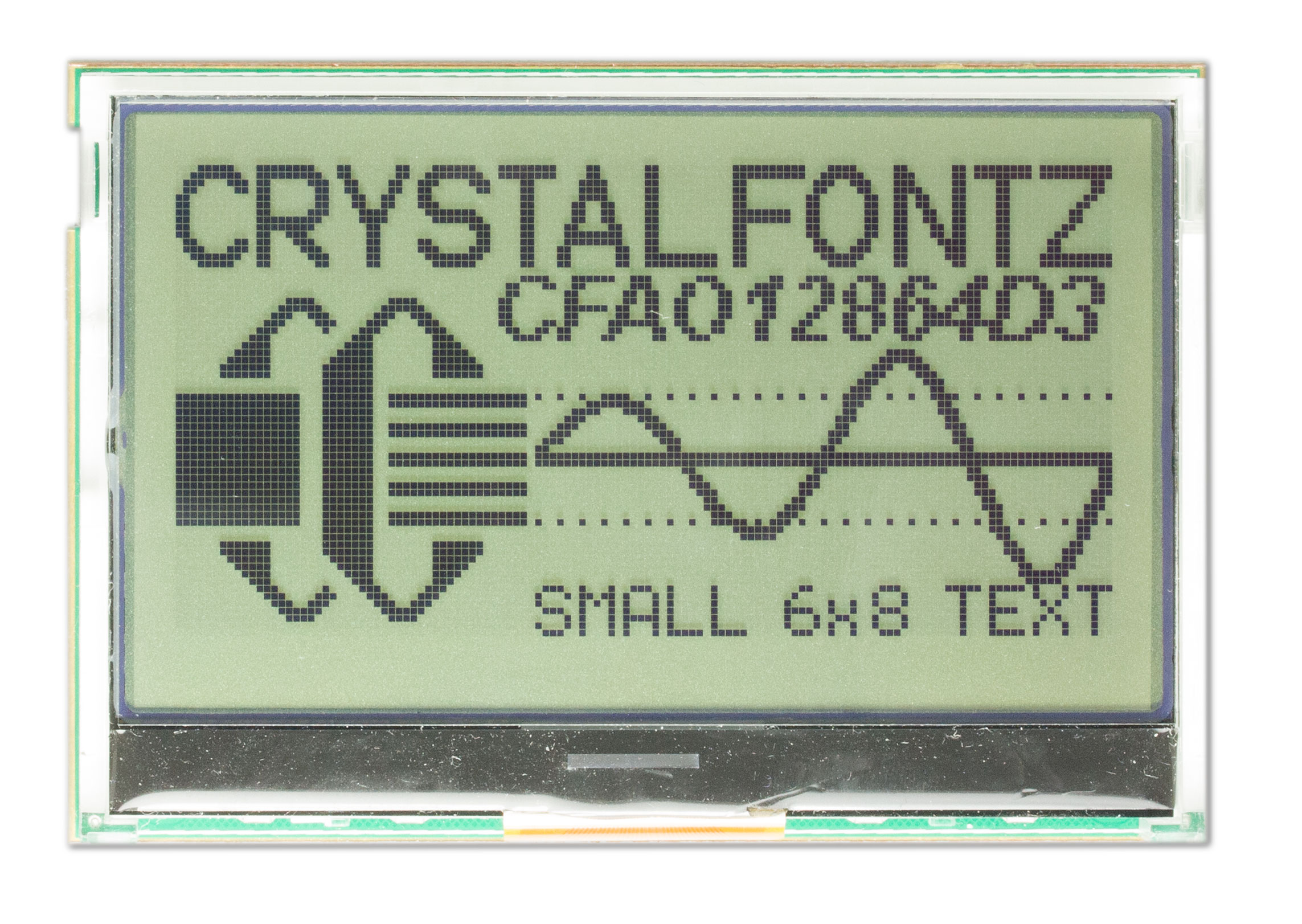

128x64 Graphic LCD Breakout Kit - Dark On Light GrayPart Number: CFAO12864D3-TFH-CB

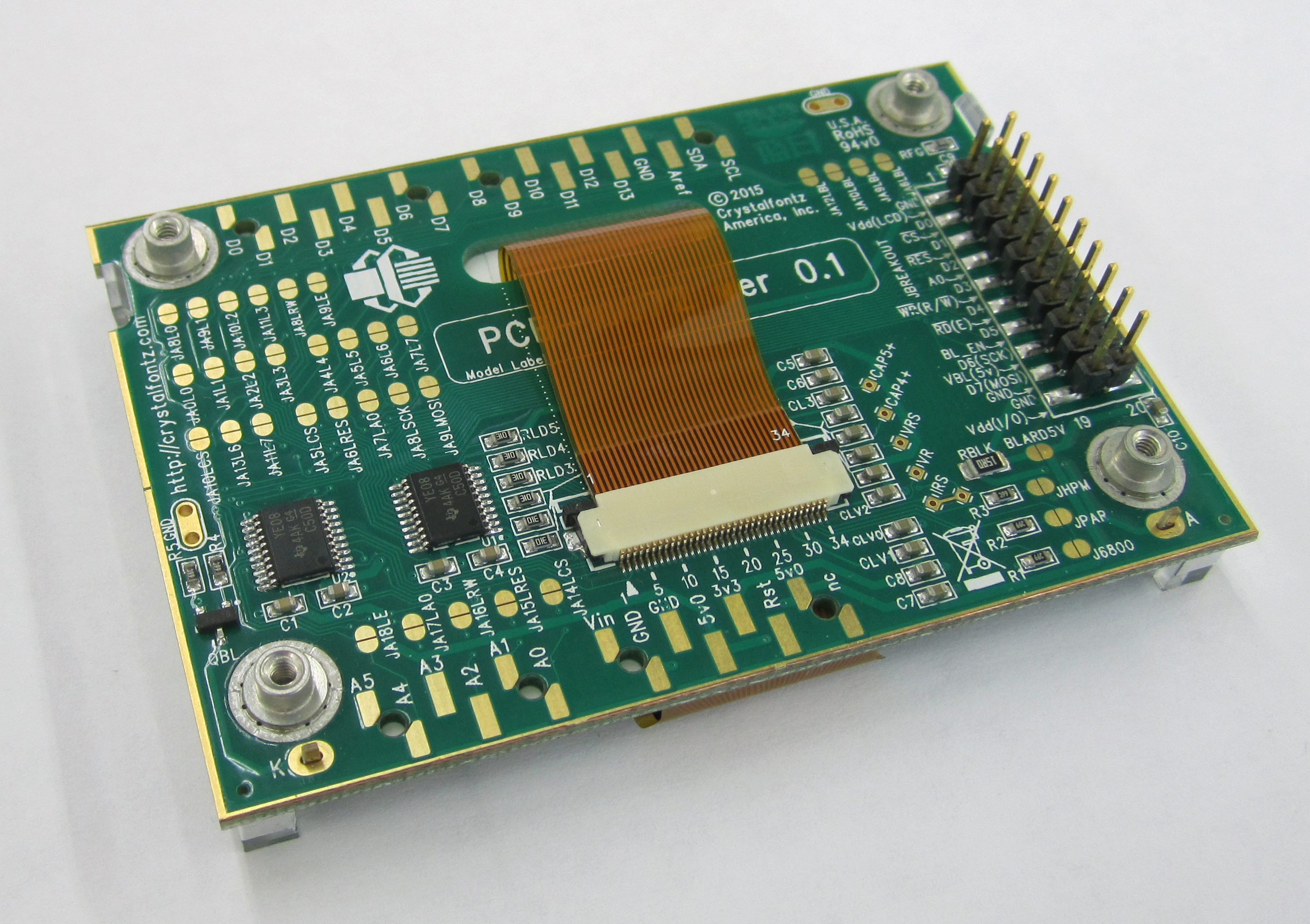

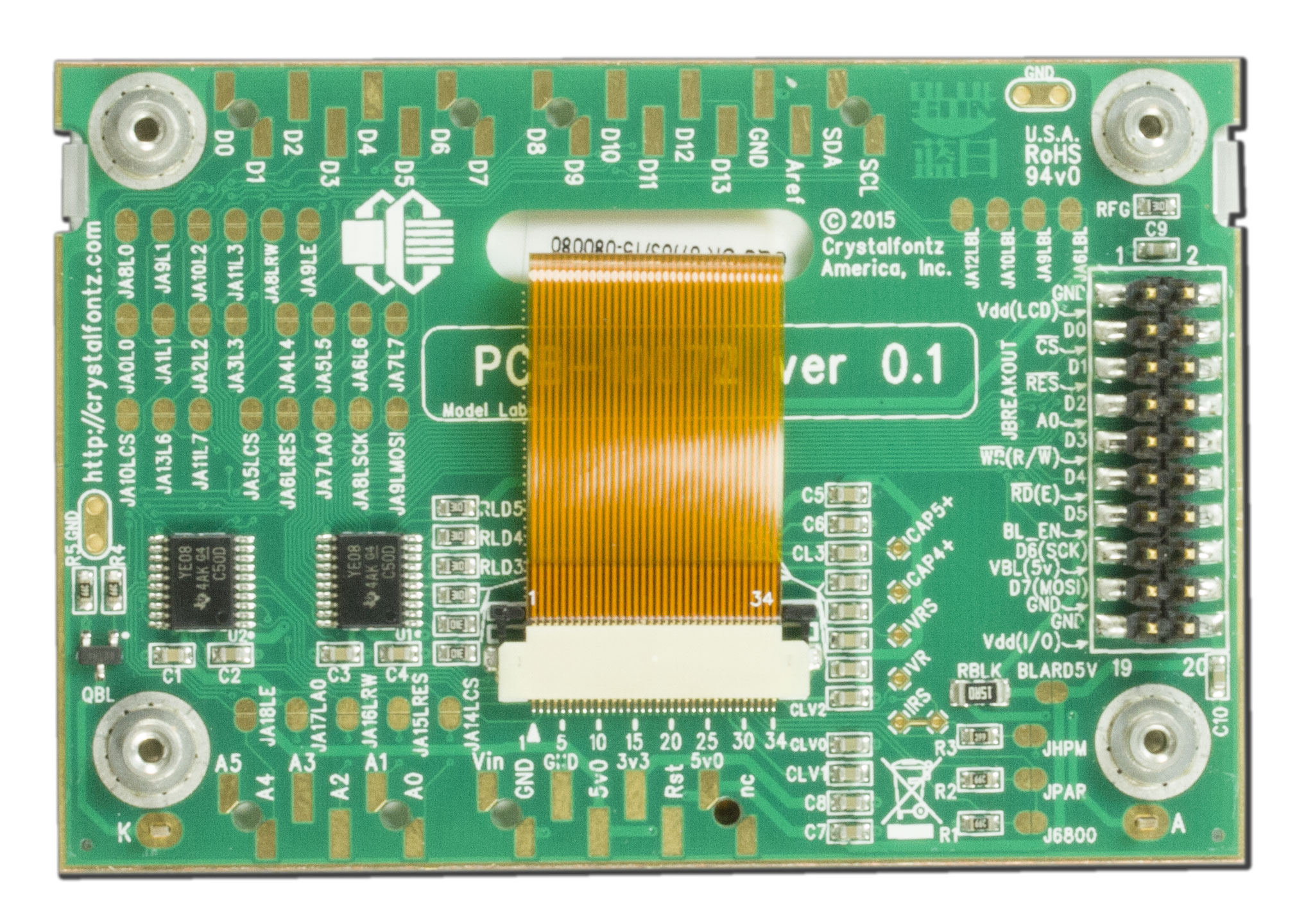

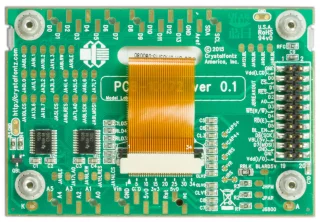

         This kit has the dark-on-light gray graphic LCD display CFAO12864D3-TFH mounted on a carrier board. Using SPI or 8-bit parallel interface, simply connect the standard 20-pin header (0.100" pitch) to your system's PCB, using WR-JMP-Y40 jumper wires. No soldering required.

If you prefer a white-on-blue display, see the CFAO12864D3-TMI-CB. This breakout kit has the same carrier board.

Open source hardware designs can be found under the Files section which includes everything you need to manufacture your own boards: Gerber files, PADs source schematic and layout, and full BOM. If you have any questions, please contact our knowledgeable and friendly support staff by email, phone, or chat. square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        82
        56
        18

        inches
        3.23
        2.21
        0.71

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        70.7
        38.8

        inches
        2.78
        1.53

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            55g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Driving Panel Typical
            10V

        Supply Current Maximum
            1mA
Supply Current Typical
            0.6mA

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Current Maximum
            120mA

        Forward Current Typical
            96mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface
            8-bit Parallel, SPI

 download Files and Downloads
folder_zip Software Source - Arduino / Seeeduino Sample Code

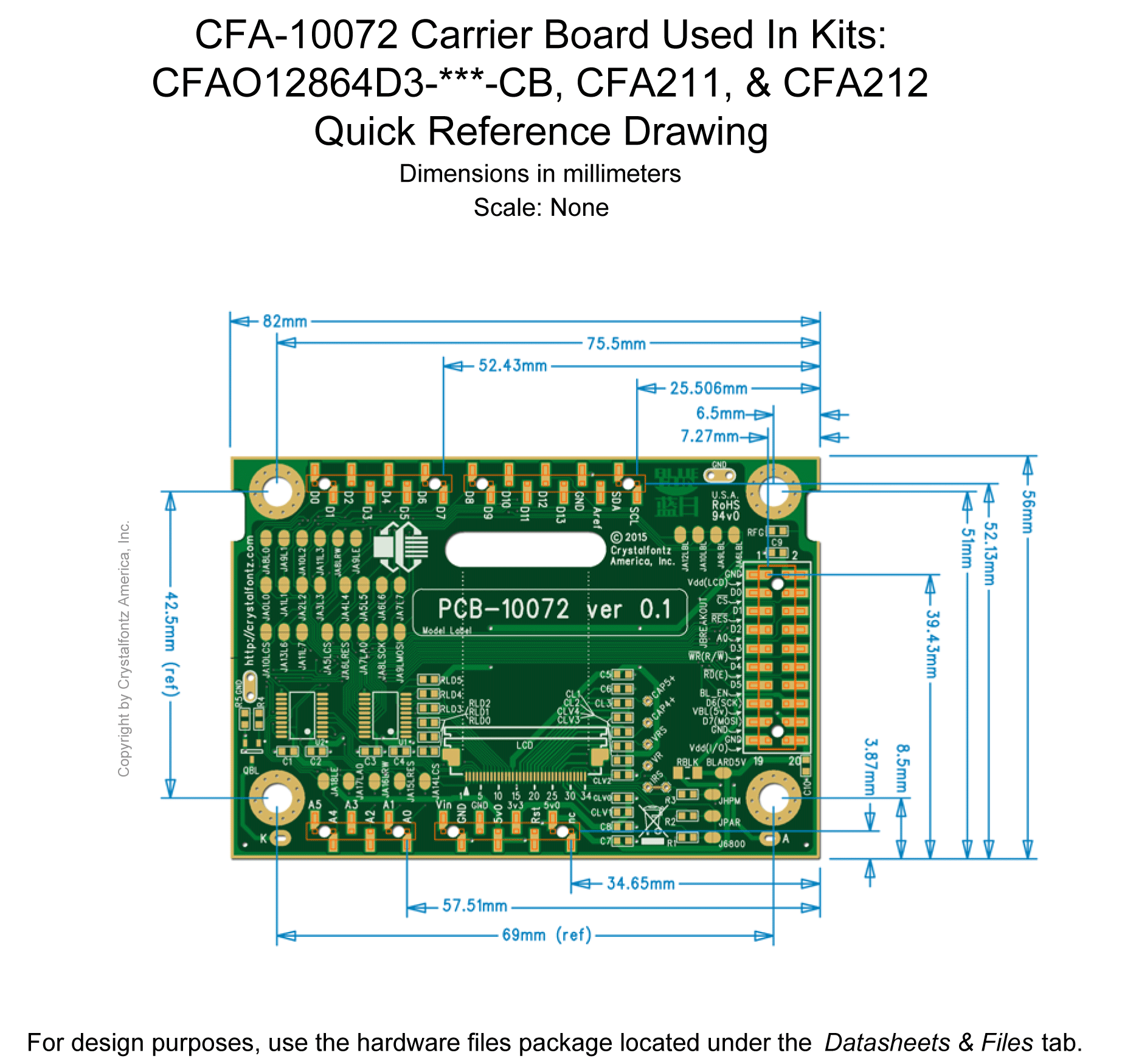

picture_as_pdf 1 to 1 Template - CFA-10072 Carrier Board 1 to 1 Outline
folder_zip Other Document - CFA 10072v0p1 BUILD PACKAGE

Module Overall	width	height	depth
millimeters	82	56	18
inches	3.23	2.21	0.71

Viewing Area	Width	Height
millimeters	70.7	38.8
inches	2.78	1.53

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11107: End-Of-Life Notification

Products Affected:	CFAO12864D3-TFH, CFAO12864D3-TMI, CFAO12864D3-TFH-CB, CFAO12864D3-TMI-CB, CFA212-TMI, CFA212-TFH, CFA211-TFH
Date Issued:	November 9, 2021
Summary:	End-Of-Life Notification
Description:	These parts are being replaced and will no longer be available once the inventory has been depleted. The replacement part numbers will be posted on the corresponding product page.
Reason:	The ST7565P driver that is used in these displays is no longer available and so to keep the parts available, we are switching to the ST7567 driver which is similar as well as readily available.
