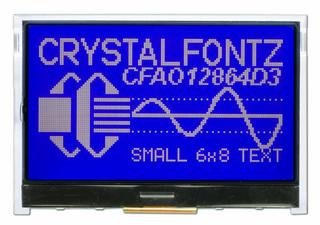

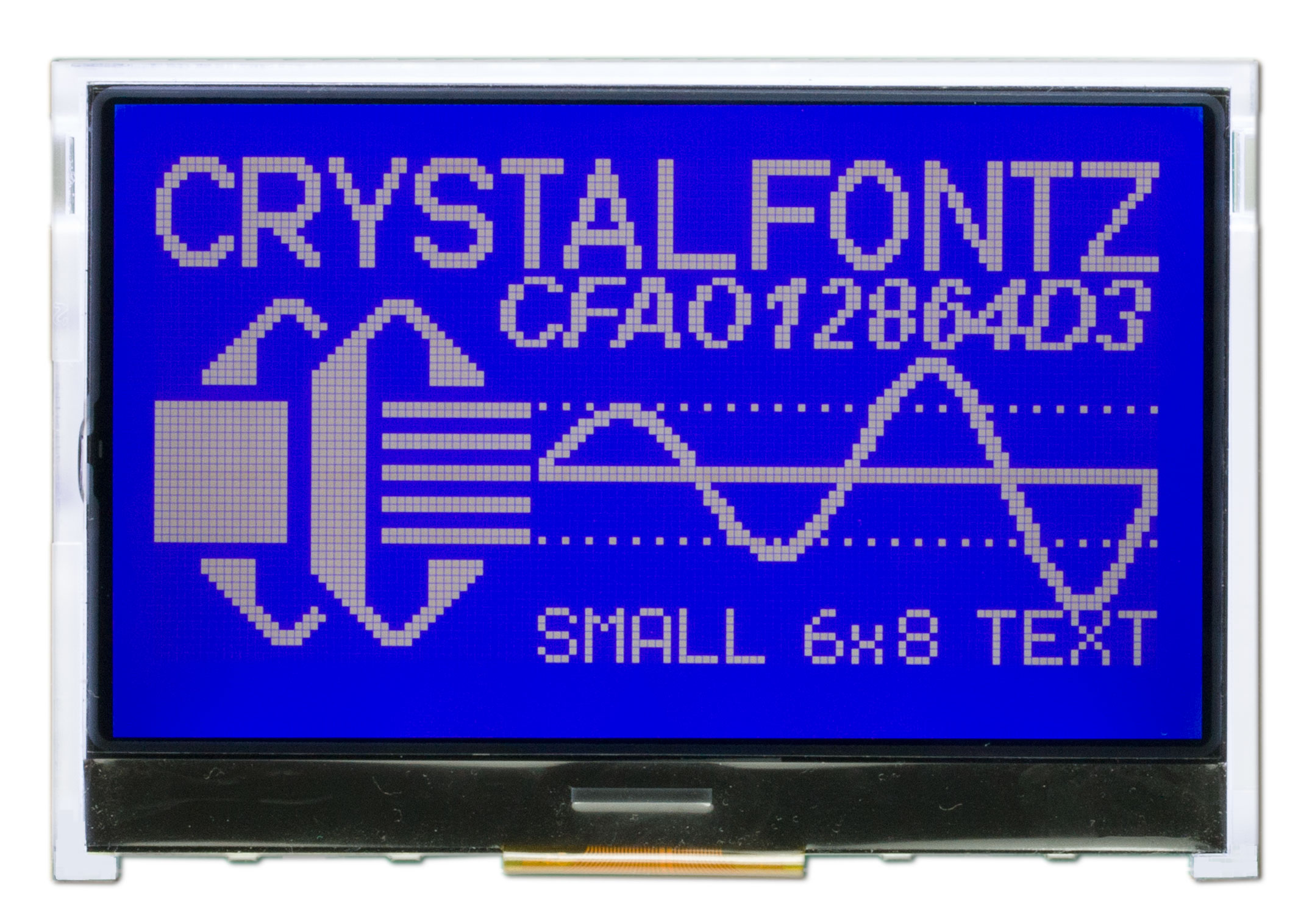

White on Blue 128x64 Graphic LCD

Part Number: CFAO12864D3-TMI

This white on blue background 128x64 pixel COG (Chip-On-Glass) graphic LCD display module has an integrated Sitronix ST7565P controller. The graphic LCD is very low power, using less than 1mA to drive the display. To connect to your host, choose from SPI or 8-bit (6800 or 8080) parallel interface.

Prefer a different color? The CFAO12864D3-TFH is dark on a light gray background.

To get started, download the free sample code and detailed datasheet in the Datasheets & Files section. Compatible ZIF sockets (34-pin, 0.5 mm) are: 34 Position, 0.50mm Pitch.

Questions? Please don't hesitate to contact our knowledgeable technical support.

Product Variants

CFAO12864D3-TFH128x64 Graphical LCD Module
CFAO12864D3-TMIWhite on Blue 128x64 Graphic LCD
White on Blue 128x64 Graphic LCD (CFAO12864D3-TMI)
Qty:
Quantity Price
1 $16.30
5 * $15.00
10 * $13.25
20 * $12.81
50 * $12.36
100 * $12.18
200 * $12.09
300 * $11.46
500 * $11.37
1000 * $10.51
* Contact us about potential lead times.
Components worth considering
4636 34 Position, 0.50mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.92 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAO12864D3-TMI or RSS RSS feed for changes to CFAO12864D3-TMI for CFAO12864D3-TMI

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 64

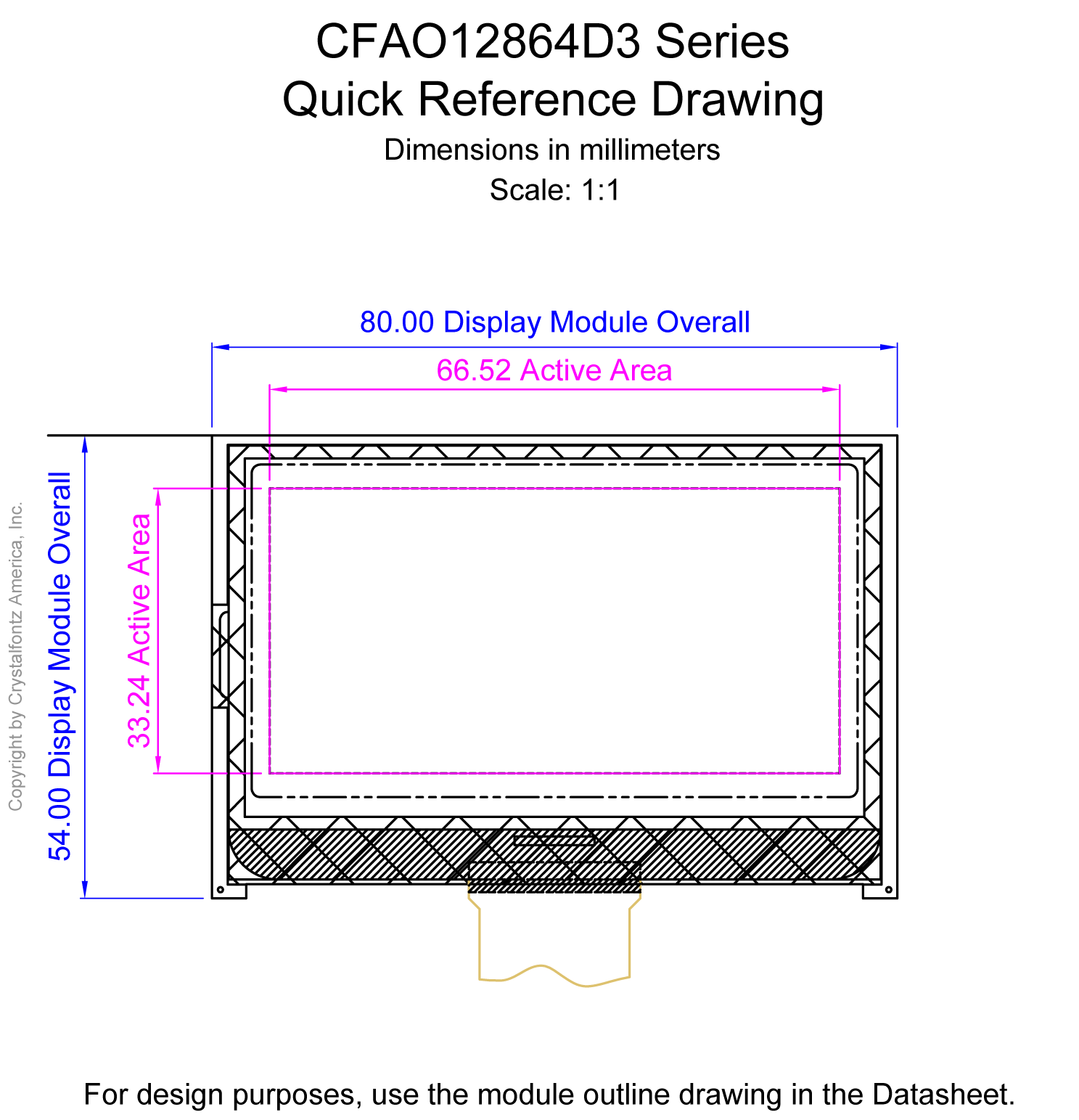

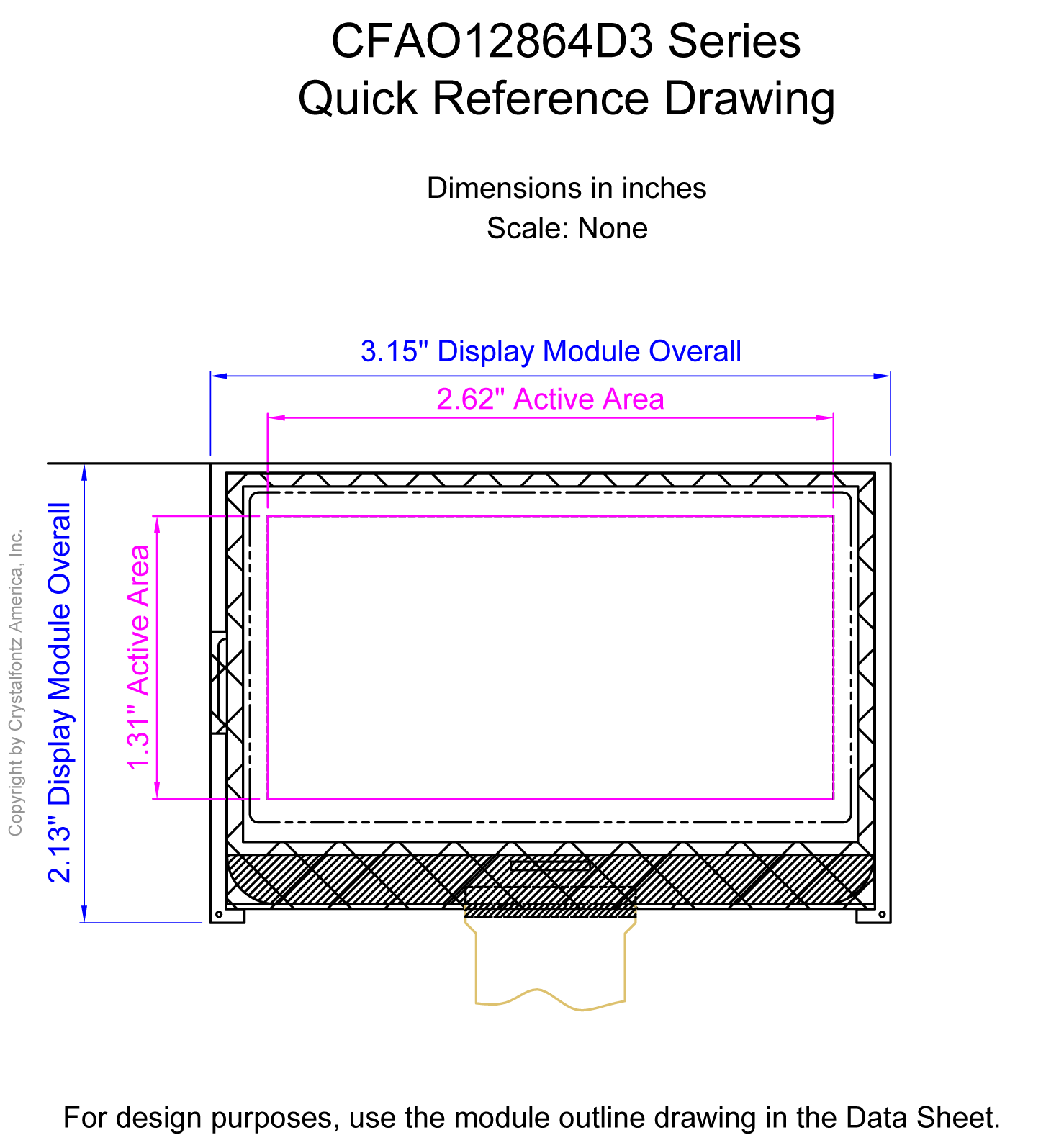

Module Overall width height depth
millimeters 80 54 9.5
inches 3.150 2.126 0.374
Viewing Area width height
millimeters 70.7 38.8
inches 2.783 1.528
Active Area width height
millimeters 66.52 33.24
inches 2.619 1.309
Dot Size width height
millimeters 0.48 0.48
inches 0.019 0.019
Dot Pitch width height
millimeters 0.52 0.52
inches 0.020 0.020
Optional Connectors CS050Z34GB0

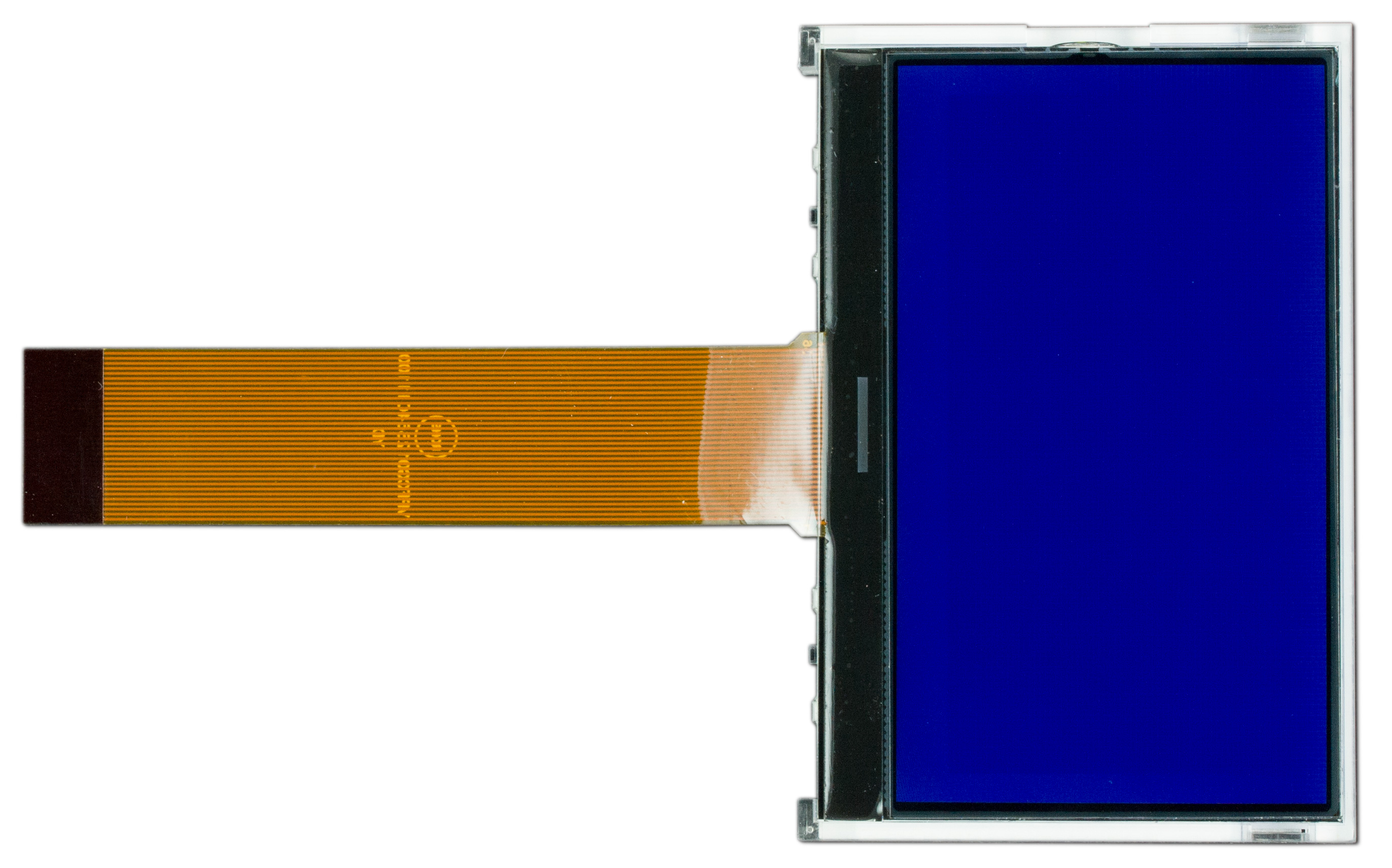

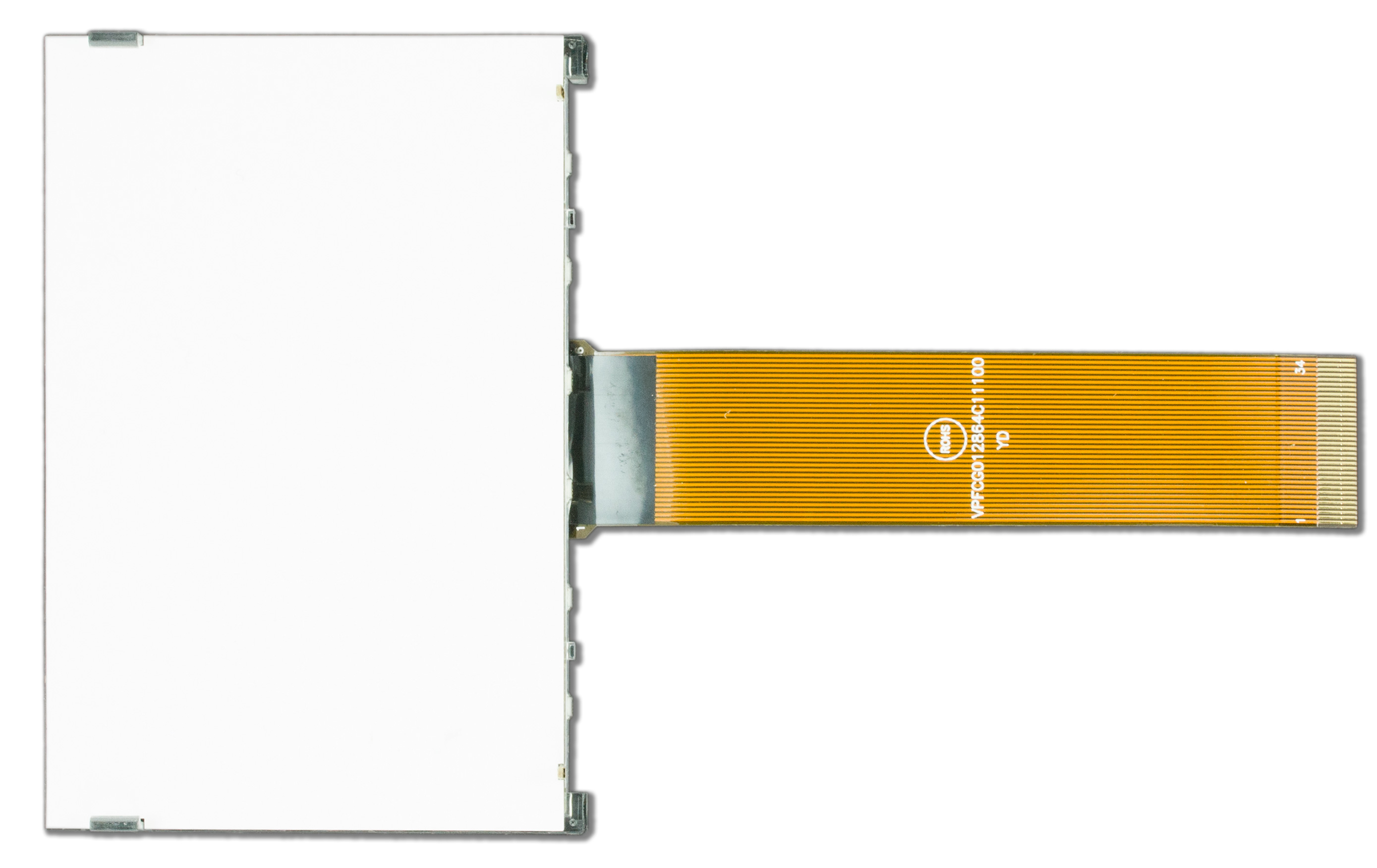

Flexible Cable (FFC/FPC) length
millimeters 80
inches 3.150
Weight 40g

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color Light
Background Color Blue

Electrical Specifications

Supply Voltage for Logic Minimum 2.7V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 10V
Supply Current Maximum 1mA
Supply Current Typical 0.6mA
Module Connector Pitch 0.5mm

Backlight Electrical Specifications

Forward Current Maximum 120mA
Forward Current Typical 96mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sitronix ST7565P
ST7565P
65 x 132 Dot Matrix LCD Controller/Driver
Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface 8-bit Parallel, SPI

Additional Options

The three kits below include this display.

This is a carrier board kit. To buy the graphic LCD display only, please see CFAO12864D3-TMI.

128x64 Graphic LCD Breakout Kit - White On Blue
Part Number: CFAO12864D3-TMI-CB

This kit has the white-on-blue graphic LCD display CFAO12864D3-TMI mounted on a carrier board. Using SPI or 8-bit parallel interface, simply connect the standard 20-pin header (0.100" pitch) to your system's PCB, using WR-JMP-Y40 jumper wires. No soldering required.

If you prefer a dark-on-light gray display, see the CFAO12864D3-TFH-CB. This breakout kit has the same carrier board.

We believe in open source hardware designs for Crystalfontz carrier boards and development kits. Under the Datasheets & Files tab is a downloadable zip file that contains everything you need to manufacture your own boards: Gerber files, PADs source schematic and layout, and full BOM. If you have any questions, please contact our knowledgeable and friendly support staff by email, phone, or chat.

Details
Quantity 1 10 * 20 * 50 * 100 *
Price $40.50 $40.02 $37.67 $35.91 $34.54
Quantity:
This development kit includes an Seeeduino (Arduino Uno R3 clone). To buy the display only, please see CFAO12864D3-TMI.

Seeeduino With Graphic LCD - White On Blue
Part Number: CFA212-TMI

Perfect for hackers who don't want to take the time to do tedious assembly, this development kit has an Seeeduino (Arduino Uno R3 clone) with a CFAO12864D3-TMI LCD graphic display mounted on a Crystalfontz development board (CFA-10072). To power on, you will need a USB cable or a power supply compatible with the R3. The installed sketch will initialize the display and show an image.

If you prefer a dark-on-light gray display, see the CFA212-TFH kit. This kit has the same Arduino and board.

Details
Quantity 1
Price $69.93
Quantity:
Arduino shield kit includes a CFAO12864D3-TMI graphic LCD display mounted on a Crystalfontz carrier board (CFA-10072). To order this kit, please go to the display page CFAO12864D3-TMI.

Arduino Shield With Graphic Display - White On Blue
Part Number: CFA211-TMI

Arduino shield kit includes a CFAO12864D3-TMI graphic LCD display mounted on a Crystalfontz carrier board (CFA-10072) with the appropriate Arduino connectors. The kit is ready to connect to your Arduino or a SparkFun RedBoard. For the display already connected to an Arduino Uno R3, see our complete Arduino Uno R3 CFA212-TMI Development Kit.

If you prefer a white-on-light gray display, see the CFA211-TFH kit. This Arduino shield has the same carrier board.

We believe in open source hardware designs for Crystalfontz carrier boards and development kits. Under the Datasheets & Files tab is a downloadable zip file that contains everything you need to manufacture your own boards: Gerber files, PADs source schematic and layout, and full BOM. If you have any questions, please contact our knowledgeable and friendly support staff by email, phone, or chat.

Details
Quantity 1 10 * 20 * 50 * 100 *
Price $44.61 $44.15 $41.76 $40.00 $38.63
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAO12864D3-TMI or RSS RSS feed for changes to CFAO12864D3-TMI

Product Update #10692: New Carrier board, Arduino shield, and Arduino kit options

New Products: CFAO12864D3-TFH, CFAO12864D3-TMI
Date Issued: April 1, 2016
Summary: New Carrier board, Arduino shield, and Arduino kit options
Description: Crystalfontz America announces three supporting products for the CFAO12864D3 series of displays based on the CFA10072 carrier board.

The first is the CFAO12864D3-TFH-CB and CFAO12864D3-TMI-CB ideal for working with your micro-controller development board.

The second is the CFA211-TFH and CFA211-TMI - our Arduino shield with a CFAO12864D3-TFH or CFAO12864D3-TMI (respectively). Load the sketch on your Arduino, plug it in, and go!

Finally, the all in one demo the CFA212-TFH and CFA212-TMI. It's our Shield and CFAO12864D3-TFH / TMI plugged into an Arduino with our sketch. All you provide is power.
Reason: Adding new products as part of our continuous improvement process, to enable our customer to more easily work with and demonstrate our displays.
Availability: Immediate

Product Update #10670: (New Product) CFAO12864D3-TMI

New Product: CFAO12864D3-TMI
Date Issued: August 20, 2015
Summary: (New Product) CFAO12864D3-TMI
Description: Standard Graphic Modules: 128x64 Graphic LCD Display Module, White on Blue - Transmissive, White LED Backlight
For reference only. For design purposes, please use the specifications in the datasheet.
