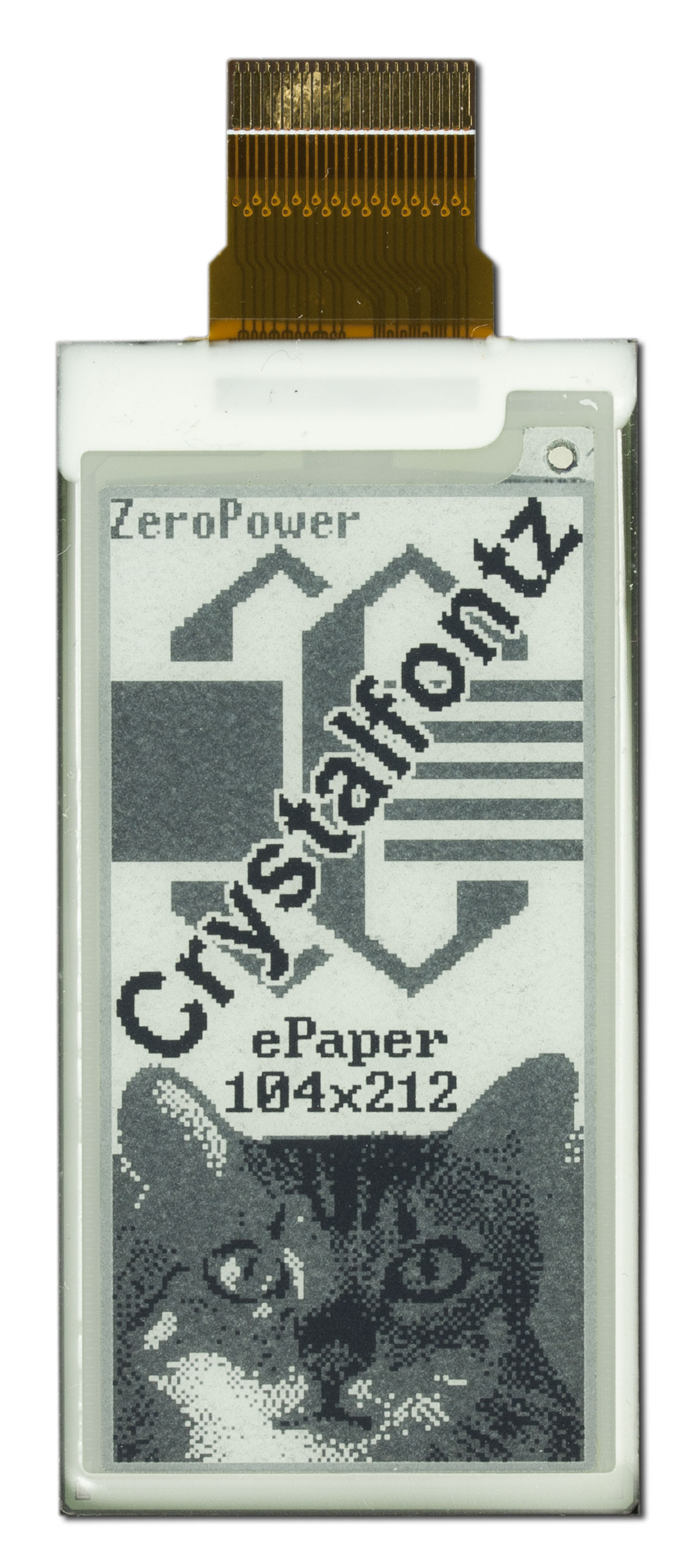

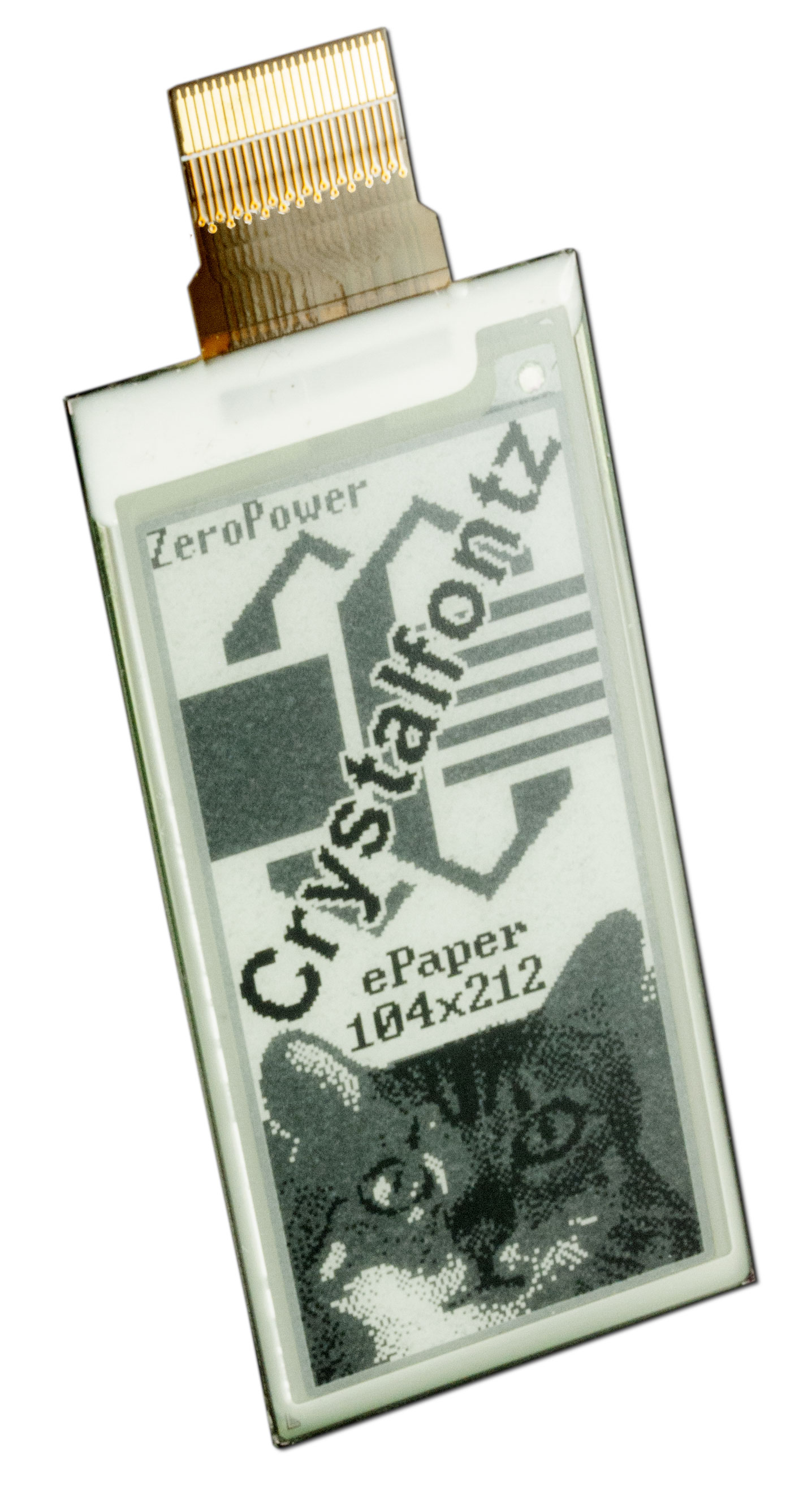

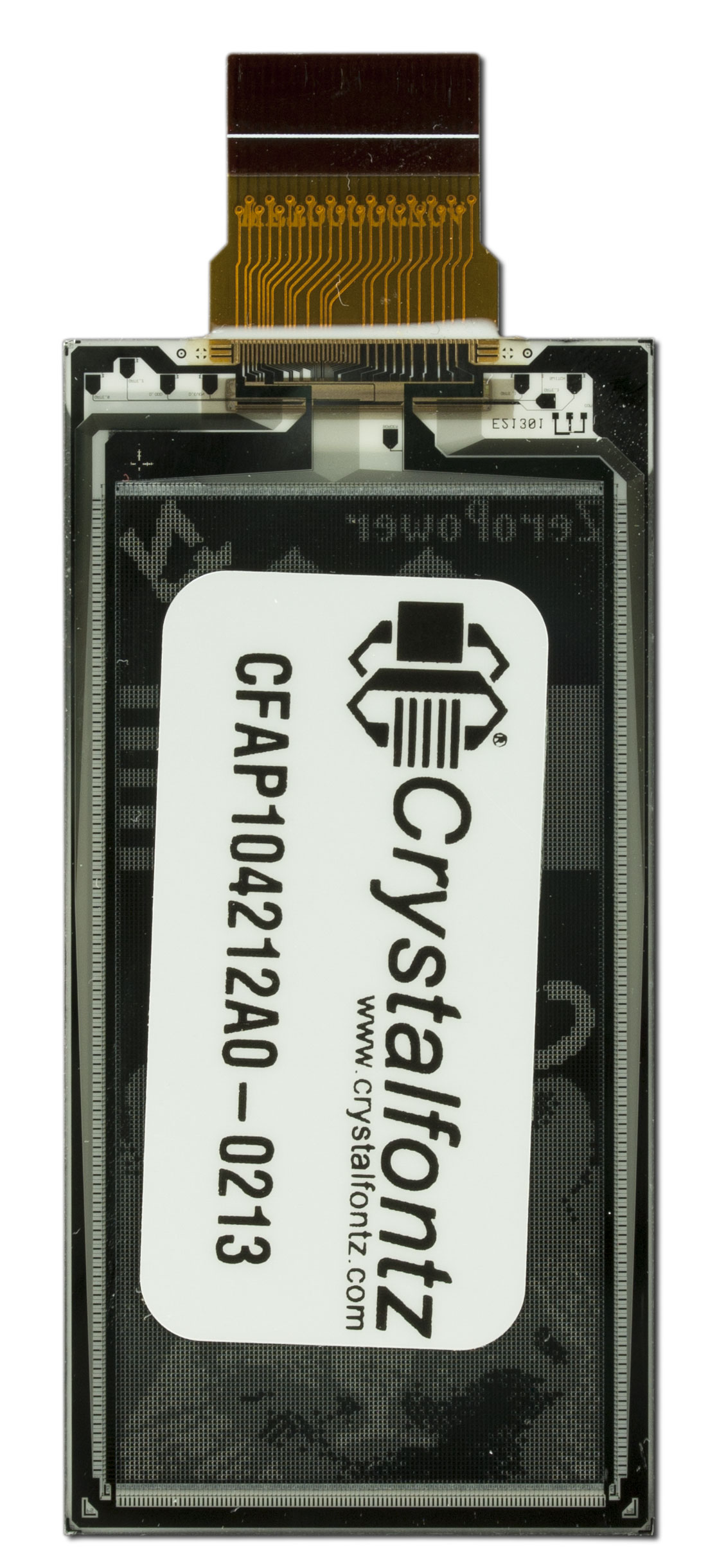

ePaper Display - 2.13", 3-Level Grayscale

Part Number: CFAP104212A0-0213

Description

This 104x212 ePaper graphic display module is a great choice for low power applications. After something is displayed, it remains visible without any power. The small pixel pitch shows off the fine detail in the ePapers 3-level grayscale image.

Built-in voltage generation requires a few external components. Ultra thin with a depth of 0.98 and weight of only 3.36, epaper has an obvious advantage over other display technologies for small handheld battery operated devices, such as devices powered by a small solar cell. Epaper displays are rapidly growing in popularity for store shelf labels and can be scanned by barcode readers.

  • With a wide, symmetrical viewing angle, use this display in landscape or portrait orientation.
  • Supports 4 wire SPI for communications
  • Just like print on paper, these displays are easy to read under bright light.
  • Bistable image requires no power to keep on screen.
  • Long lifetime: ~5 years / ~1M updates.

For a quick start, use our sample code on the Datasheets & Files tab to display your own images. Our open-source demonstration code runs directly on a low cost Seeeduino v4.2 (3.3v Arduino clone) .

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

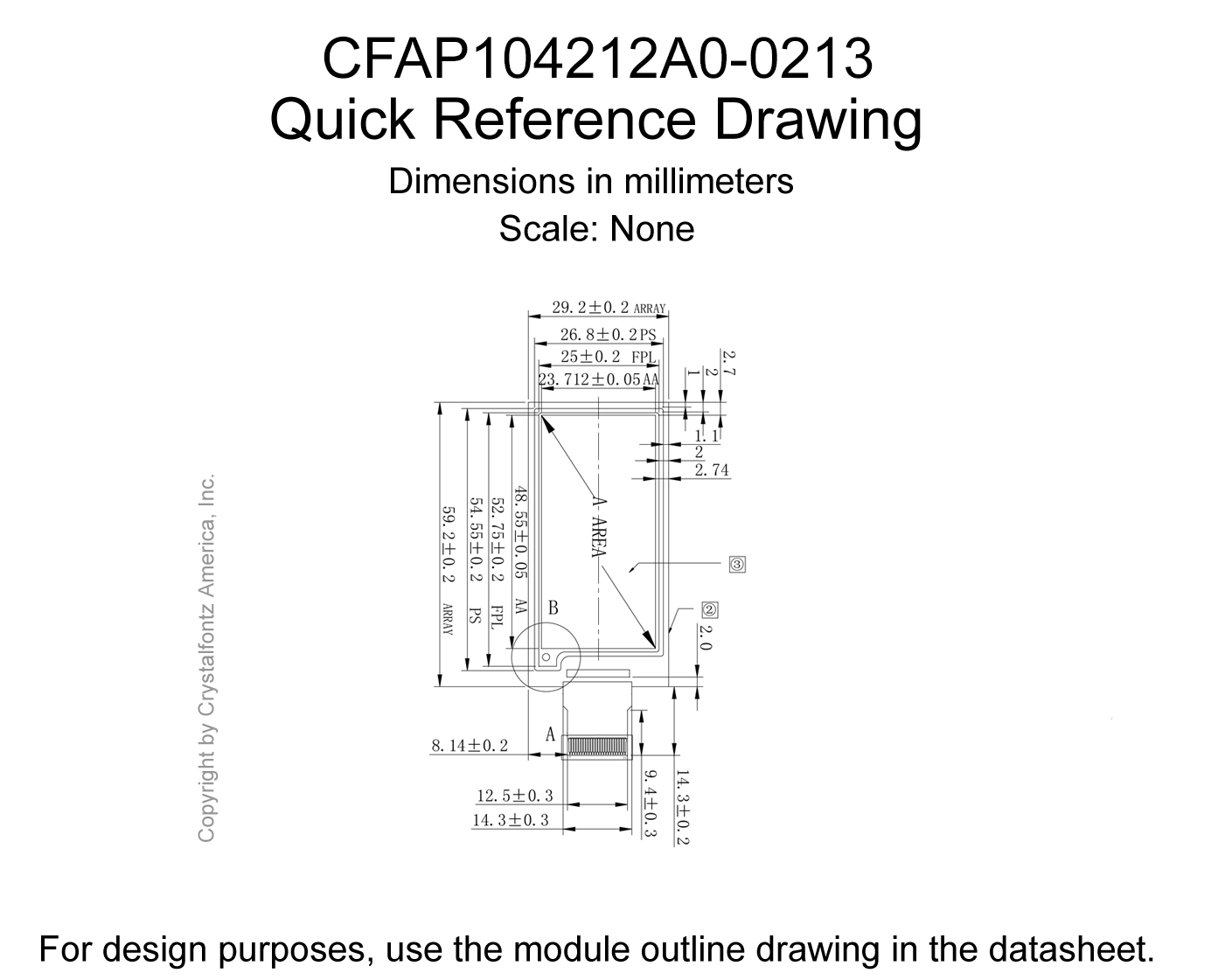

Physical Characteristics

Column Dots x Row Dots 104 x 212
Module Overall width height depth
millimeters 29.2 59.2 0.98
inches 1.150 2.331 0.039
*width / height does not include Foldable Tab
Diagonal Dimension 2.130"
Active Area width height
millimeters 23.712 48.55
inches 0.9335 1.911
Dot Size width height
millimeters 0.228 0.229
inches 0.0090 0.0090
Dot Pitch width height
millimeters 0.228 0.229
inches 0.0090 0.0090
Weight 3.36g

Optical Characteristics

Glass Type e ink
Polarizer Reflective
Sunlight Readable Yes
Foreground Color 3-level grayscale
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V

Environmental

Operating Temperatures min max
Celsius 40°
Fahrenheit 32° 104°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes

*Suggest a Correction

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP104212A0-0213 or RSS RSS feed for changes to CFAP104212A0-0213

Product Update #10704: (New Product) CFAP104212A0-0213

New Product: CFAP104212A0-0213
Date Issued: June 24, 2016
Summary: (New Product) CFAP104212A0-0213
Description: ePaper: ePaper 2.13" Graphic Display, 104x212, 3-Level Grayscale
