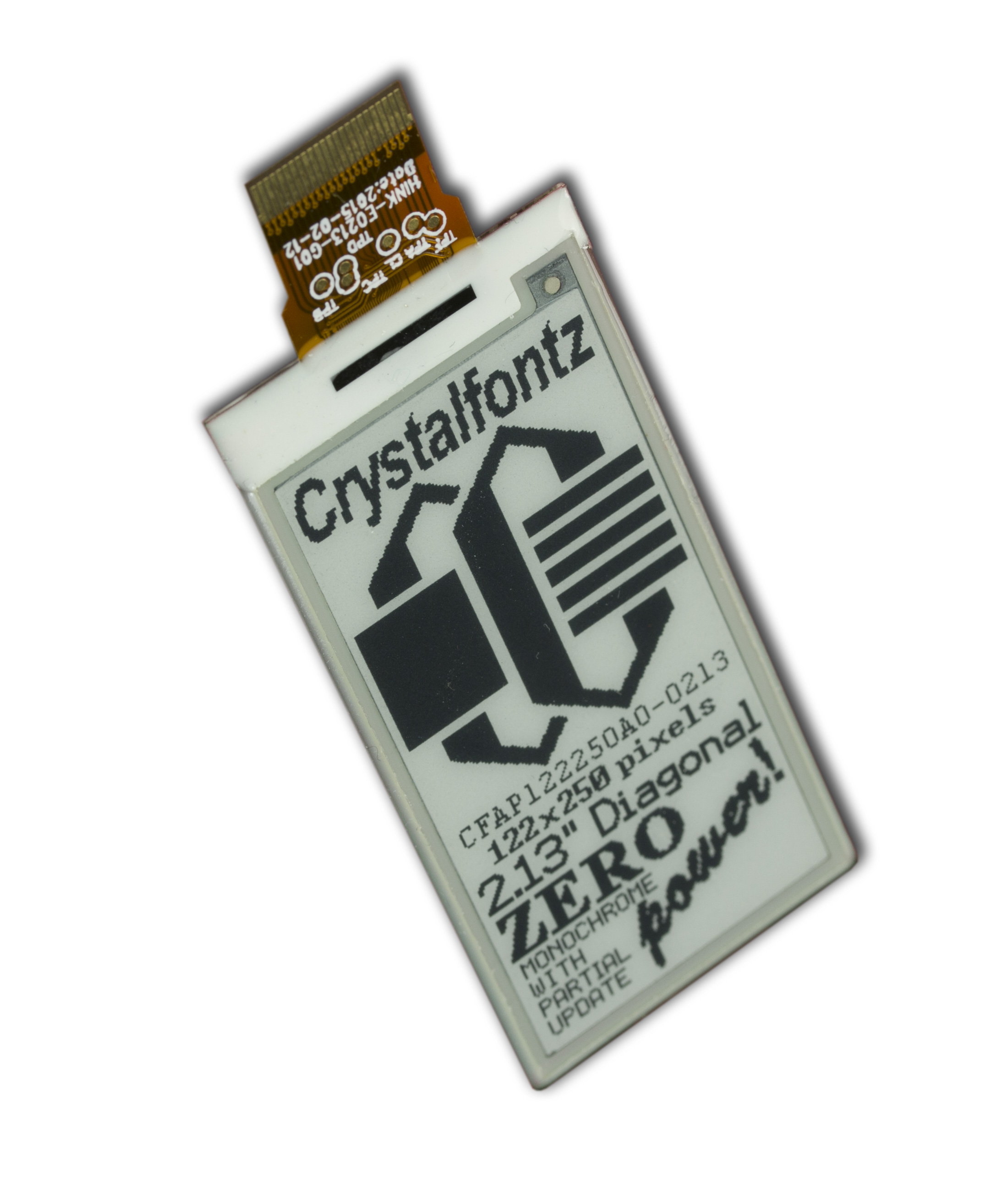

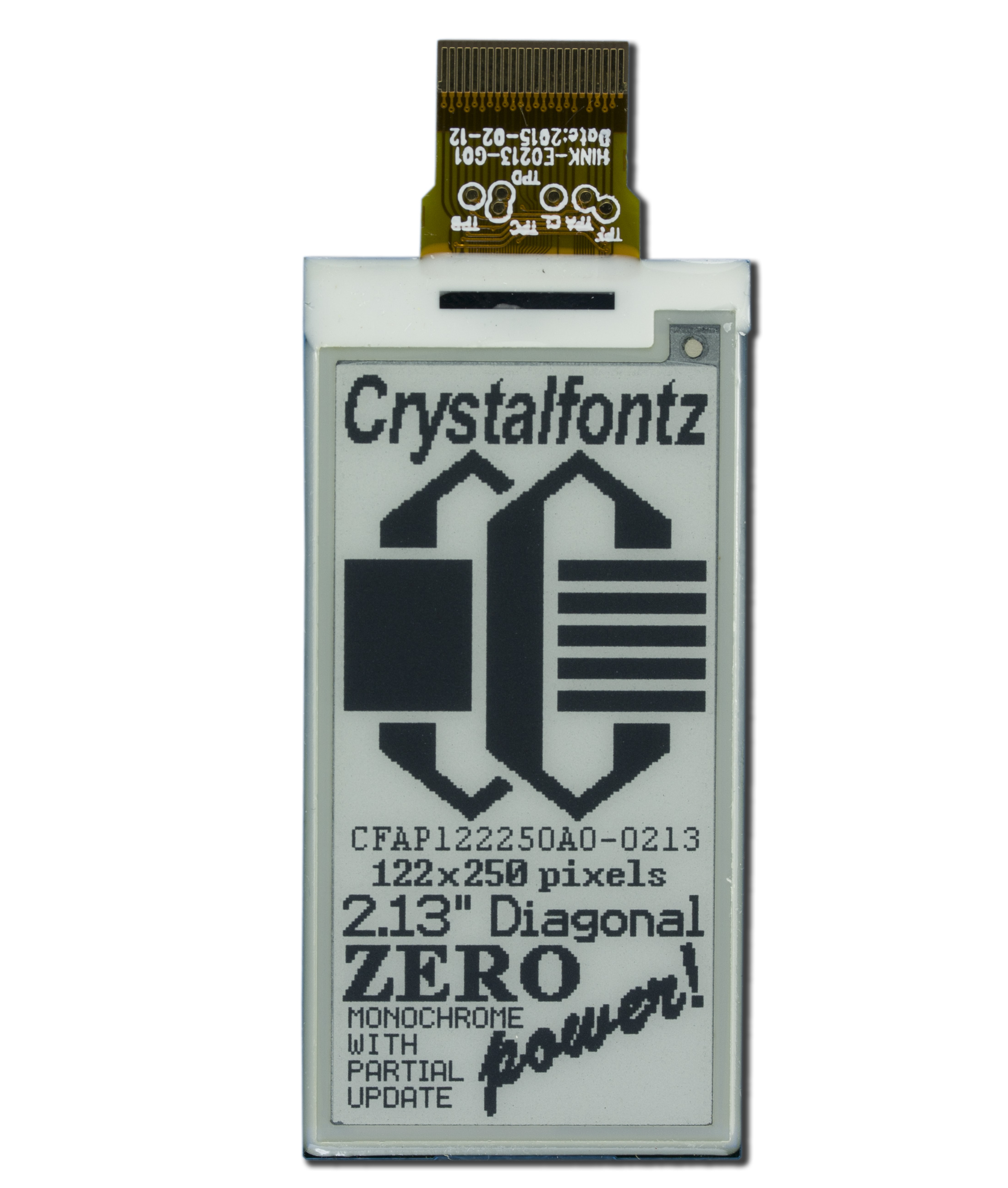

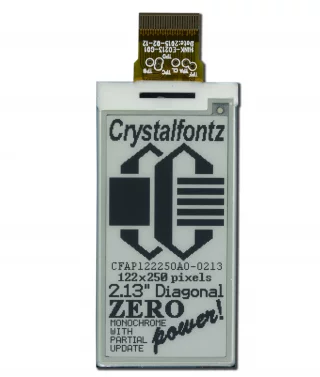

2.13" Diagonal ePaper, Zero PowerPart Number: CFAP122250A0-0213This small monochrome  ePaper / E-Ink has a 122x250 resolution in a 2.13" diagonal display with about 130 pixels per inch. Your image holds indefinitely without power – put up your image, then shut down the power. This ePaper is perfect for low power devices powered by solar or batteries.

Black and white monochrome is easy to read.
Bistable. (Will continue to display with no power source)
Can do full or partial refresh.
Versatile. Use in portrait or landscape format.
Sample code and datasheet are under the Datasheets & Files section.
The sample sketch is written for a Seeeduino which is a 3.3v version of the popular Arduino hardware. You can purchase the entire development kit below which includes the Seeeduino and adapter board.

Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board

Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

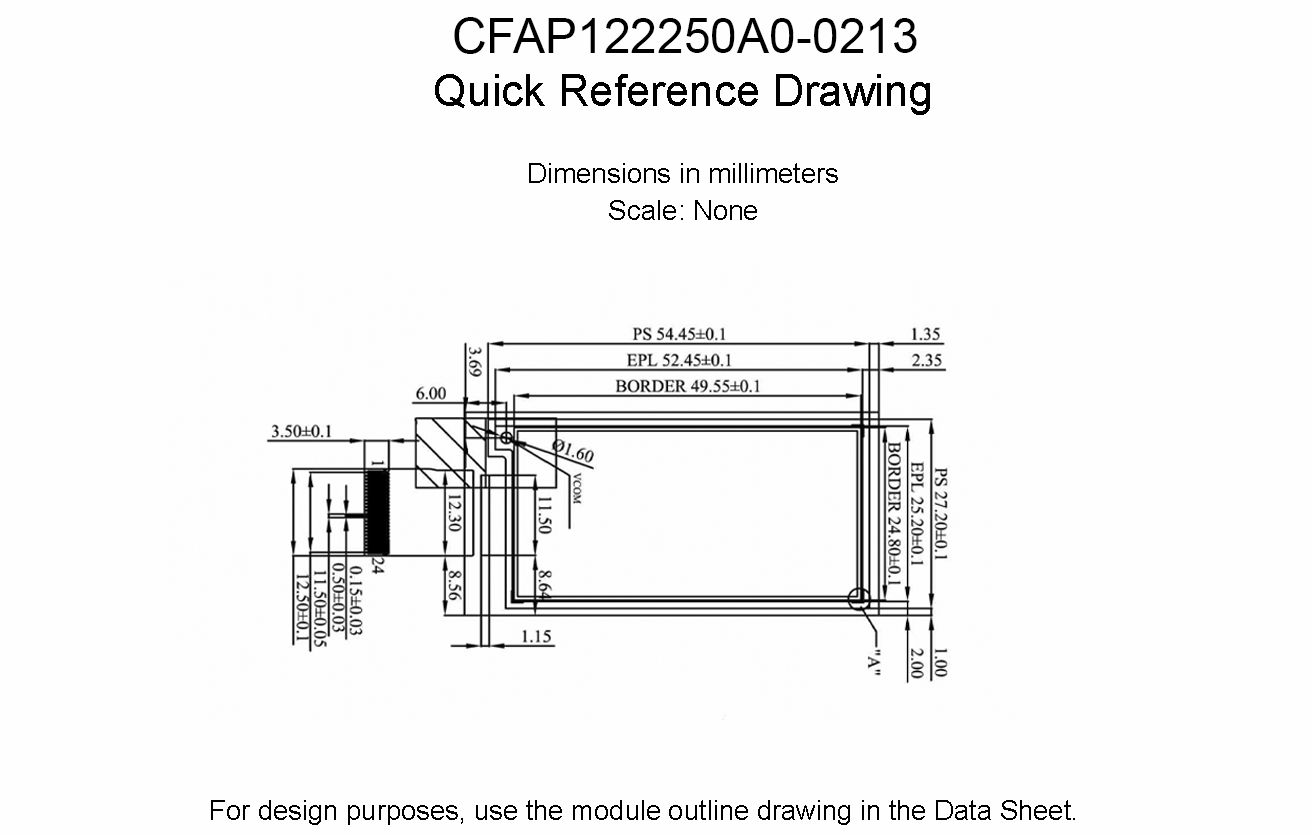

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            122 x 250

    Module Overall        width
        height
        depth

        millimeters
        29.2
        59.2
        1.05

        inches
        1.15
        2.33
        0.04

*width / height does not include Foldable Tab

        Diagonal Dimension
            2.13"

    Active Area        Width
        Height

        millimeters
        23.71
        48.55

        inches
        0.93
        1.91

    Dot Size        Width
        Height

        millimeters
        0.194
        0.194

        inches
        0.0076
        0.0076

    Dot Pitch        Width
        Height

        millimeters
        0.194
        0.194

        inches
        0.0076
        0.0076

        Optional Connectors
            CS050Z24GA0

    Flexible Cable (FFC/FPC)        length

        millimeters
        14.3

        inches
        0.563

        Weight
            3g
Pin Count
            24

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            ePaper
Sunlight Readable
            Yes

        Foreground Color
            Black
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V

        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        0°
        40°

        Fahrenheit
        32°
        104°

    Storage Temperatures        min
        max

        Celsius
        -10°
        50°

        Fahrenheit
        14°
        122°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1680
176 Source x 296 Gate Red/Black/White

Active Matrix EPD Display Driver with Controller
Interface
            SPI

picture_as_pdf Datasheets
picture_as_pdfCFAP122250A0-0213 Datasheet

download Files and Downloads
folder_zip Software Source - 3.3v Seeeduino / Arduino Demonstration Code
picture_as_pdf Hardware Design - CFA10084 Schematic
folder_zip Hardware Design - CFAP122250A0-0213 3D Models

Compatible Software
Bitmap to ePaper Converter

Module Overall	width	height	depth
millimeters	29.2	59.2	1.05
inches	1.15	2.33	0.04
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	23.71	48.55
inches	0.93	1.91

Dot Size	Width	Height
millimeters	0.194	0.194
inches	0.0076	0.0076

Dot Pitch	Width	Height
millimeters	0.194	0.194
inches	0.0076	0.0076

Flexible Cable (FFC/FPC)	length
millimeters	14.3
inches	0.563

Operating Temperatures	min	max
Celsius	0°	40°
Fahrenheit	32°	104°

Storage Temperatures	min	max
Celsius	-10°	50°
Fahrenheit	14°	122°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Resources
Notices

Additional Options

Purchase an ePaper development kit and get your project up and running quickly.

Additional Resources

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11082: End-of-life notice with upcoming replacement

Products Affected:	CFAP122250A0-0213, CFAP122250A0-E2-2, CFAP122250A0-E2-1
Date Issued:	April 6, 2021
Summary:	End-of-life notice with upcoming replacement
Description:	The controller that is used on this display is going end-of-life and is being replaced by a new controller. There will be a new part that is released, the CFAP122250A2-0213. The new display may require slight code and hardware changes depending on the application. For further questions, please contact support@crystalfontz.com.
Reason:	New technologies have caused the old version to go end-of-life.
Availability:	Available immediately.

Product Update #10832: (New Product) CFAP122250A0-0213 122x250 ePaper Display Module

New Product:	CFAP122250A0-0213
Date Issued:	February 2, 2017
Summary:	(New Product) CFAP122250A0-0213 122x250 ePaper Display Module
Description:	ePaper: This small monochrome ePaper has a 122x250 resolution in a 2.13” diagonal display with about 130 pixels per inch. Your image holds indefinitely without power. Simply put up your image, then shut down the power and your image stays. This ePaper is perfect for devices with small batteries or those powered by solar. Black and white monochrome is super easy to read. This ePaper module can do full or partial display updates. See the link to the video on the product page which shows this display connected to a Seeduino using partial updates as well as full updates. Versatile. Use in portrait or landscape format. Sample code and datasheet are under the Datasheets & Files tab on our site.
