122x250 2.13" ePaper Display Module

Part Number: CFAP122250A2-0213

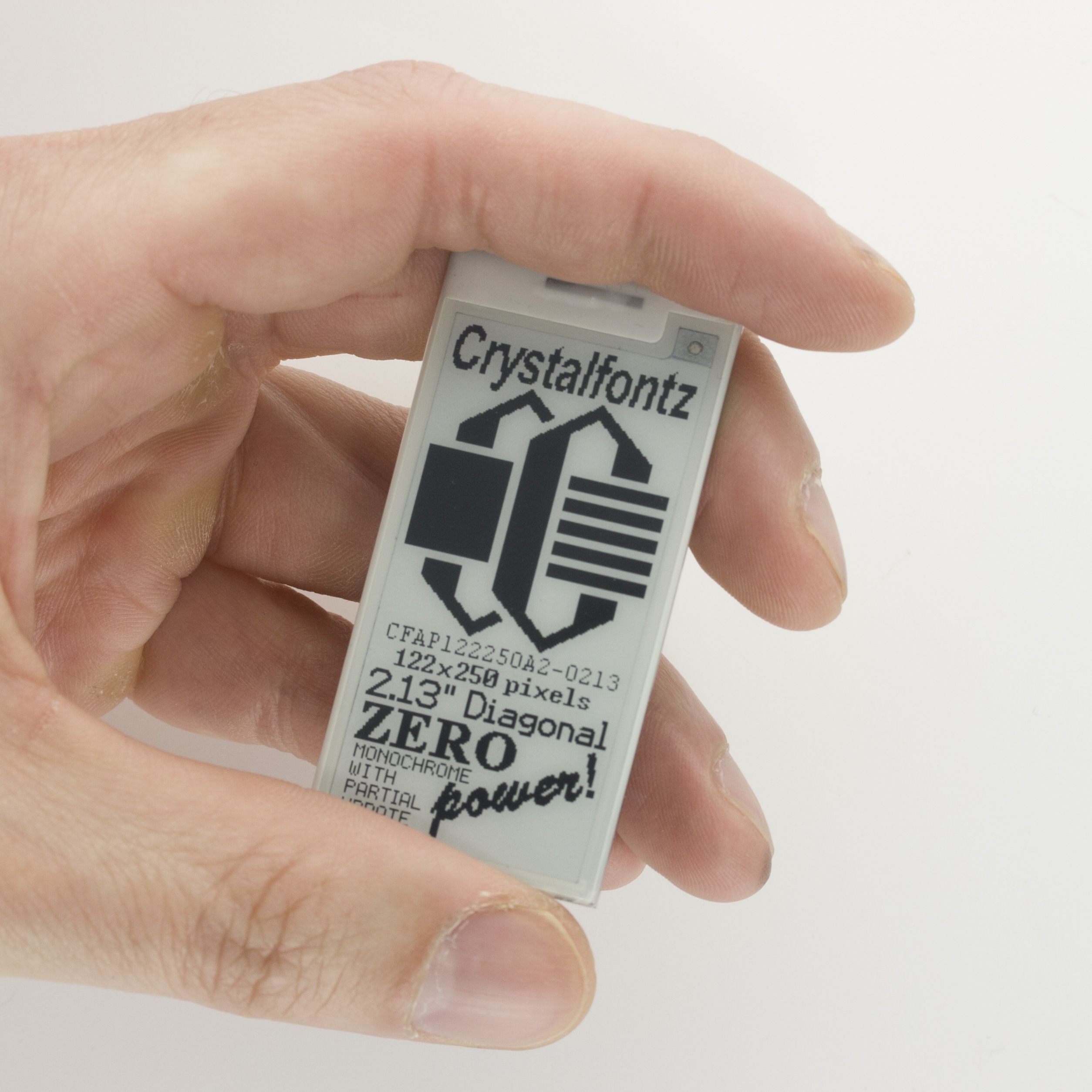

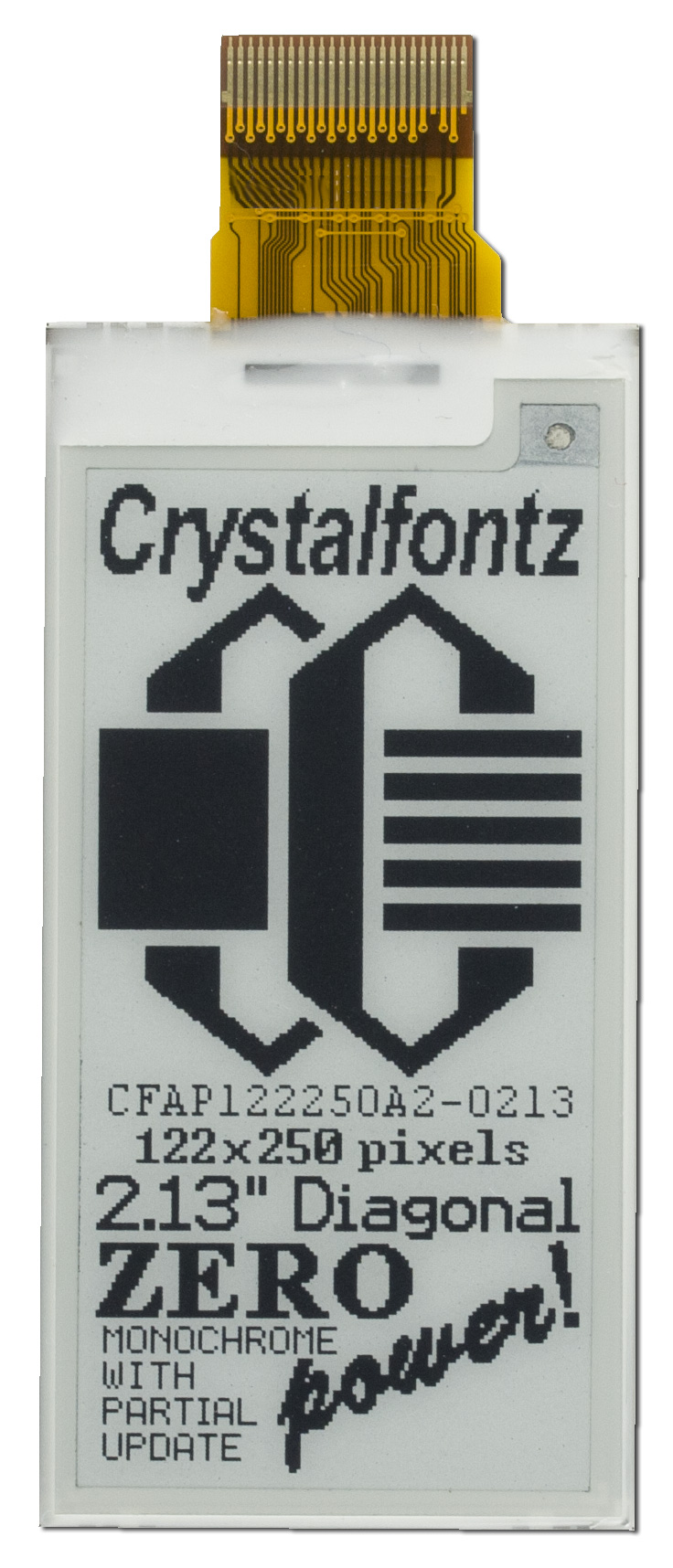

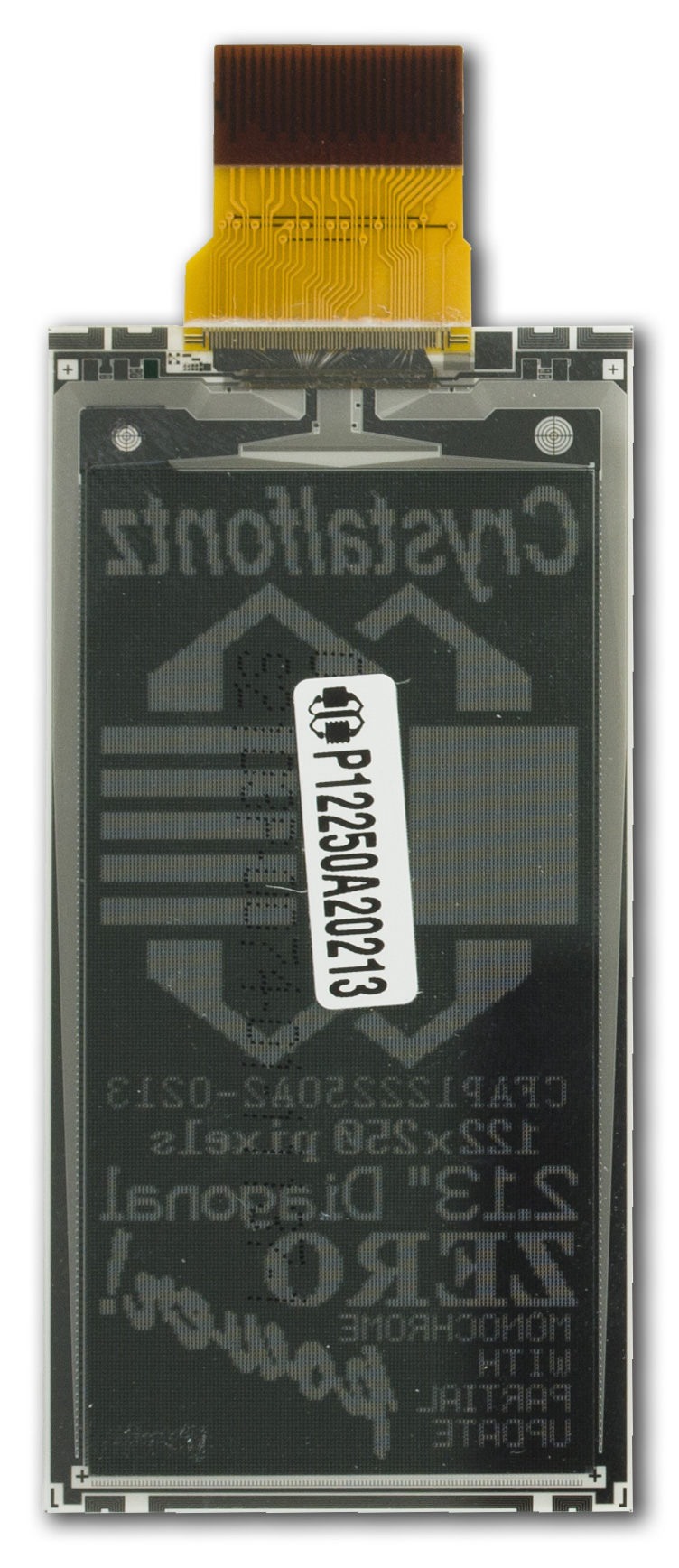

At 2.13" diagonal and 122x250 resolution, this ePaper display supports detailed images. One huge benefit of ePaper displays is that they are bi-stable- which means once an image is set on the display does not require any power to hold it there.

This ePaper is black and white monochrome and supports partial updates in addition to full display updates. That makes it a great choice for showing data where one part updates more quickly than others. Keep in mind that an update takes around 3 seconds.

Because ePaper displays hold images without using power, they are great choices for solar or battery-powered projects. If the refresh time on an ePaper makes it unsuitable, check out this list of low-power displays.
  • Black and white monochrome
  • Bistable (Will continue to display with no power source)
  • Full or partial refresh
  • Low Power
Sample code and datasheet can be found in the Datasheets & Files section. The sample sketch is written for a Seeeduino which is a 3.3v version of the popular Arduino Uno hardware. A development kit for this display is available and includes the Seeeduino and adapter board.

Use our free ePaper software to prepare bitmaps for this display.

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

This display replaces the CFAP122250A0-0213. It is physically similar but requires different initialization code.

Qty:
Quantity Price
1 $12.51
5 $10.98
10 $10.70
20 $10.34
50 $9.97
100 $9.83
200 * $9.75
300 * $9.68
500 * $9.61
1000 * $8.74
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4518 ePaper Adapter Board
Speed up development $11.68 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP122250A2-0213 or RSS RSS feed for changes to CFAP122250A2-0213 for CFAP122250A2-0213

Video Demonstrations

See this ePaper in action.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 122 x 250
Module Overall width height depth
millimeters 29.2 59.2 1
inches 1.150 2.331 0.039
*width / height does not include Foldable Tab
Diagonal Dimension 2.13"
Viewing Area width height
millimeters 23.7 48.55
inches 0.933 1.911
Active Area width height
millimeters 23.7 48.55
inches 0.933 1.911
Dot Pitch width height
millimeters 0.194 0.194
inches 0.0076 0.0076
Optional Connectors CS050Z24GA0
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 3.2g
Pin Count 24

Optical Characteristics

Sunlight Readable Yes
Foreground Color Black
Background Color White

Electrical Specifications

Supply Voltage for Logic Minimum 2.2V
Supply Voltage for Logic Maximum 3.7V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Typical 3mA

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°
Humidity min max
Non-condensing 55% 65%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes
Full Screen Update Time 3s

Additional Options

Purchase this ePaper with an Adapter board or a complete development kit to speed up prototyping

122x250 ePaper Development Kit
Part Number: CFAP122250A2-E2-2

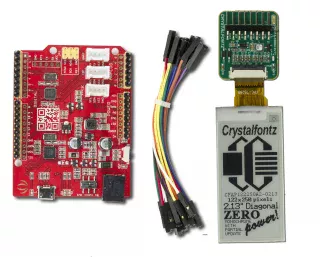

This development kit includes everything needed to begin working with a 2.13-inch black and white ePaper. Quickly demonstrate the ePaper display, get a jump start on development, or dive into tinkering. This kit includes the display, an ePaper adapter board, a Seeeduino loaded with demo code, and all the cables, jumpers wires, and headers needed to work with this display.

Contents:

  • 2.13 inch black and white ePaper
  • ePaper adapter board
  • Seeeduino
  • Necessary jumper wires, headers, cable


Details
Quantity 1
Price $52.08
Quantity:
2.13" ePaper with Adapter Board
Part Number: CFAP122250A2-E2

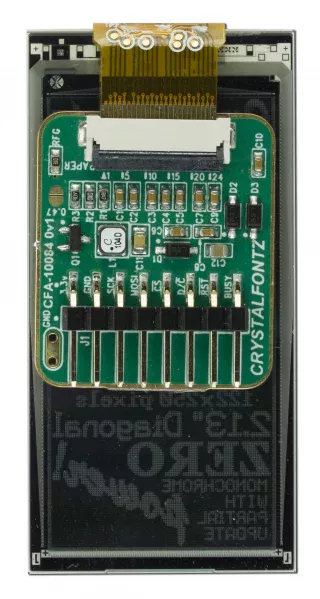

This display module includes a 2.13-inch black and white ePaper display and an ePaper Adapter Board. This module can be used to quickly and easily begin developing with the display or can be designed in to simplify the overall design.

The adapter board includes a 0.1" spaced header that works perfectly with our jumper wires.

EPaper displays are a great choice for applications that require rare updates, but long-term display of information. Think, shelf labels, name tags, daily calendar, and so on.

Details
Quantity 1 5 10 20 50 100 200 * 300 * 500 * 1000 *
Price $24.05 $21.10 $20.55 $19.86 $19.16 $18.88 $18.75 $18.61 $18.47 $16.80
Quantity:

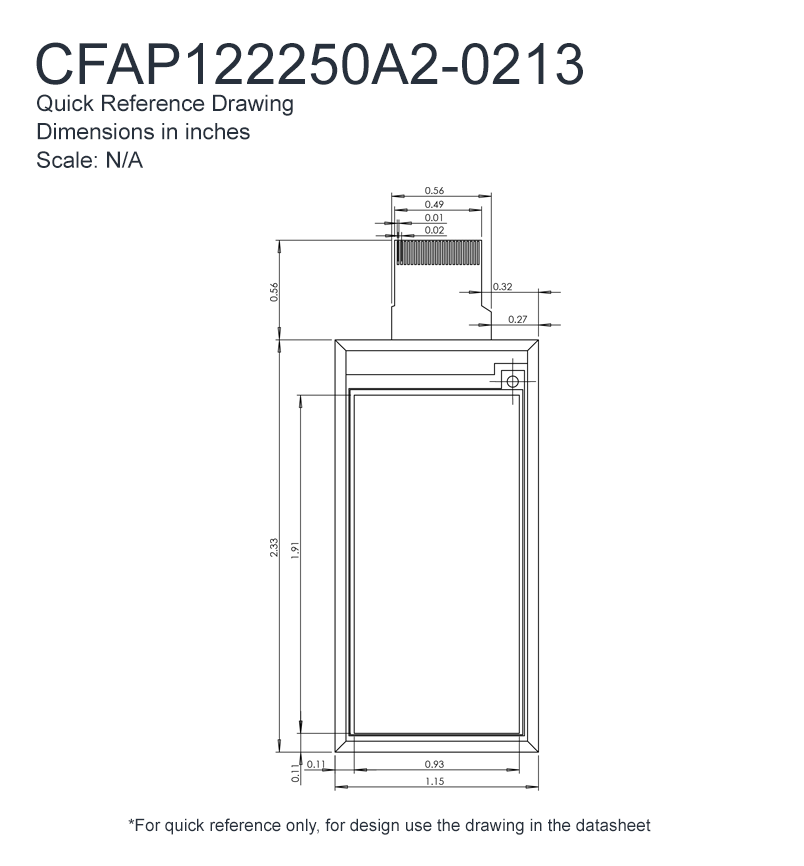

For reference only. For design purposes, please use the specifications in the datasheet.
