This product has reached end of life. We recommend this 128x296 ePaper Display as a possible replacement.

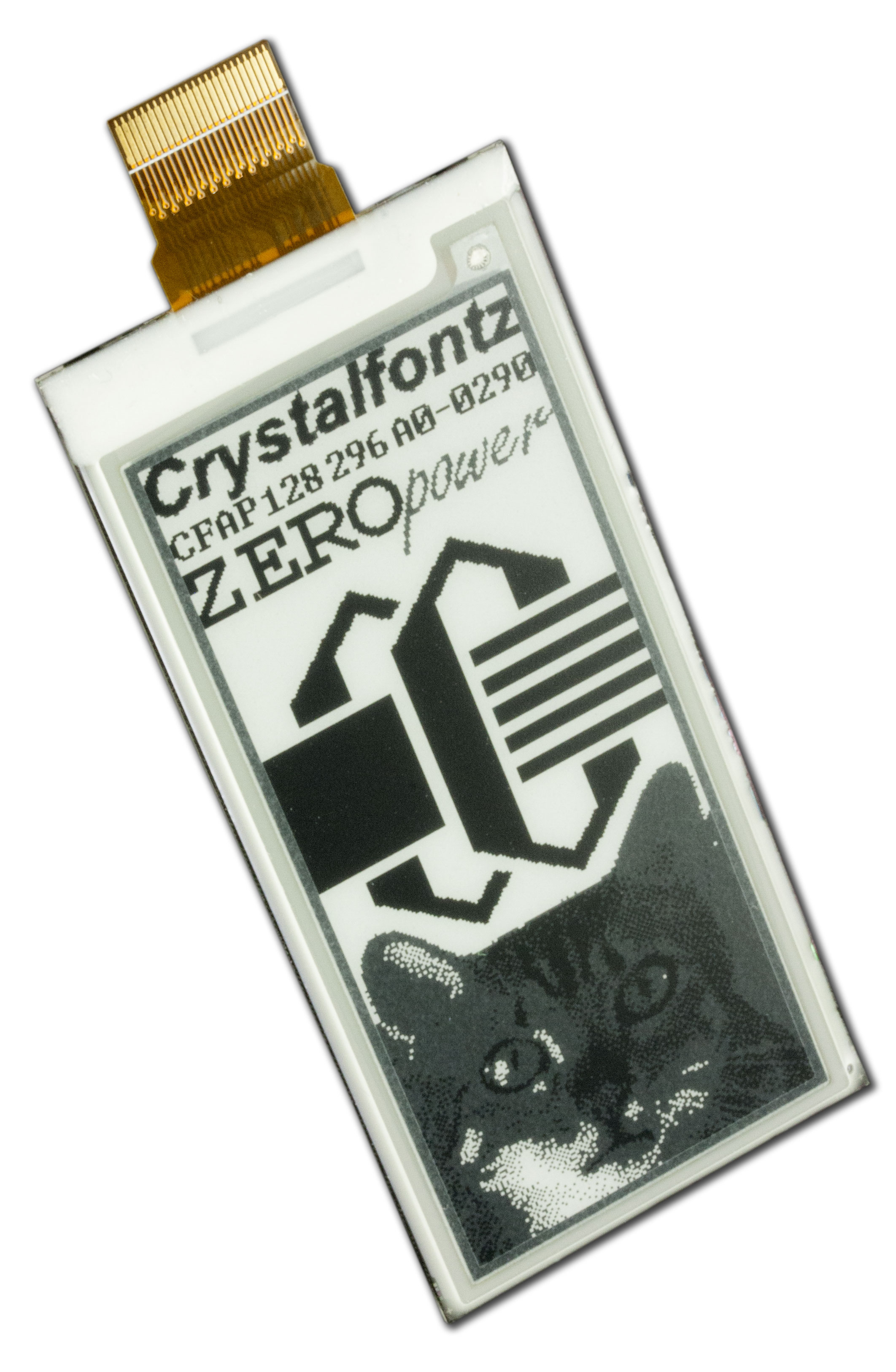

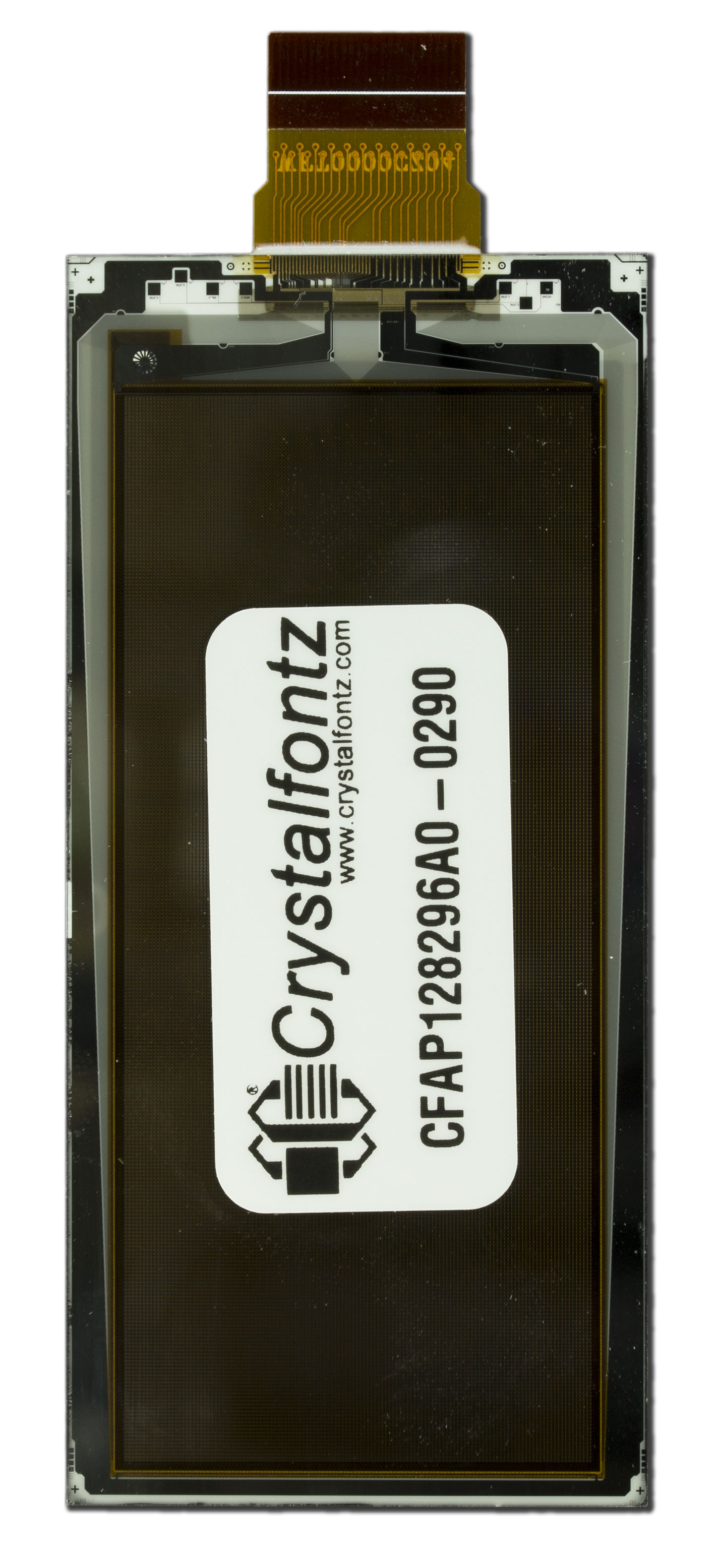

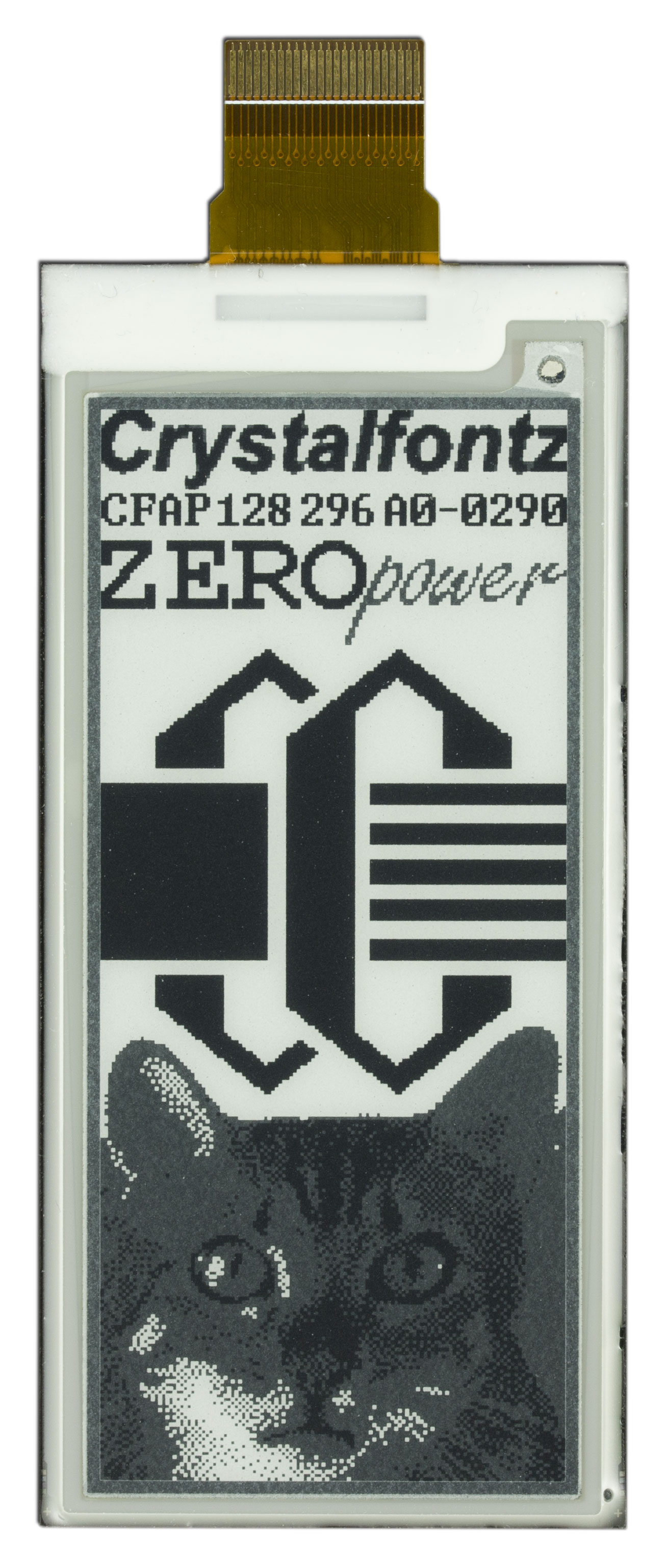

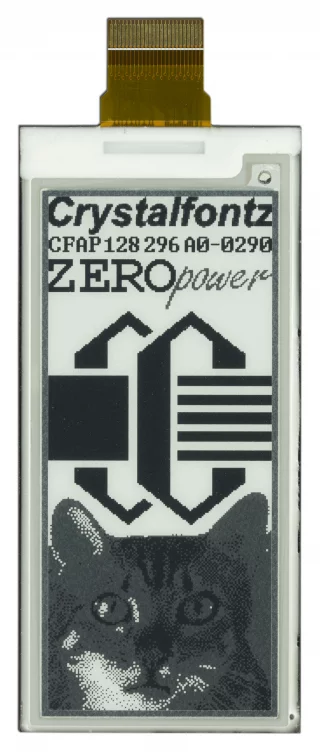

ePaper Display - 2.9", 3-Level Grayscale

Part Number: CFAP128296A0-0290

This super low-power 2.9" 128x296 ePaper (EDP) graphic display module is an excellent choice where low power and high readability are key. Once an image is written to the display, no additional power is needed until you want to show a new image. This 3-level grayscale + red would be a perfect solution for product info and pricing.

Built-in voltage generation requires a few external components. Ultra thin with a depth of 1.18 and weight of only 7.35 grams, epaper has an obvious advantage over other display technologies for small handheld battery operated devices, such as devices powered by a small solar cell. Epaper displays are rapidly growing in popularity for store shelf labels and can be scanned by barcode readers.

  • The display can be read at the same angles as ink or paper.
  • Supports 4 wire SPI for communications
  • High contrast, sunlight readable display reflects ambient light.
  • Static image requires no power once displayed.
  • Long lifetime: ~5 years / ~1M updates.

Use our sample code on the Datasheets & Files tab to display your own images. Our open-source demonstration code runs directly on a low cost Seeeduino v4.2 (3.3v Arduino clone) .

TECHNICAL SPECS

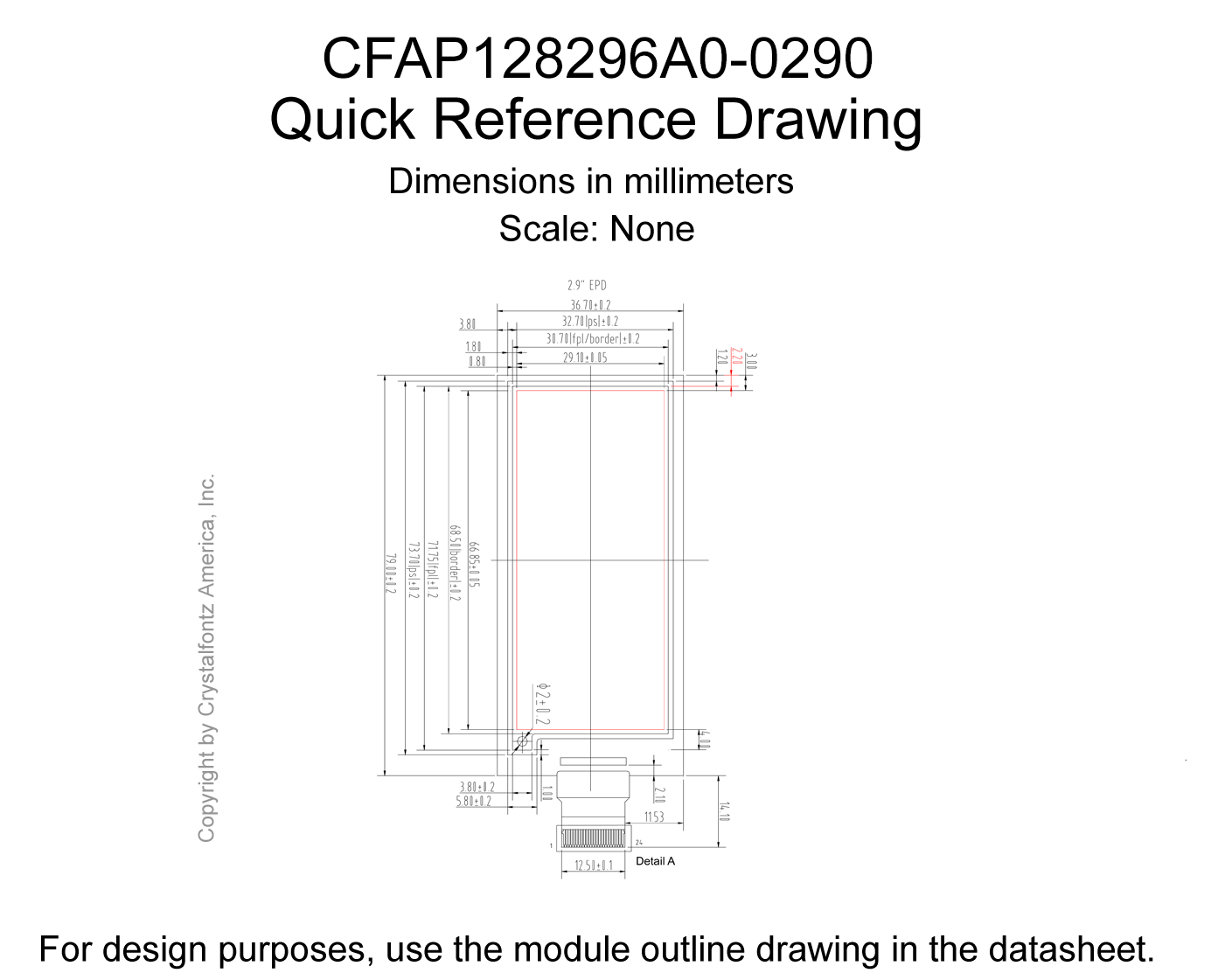

Physical Characteristics

Column Dots x Row Dots 128 x 296
Module Overall width height depth
millimeters 36.7 79 1.18
inches 1.445 3.110 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 2.87"
Active Area width height
millimeters 29.06 66.85
inches 1.144 2.632
Dot Size width height
millimeters 0.227 0.226
inches 0.0089 0.0089
Dot Pitch width height
millimeters 0.227 0.226
inches 0.0089 0.0089
Optional Connectors CS050Z24GA0
Weight 7.35g

Optical Characteristics

Glass Type e ink
Polarizer Reflective
Sunlight Readable Yes
Foreground Color 3-level grayscale
Background Color white

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 40°
Fahrenheit 32° 104°
Storage Temperatures min max
Celsius -25° 60°
Fahrenheit -13° 140°
Humidity min max
Non-condensing 0% 90%

Electronics

Interface SPI

Miscellaneous

Foldable Tab Yes

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP128296A0-0290 or RSS RSS feed for changes to CFAP128296A0-0290

Product Update #10706: (New Product) CFAP128296A0-0290

New Product: CFAP128296A0-0290
Date Issued: June 24, 2016
Summary: (New Product) CFAP128296A0-0290
Description: ePaper: ePaper 2.9" Graphic Display, 128x296, 3-Level Grayscale
For reference only. For design purposes, please use the specifications in the datasheet.
