2.9 Inch ePaper Display

Part Number: CFAP128296C0-0290

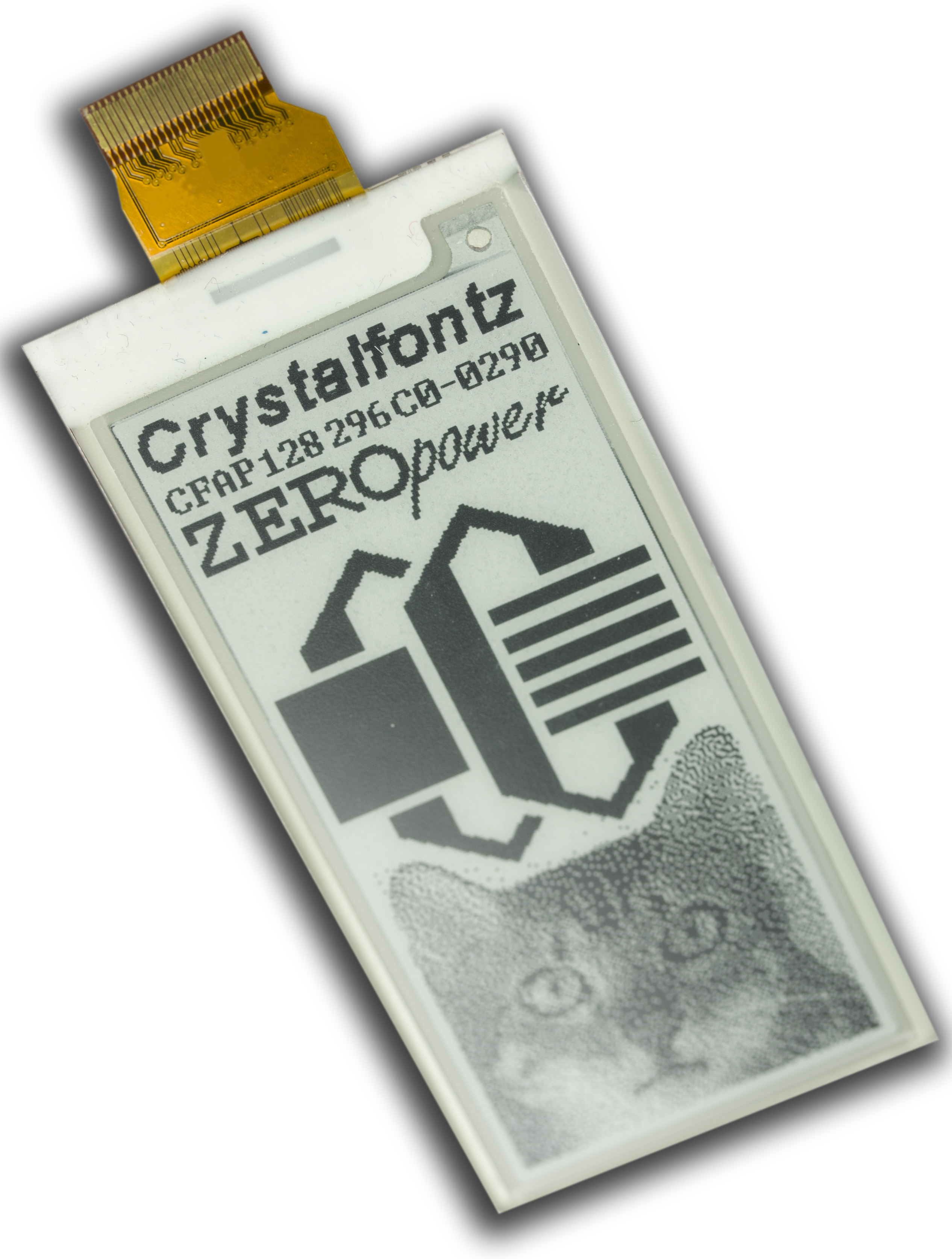

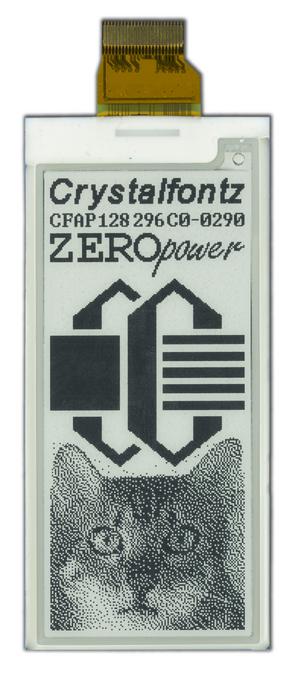

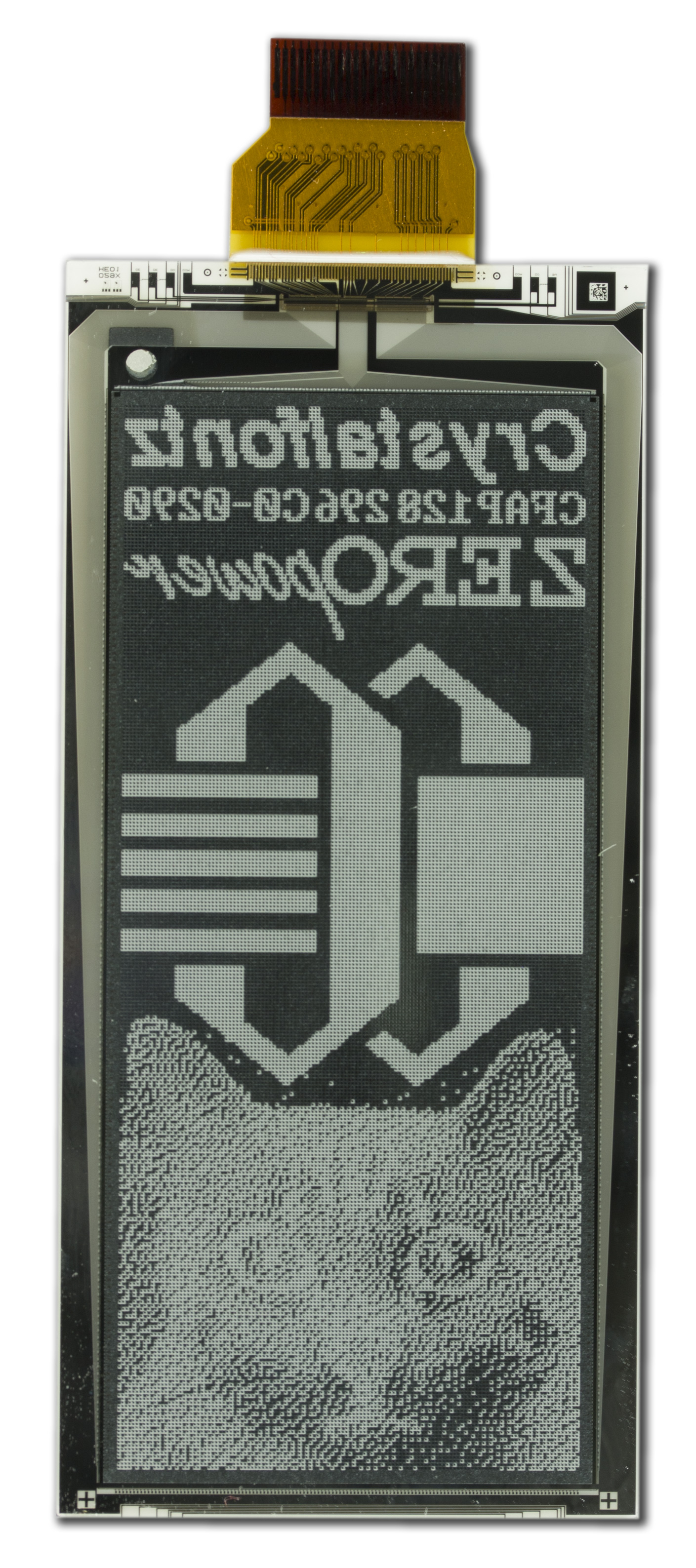

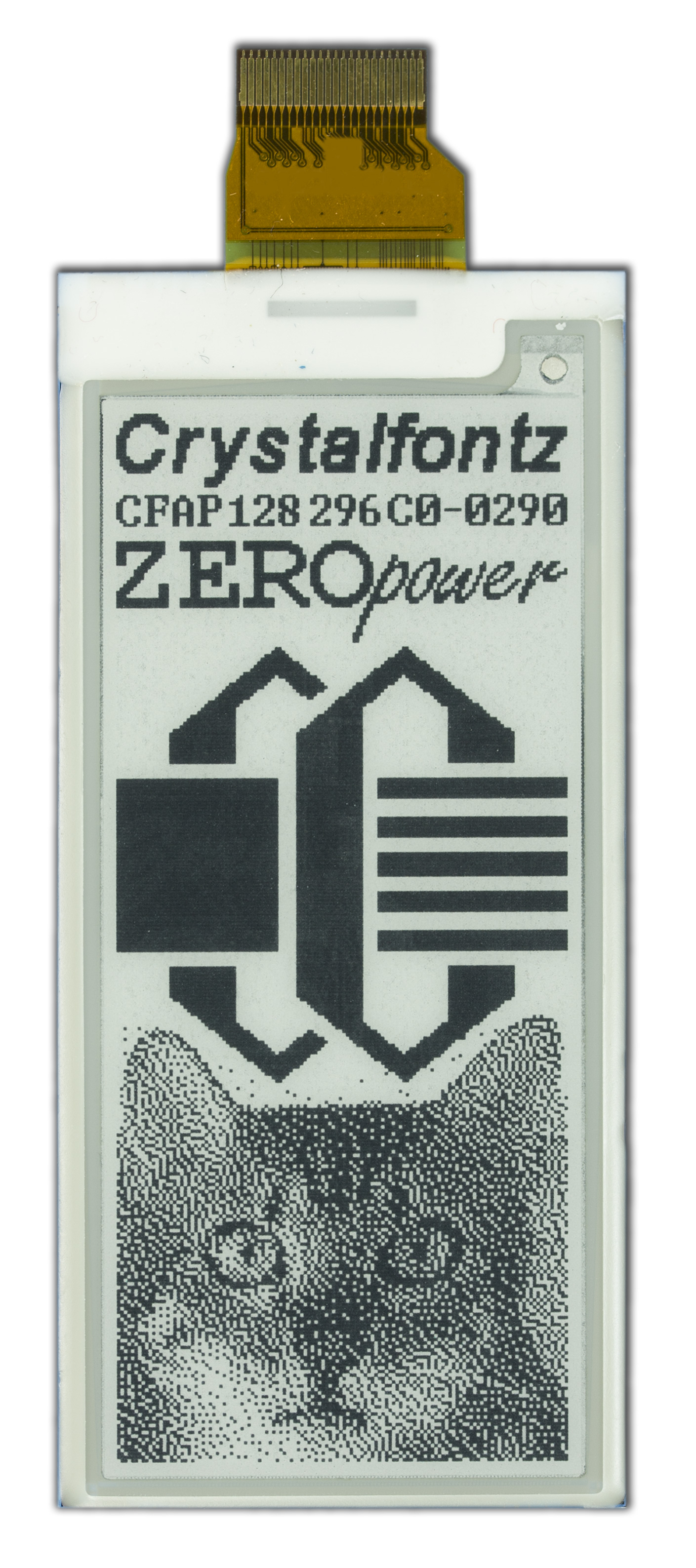

This is an electrophoretic display (ePaper/E-Ink), with interface and a reference system design. The 2.9" active area contains 296x128 pixels and has 1-bit white/black full display capabilities.

Some of the benefits of this display include high readability and contrast (like paper), as well as super low power consumption. The only time you need to provide power to this ePaper module is while updating the display. Once the image is displayed you can remove the power source and the display will continue to display the image appropriately.

*This ePaper display supports partial updates

The integrated circuit on this ePaper display contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each display.

Features:
  • High contrast
  • High reflectance
  • Ultra wide viewing angle
  • Ultra low power consumption
  • Pure reflective mode
  • Bi-stable
  • Commercial temperature range
  • Landscape, portrait mode
  • Antiglare hard-coated front-surface
  • Low current deep sleep mode
  • On-chip display RAM
  • Waveform stored in On-chip OTP
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
  • I2C Signal Master Interface to read external temperature sensor
Use our free ePaper software to prepare your bitmap image for this display.

Adapter / Breakout Board

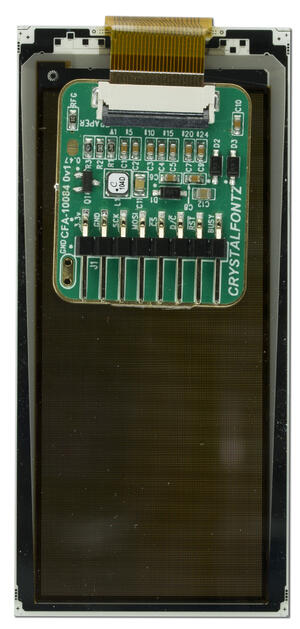

Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

Product Variants

Qty:
Quantity Price
1 $18.54
10 $15.54
20 $15.00
50 $14.44
100 $14.33
200 $14.23
500 * $14.11
1000 * $14.00
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4518 ePaper Adapter Board
Faster development $11.68 ea.
4626 24 Position, 0.5mm Pitch, Gold, FCC FPC ZIF Connector
Add 5 ZIF Connectors $0.97 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

CFAP128296C0-0290 Datasheet
(Datasheet V 2017-08-14)

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP128296C0-0290 or RSS RSS feed for changes to CFAP128296C0-0290 for CFAP128296C0-0290

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 128 x 296
Module Overall width height depth

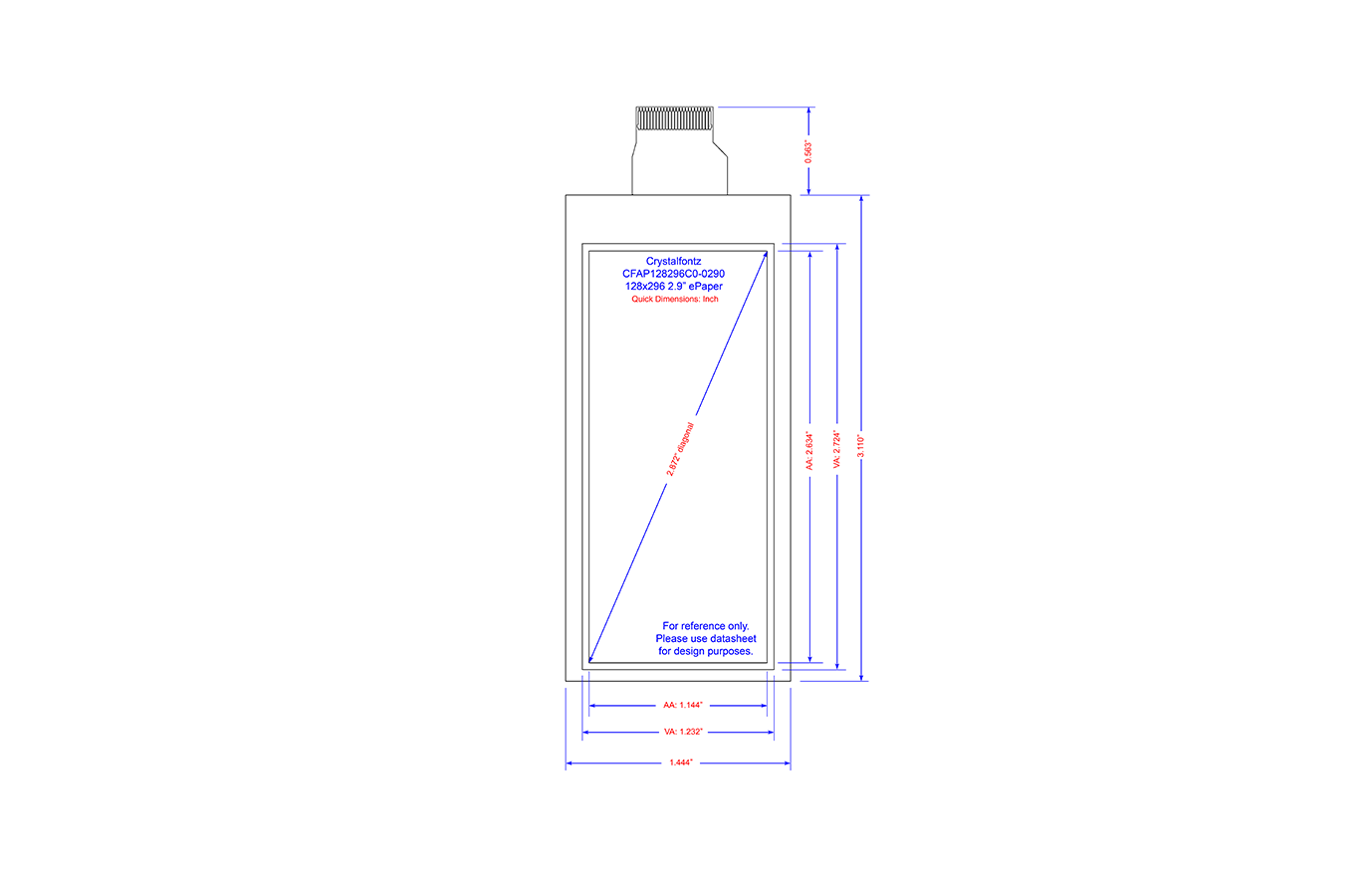

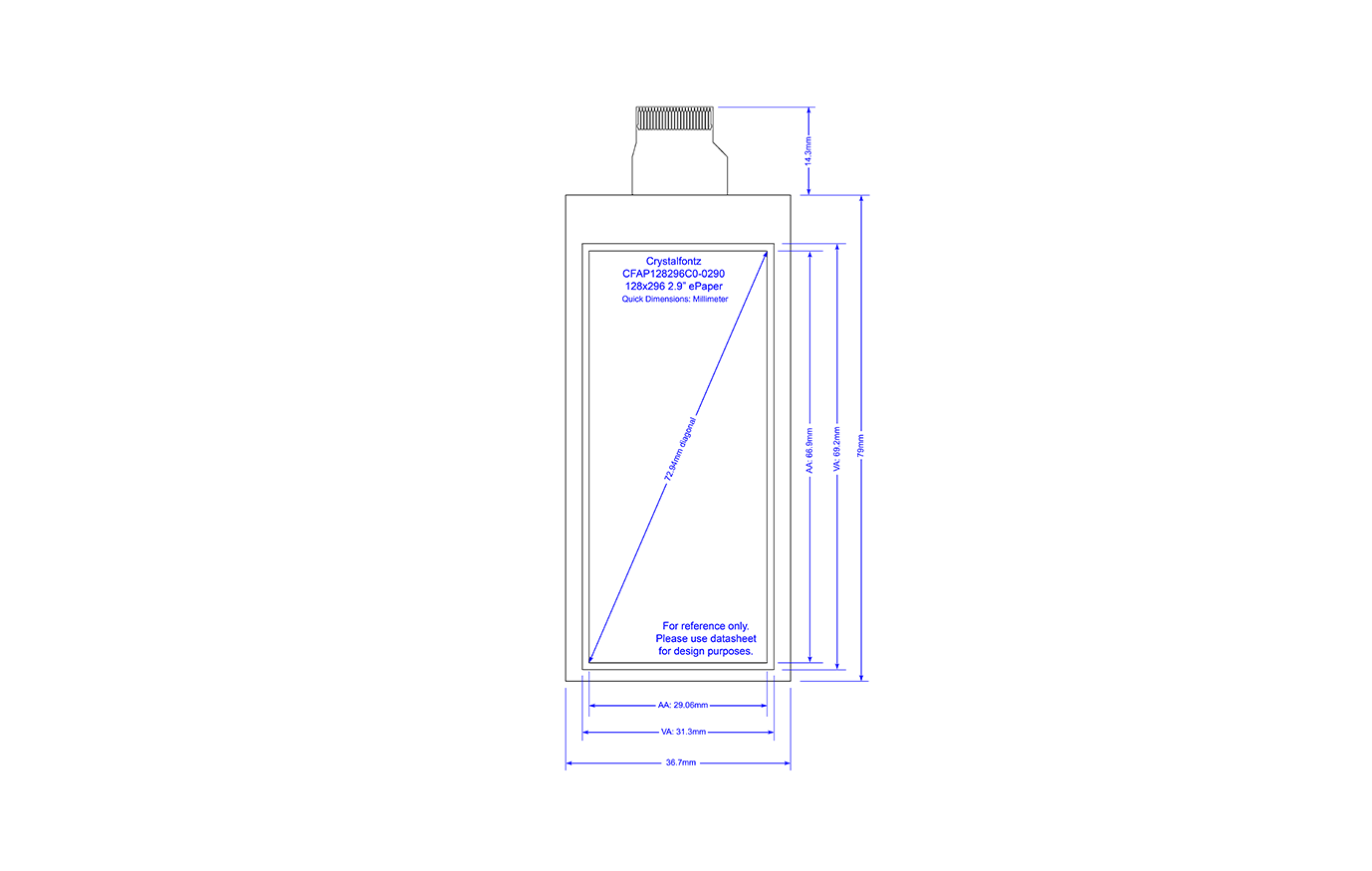

millimeters 36.7 79 1.18
inches 1.445 3.110 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 2.87"
Active Area width height
millimeters 29.06 66.9
inches 1.144 2.634
Dot Size width height
millimeters 0.194 0.0194
inches 0.0076 0.0008
Dot Pitch width height
millimeters 0.226 0.227
inches 0.0089 0.0089
Optional Connectors CS050Z24GA0
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 4g
Pin Count 24

Optical Characteristics

Glass Type e ink / ePaper
Sunlight Readable Yes
Foreground Color Black
Background Color White

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Current Typical 10mA
Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° 70°
Fahrenheit -13° 158°

Electronics

Interface SPI

Miscellaneous

Foldable Tab yes
Full Screen Update Time 3s
Time Between Updates 180s

Additional Options

Purchase an ePaper development kit to get your ePaper Arduino project up and running quickly.

128x296 ePaper Display with Adapter Board
Part Number: CFAP128296C0-E2-1

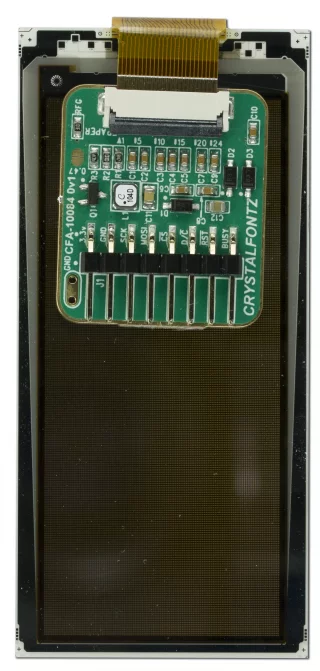

2.9" ePaper display mounted on our CFA10084 ePaper adapter board for a quick and easy integration with your favorite 3.3v Arduino based microcontroller.

*Wiring not included with this kit

Details
Quantity 1 10 20 50 100 200 500 * 1000 *
Price $29.36 $25.55 $25.32 $25.13 $24.93 $24.71 $24.52 $24.43
Quantity:
This is a bundle that consists of a 128x296 ePaper display, ePaper Adapter Board and a 3.3v Seeeduino (Arduino clone).

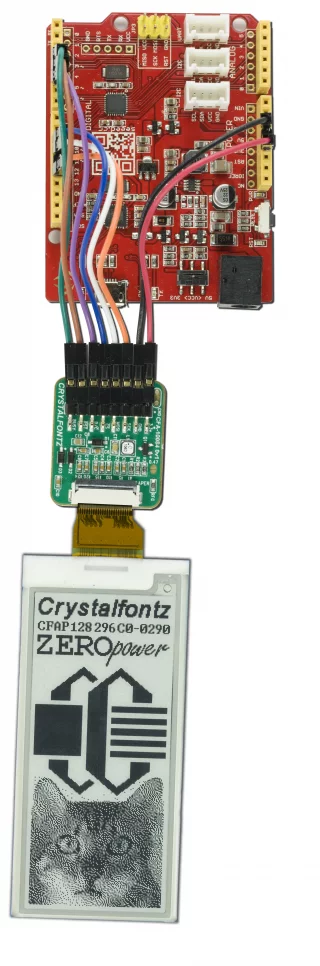

128x296 ePaper Display Development Kit
