2.9 inch 3-Color ePaper Module

Part Number: CFAP128296D0-0290

Pricing

Quantity Price
1 $15.92
10 $13.41
20 $12.93
50 $12.45
100 $12.36
200 $12.26
500 * $12.17
1000 * $11.63
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet



2.9 inch 3-Color ePaper Module (CFAP128296D0-0290)

Description

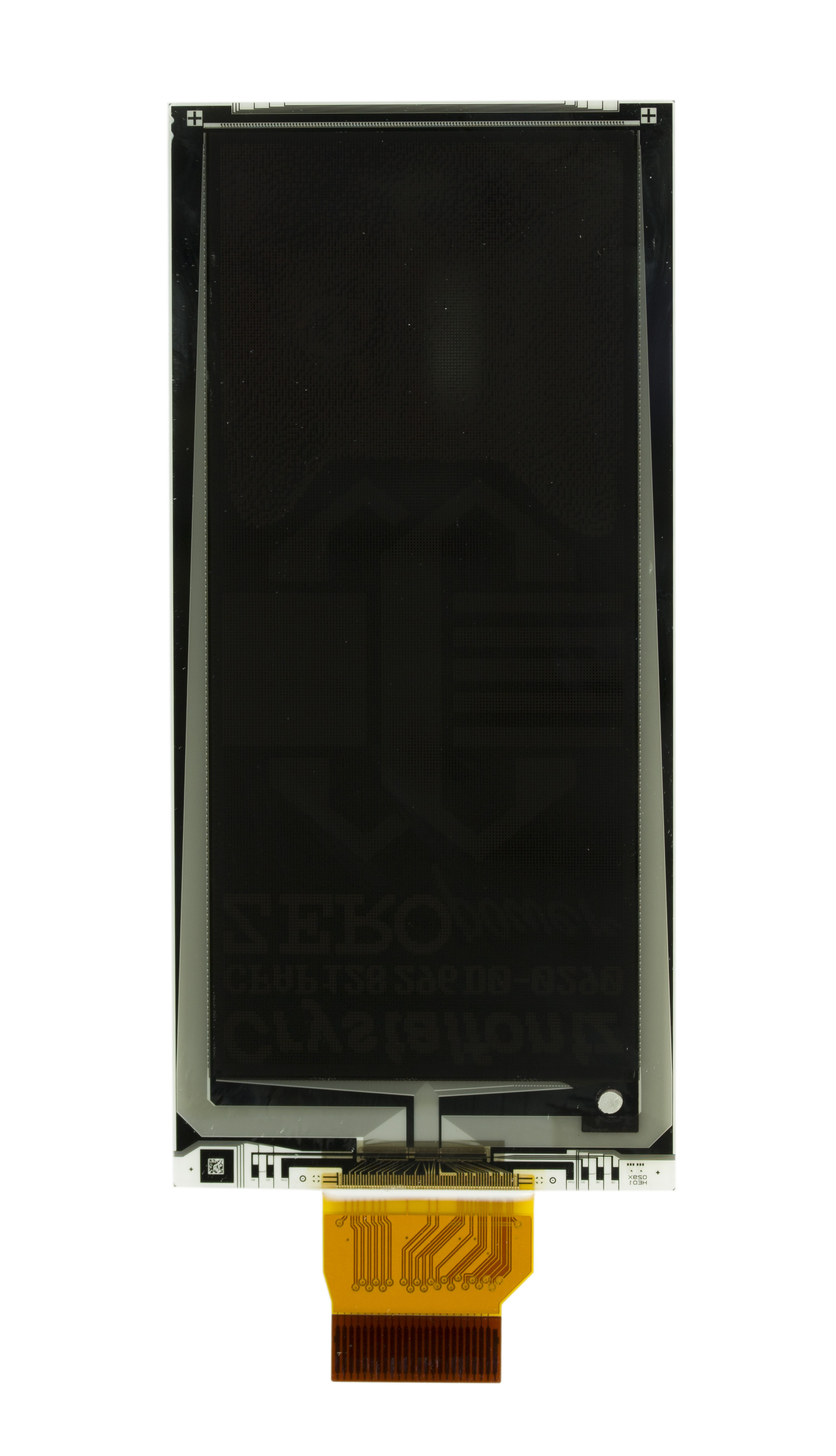

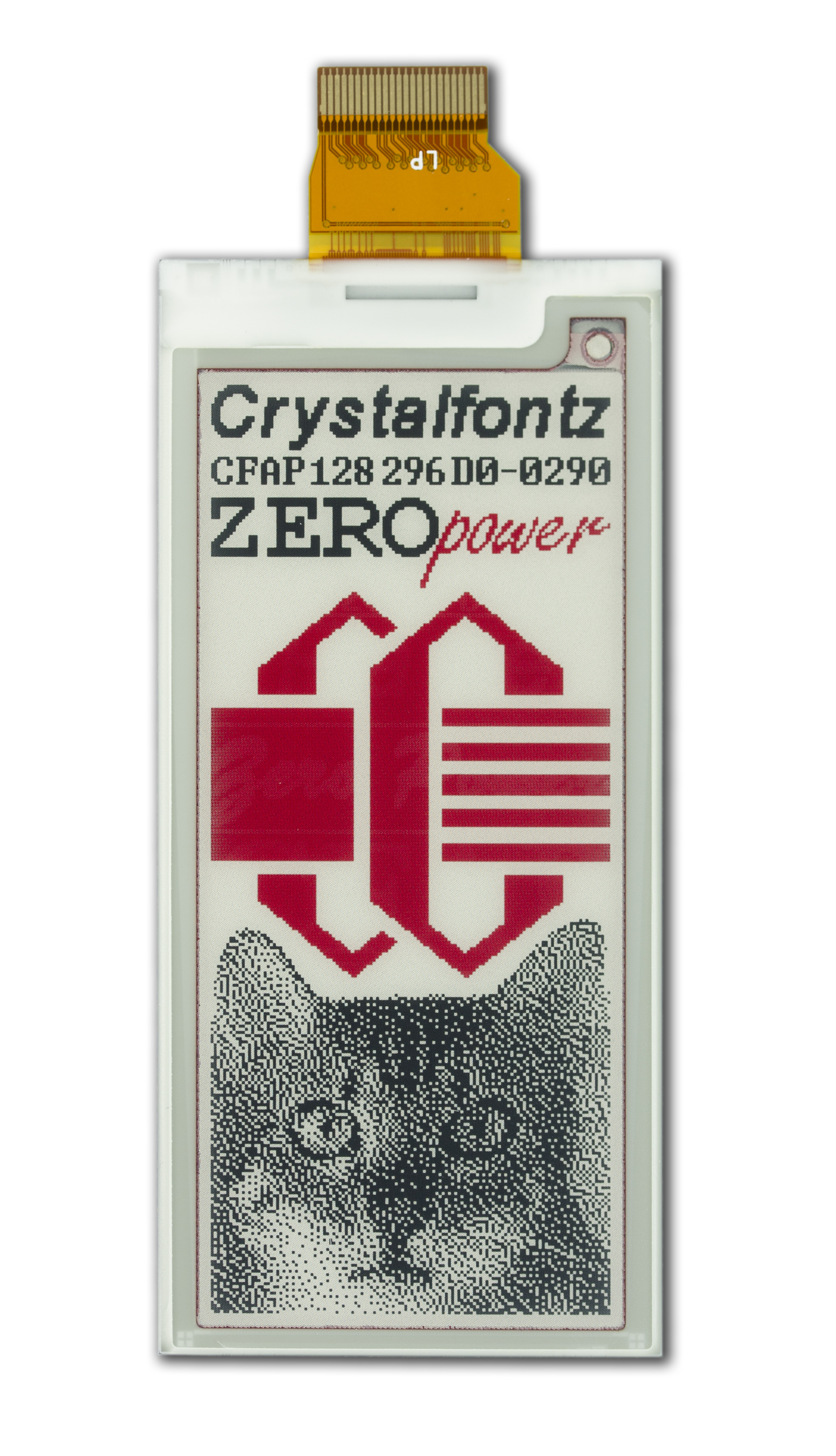

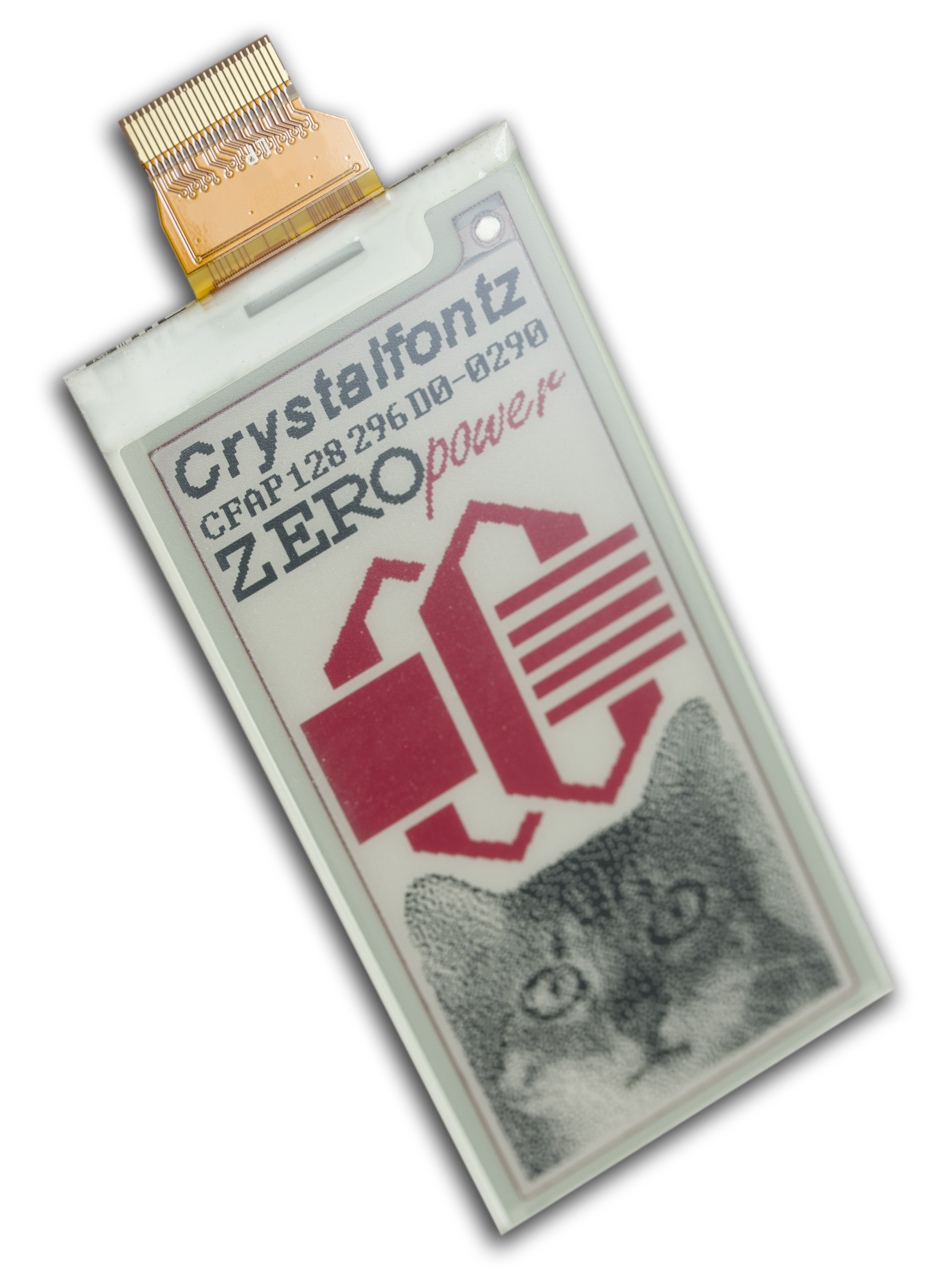

This display is an active matrix, electrophoretic (ePaper/E-Ink), TFT display with SPI interface. The 2.9" active area contains 296x128 (37,888) pixels and has 1-bit white/black and 1-bit red full display capabilities. Some of the benefits of this display module are that it's easily readable and has a high contrast (like paper). It also requires zero power to maintain an image on the display. Once you set the display image, you can remove power entirely and it will continue to display, which makes it a perfect option for a low power device.

The integrated circuit on this ePaper module contains a gate buffer, source buffer, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border with each panel.

Features:
  • High contrast
  • High reflectance
  • Ultra wide viewing angle
  • Ultra low power consumption (only needs power to update)
  • Pure reflective mode
  • Bi-stable
  • Commercial temperature range
  • Landscape, portrait mode
  • Antiglare hard-coated front-surface
  • Low current deep sleep mode
  • On-chip display RAM
  • Waveform stored in On-chip OTP
  • Serial peripheral interface available (SPI)
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
  • I2C Signal Master Interface to read external temperature sensor
The ZIF connector you need is a standard 24-position 0.5mm pitch. Here are some possible connectors:
Top Connector
Bottom Connector

Adapter / Breakout Board
Want to get this display up and running quickly with an Arduino or Seeeduino? We have this ePaper Adapter Board that makes connecting our ePaper simple and fast.

Video Demonstrations

Black/White/Red ePaper Refresh

ePaper and Arduino demonstration video showing it updating.

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

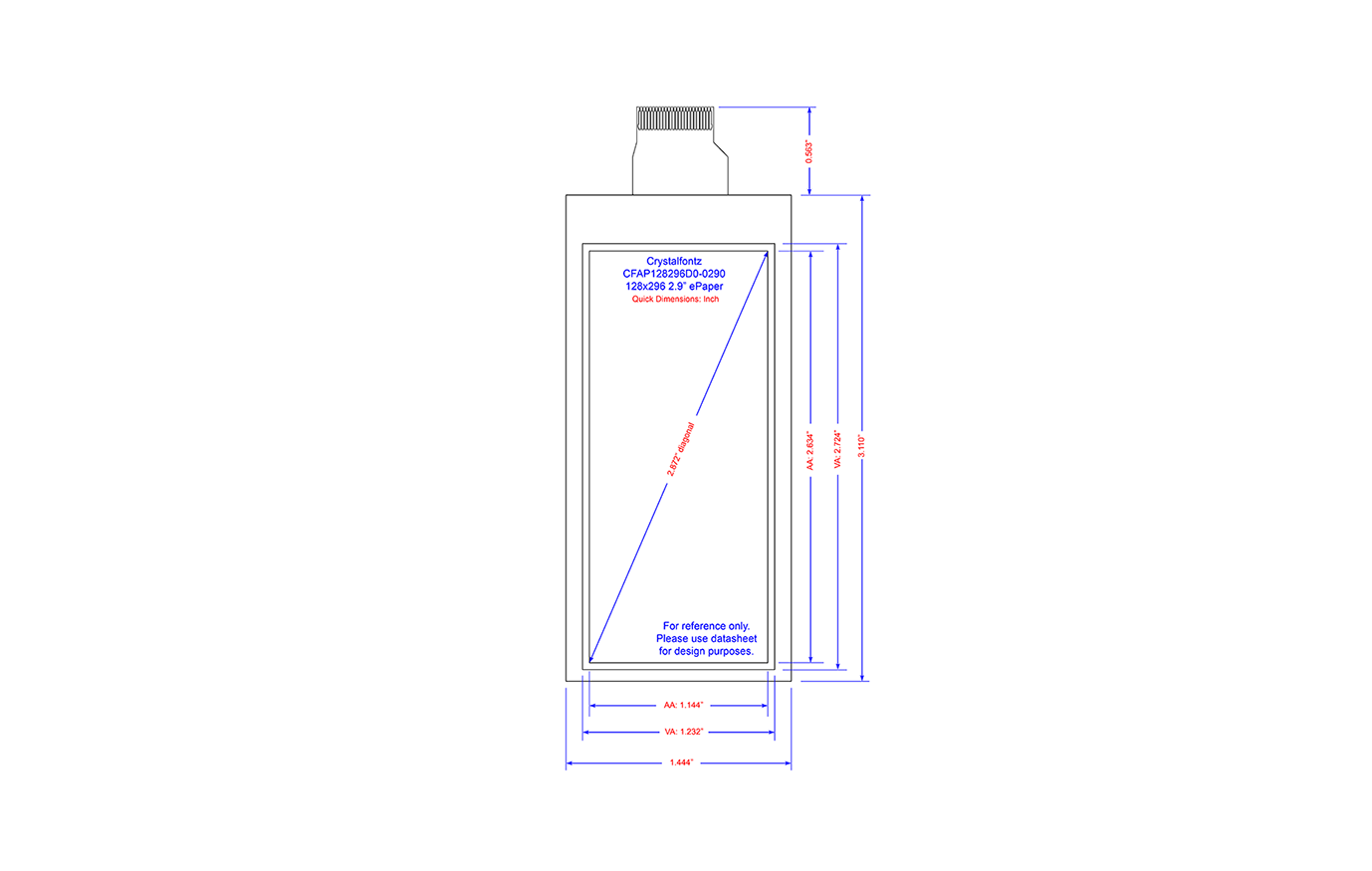

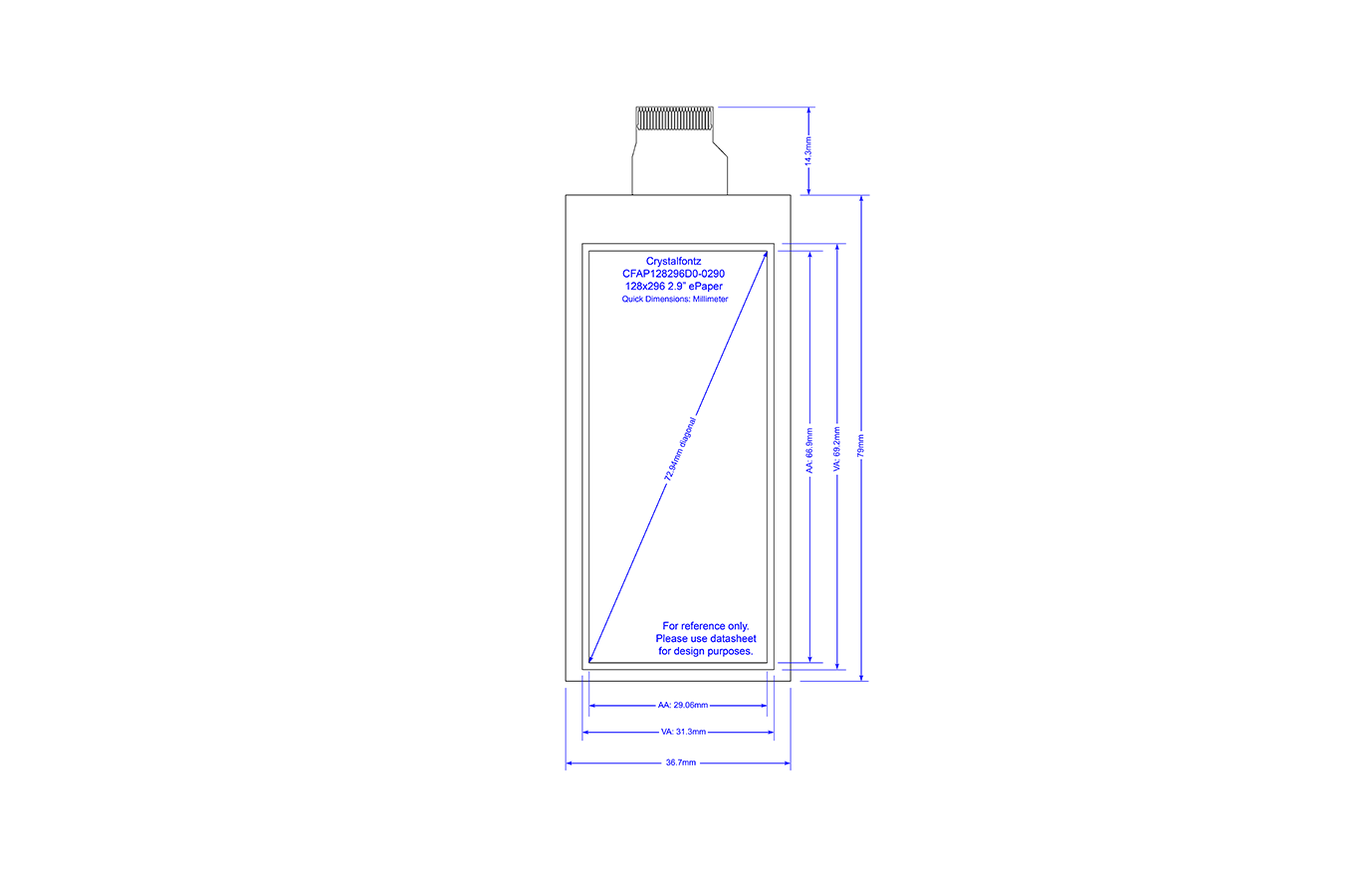

Physical Characteristics

Column Dots x Row Dots 128 x 296
Module Overall width height depth
millimeters 36.7 79 1.18
inches 1.445 3.110 0.046
*width / height does not include Foldable Tab
Diagonal Dimension 2.900"
Active Area width height
millimeters 29.06 66.9
inches 1.144 2.634
Dot Pitch width height
millimeters 0.227 0.226
inches 0.0089 0.0089
Flexible Cable (FFC/FPC) length
millimeters 14.3
inches 0.563
Weight 4g

Optical Characteristics

Glass Type ePaper/eInk
Sunlight Readable yes
Foreground Color Black / Red
Background Color White

Electrical Specifications

Supply Voltage for Logic Typical 3.3V
Supply Current Typical 10mA

Environmental

Operating Temperatures min max
Celsius 50°
Fahrenheit 32° 122°
Storage Temperatures min max
Celsius -25° -70°
Fahrenheit -13° -94°

Electronics

Interface SPI

Miscellaneous

Foldable Tab yes

*Suggest a Correction

Additional Options

Buy this ePaper display in an Arduino development kit to speed up your ePaper Arduino project.

3-Color ePaper Arduino Development Kit
Part Number: CFAP128296D0-E2-2

Buy everything you need to demonstrate this 3-Color ePaper display. This Arduino based development kit includes the ePaper display, epaper adapter board and an Arduino based controller board. This kit is preloaded with our demonstration sketch to demonstrate its functionality.

Details
Quantity 1
Price $46.00
Quantity:
128x296 ePaper Display with Adapter Board
Part Number: CFAP128296D0-E2-1

Buy this 128x296 3-color ePaper display with our ePaper adapter board for quick prototyping with an Arduino based controller. Simply wire it up to your Arduino and run our demonstration code.

Details
Quantity 1 10 20 50 100 200 500 1000 *
Price $23.75 $20.65 $20.48 $20.32 $20.15 $19.99 $19.82 $19.75
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAP128296D0-0290 or RSS RSS feed for changes to CFAP128296D0-0290

Product Update #10840: (New Product) CFAP128296D0-0290

New Product: CFAP128296D0-0290
Date Issued: February 14, 2017
Summary: (New Product) CFAP128296D0-0290
Description: This display is a TFT active matrix electrophoretic display (ePaper/E-Ink), with interface and a reference system design. The 2.9 active area contains 296x128 pixels, and has 1-bit white/black and 1-bit red full display capabilities.

Some of the benefits of this display module are that it's easily readable and has a high contrast (like paper). It also requires zero power to maintain an image on the display. Once you set the display image, you can remove power entirely and it will continue to display, which makes it a perfect option for a low power device.

The integrated circuit for this ePaper module contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM, and border are supplied with each panel.

Features:

High contrast
High reflectance
Ultra wide viewing angle
Ultra low power consumption (only needs power to update)
Pure reflective mode
Bi-stable
Commercial temperature range
Landscape, portrait mode
Antiglare hard-coated front-surface
Low current deep sleep mode
On-chip display RAM
Waveform stored in On-chip OTP
Serial peripheral interface available (SPI)
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate and source driving voltage
I2C Signal Master Interface to read external temperature sensor
For reference only. For design purposes, please use the specifications in the datasheet.
