CFAP1602AYJCS

Part Number: CFAP1602A-YJC-S

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAP1602A-YJC-S or RSS RSS feed for changes to CFAP1602A-YJC-S for CFAP1602A-YJC-S

CFAP1602AYJCS (CFAP1602A-YJC-S)
CFAP1602AYJCS
Close

Description

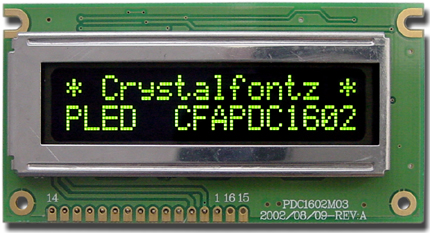

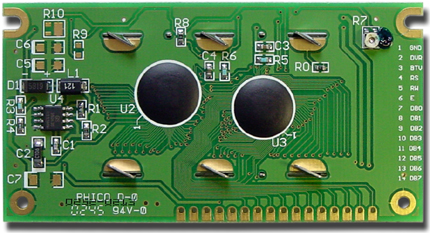

16x2 PLED Module, Yellow-Green PLED display

  • PLED (Polymer Organic Light Emitting Diode) / OLED (Organic LED) Display Module
  • Ideal for LCD module or VFD replacement applications
  • Very wide viewing angles -- approaches 180 degrees in all directions
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
  • RoHS Compliant

TECHNICAL SPECS

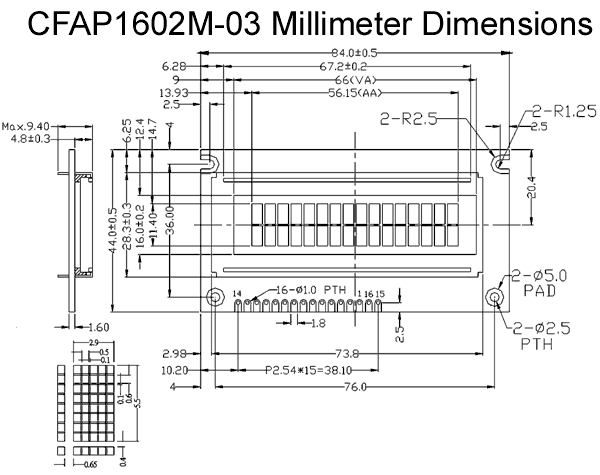

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height
millimeters 84 44
inches 3.307 1.732
PCB Outline width height
millimeters 84 44
inches 3.307 1.732
Viewing Area width height
millimeters 66 16
inches 2.598 0.630
Active Area width height
millimeters 56.15 11.4
inches 2.211 0.449
Character Size height
millimeters 5.5
inches 0.217

Optical Characteristics

Glass Type PLED
View Direction 6 o'clock
Backlight Color Yellow-Green
Backlight Type LED

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Hitachi HD44780
HD44780U (LCD-II)
(Dot Matrix Liquid Crystal Display Controller/Driver)
Hitachi HD44780
1985: HD44780 Historical Data Sheet
Interface 4-bit Parallel, 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.
