128x64 Parallel Graphic LCD

Part Number: CFAX12864CP1-WGH



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAX12864CP1-WGH or RSS RSS feed for changes to CFAX12864CP1-WGH for CFAX12864CP1-WGH


128x64  Parallel Graphic LCD (CFAX12864CP1-WGH)
128x64 Parallel Graphic LCD
Close
mounted to a demonstration PCB
mounted to a demonstration PCB
mounted to a demonstration PCB
Close

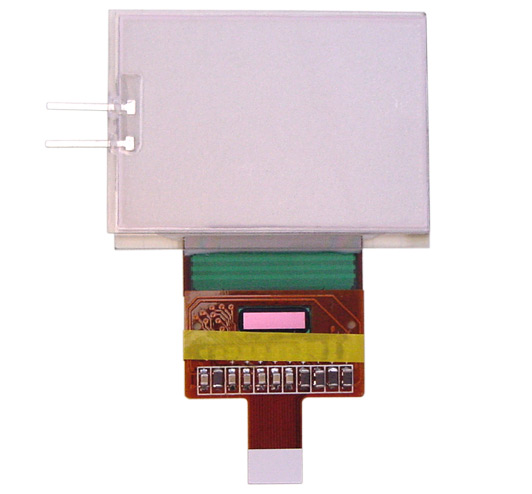

Here is an overall image of the back of the display.
Here is an overall image of the back of the display.
Here is an overall image of the back of the display.
Close

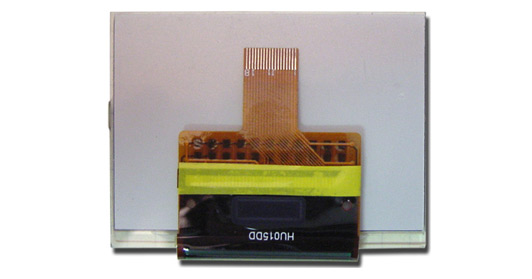

 The tail can be folded 180 degrees behind the display to reduce the footprint (CFAX12864CP1NGH shown).
 The tail can be folded 180 degrees behind the display to reduce the footprint (CFAX12864CP1NGH shown).
The tail can be folded 180 degrees behind the display to reduce the footprint (CFAX12864CP1NGH shown).
Close

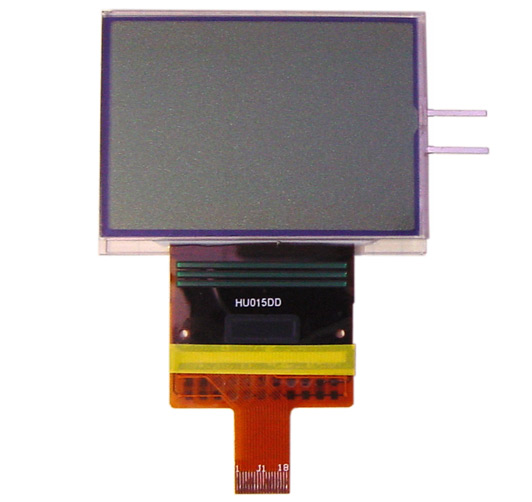

Here is an image of the front of the display in lit from the front -- reflective mode.
Here is an image of the front of the display in lit from the front -- reflective mode.
Here is an image of the front of the display in lit from the front -- "reflective mode".
Close

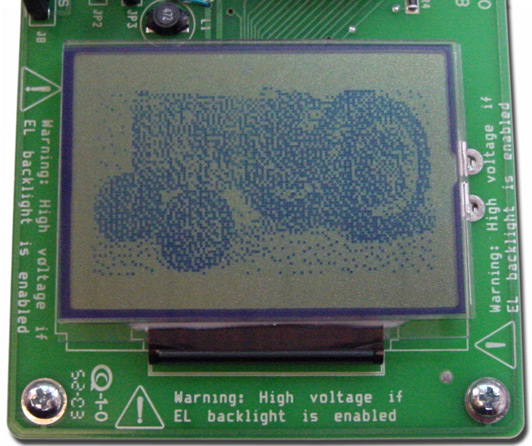

The pixels are small enough that a rudimentary gray scale may be achieved through dithering.
The pixels are small enough that a rudimentary gray scale may be achieved through dithering.
The pixels are small enough that a rudimentary "gray scale" may be achieved through dithering.
Close

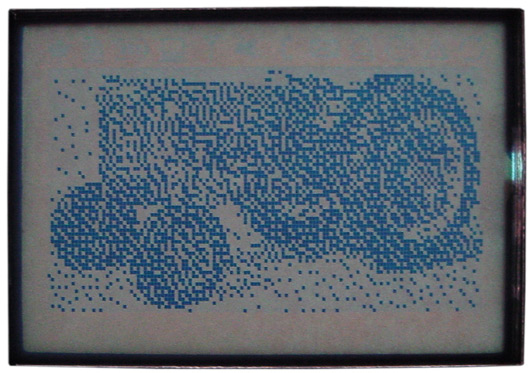

Here is the dithered image taken with the backlight on.
Here is the dithered image taken with the backlight on.
Here is the dithered image taken with the backlight on.
Close

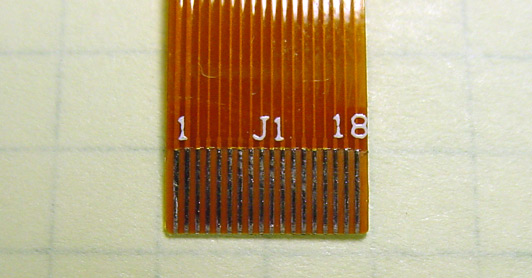

Here is a close-up of the front of the ZIF tail against standard 0.2 graph paper. The pitch of the conductors is 0.5mm.
Here is a close-up of the front of the ZIF tail against standard 0.2 graph paper. The pitch of the conductors is 0.5mm.
Here is a close-up of the front of the ZIF tail against standard 0.2" graph paper. The pitch of the conductors is 0.5mm.
Close

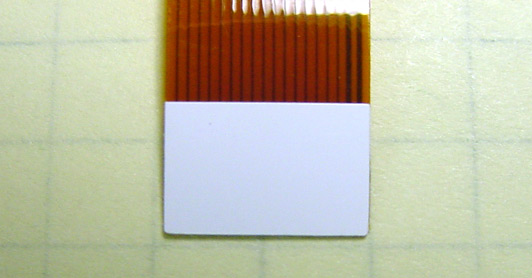

Here is a close-up of the back of the ZIF tail showing the stiffener. The tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connnectors (typical would be Omron XF2L-1835-1 / DigiKey P/N OR687CT).
Here is a close-up of the back of the ZIF tail showing the stiffener. The tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connnectors (typical would be Omron XF2L-1835-1 / DigiKey P/N OR687CT).
Here is a close-up of the back of the ZIF tail showing the stiffener. The tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connnectors (typical would be Omron XF2L-1835-1 / DigiKey P/N OR687CT).
Close

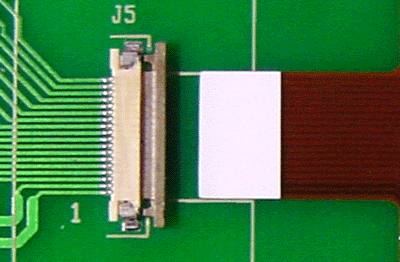

This is an animation of the ZIF connector operation.
This is an animation of the ZIF connector operation.
This is an animation of the ZIF connector operation.
Close

Description

Compact Graphic LCD, RoHS Compliant, White EL Backlight, STN Positive, Gray, Transflective -20°C to +70°C 6:00

  • Ultra thin and light TAB construction
  • Available in several variations of backlight and polarizer (minimum order may be required)
  • Built-in Samsung KS0713 or compatible controller
  • Great for handheld instruments, cell phones, PDAs, etc
  • Ultra low power consumption
  • Demonstration board available here: CFAXZIFDEMO

TECHNICAL SPECS

For reference only. For design purposes, please use the specifications in the datasheet.

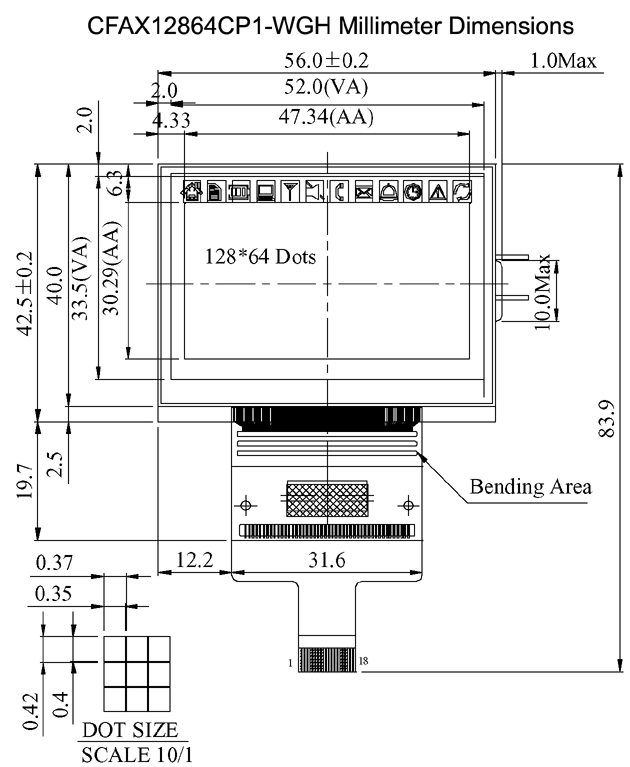

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 56 83.9 1.9
inches 2.205 3.303 0.075
PCB Outline width height depth
millimeters 56 83.9 1.9
inches 2.205 3.303 0.075
Viewing Area width height
millimeters 52 33.5
inches 2.047 1.319
Active Area width height
millimeters 47.34 26.86
inches 1.864 1.057
Dot Size width height
millimeters 0.35 0.4
inches 0.014 0.016
Dot Pitch width height
millimeters 0.37 0.42
inches 0.015 0.017

Optical Characteristics

Glass Type/Glass Color STN/Gray
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color EL White
Backlight Type EL
Mode Positive
Foreground Color Dark
Background Color White

Electrical Specifications

Module Connector Pitch 0.5mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Samsung KS0713
KS0713
65 COM / 132 SEG DRIVER & CONTROLLER FOR STN LCD
Interface 8-bit Parallel, SPI

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAX12864CP1-WGH or RSS RSS feed for changes to CFAX12864CP1-WGH

Part Change Notice #10279: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.

Products Affected: CFAX12864AP1-NFH, CFAX12864AP1-TFH, CFAX12864AP1-WFH, CFAX12864C-NGH, CFAX12864CP1-NGH, CFAX12864CP1-WGH, CFAX12864CP1-WGH-TS, CFAX12864CP1-TFH, CFAX12864C-WGH, CFAX12864C-WGH-TS
Date Issued: March 31, 2010
Summary: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Description: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued.
Reason: CFAX12864A, CFAX12864AP1, CFAX12864C, and CFAX12864CP1 Series of LCD modules discontinued due to end of life of Samsung KS0713 controller chip.
Impact: //SHL (C8 C0) (Flips display top to bottom, assuming landscape orientation)

This will need to be changed to 0xC8 from 0xC0 for the new Novatek NT7534 controller versus the Samsung KS0713.

There is no migration path for users of the CFAX12864A and CFAX12864C modules other than to re-lay out their board to use the CFAX12864T or CFAX12864U, which is not pin compatible.
Recommendation: Users of CFAX12864AP1 and CFAX12864CP1 LCD modules can use the compatible CFAX12864T1 and CFAX12864U1 replacement modules respectively.
Availability: Immediate
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

While we do not offer any direct replacements, perhaps one of our many other CFAX displays will fit your needs. Feel free to contact our tech support team to get assistance in finding the right display.
