                This product has reached end of life. Please see 128x64 Graphic Low Power LCD as a potential replacement.

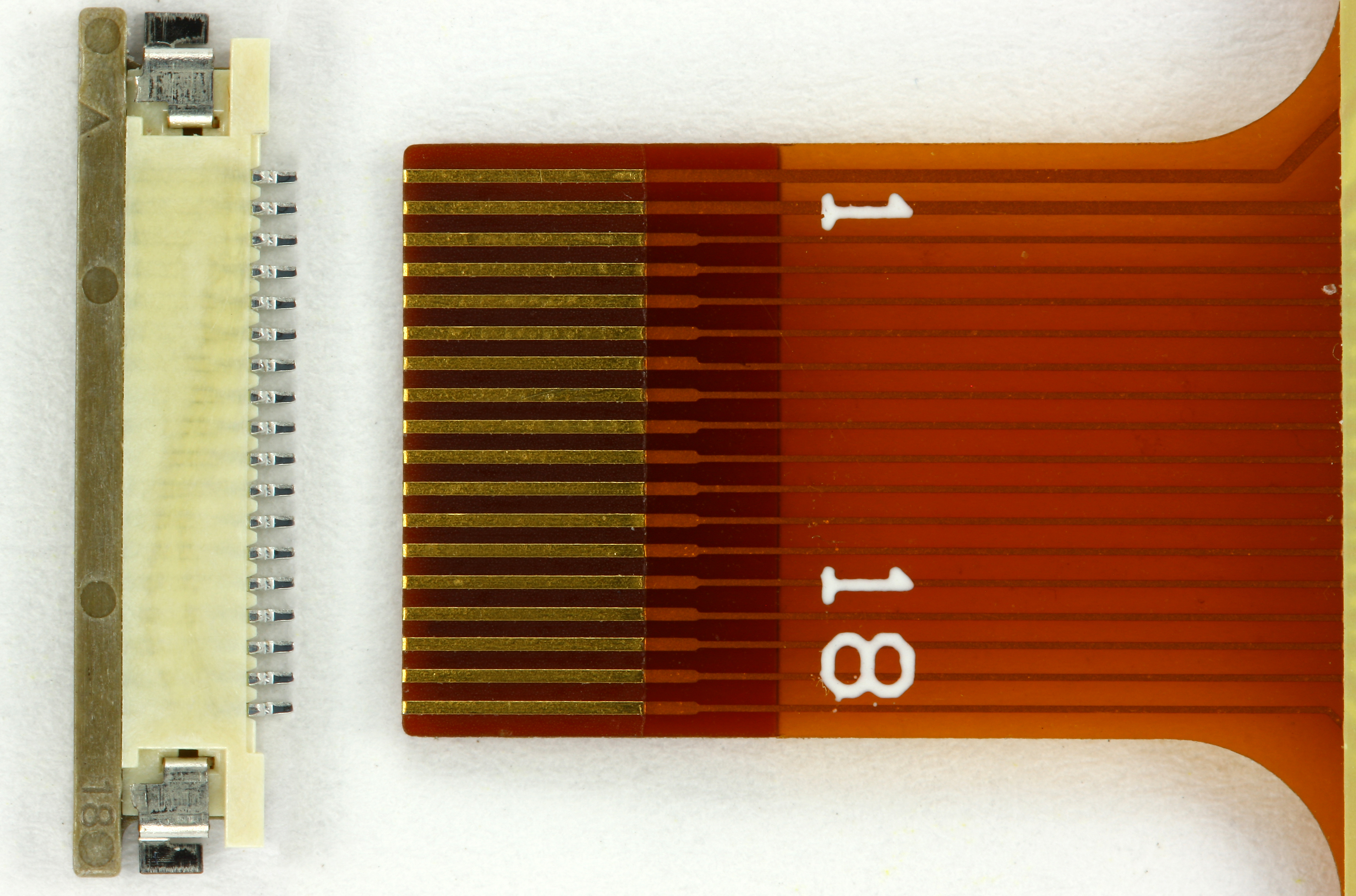

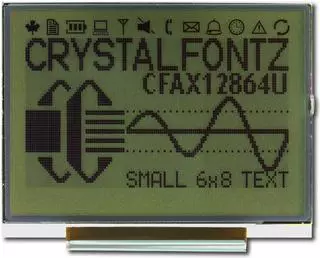

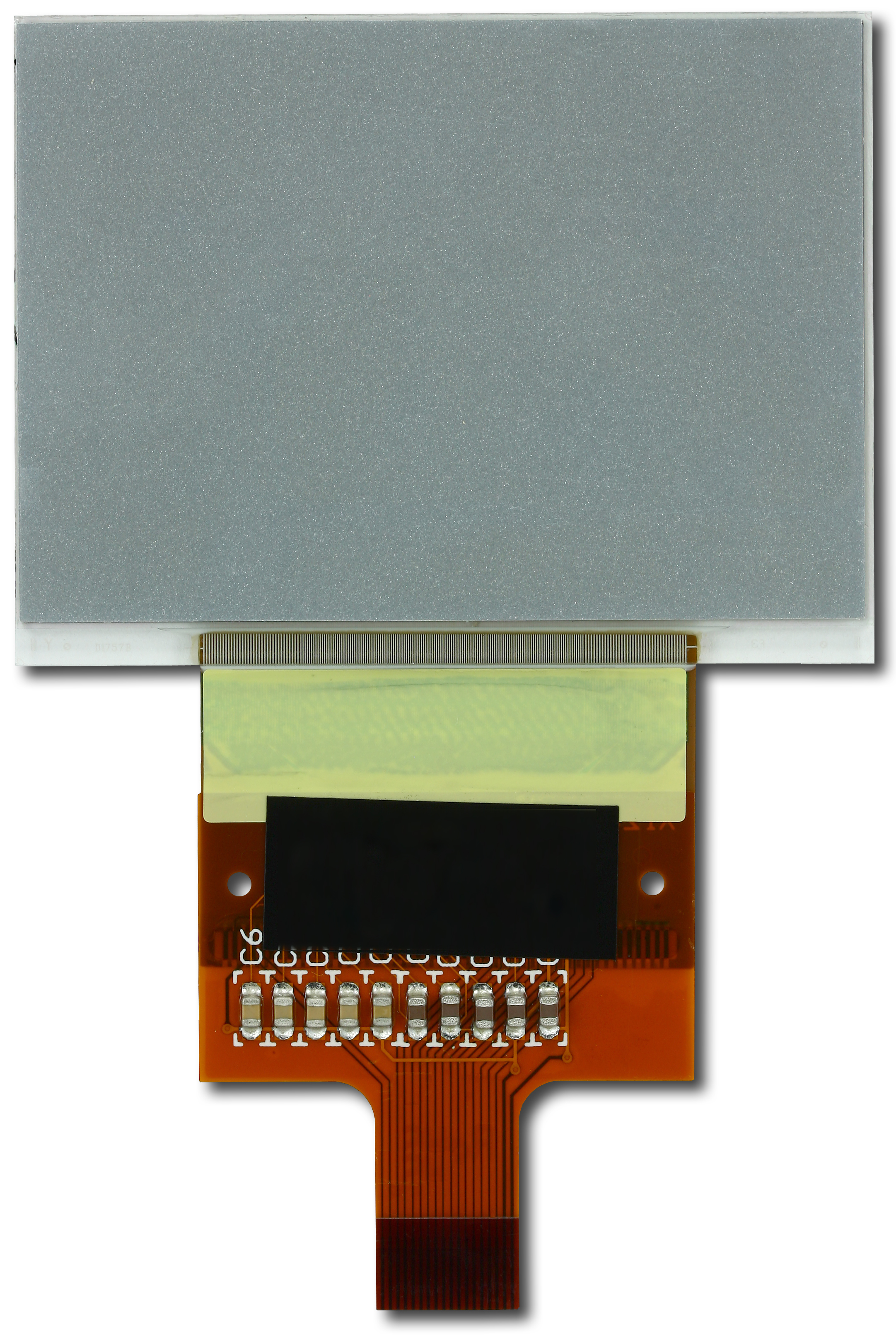

EOL Low Power 128x64 Graphic LCDPart Number: CFAX12864U1-NFHThis is a thin, extremely low-power 128x64 graphic LCD display module.  It has no backlight, so consumes no power illuminating the display. However, if you wanted to backlight the module, the rear polarizer is transflective, so you could add your own lighting solution there.  This display is perfectly suited for hand-held or any application requiring low power consumption or a very thin display.  A row of icons is shown automatically top of the display without having to be rendered.  This display has an integrated controller and the tail is designed to mate with standard 18-conductor 0.5mm pitch ZIF connectors (typical would be Omron XF2L18351A/ DigiKey P/N OR754CT-ND).
	Ultra thin and light TAB construction
	Form, and Function compatible with CFAX12864CP1 series of LCD modules
	Wide temperature range: -20°C to 70°C (-4°F to 158°F)
	Built-in Novatek NT7534 controller
	Great for handheld instruments, cell phones, PDAs, etc
	Ultra low power consumption
	Demonstration board available.
	RoHS Compliant

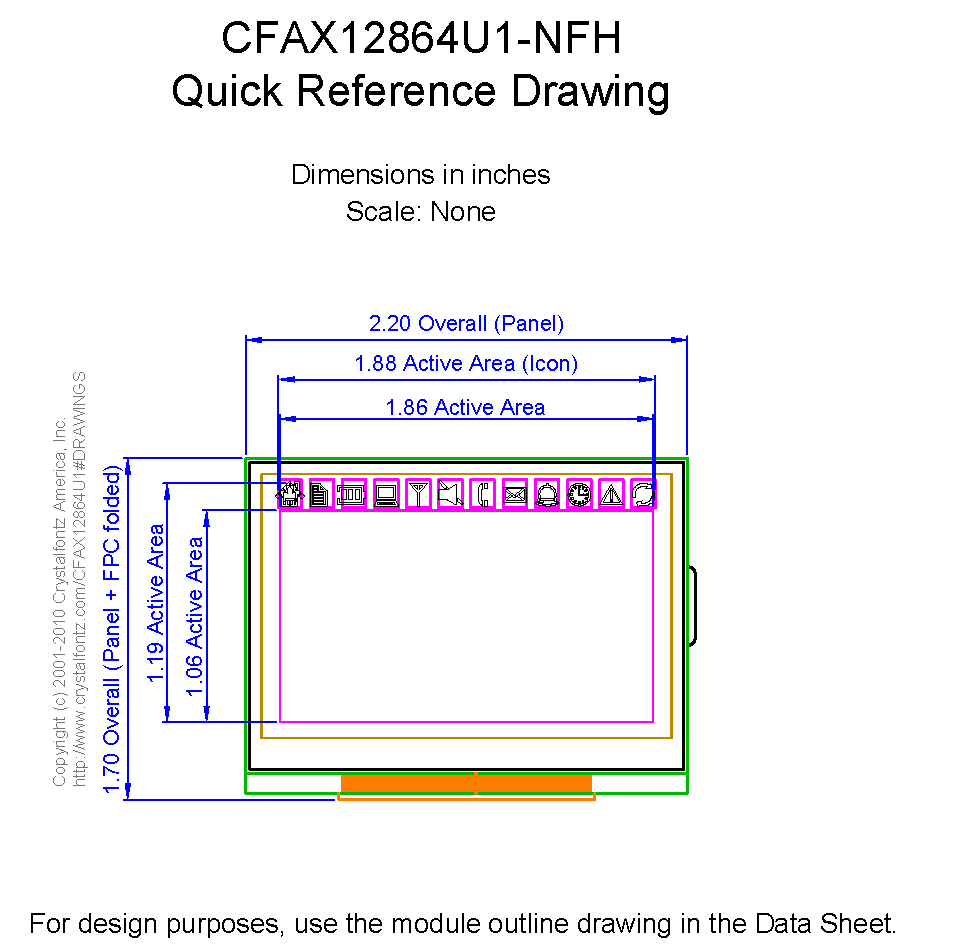

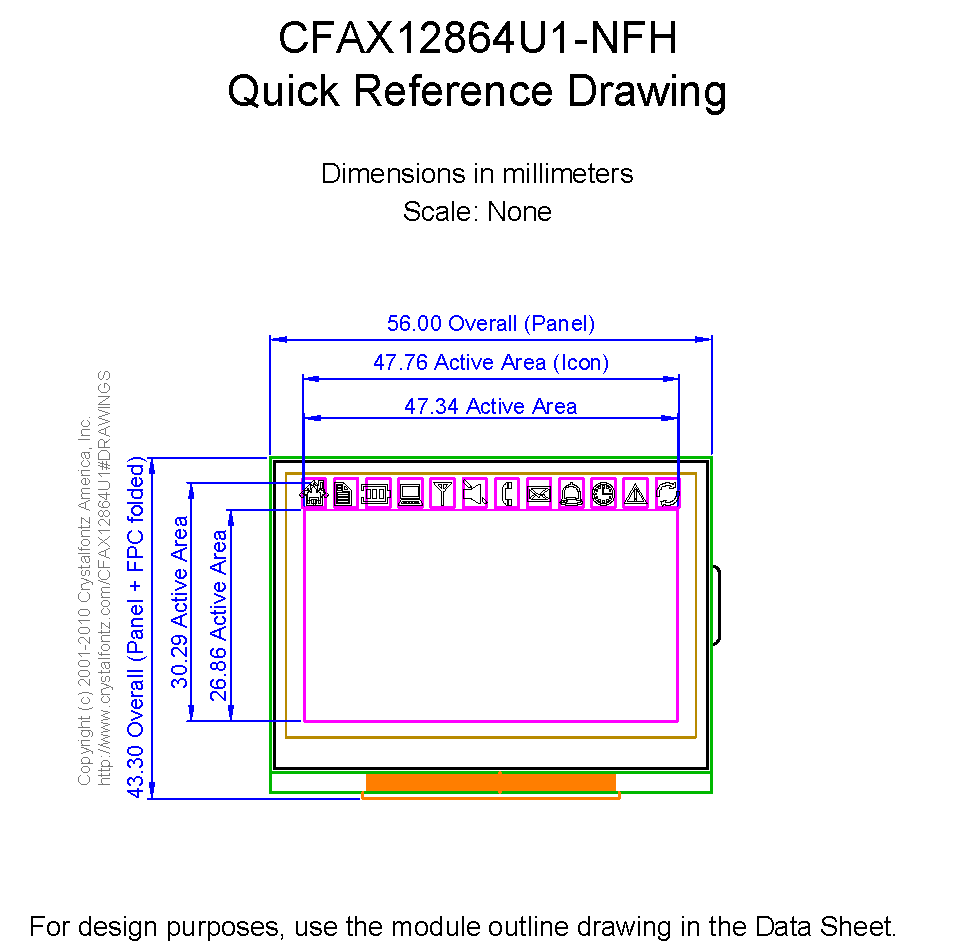

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        56
        42.5
        1.9


        inches
        2.21
        1.67
        0.08

*width / height does not include Foldable Tab


        Diagonal Dimension
            2.23"


    Viewing Area        Width
        Height


        millimeters
        52
        33.5


        inches
        2.05
        1.32



    Active Area        Width
        Height


        millimeters
        47.76
        30.29


        inches
        1.88
        1.19



    Dot Size        Width
        Height


        millimeters
        0.35
        0.4


        inches
        0.014
        0.016



    Dot Pitch        Width
        Height


        millimeters
        0.37
        0.42


        inches
        0.015
        0.017



        Weight
            10g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Type
            None
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V
Supply Current Minimum
            0.18mA


        Supply Current Maximum
            0.18mA
Supply Current Typical
            0.18mA
Module Connector Pitch
            0.5mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Novatek NT7534
NT7534

132 X 65 RAM-Map STN LCD

Controller/Driver
(This controller is a possible replacement for the EOL Samsung S6B1713)
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAX12864U1NFH Datasheet

Show Previous Versions of Datasheetpicture_as_pdfCFAX12864U1NFH.pdf

 download Files and Downloads
folder_zip Software Source - ATMega2561 Demo Code
folder_zip Software Source - ATMega2561 SPI example code
folder_zip Software Source - CFAX WinTest for U1 / T1 series
folder_zip CAD Export - CFAX12864U1-NFH 2D CAD
picture_as_pdf 1 to 1 Template - CFAX12864U1-NFH 1 TO 1.PDF



















Module Overall	width	height	depth
millimeters	56	42.5	1.9
inches	2.21	1.67	0.08
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	52	33.5
inches	2.05	1.32

Active Area	Width	Height
millimeters	47.76	30.29
inches	1.88	1.19

Dot Size	Width	Height
millimeters	0.35	0.4
inches	0.014	0.016

Dot Pitch	Width	Height
millimeters	0.37	0.42
inches	0.015	0.017

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10867: Extended Last Time Buys until Oct 31, 2017

Products Affected:	CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
Date Issued:	July 25, 2017
Summary:	Extended Last Time Buys until Oct 31, 2017
Description:	The products listed have been assigned to End of Life Status and will be replaced by a new series of displays
Reason:	The controller chip used in these parts will not be available after Oct 31, 2017. Due to long manufacturing lead times, all orders for last time buys must be received by Oct 31, 2017.
Impact:	These parts will not be available after the last time buy date.
Recommendation:	The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement
Availability:	The new series will be available for order after Oct 31, 2017
Price Change:	Prices for the replacement modules have not been set yet. Prices will be set by Oct 31, 2017.
Response:	We're extending our last time buys until Oct 31, 2017, and developing a drop-in replacement. We'll send out a new product notification when the replacement part is ready.

Product Update #10863: End of Life Announcement with Last Time Buys

Products Affected:	CFAX12864U1-TFH, CFAX12864U1-NFH, CFAX12864T1-TFH, CFAX12864T1-NFH
Date Issued:	June 26, 2017
Summary:	End of Life Announcement with Last Time Buys
Description:	The products listed have been assigned to End of Life Status and will be replaced by a new series of displays.
Reason:	The controller chip used in these parts will not be available after August 2017. Due to long manufacturing lead times, all orders for last time buys must be received by July 28, 2017.
Impact:	These parts will not be available after the last time buy date.
Recommendation:	The CFAX12864U1 and CFAX12864T1 series will be replaced by the CFAG12864U2 and CFAG12864T2 series. The new series is designed to be a "drop-in" replacement.
Availability:	The new series will be available for order after July 28, 2017
Price Change:	Prices for the replacement modules have not been set yet. Prices will be set by July 28, 2017.
Response:	We're offering last time buys until July 28, 2017, and developing a drop-in replacement.
