Low Power 128x64 Graphic LCD

Part Number: CFAG12864U3-NFH

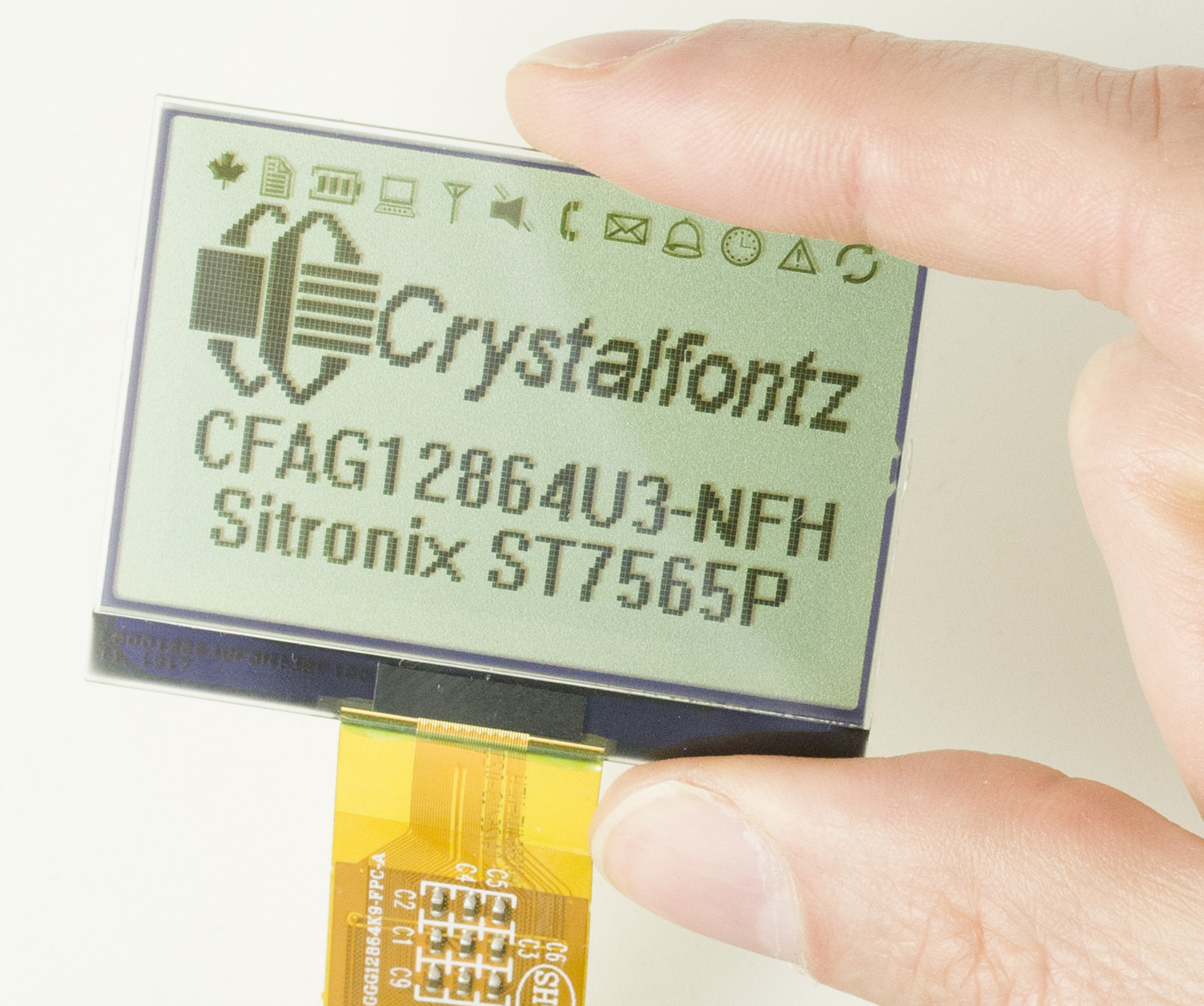

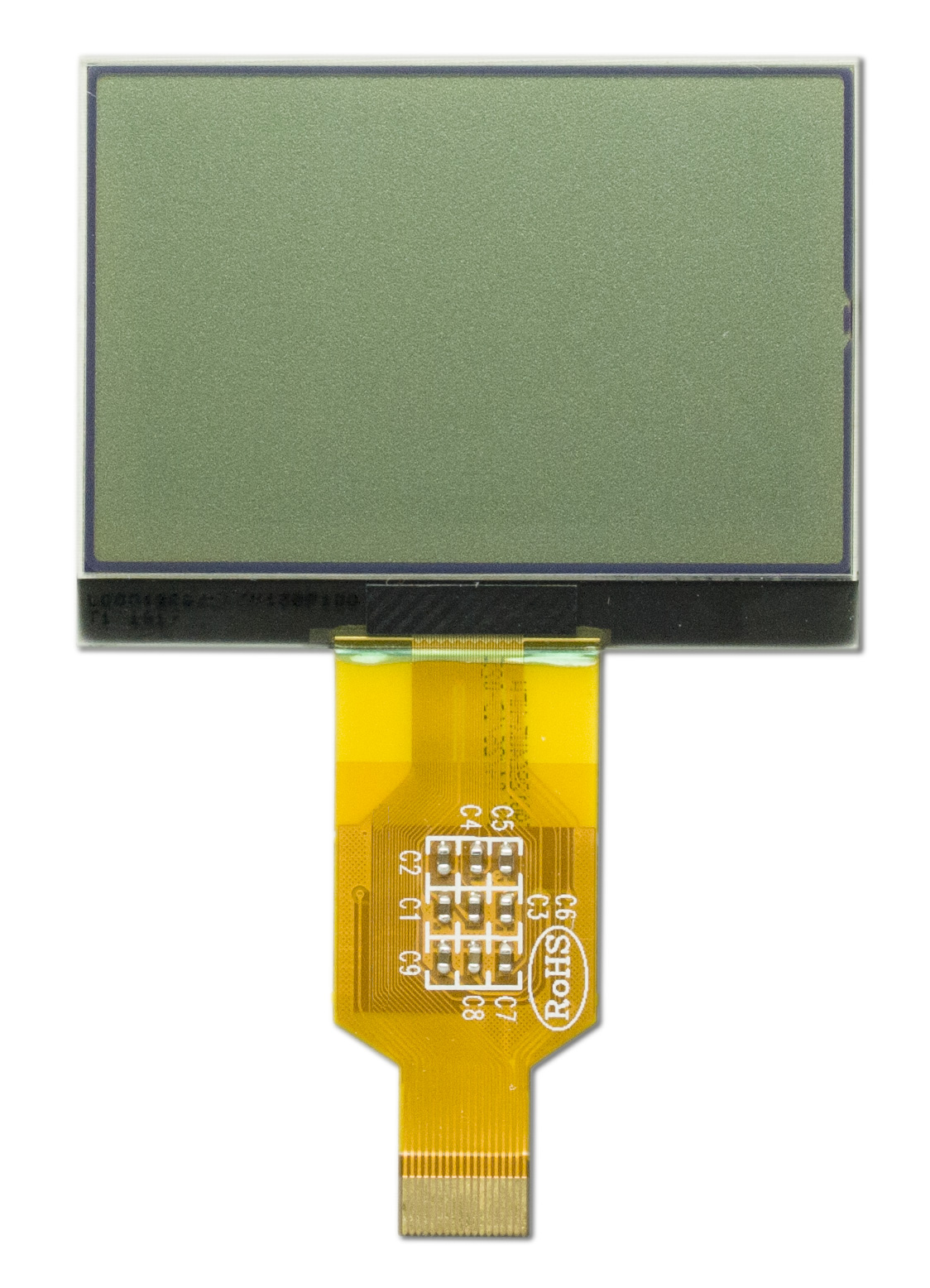

Super low power, Thin, 128x64 graphic LCD display module. This graphic LCD display is visible in most lighting situations, including normal office lighting up to bright sunlight.

Since this graphic LCD module has no backlight, there is no power used for the backlight, however, the display is not viewable in dark environments without an external light source. This display is well suited for low-power hand-held devices that are normally used in well-lit environments.

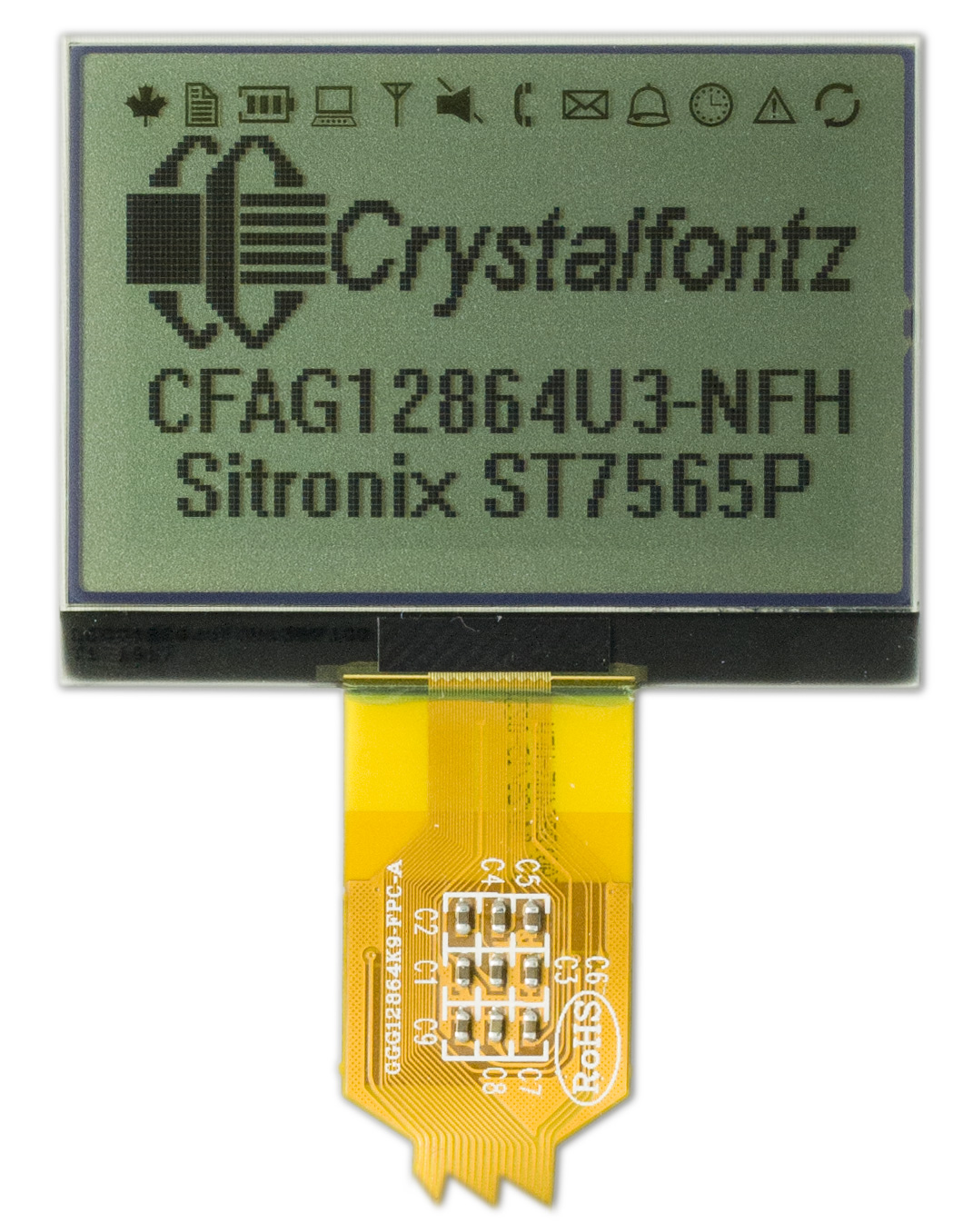

In addition to the 128x64 monochrome graphic array, there is a row of icons across the top of the display.

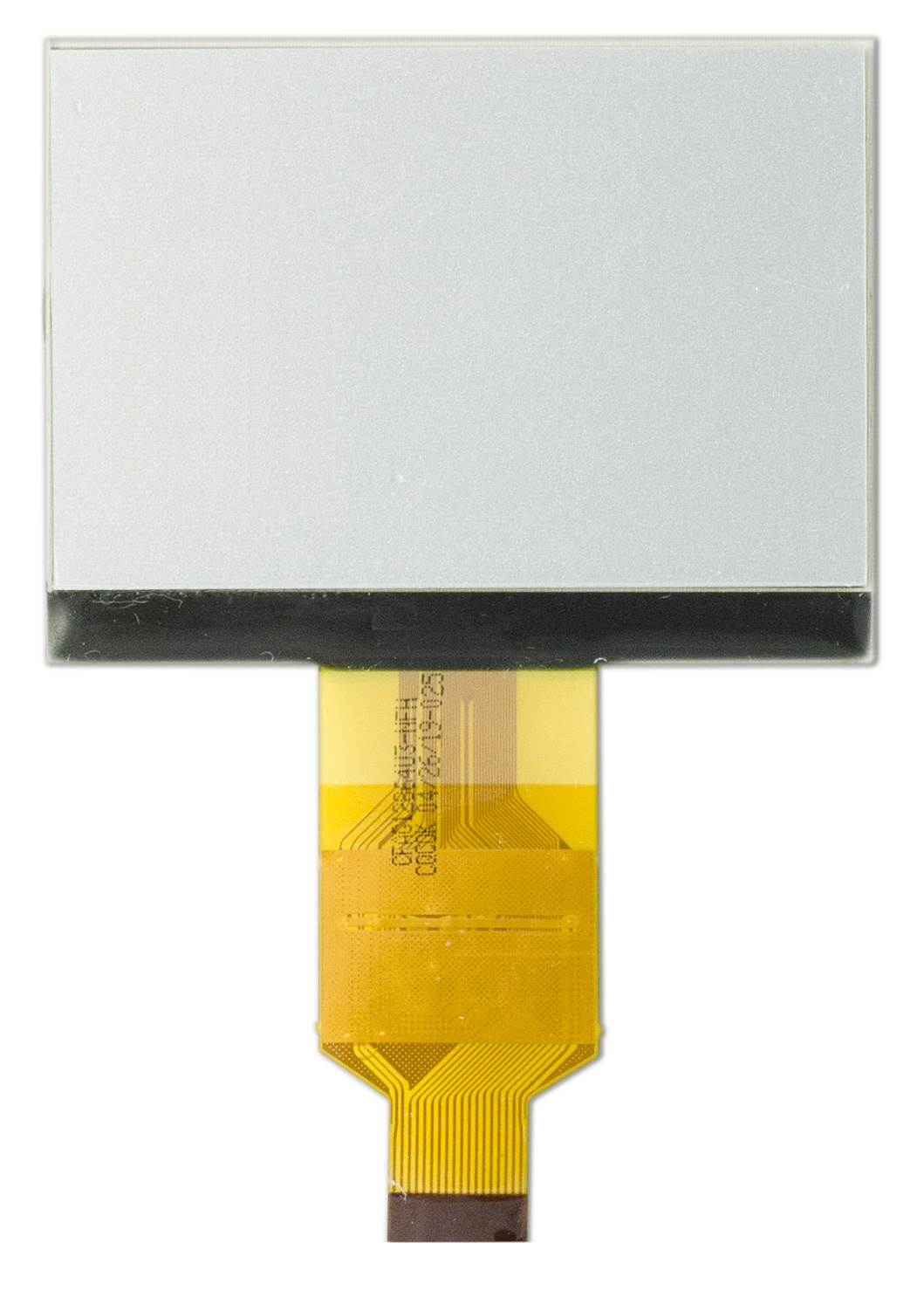

This LCD display has an integrated controller and voltage-generating components mounted on the flexible tail. The tail connects to a standard 18-conductor 0.5mm pitch ZIF (Zero Insertion Force) connector.

This display is available in white LED backlit version (CFAG12864U3-TFH).

  • Thin and light TAB construction
  • Super Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Integrated Sitronix ST7565P controller
  • Really Low power consumption
  • Ideal for handheld and/or battery operated devices
  • Easy 4-wire, 8-bit SPI or 8-bit parallel interface
Is this small LCD display still too big? We have the CFAG12864T3-NFH, which is a similar display, only smaller.

We also offer a higher density and 4-color grayscale display with the same outline dimensions as this display.

This display is the suggested replacement for the CFAG12864U2-NFH which is no longer in production.

Product Variants

CFAG12864U3-NFHLow Power 128x64 Graphic LCD
CFAG12864U3-TFH128x64 Backlit Low Power LCD
Low Power 128x64 Graphic LCD (CFAG12864U3-NFH)
Qty:
Quantity Price
1 $13.33
5 $12.31
10 $10.84
20 $10.52
50 $10.14
100 $10.01
200 $9.95
300 * $9.38
500 * $9.32
1000 * $8.64
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4633 18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Add 5 ZIF Connectors $0.79 ea.
4690 LCD Breakout Board
Add a Breakout Board? $8.60 ea.
4823 18-Position ZIF Breakout Board
Add an 18-pin ZIF Breakout Board? $6.15 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12864U3-NFH or RSS RSS feed for changes to CFAG12864U3-NFH for CFAG12864U3-NFH

Compliance Documents

Video Demonstrations

See the different features and options available with this 128x64 Low power transflective LCD display.

TECHNICAL SPECS

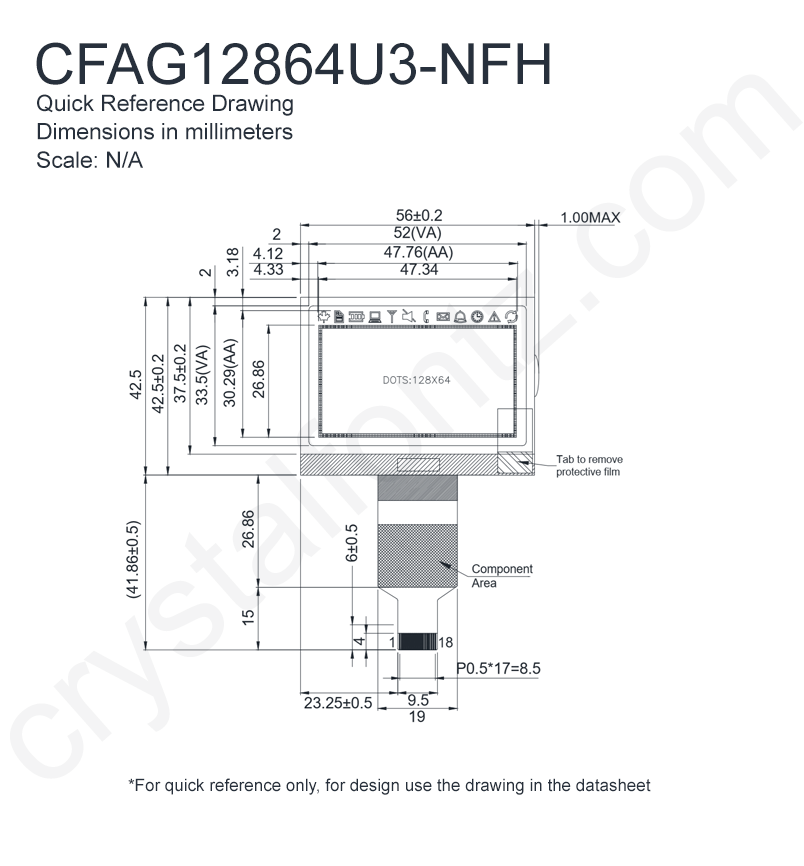

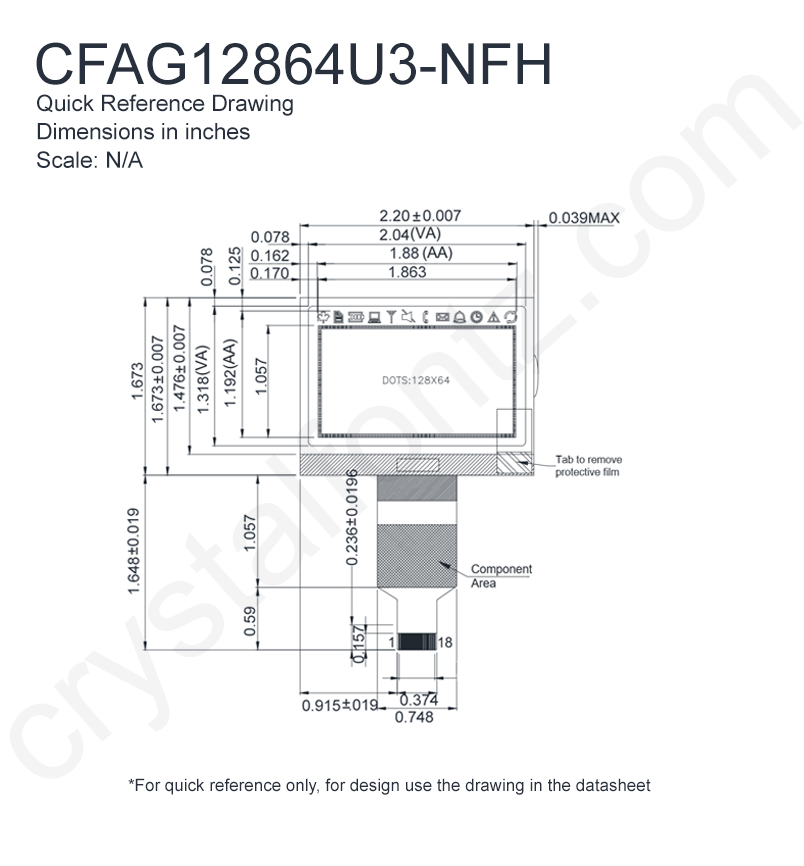

Physical Characteristics

Column Dots x Row Dots 128 x 64
Module Overall width height depth
millimeters 56 42.5 1.9
inches 2.205 1.673 0.075
Diagonal Dimension 2.23"
Viewing Area width height
millimeters 52 33.5
inches 2.047 1.319
Active Area width height
millimeters 47.76 30.29
inches 1.880 1.193
Dot Pitch width height
millimeters 0.42 0.37
inches 0.017 0.015
Optional Connectors CS050Z18GA0
Flexible Cable (FFC/FPC) length
millimeters 41.86
inches 1.648
Weight 10.1g
Pin Count 18

Optical Characteristics

Glass Type/Glass Color FSTN/Light Gray
Polarizer Transflective
View Direction 6 o'clock
View Angle 60°
Sunlight Readable Yes
Mode Positive
Foreground Color Dark
Background Color Light Gray

Electrical Specifications

Supply Voltage for Logic Minimum 3V
Supply Voltage for Logic Maximum 3.3V
Supply Current Maximum 2mA
Supply Current Typical 1mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Sitronix ST7565P
ST7565P is a single-chip dot matrix LCD driver which incorporates LCD controller and common/segment drivers.
Interface 8-bit Parallel, SPI

Additional Options

Purchase with a breakout board or a complete development kit to get up and running quickly

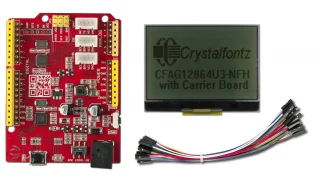

Low Power Monochrome LCD Dev Kit
Part Number: CFAG12864U3-NFH-E1-2

This complete transflective LCD demonstration kit makes evaluating this low power 128x64 graphic LCD or the low power transflective LCD with adapter board super easy. Just plug in the included USB cable to a power source and a demo program will begin.

The CFAG12864U3-NFH (just the display) and the CFAG12864U3-NFH-E1-1 (display with adapter board) are great monochrome LCD displays. They are transflective, so they're readable in just about any lighting condition, only needing supplied light if used in a dark environment. For a display with a built in backlight, check out the family of 128x64 Backlit Low Power LCDs.

Display Characteristics:

  • Integrated Sitronix ST7565P controller
  • Low power consumption
  • Ideal for handheld and/or battery operated devices
  • 4-wire SPI or 8-bit parallel interface
Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1
Price $47.58
Quantity:

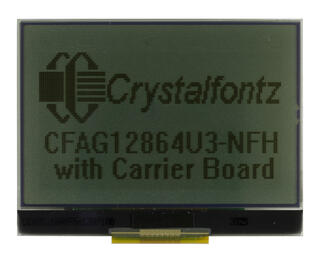

Low Power Transflective LCD Display Module
Part Number: CFAG12864U3-NFH-E1-1

This graphic LCD display module includes a wonderful low power 128x64 graphic LCD on an adapter board.

At 2.2" diagonal, this transflective display is big enough to get all the information across. Plus, it's readable in most lighting environments, from indoor light to direct sunlight. If you're looking for a display that can be read in low-light situations, check out the backlight version of this display. This display has a 128x64 monochrome array, plus a row of addressed icons along the top edge of the display.

The included adapter board simplifies integrating the display into a product or bringing up a demonstration of the display. The board breaks the ZIF tail out into a 16-position 0.1" header. This makes wiring the display simple and solder-free. The 2x2-56 threaded standoffs on the adapter board enable the entire assembly to be mounted into a final design.

A smaller 1.1" transflective low power graphic LCD module is also available.

Display Module Characteristics:

  • Wide temperature range: -20°C to 70°C (-4°F to 158°F)
  • Utilizes the popular Sitronix ST7565P controller
  • Low power consumption
  • Transflective & Monochrome for easy readability
  • Great for battery operated devices
  • 4-wire SPI or 8-bit parallel interface (switch using jumpers on the board)
Check out our blog post for help getting started with this small graphic LCD.

Details
Quantity 1 10 * 20 * 50 * 100 * 200 * 300 * 500 * 1000 *
Price $22.20 $17.58 $17.01 $16.43 $16.20 $16.09 $15.97 $15.86 $15.74
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
