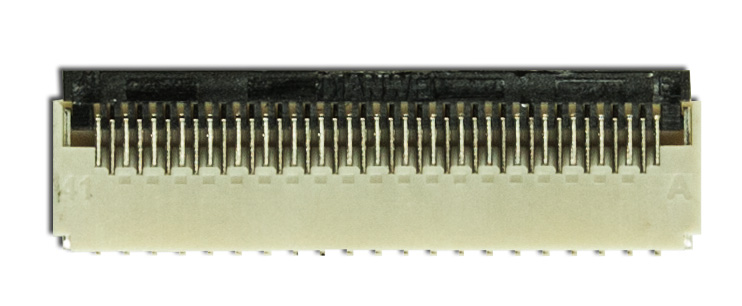

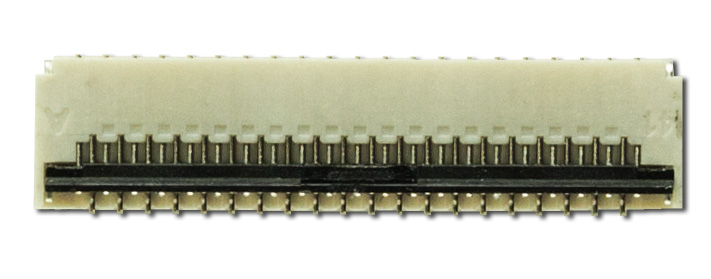

41 Position, 0.30mm Pitch, Gold, FCC FPC ZIF connector

Part Number: CS030Z41G-A0

This 41 position, 0.30mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 41 Position
  • 0.30 Pitch
  • Gold Plated
  • Top & Bottom Contacts

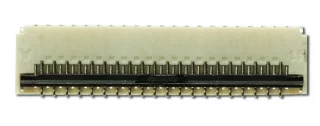

41 Position, 0.30mm Pitch, Gold, FCC FPC ZIF connector (CS030Z41G-A0)
Qty:
Quantity Price
5 $1.45
100 $0.85
3000 $0.71
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS030Z41G-A0 or RSS RSS feed for changes to CS030Z41G-A0 for CS030Z41G-A0

Compliance Documents

TECHNICAL SPECS

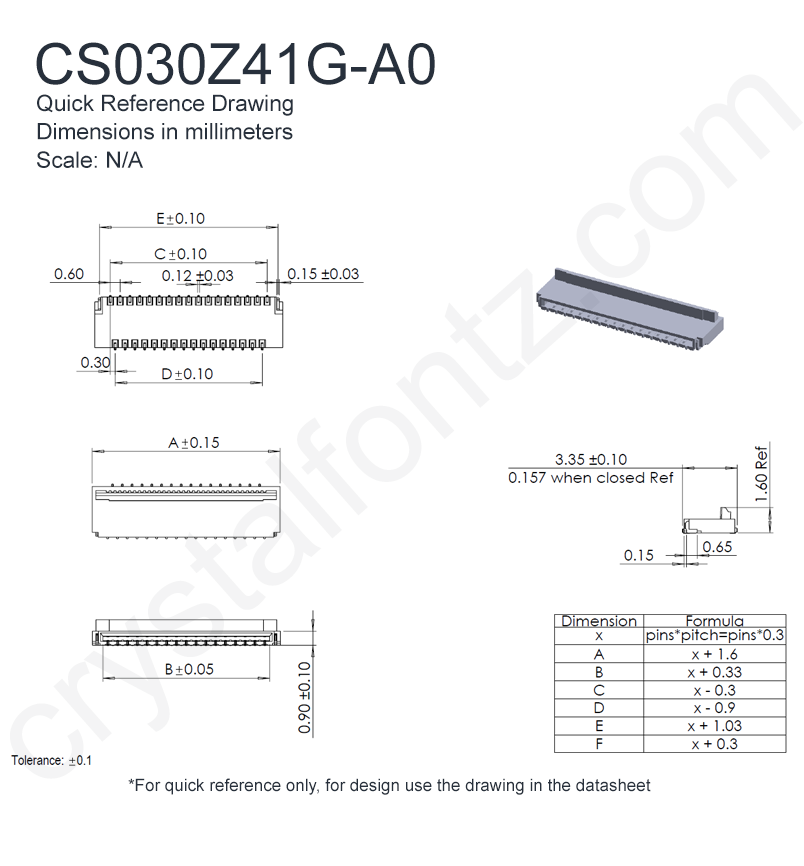

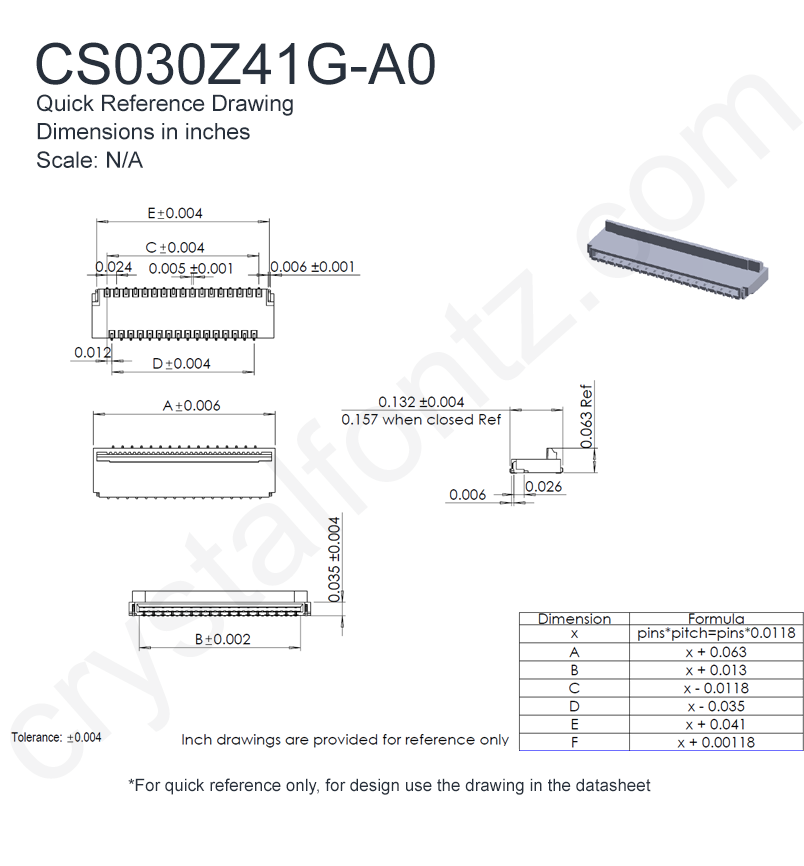

Physical Characteristics

Module Overall width height
millimeters 13.9 0.9
inches 0.547 0.035
Weight 0.236g
Pin Count 41

Electrical Specifications

Module Connector Pitch 0.3mm
For reference only. For design purposes, please use the specifications in the datasheet.
