18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector

Part Number: CS050Z18G-A0

Pricing

Quantity Price ea.
5 $0.69
100 $0.41
1500 $0.34
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CS050Z18G-A0 or RSS RSS feed for changes to CS050Z18G-A0 for CS050Z18G-A0

Compliance Documents

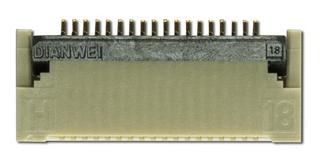

18 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector (CS050Z18G-A0)

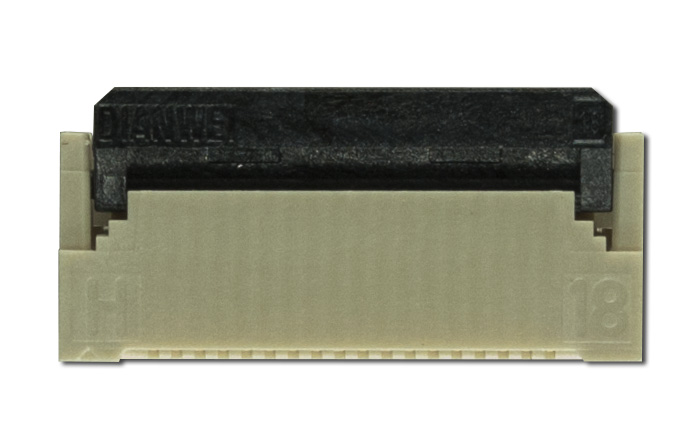

18 Position, 0.50mm Pitch ZIF Connector. Closed position.

Description

This 8 position, 0.50mm pitch, gold-plated ZIF connector is typically used to mate with FPC tails on TFT displays or and touch screens as well as and FFC cables.
  • 18 Position
  • 0.50 Pitch
  • Gold Plated
  • Top & Bottom Contacts

TECHNICAL SPECS

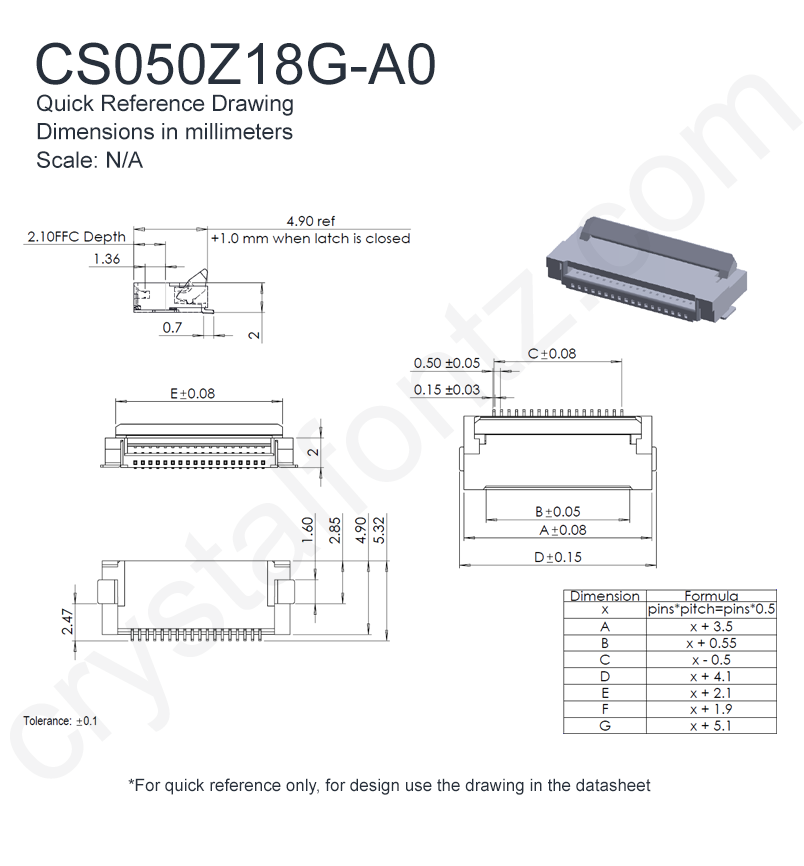

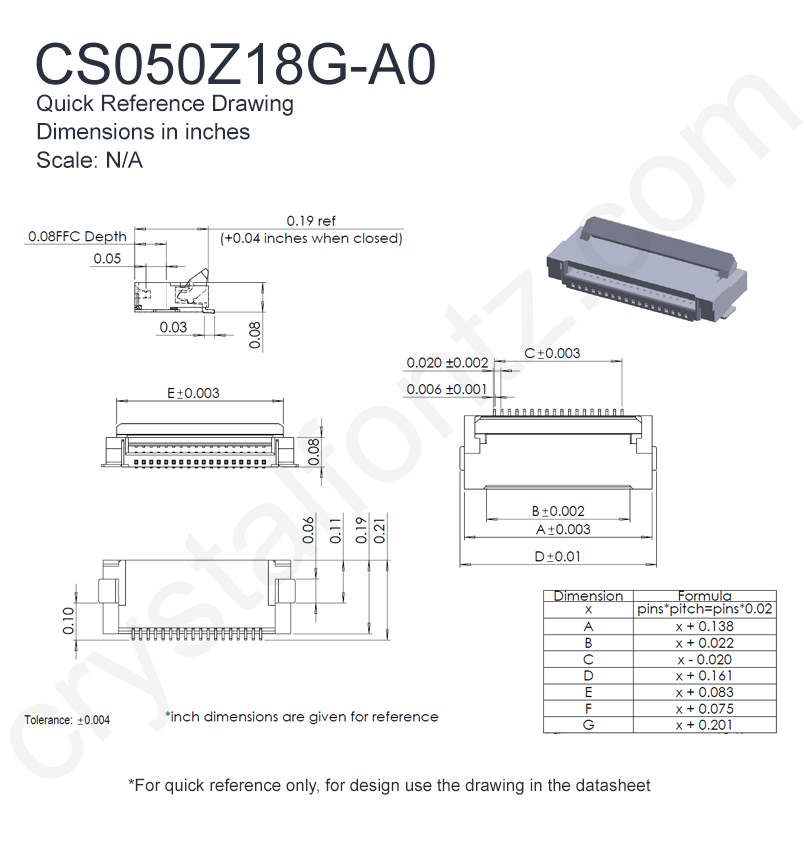

Physical Characteristics

Module Overall width height
millimeters 12.5 2
inches 0.492 0.079
Weight 0.507g
Pin Count 18

Electrical Specifications

Module Connector Pitch 0.5mm
For reference only. For design purposes, please use the specifications in the datasheet.
