72 Pin Header

Part Number: CT254R72T-A0

With 72 separate contacts in a 2x36 pin format, this header can be used in many ways. Simply cut the header down to the correct size for your use.

This dual row header is perfect for use with our dual row character and graphic LCDs and OLEDs.

For prototyping, this header works great with our 6" jumper wires or shorter 3" jumper wires.

This header is also compatible with our CFA10102 Display Breakout Board on J2.

Key Features:

Two rows of 36 pins
0.1" (2.54 mm) spacing
Tin contacts

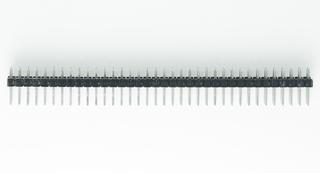

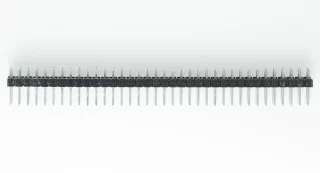

72 Pin Header (CT254R72T-A0)

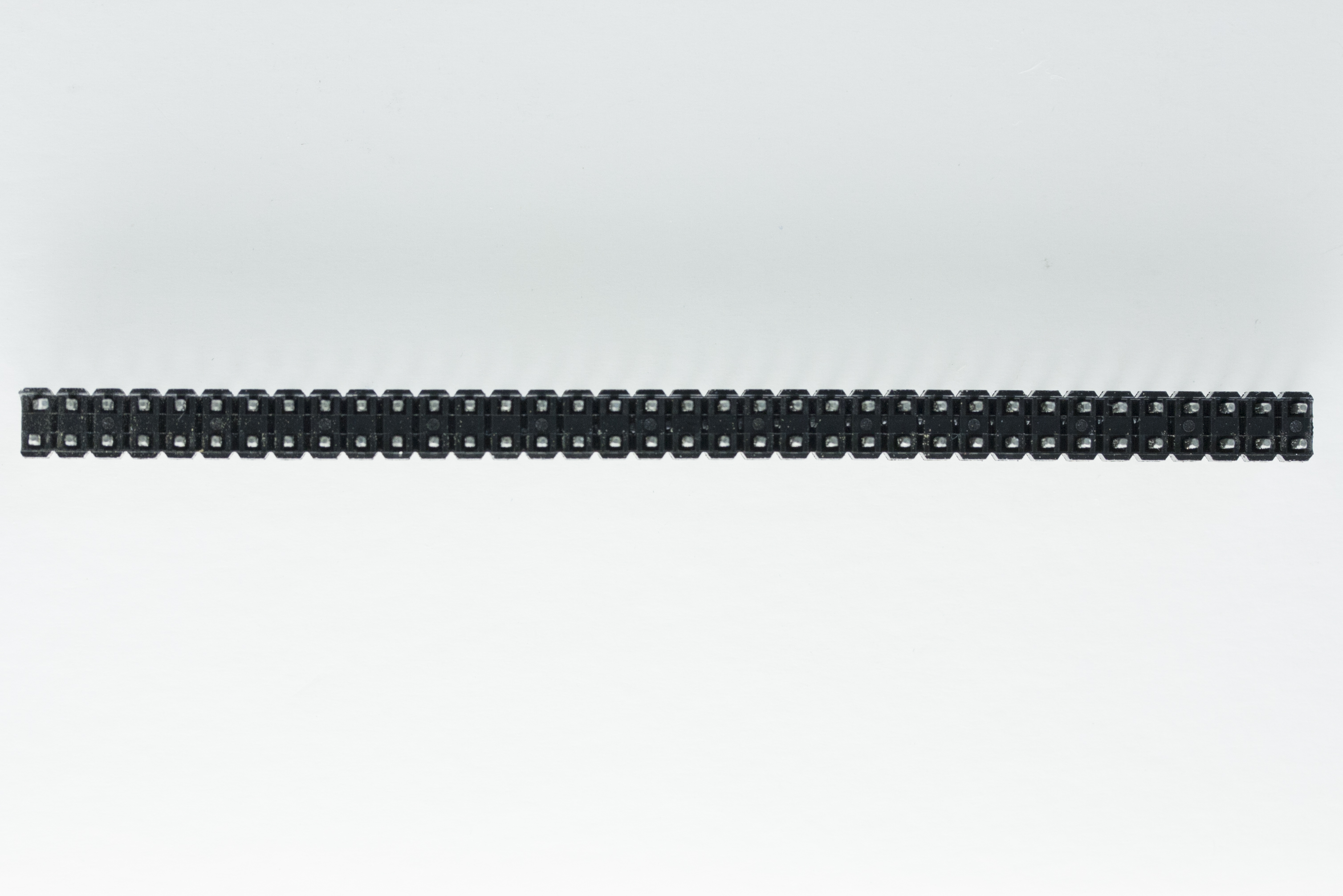

72 Pin Header, Tin, Top view

Quantity	Price
5	$0.66
10	$0.39
100	$0.29
500	$0.24
1000	$0.22

* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

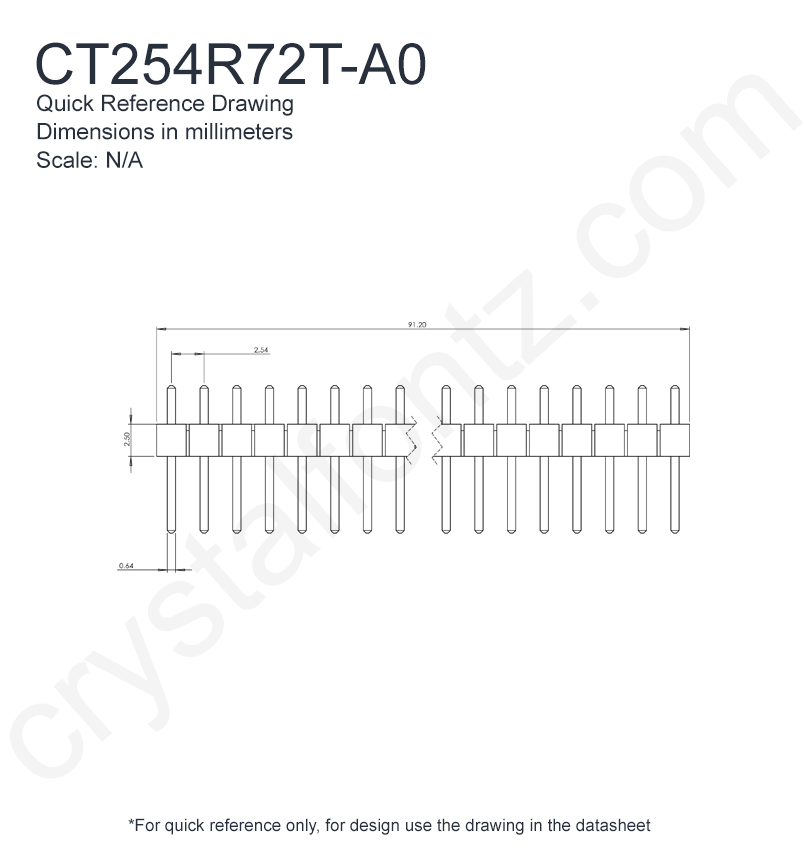

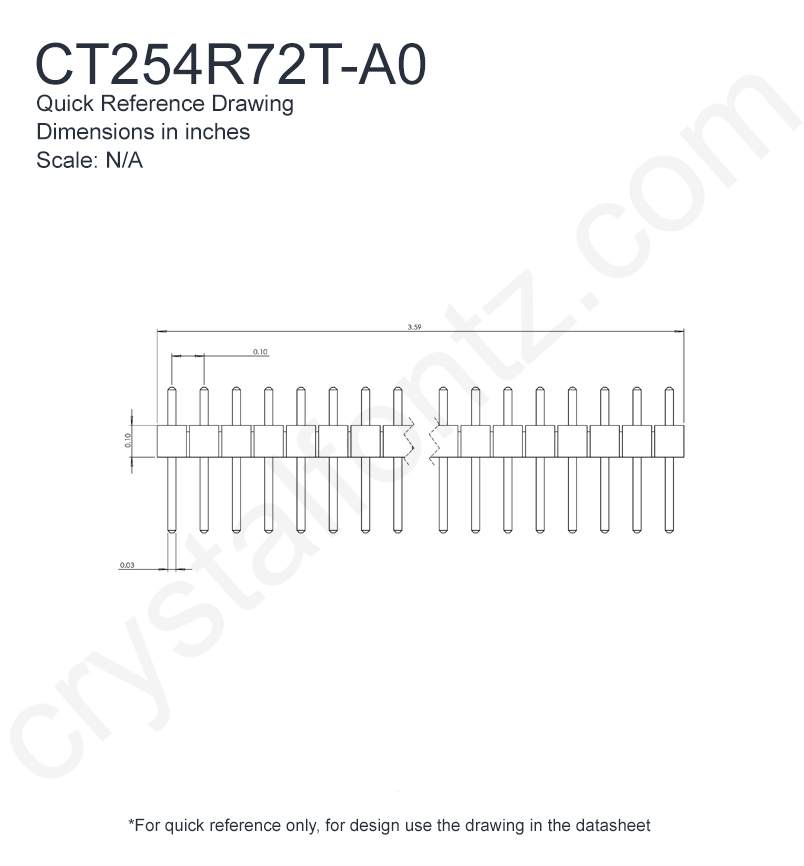

CT254R72T-A0 Mechanical Drawing

Files

Hardware Design - 3D Model

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CT254R72T-A0

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Module Overall	width	height
millimeters	91.2	11.46
inches	3.591	0.451

Weight	3.8g
Pin Count	72

Electrical Specifications

Module Connector Pitch

2.54mm

Dimensions

For reference only. For design purposes, please use the specifications in the datasheet.
