10 pin Serial Cable

Part Number: WR-232-Y22

Pricing

Quantity Price
1 $4.50
10 $4.00
20 $3.75
50 $3.50
100 $3.25
500 $3.00
1000 * $2.75
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-232-Y22 or RSS RSS feed for changes to WR-232-Y22 for WR-232-Y22


10 pin Serial Cable (WR-232-Y22)
10 pin Serial Cable
Close

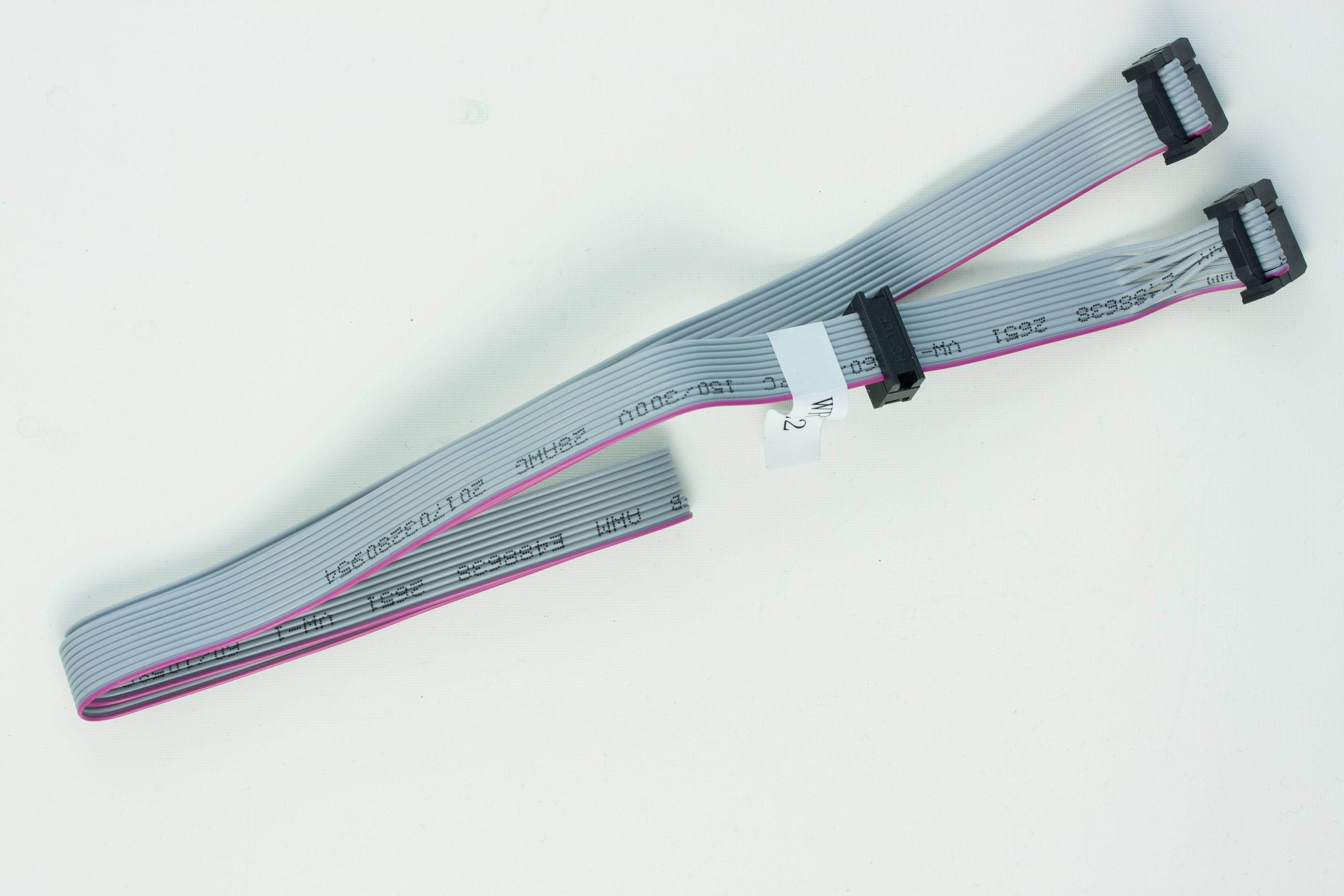

This is a 10 pin to 10 pin cable used to connect the CFA-633 to a 10 pin header, either normal or alternate pinout. Approximate length is 26 inches.
This is a 10 pin to 10 pin cable used to connect the CFA-633 to a 10 pin header, either normal or alternate pinout. Approximate length is 26 inches.
This is a 10 pin to 10 pin cable used to connect the CFA-633 to a 10 pin header, either normal or alternate pinout. Approximate length is 26 inches.
Close

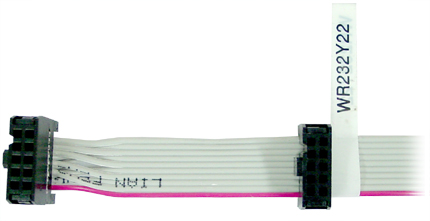

This is a close-up of the ends of the WR232Y22 cable which has both the standard and alternate pinout.
This is a close-up of the ends of the WR232Y22 cable which has both the standard and alternate pinout.
This is a close-up of the ends of the WR232Y22 cable which has both the standard and alternate pinout.
Close

Description

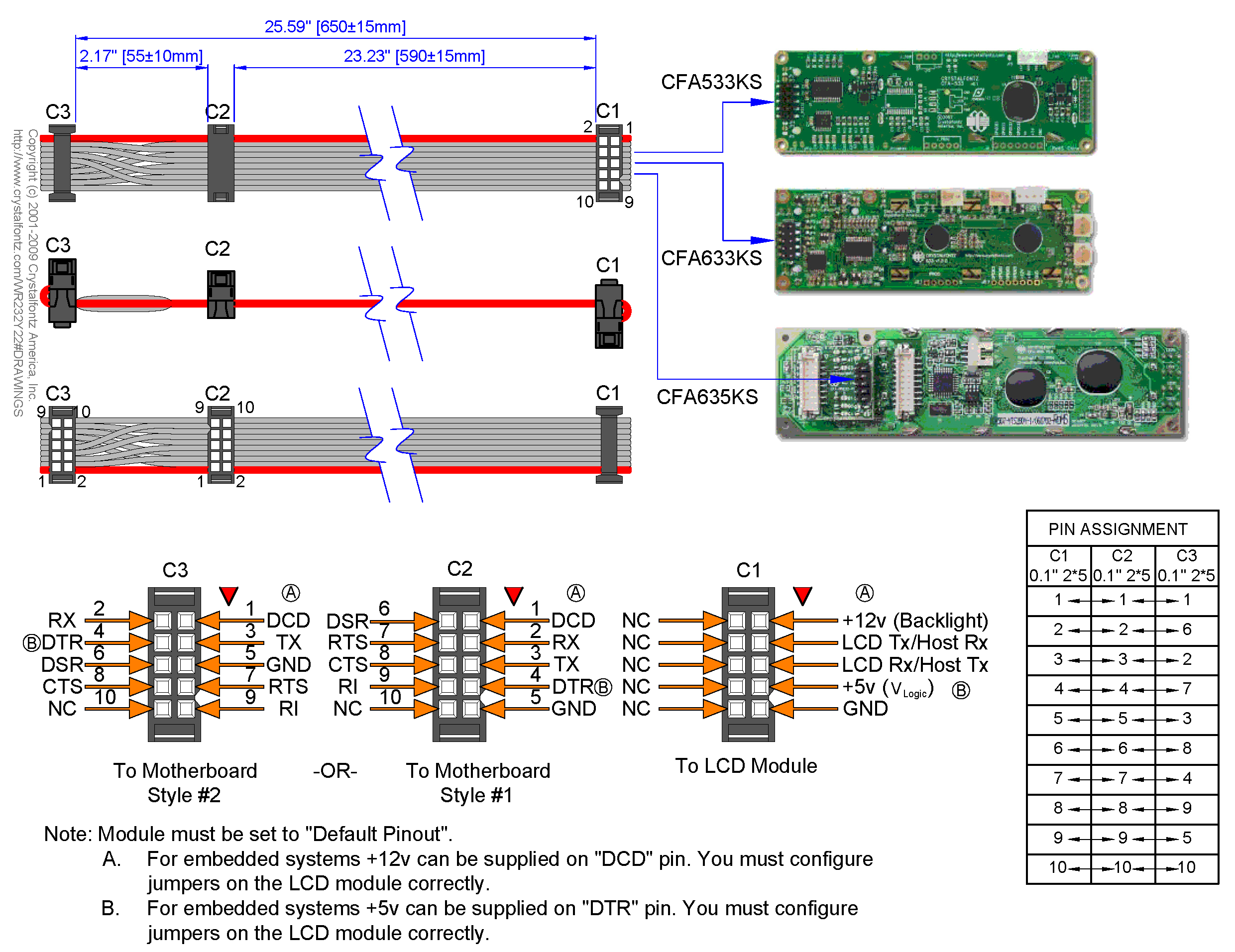

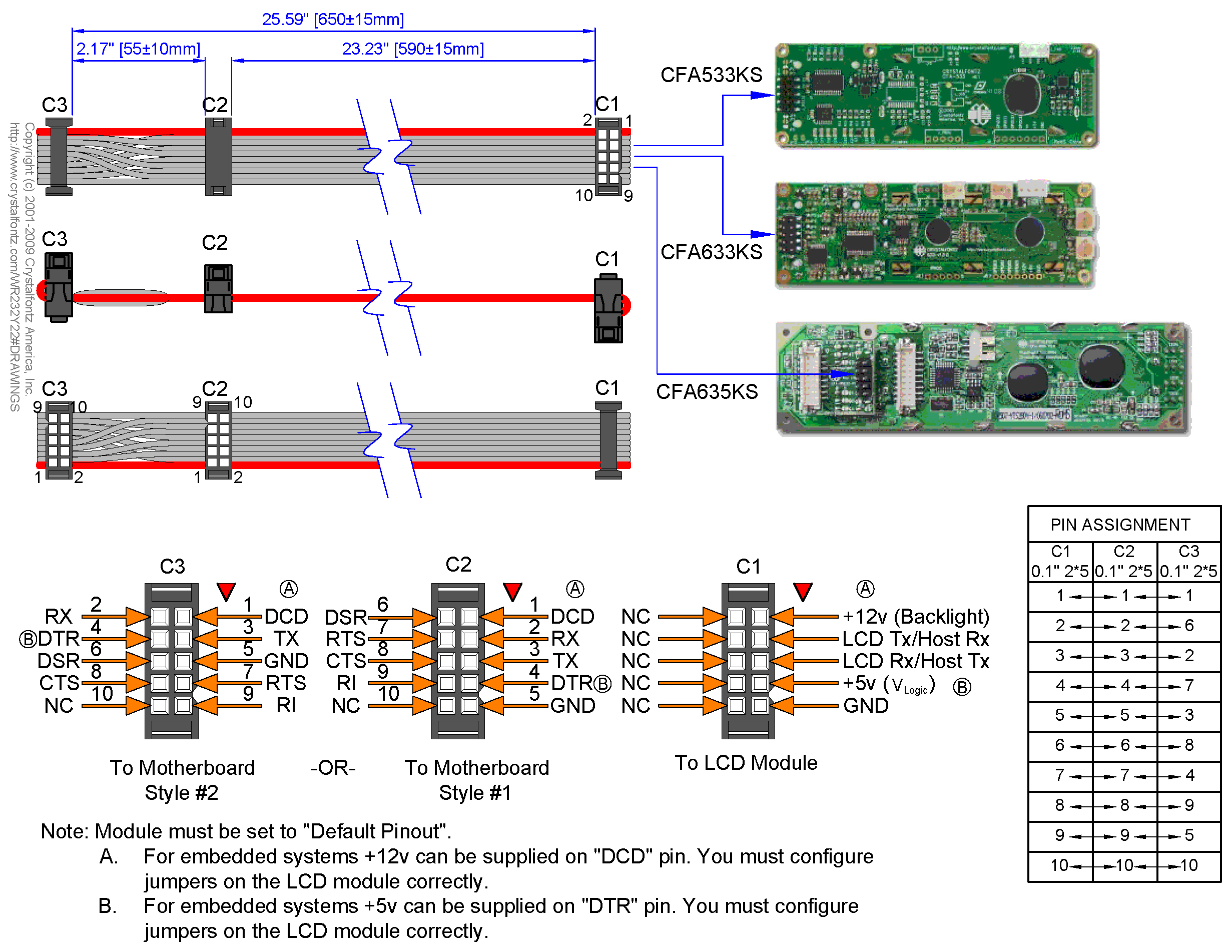

0.1" 2x5 (female) to 0.1" 2x5 (female) x2 standard or alternate pinout. The 10 pin to 10 pin serial cable is used to connect the CFA533 or CFA633 to a 10 pin header. Approximate length .62m. RoHS Compliant.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 635
inches 25.000
Weight 17g
For reference only. For design purposes, please use the specifications in the datasheet.
