PC Power to 16-Pin Cable

Part Number: WR-PWR-Y24

Pricing

Quantity Price
1 $5.45
20 $4.36
50 $3.82
* Contact us about potential lead times.
Qty:


Need a written quote? Add to cart, then enter your email address in the "request a quote" box.


Files


Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-PWR-Y24 or RSS RSS feed for changes to WR-PWR-Y24 for WR-PWR-Y24


Compliance Documents

Declaration of Conformity RoHS2


Declaration of Conformity REACH

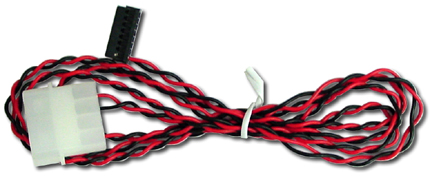

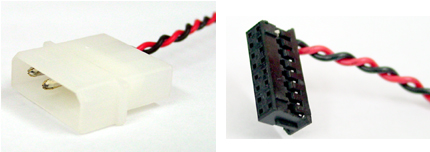

PC Power to 16-Pin Cable (WR-PWR-Y24)

Description

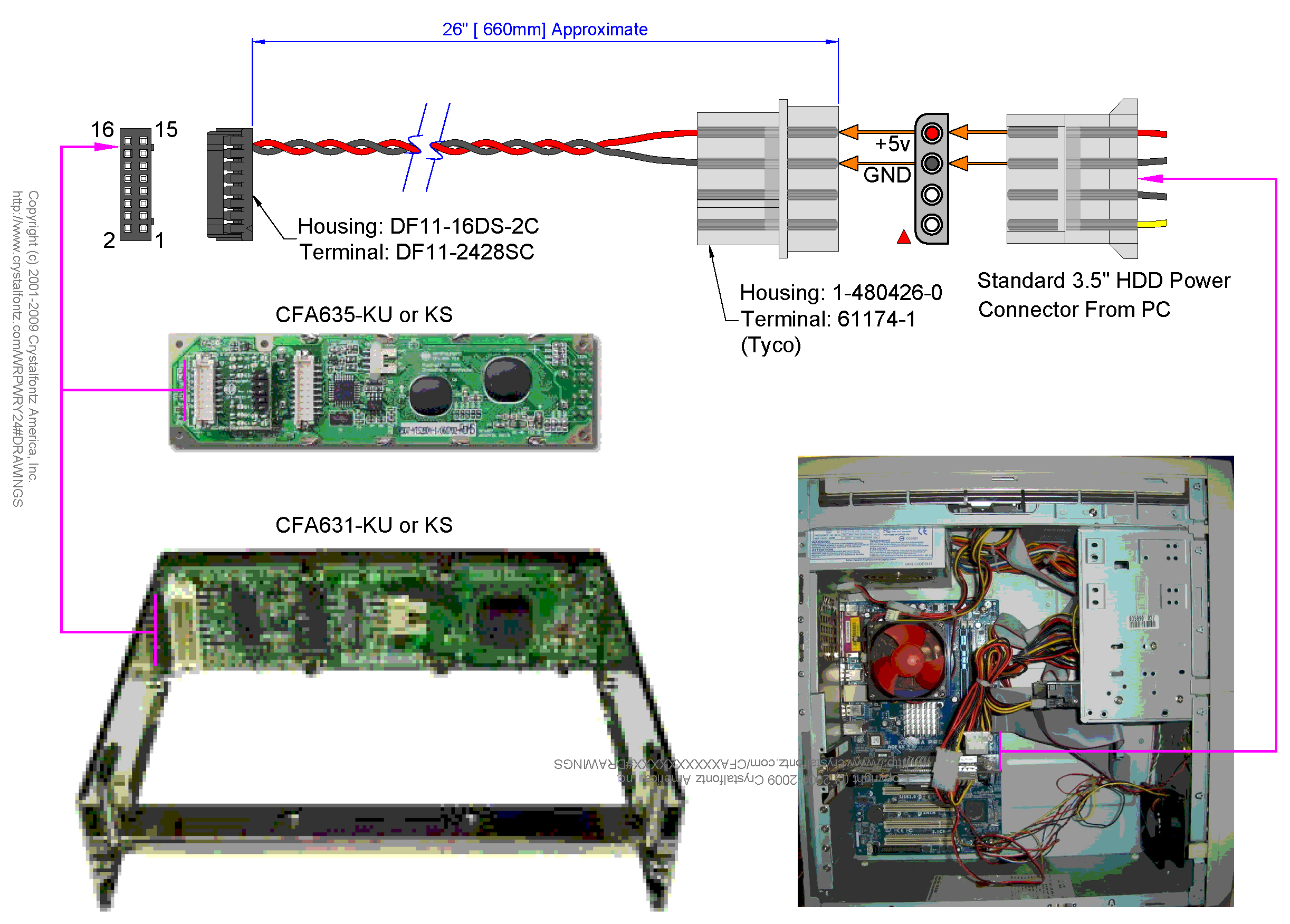

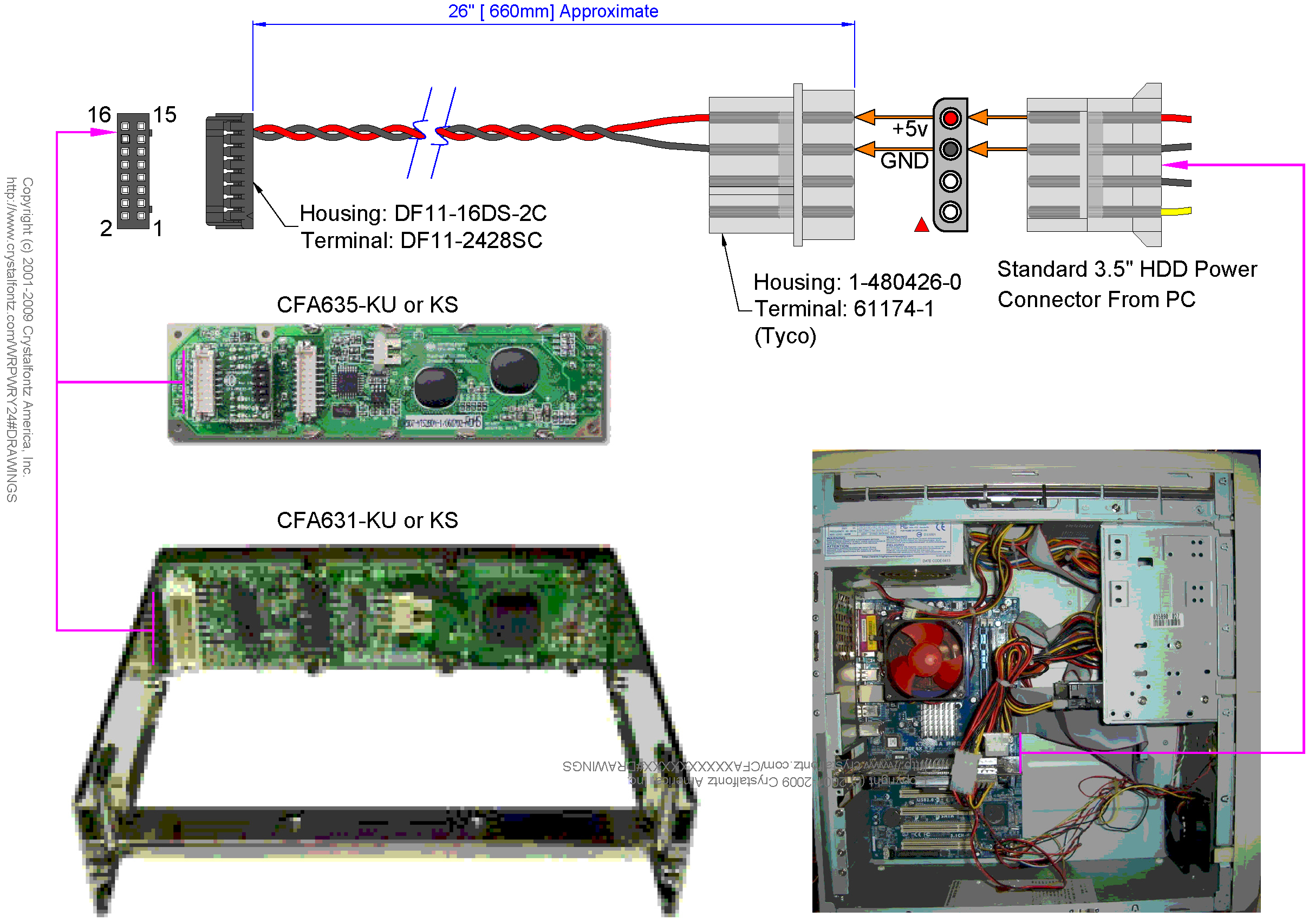

PC power supply to 16 pin connector cable used to connect power directly from the power supply to our CFA631 or CFA635 LCD modules or CFA-RS232 board. RoHS Compliant.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 965
inches 37.992
Weight 10g

*Suggest a Correction
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

When using this cable with CFA631 family modules - Open JP2. With CFA735 family modules - Open JP10. This will avoid back-powering the USB subsystem.
