12 inch PC Power to 16 Pin Cable

Part Number: WR-PWR-Y25

Used to connect power directly from an ATX power supply to a CFA631 or CFA635 LCD module.
Provides ATX power switch functionality to the attached LCD module without the use of a SCAB.
RoHS Compliant.
We also offer the WR-PWR-Y38 which is a longer, but otherwise identical cable.

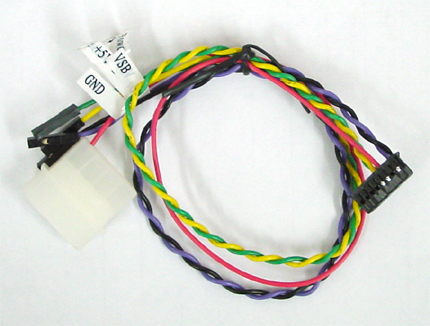

12 inch PC Power to 16 Pin Cable (WR-PWR-Y25)

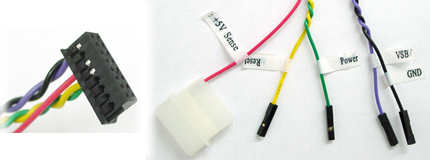

This is a close-up of the ends of the WRPWRY25 cable which has the host power supply connection (spare power connector from your PCs power supply), the four individual connectors for the motherboard, and the 16 pin connection for H1 on your CFA-631 or CFA-635 LCD module.

Quantity	Price
1	$5.18
10	$4.60
20	$4.31
50	$4.03
100	$3.74
500 *	$3.45
1000 *	$3.16

* Pricing is subject to change. Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

Other Document - WRPWRY25.pdf

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for WR-PWR-Y25

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC)	length
millimeters	295
inches	11.614

Weight

10g

Compatible Products

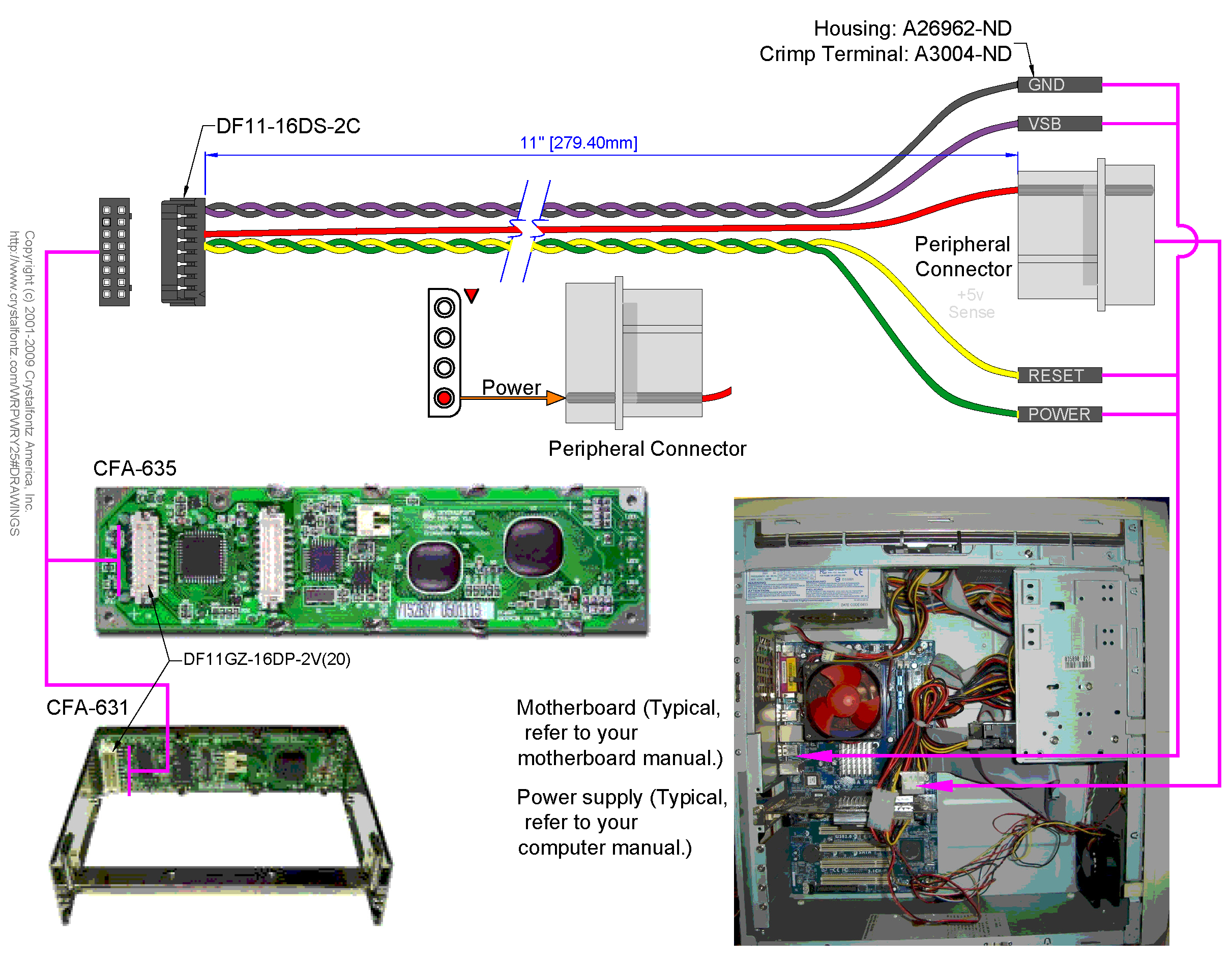

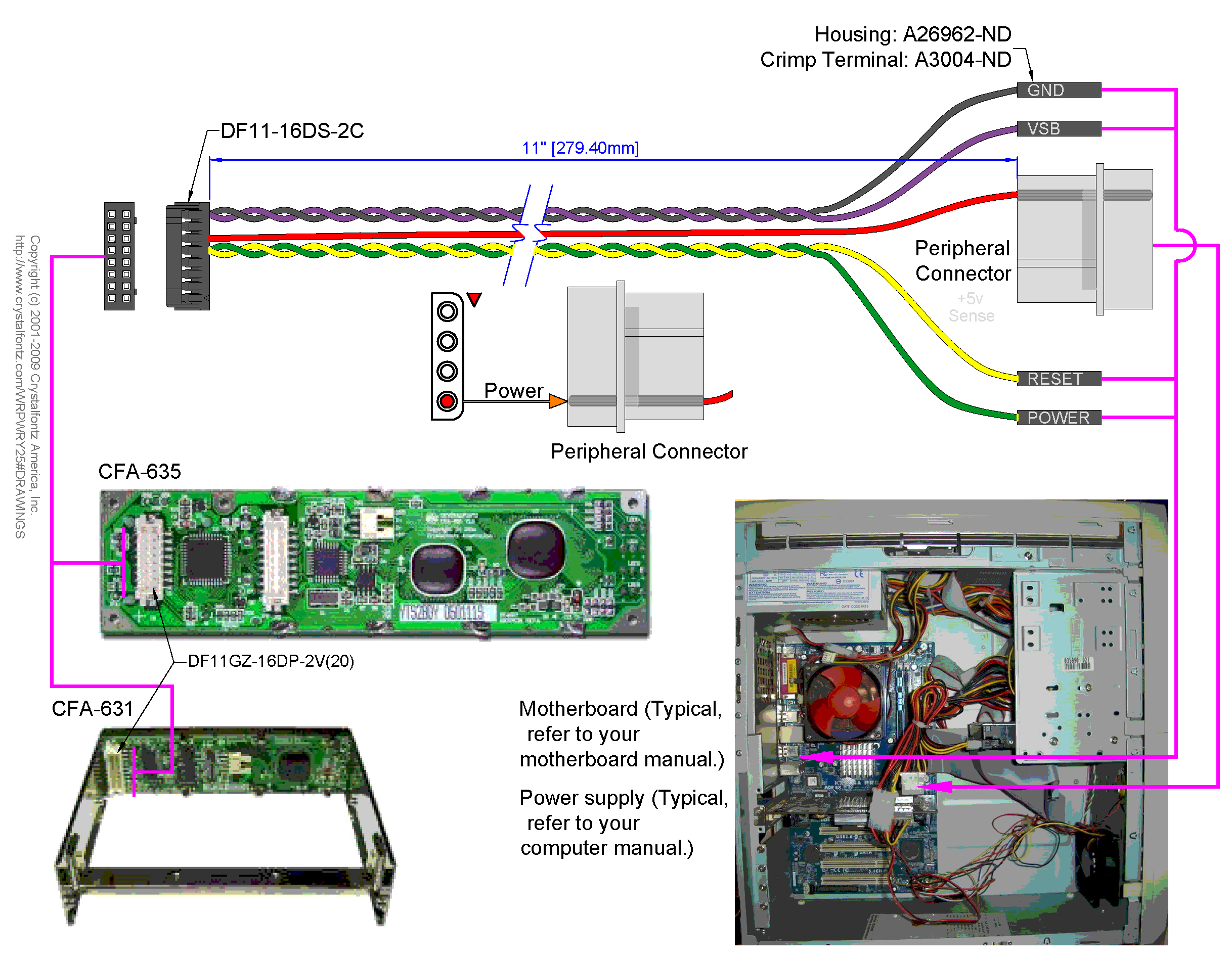

Dimensions
Product Notes

For reference only. For design purposes, please use the specifications in the datasheet.

Product Notes

JP2 will need to be opened on the module when used with this cable to avoid back-powering the USB bus.
