USB Motherboard Cable

Part Number: WR-USB-Y11

Pricing

Quantity Price
1 $5.50
10 $5.00
20 $4.50
50 $4.00
100 $3.90
500 $3.75
1000 $3.65
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to WR-USB-Y11 or RSS RSS feed for changes to WR-USB-Y11 for WR-USB-Y11

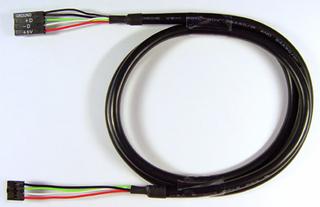

USB Motherboard Cable (WR-USB-Y11)
USB Motherboard Cable
Close

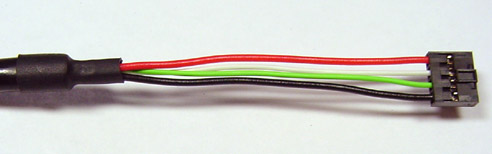

This image is a close-up of the 2mm connector end of the cable
This image is a close-up of the 2mm connector end of the cable
This image is a close-up of the 2mm connector end of the cable
Close

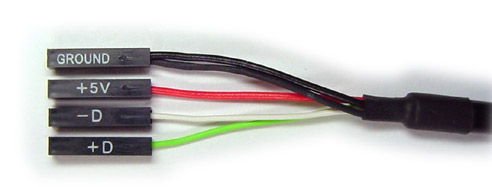

This image shows the 4 individual wire connectors for the USB header.
This image shows the 4 individual wire connectors for the USB header.
This image shows the 4 individual wire connectors for the USB header.
Close

Description

Cable with 2mm motherboard header to connect our USB displays to the USB pins on your motherboard. RoHS Compliant.

We also offer the WR-USB-Y33 which is similar, except it uses a single 4-pin connector instead of 4 individual pins.

TECHNICAL SPECS

Physical Characteristics

Flexible Cable (FFC/FPC) length
millimeters 770
inches 30.315
Weight 20g
For reference only. For design purposes, please use the specifications in the datasheet.

Production Notes

If you have been ordering your module / bracket kit with a "-KU2" suffix, or have been ordering your module with a WRUSBY11, please see Product Update Notice #10430.
