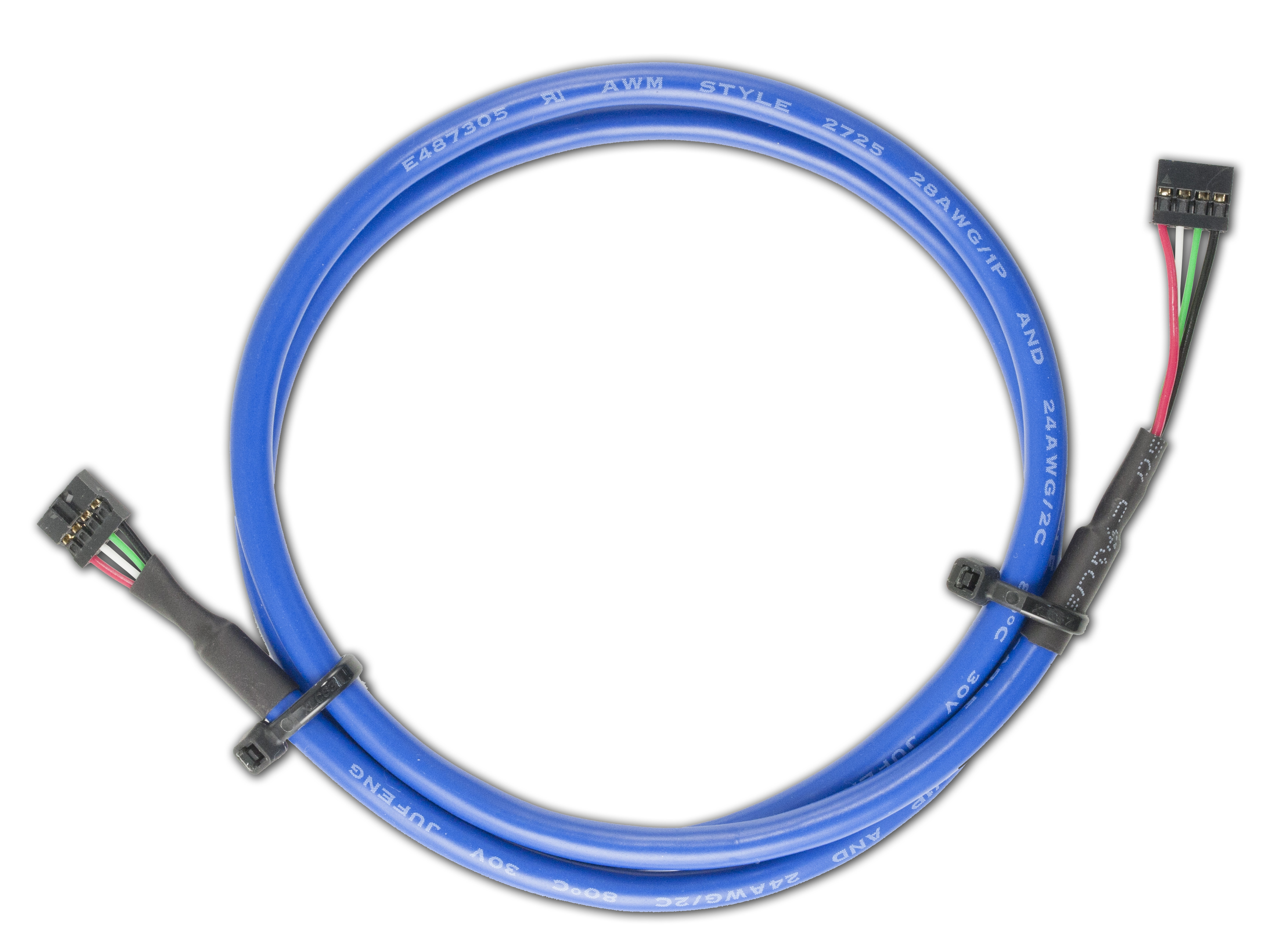

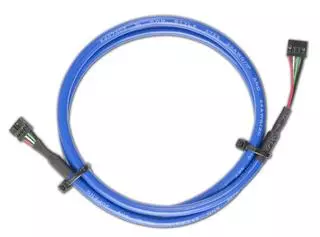

2mm to 2mm USB LCD Cable

Part Number: WR-USB-Y53

This USB cable is to connect any of our modules that use a 2mm USB header to a PCB motherboard with a 2mm header. This cable is approximately 27 inches long.

The WR-USB-Y33 is identical to this cable except with a 2.54mm header to connect to a motherboard with a wider pitch.

2mm to 2mm USB LCD Cable (WR-USB-Y53)

Quantity	Price
1	$6.33
10	$5.75
20	$5.18
100	$4.49
500	$4.31
1000 *	$4.20

* Pricing is subject to change. Contact us about potential lead times.

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Files

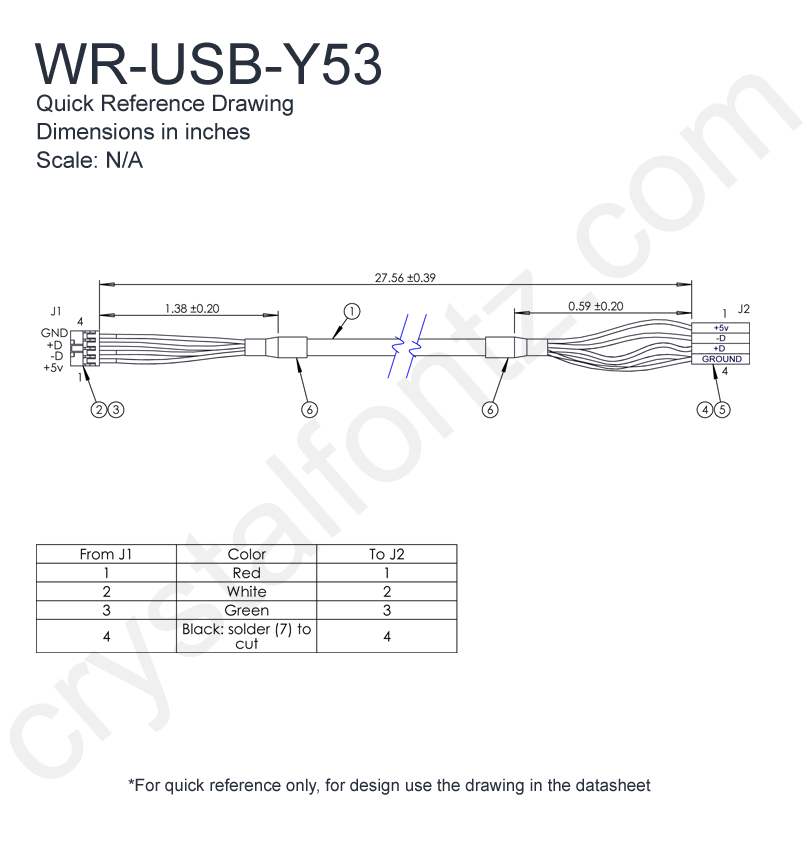

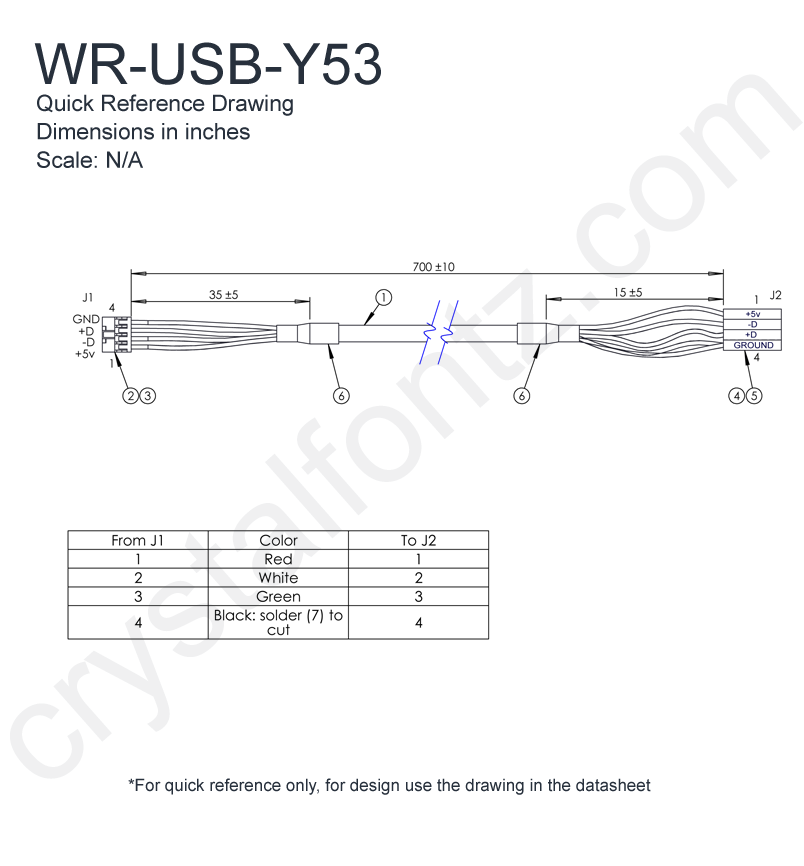

Hardware Design - Mechanical Drawing

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for WR-USB-Y53

Compliance Documents

TECHNICAL SPECS

Physical Characteristics

Overall Cable Length	length
millimeters	0.7 m
inches	2 ft. 3.55 in.

Weight	21g
Pin Count	4

Dimensions

For reference only. For design purposes, please use the specifications in the datasheet.
