MicroSD Card Reader

Part Number: CFA10112

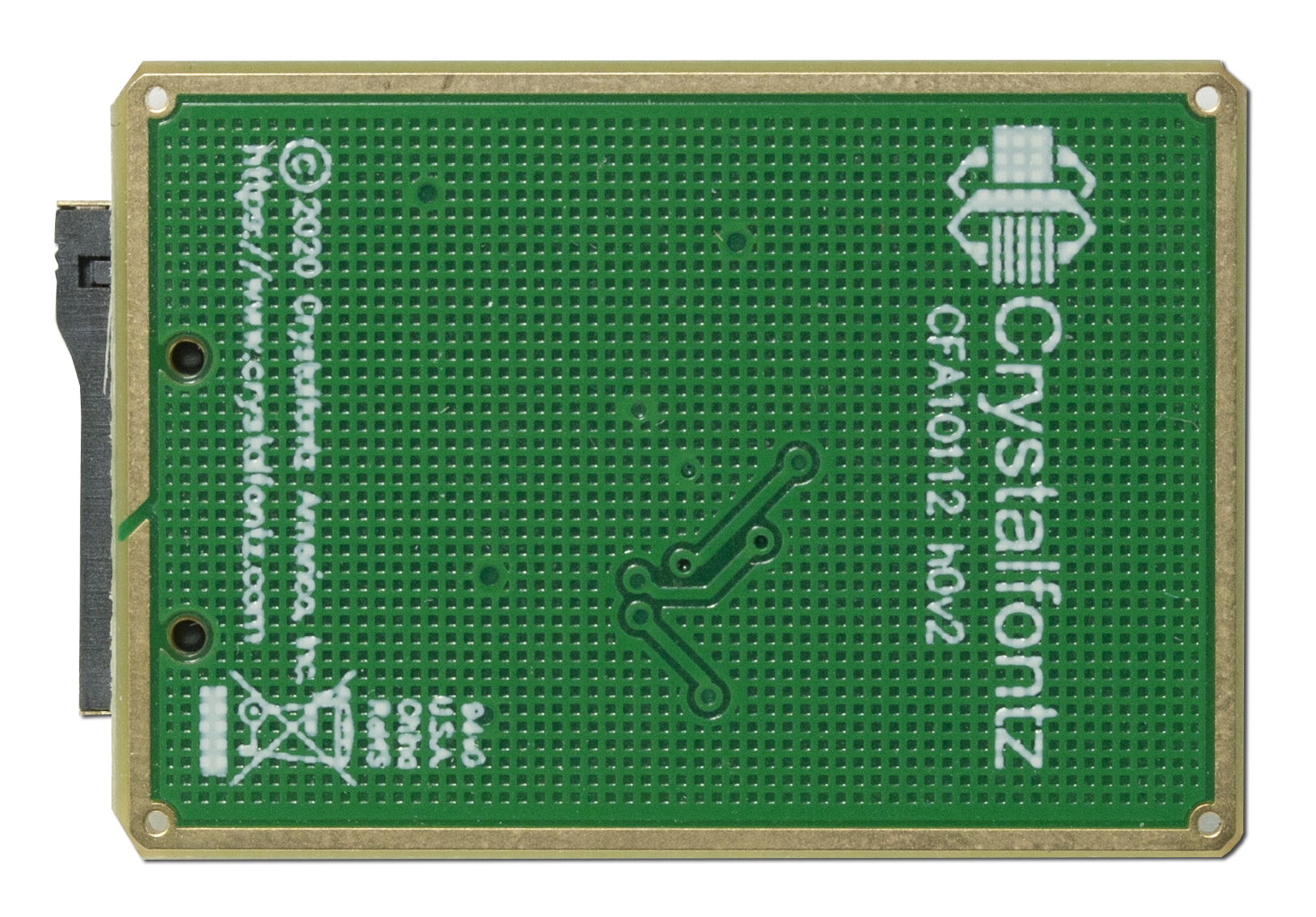

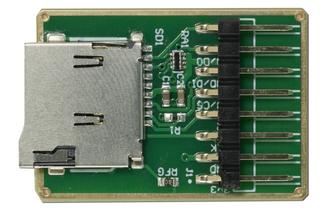

This microSD (uSD) breakout board makes connecting a microSD card to your project a cinch. It functions using the "SD" interface (quad-SPI) or standard 4-wire SPI. The uSD card pins are broken out to a 0.1" header that is ideal to connect with a microcontroller dev board such as a Seeeduino or an ESP32 DevKit.

Connecting an uSD card to your project allows you to display images that exceed your microcontroller's available memory. Perfect for all display types, including OLED, TFT, ePaper, etc. We use an uSD card and breakout board to show image slideshows on little OLED displays, as well as hold large demos for our EVE display modules, and playing a video on a TFT.

This uSD breakout board is designed for 3.3v microcontrollers like the Seeeduino or Raspberry Pi. To use with a 5v source, it will require external level shifters for each signal.

Note that this product is just the breakout board. You can also add a uSD card to your order or use it with a card you already have.

Qty:
Quantity Price
1 $8.60
5 $7.08
10 $6.58
20 $6.38
50 $6.17
100 $6.09
200 * $6.05
300 * $6.01
500 * $5.97
1000 * $5.93
* Contact us about potential lead times.
Components worth considering

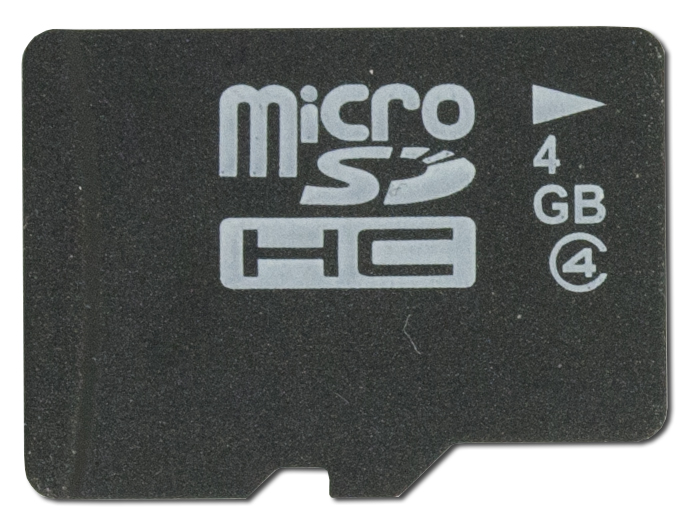

4702 4GB uSD Cards
Get the MicroSD Card while you're here $5.00 ea.
1872 Female to Female Jumper Wires
Add jumper wires? $2.73 ea.
4584 36-Pin .100 inch Header for Arduino
Need header pins? $0.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFA10112 or RSS RSS feed for changes to CFA10112 for CFA10112

Video Demonstrations

MicroSD Breakout Board

Details about the Crystalfontz MicroSD Breakout board.


TECHNICAL SPECS

Physical Characteristics

Weight 3.6g
For reference only. For design purposes, please use the specifications in the datasheet.
