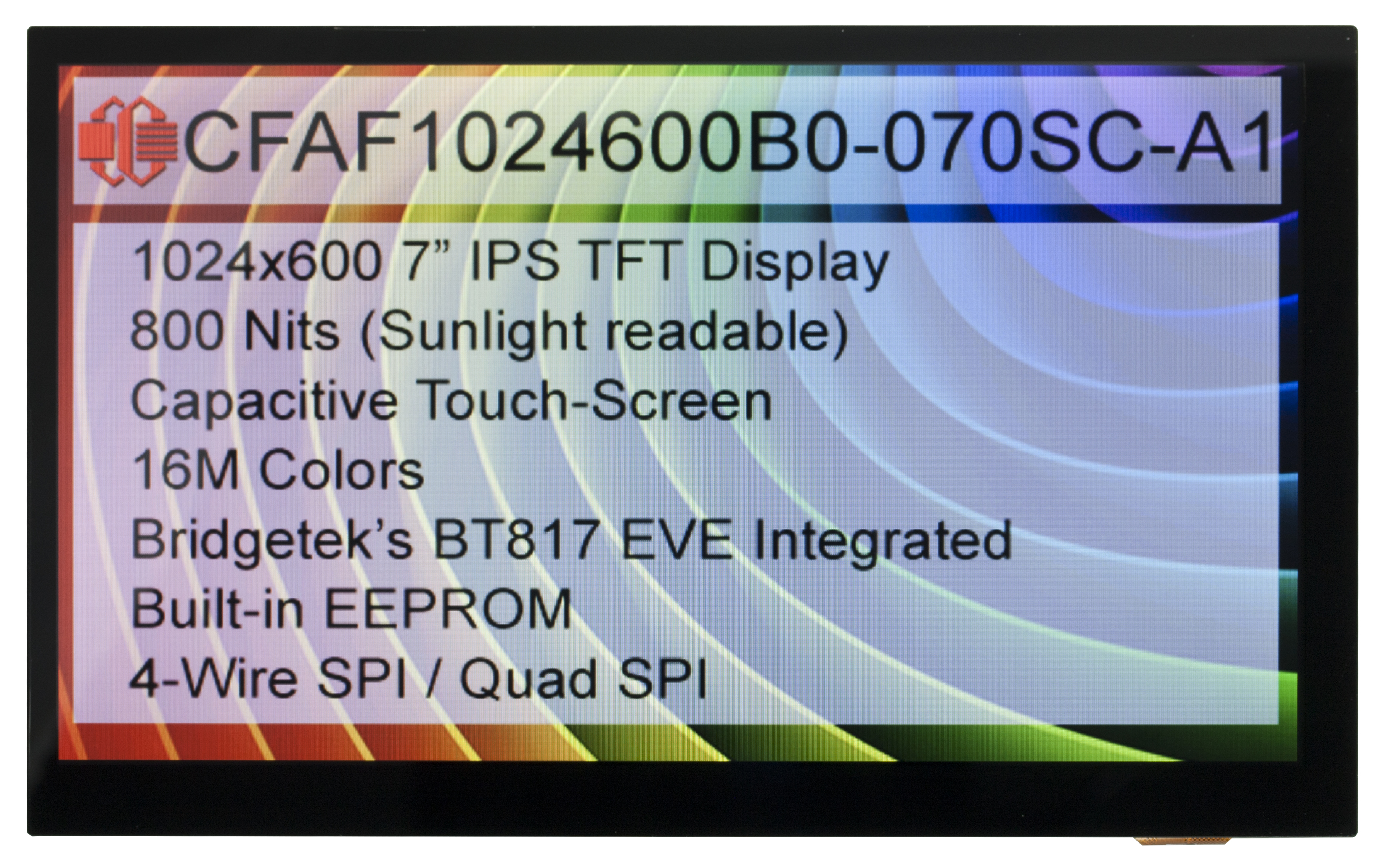

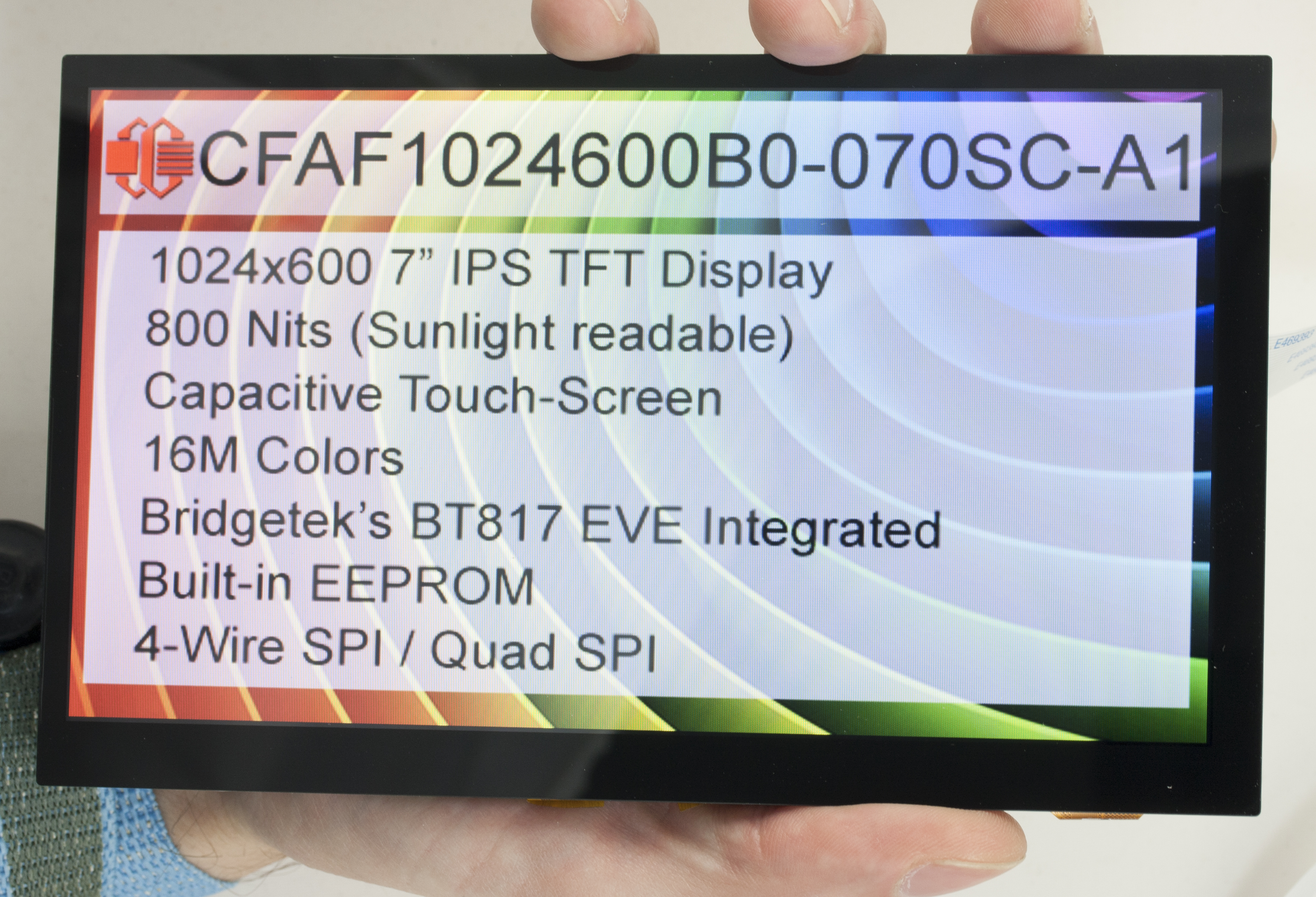

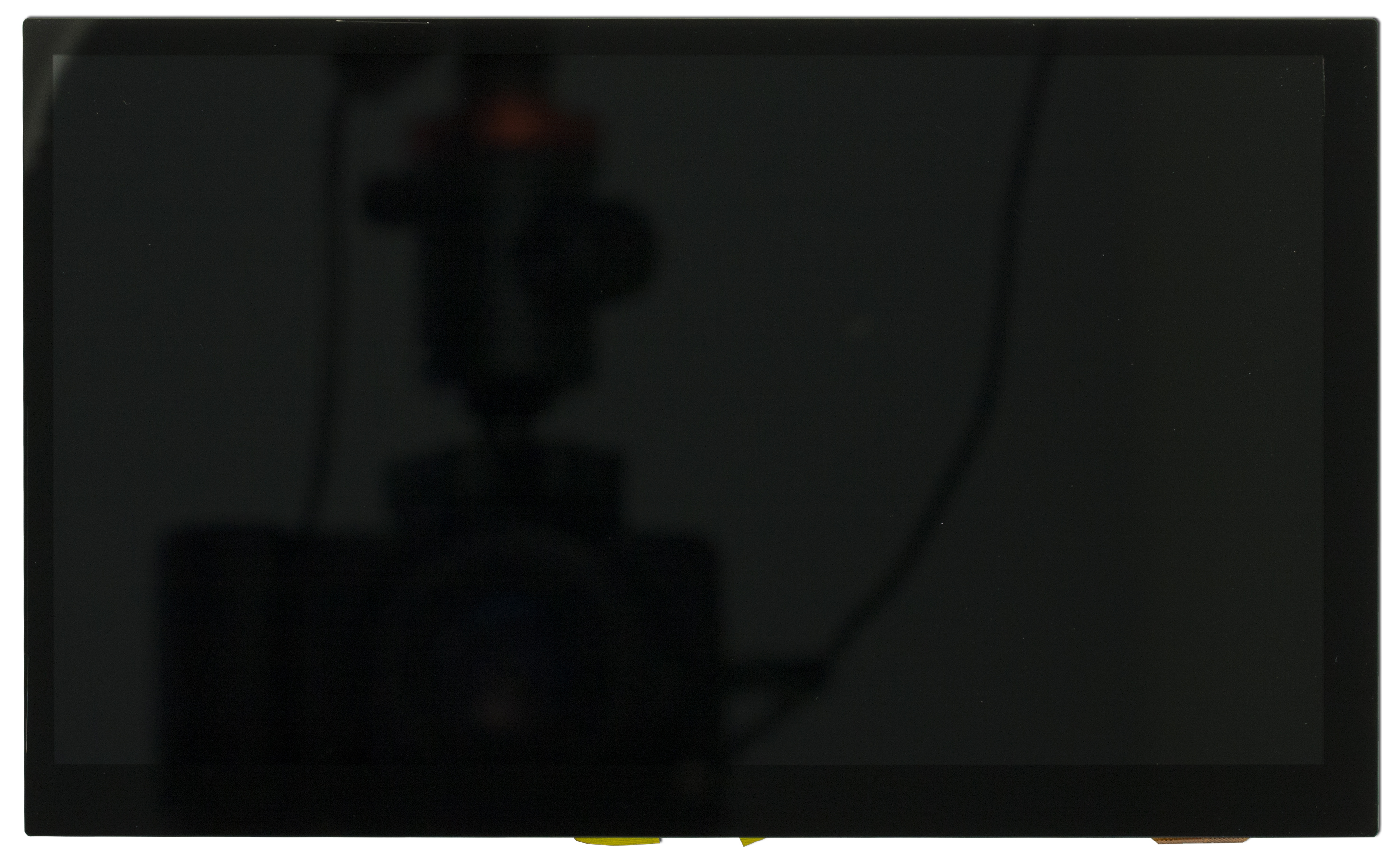

7" Capacitive Touchscreen EVE TFT

Part Number: CFAF1024600B0-070SC-A1

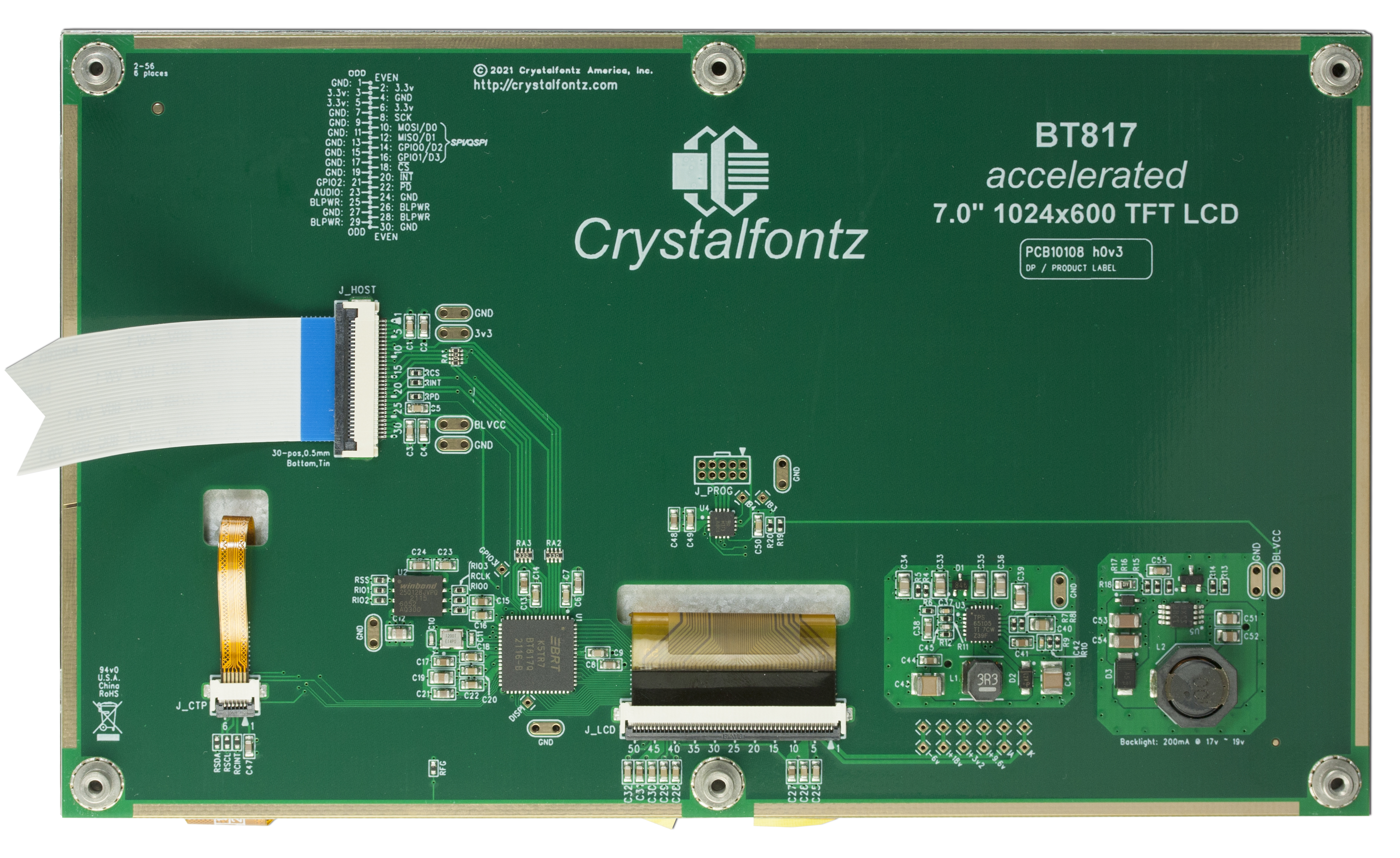

This TFT display module comprises a 7" TFT with capacitive touch and an EVE accelerator PCB. The EVE accelerator PCB simplifies interfacing with the display as it makes the display, touch, backlight, and any added audio features appear to the host MCU as a memory-mapped SPI device. The host controller can send high-level commands to the EVE chip to quickly and easily describe images, text, buttons, tables, and more.

At 7" on the diagonal, this display offers plenty of space, making it a great choice for an information panel, menu, etc. Plus, thanks to the extremely wide viewing angle achieved using in-plane switching (IPS), this display can be read equally well above or below eye level.

The capacitive touchscreen feels modern and supports gestures people are used to like pinching and swiping.

Between the Crystalfontz demo code (available in the right-hand sidebar) and the FTDI/Bridgetek's development tools, there are lots of resources available to make creating a beautiful, responsive, and functional user interface easier than ever.

A full development kit for this EVE display module is also available.

Features:
  • 1024x600, 7" IPS TFT
  • Sunlight readable @ 800nits
  • Capacitive Touch
  • 16M colors
  • Bridgetek's BT817 EVE integrated
  • Built-in EEPROM
  • Six 2-56 threaded mounting stand-offs
  • 30-pin ZIF connector
  • 4-wire SPI / Quad SPI
  • Can be powered off of a single voltage source
Need an EVE display in a different size? Crystalfontz offers a wide variety of EVE TFT modules.

Currently Shipping: HW Version 0v3, Firmware Version: 1v0

Qty:
Quantity Price
1 * $120.00
5 * $116.00
10 * $115.75
20 * $115.50
50 * $115.25
100 * $114.00
200 * $113.00
300 * $112.00
500 * $111.00
1000 * $110.50
* Pricing is subject to change. Contact us about potential lead times.
Components worth considering
4649 30 Position, 0.5mm Pitch, Tin, FCC FPC ZIF connector
Add 5 ZIF Connectors $0.53 ea.
4606 6-inch 30-pin FFC Cable
Need a FFC Cable? $2.00 ea.
4665 Assorted Imperial Screws
Mounting screws $2.68 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF1024600B0-070SC-A1 or RSS RSS feed for changes to CFAF1024600B0-070SC-A1 for CFAF1024600B0-070SC-A1

Video Demonstrations

7 inch EVE integrated TFT Demo

See this 7 inch 1024x600 EVE Powered Touchscreen display in action by watching this short demonstration video.


TECHNICAL SPECS

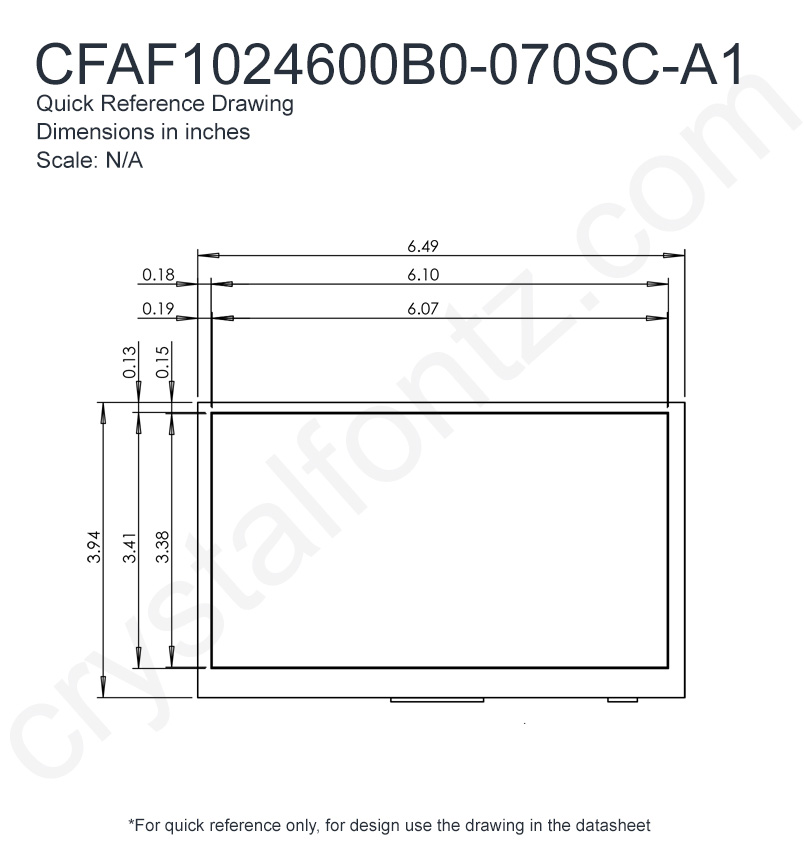

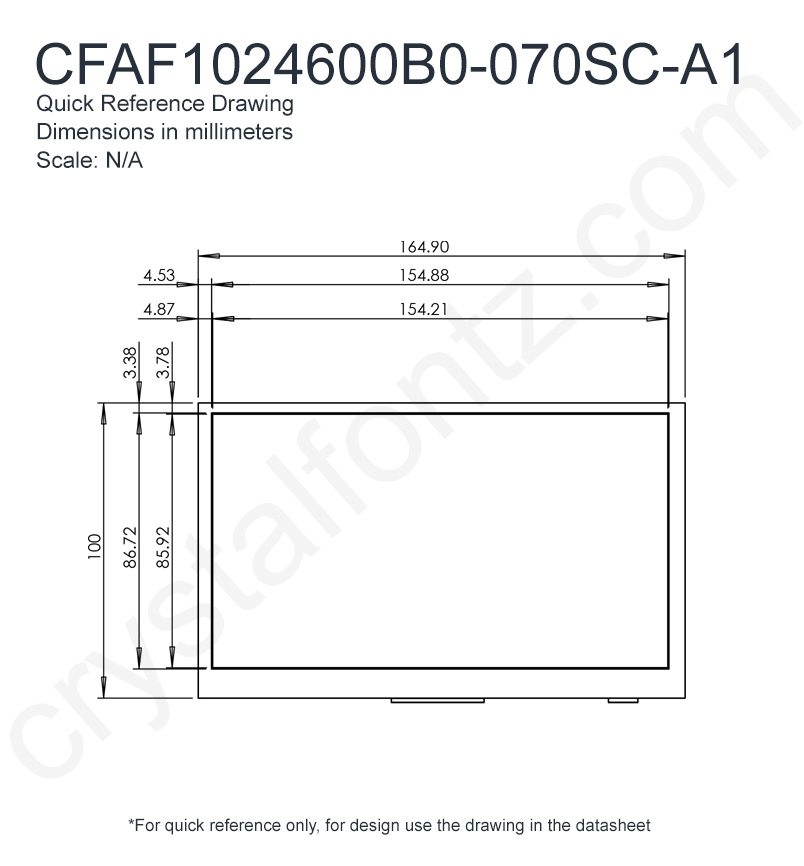

Physical Characteristics

Column Dots x Row Dots 1024 x 600
Module Overall width height depth
millimeters 164.9 100 6.92
inches 6.492 3.937 0.272
Diagonal Dimension 7"
Viewing Area width height
millimeters 154.88 86.72
inches 6.098 3.414
Active Area width height
millimeters 154.21 85.92
inches 6.071 3.383
Dot Pitch width height
millimeters 0.0502 0.1432
inches 0.0020 0.0056
Weight 211g
Pin Count 30

Optical Characteristics

Glass Type/Glass Color TFT/RGB
Polarizer IPS
Sunlight Readable Yes
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 3.0V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Supply Current Typical 120mA

Backlight Electrical Specifications

Forward Voltage Minimum 3V
Forward Voltage Maximum 5.5V
Forward Voltage Typical 5V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface SPI

Miscellaneous

Nits 850
Touch Screen Capacitive

Additional Options

Add all the components you need to start developing with this EVE powered display.

1024x600 7" EVE TFT Development Kit
Part Number: CFAF1024600B0-070SC-A1-2

This 7" EVE demonstration kit includes just about everything needed for a functioning demonstration of the Crystalfontz 7" EVE display with a capacitive touch screen (just add backlight power). Through the EVE breakout board, the EVE display is connected to an Arduino-clone microcontroller (Seeeduino). The kit comes loaded with demonstration software, so simply connecting the two cables, plugging in the Seeeduino, and supplying backlight power starts the demo.
Features:

  • 7"
  • Sunlight readable @ 800nits
  • IPS
  • TFT
  • Capactive Touchscreen
  • 16M colors
  • Bridgetek's BT817 EVE integrated
  • Built-in EEPROM
  • 4-wire SPI / Quad SPI
  • Can be powered off of a single voltage source (requires higher current than provided by Seeeduino)
  • Working demonstration kit powered by a Seeeduino

Details
Quantity 1 *
Price $168.79
Quantity:
For reference only. For design purposes, please use the specifications in the datasheet.
