240x320 3.2 inch Full Color TFT LCD from Crystalfontz

Product

                This module is no longer available. We recommend this 240x320 3.2" Full Color TFT LCD for new designs.

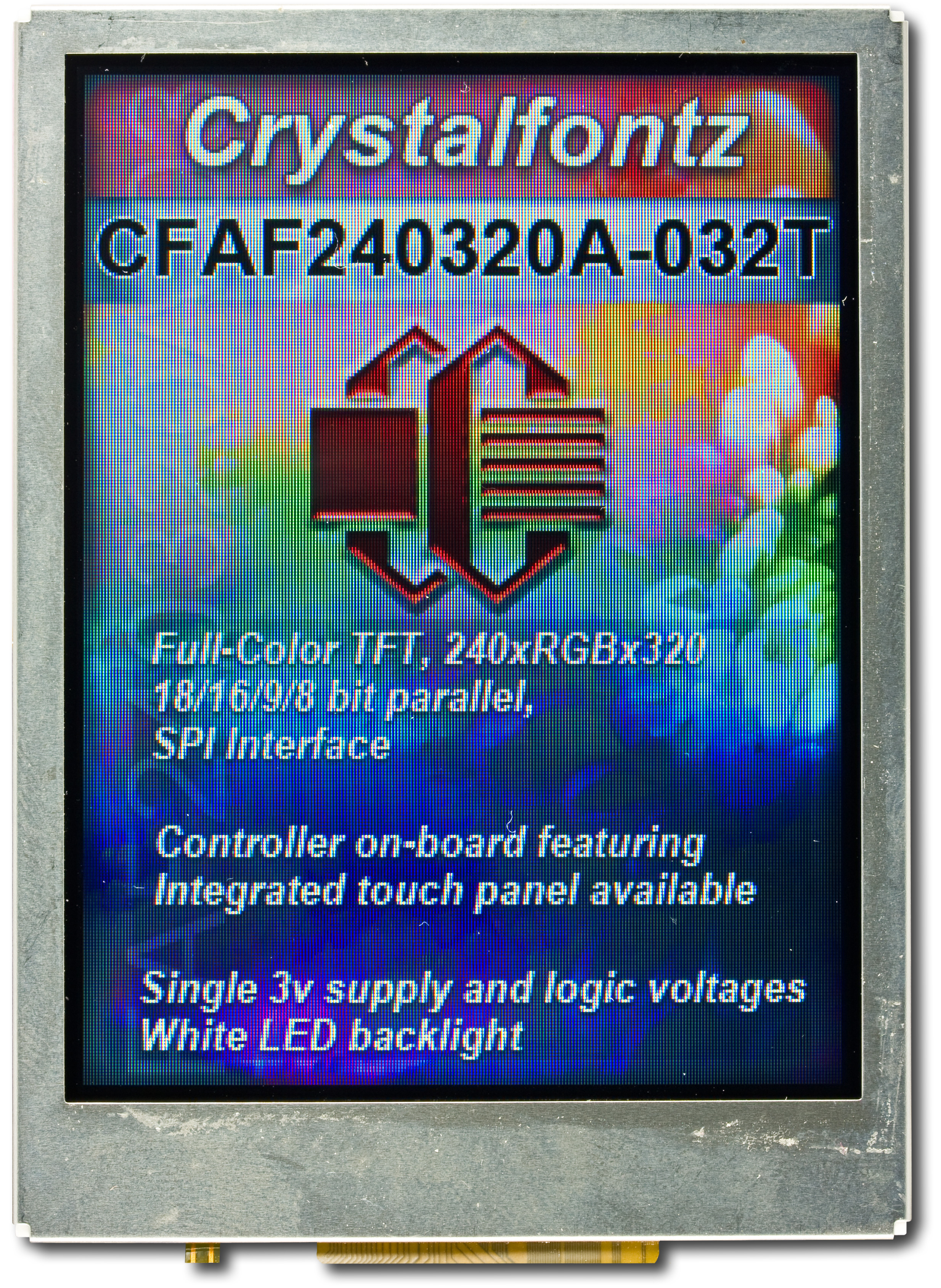

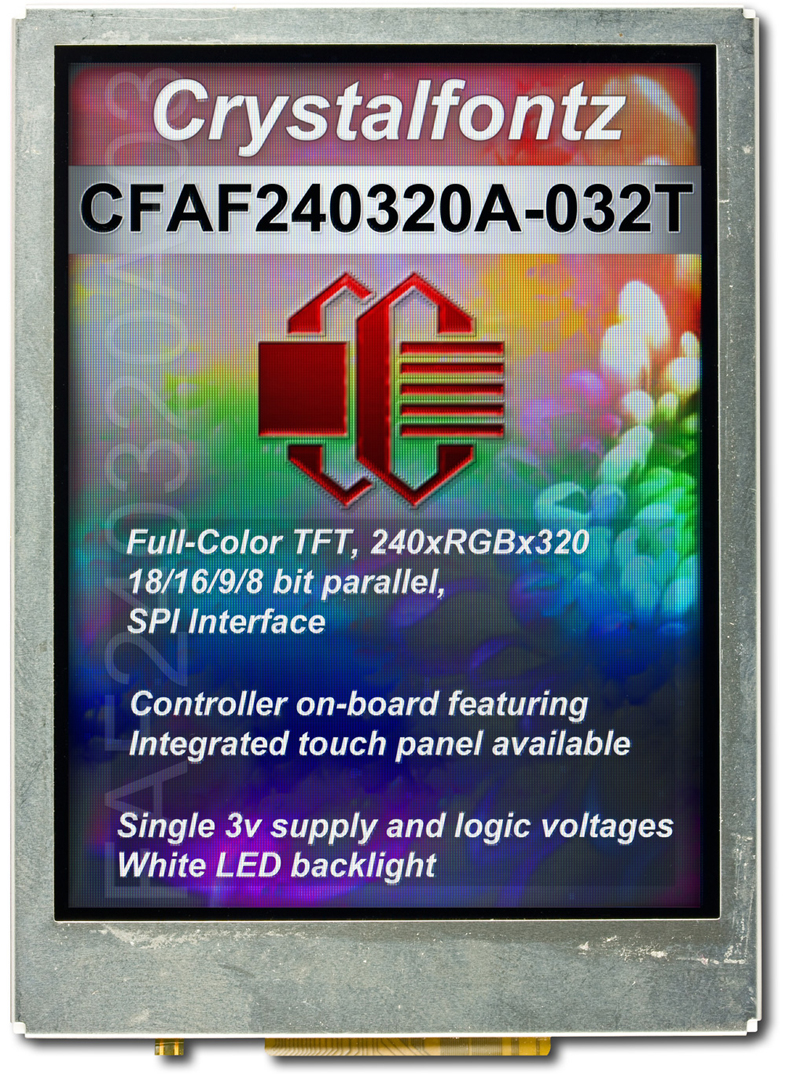

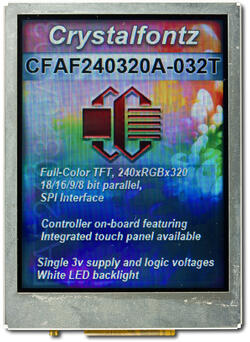

240x320 3.2 inch Full Color TFT LCDPart Number: CFAF240320A-032TThis 3.2-inch diagonal RGB TFT display module is sharp and bright. For faster prototyping, buy the kit with a breakout carrier board.(See ADDITIONAL OPTIONS below.)

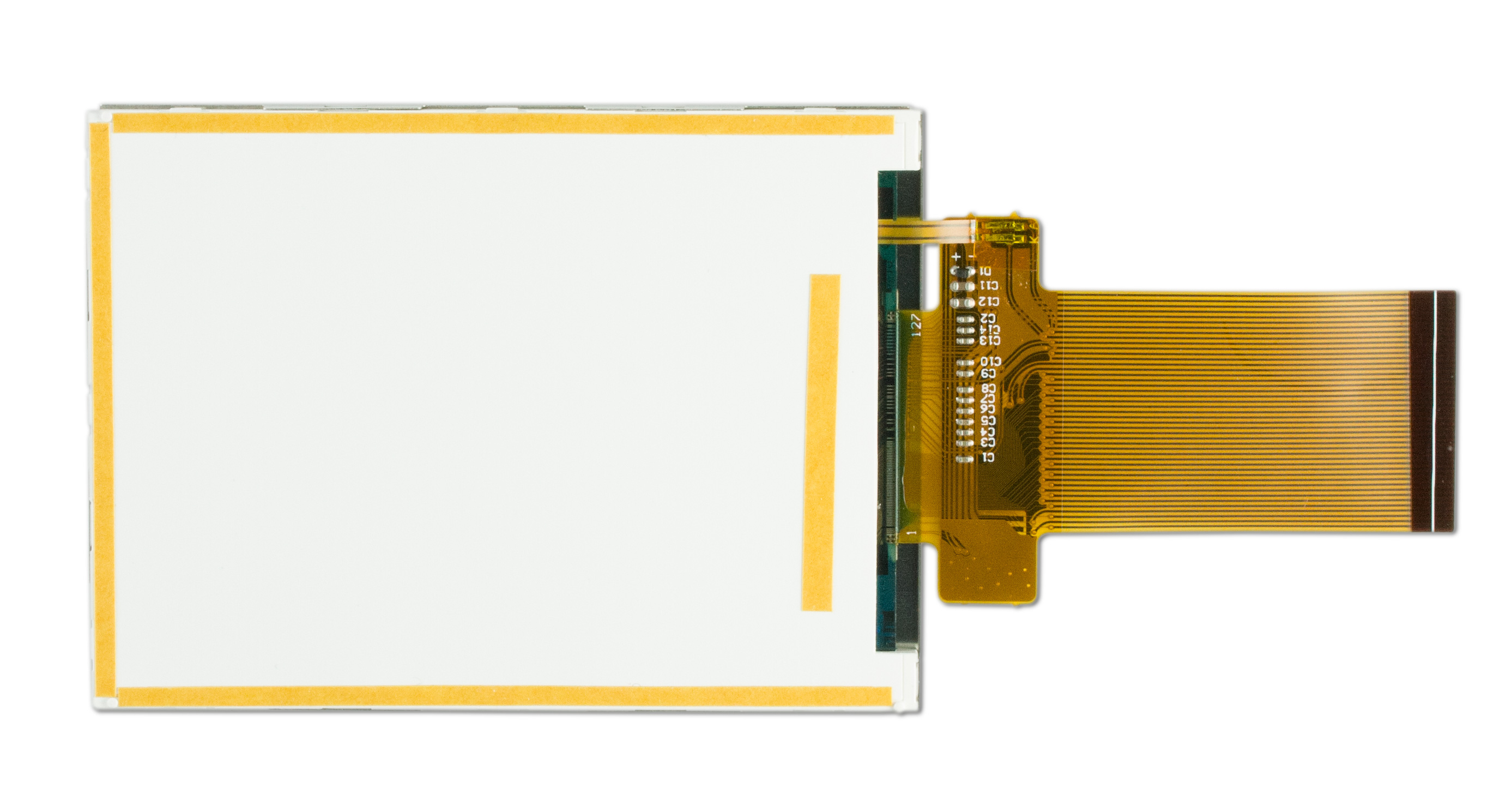

HighlightsFull-color (262K) 240xRGBx320 display module consists of a TFT panel, a driver IC, an FFC/FPC flexible cable, and an LED backlight.
Active Area is 3.2" diagonal, 48.60 (W) x 64.80 (H) millimeters (1.91" (W) x 2.55" (H).
Host interface is 16-bit, 8080 parallel and SPI interfaces.
With an integrated Orise Tech OTM3225A or compatible controller, only a single 3.3v supply is required for both power supply and logic.
The display module's 45-pin FFC/FPC flexible cable mates with standard 0.5 mm ZIF sockets such as 45 Position, 0.50mm Pitch ZIF Connector.
9:00 o'clock viewing direction (polarizer viewing direction). Use in portrait or landscape orientation.
Operating temperature range is from -20°C to +70°C.
This display is RoHS compliant.
Not what you were looking for? Please contact our tech support team to get assistance in finding the right display.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 320


    Module Overall        width
        height
        depth


        millimeters
        57.54
        79.3
        3.85


        inches
        2.27
        3.12
        0.15

*width / height does not include Foldable Tab


        Diagonal Dimension
            3.19"


    Viewing Area        Width
        Height


        millimeters
        50.6
        71.26


        inches
        1.99
        2.81



    Active Area        Width
        Height


        millimeters
        48.6
        64.8


        inches
        1.91
        2.55



    Dot Pitch        Width
        Height


        millimeters
        0.21
        0.21


        inches
        0.008
        0.008



        Optional Connectors
            CS050Z45GB0


        Weight
            24g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            9 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            2.8V


        Supply Current Typical
            8mA
Module Connector Pitch
            0.2mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            12.3V
Forward Voltage Maximum
            13.3V


        Forward Voltage Typical
            12.8V
Forward Current Typical
            20mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -30°
        75°


        Fahrenheit
        -22°
        167°



    Storage Temperatures        min
        max


        Celsius
        -40°
        85°


        Fahrenheit
        -40°
        185°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Orise Tech OTM3225C
OTM3225C

720-channel 6-bit source driver and

320-channel gate driver

with System-On-Chip (SOC) for color

amorphous TFT LCD
Interface
            16-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAF240320A032T Datasheet

Show Previous Versions of Datasheetspicture_as_pdfCFAF240320A-032T Series Datasheet Release 2015-09-21.pdf

picture_as_pdfCFAF240320A-032T Data Sheet Release 2015-01-23.pdf

picture_as_pdfCFAF240320A-032T Data Sheet 2012-05-04

 download Files and Downloads
folder_zip Software Source - ATMega2561 16-BIT Demo Code
folder_zip Software Source - ATMega2561 SPI Demo Code
folder_zip Hardware Design - CFA10073 Carrier Board Hardware Files BOM Gerber v0p0

















Module Overall	width	height	depth
millimeters	57.54	79.3	3.85
inches	2.27	3.12	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	50.6	71.26
inches	1.99	2.81

Active Area	Width	Height
millimeters	48.6	64.8
inches	1.91	2.55

Dot Pitch	Width	Height
millimeters	0.21	0.21
inches	0.008	0.008

Operating Temperatures	min	max
Celsius	-30°	75°
Fahrenheit	-22°	167°

Storage Temperatures	min	max
Celsius	-40°	85°
Fahrenheit	-40°	185°

Humidity	min	max
Non-condensing	0%	90%

Additional Options
Notices

Additional Options

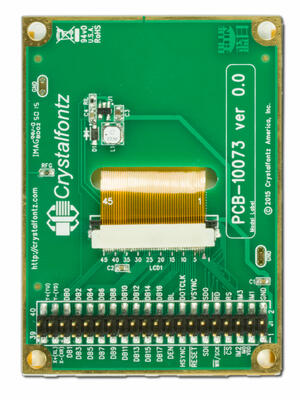

As an option, you can order this TFT pre-assembled onto a breakout/carrier board. The board allows easy prototyping through its 0.1" headers. You can also include the carrier board in your end product to simplify construction and assembly. The carrier board contains a constant-current switching LED driver. The PCB is sized to fit neatly within the outline of the display.

Products Affected:	CFAF240320A-032T-TS-CB, CFAF240320A-032T-TS, CFAF240320A-032T-CB, CFAF240320A-032T
Date Issued:	October 7, 2015
Summary:	CFAF240320A-032T and CFAF240320A-032T-TS End of Life
Last revision:	A
Description:	CFAF240320A-032T and CFAF240320A-032T-TS is End Of Life as of 2015-10-07. This part is no longer being manufactured.
Reason:	Due to the discontinuation of this part's controller, this part can no longer be manufactured.
Impact:	Immediate.
Recommendation:	We are working diligently to source a replacement part. Once identified, we will issue a second PCN with the replacement part information.
Availability:	Current stock will be available until exhausted. Part will then be unavailable.
Price Change:	N/A

New Product:	CFAF240320A-032T
Date Issued:	May 11, 2012
Summary:	(New Product) CFAF240320A-032T
Description:	Under TFT LCD Modules: 240x320 graphic TFT display module.
