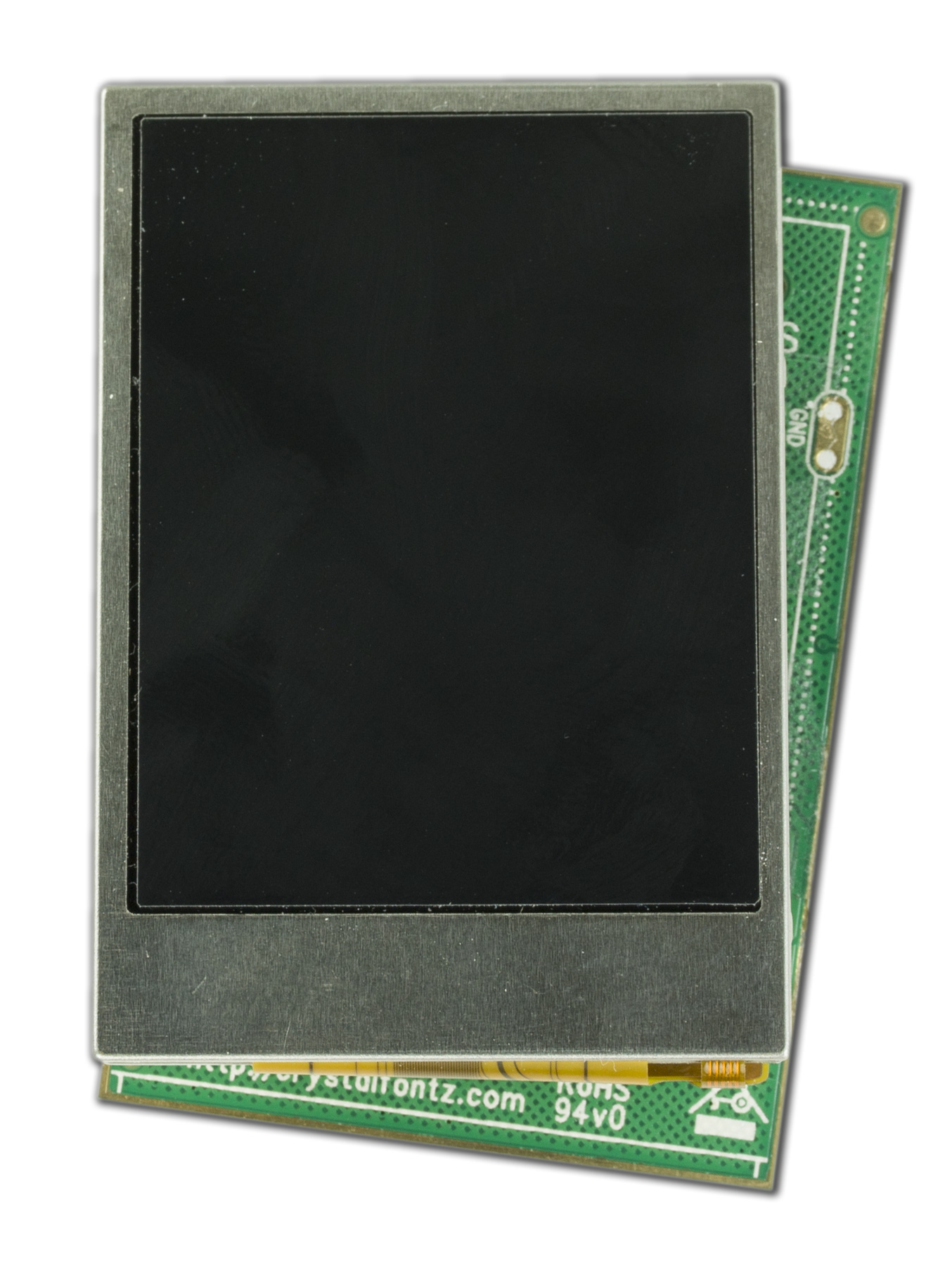

240x320 Color TFT w/Carrier Board

Part Number: CFAF240320X0-020T-E1-1

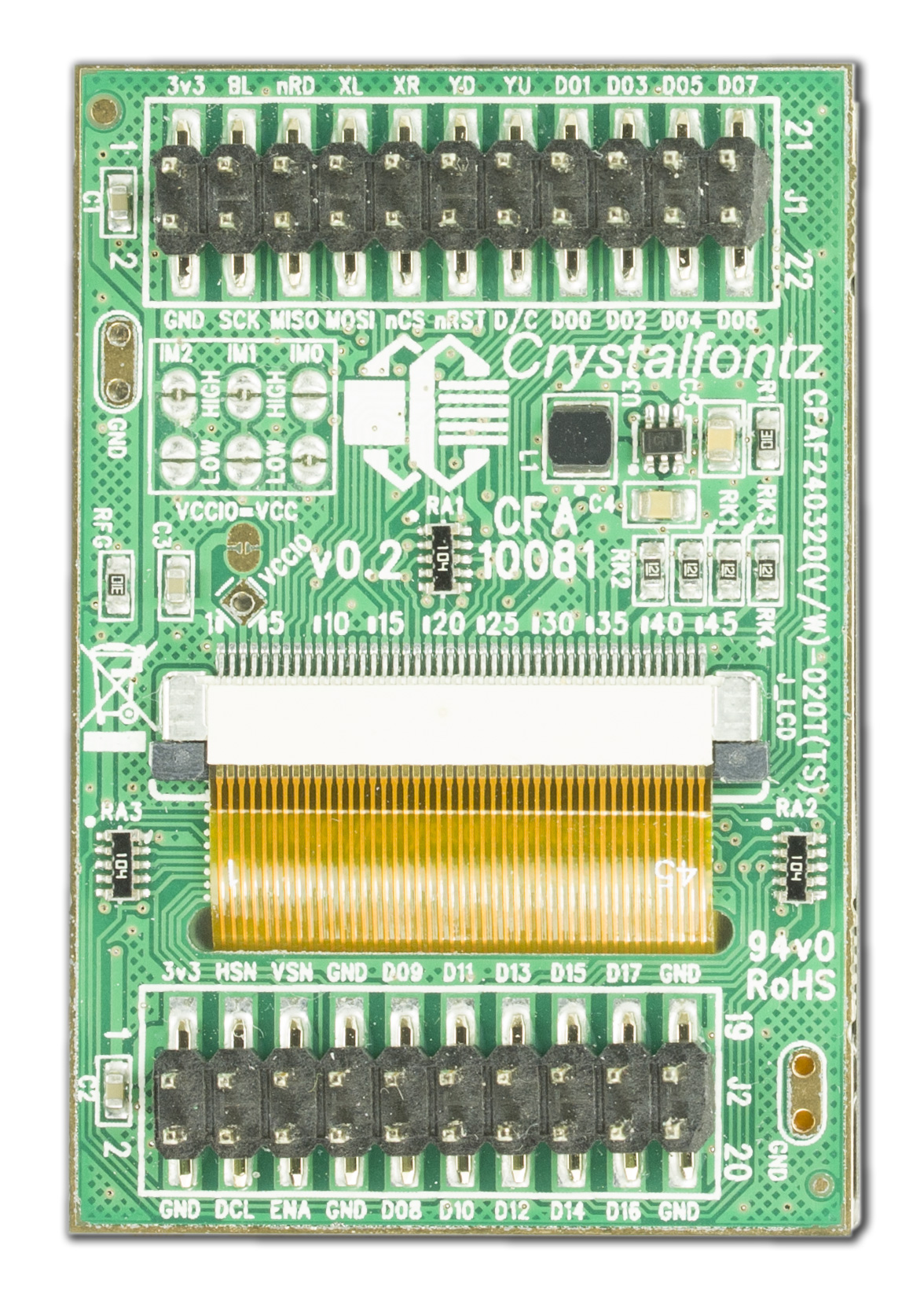

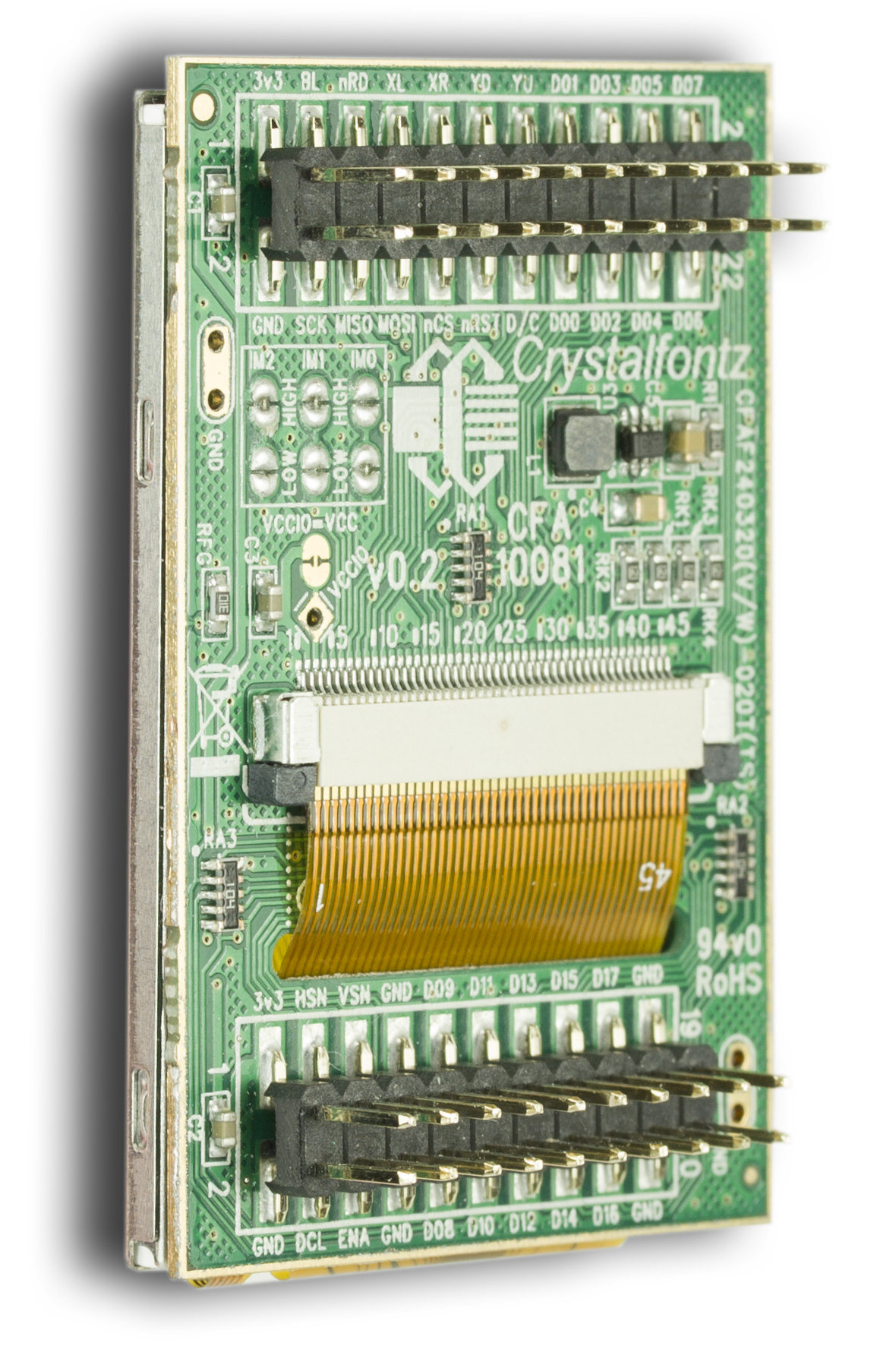

This TFT Development kit includes the 240x320 2 inch TFT with a carrier board for quick prototyping with a 3.3v Arduino.

You can also order the 240x320 Color TFT Complete Dev Kit for quick prototyping.

• square_foot Physical Characteristics

  Physical Characteristics

  Column Dots x Row Dots

  240 x 320

  Diagonal Dimension

  2.01"

  Weight

  30g

• visibility Optical Characteristics

  Optical Characteristics

  Polarizer

  Transmissive

  Backlight Color	White
  Backlight Type	LED
  Foreground Color	RGB
  Background Color	Dark

• cable Electronics

  Electronics

  Controller Documents	Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver
  Interface	16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

• download Files and Downloads
  folder_zip Hardware Design - 3D Model


  folder_zip Hardware Design - Hardware Build Package


  link Demo Code Repository on Github

• assured_workload Compliance Documents
  picture_as_pdf Declaration of Conformity RoHS2

  picture_as_pdf Declaration of Conformity REACH
  <

• Additional Options

Additional Options

Purchase the complete development kit, ready to use.

240x320 Color TFT Complete Dev Kit
Part Number: CFAF240320X0-020T-E1-2

This complete TFT development kit includes the 240x320 2" full-color TFT, Seeeduino, Carrier board, Cables and Headers. Want just the display and carrier board? You can order the 240x320 Color TFT w/Carrier Board.

Details

Quantity	1 *
Unit Price	$58.70

Quantity: Add to Cart »
