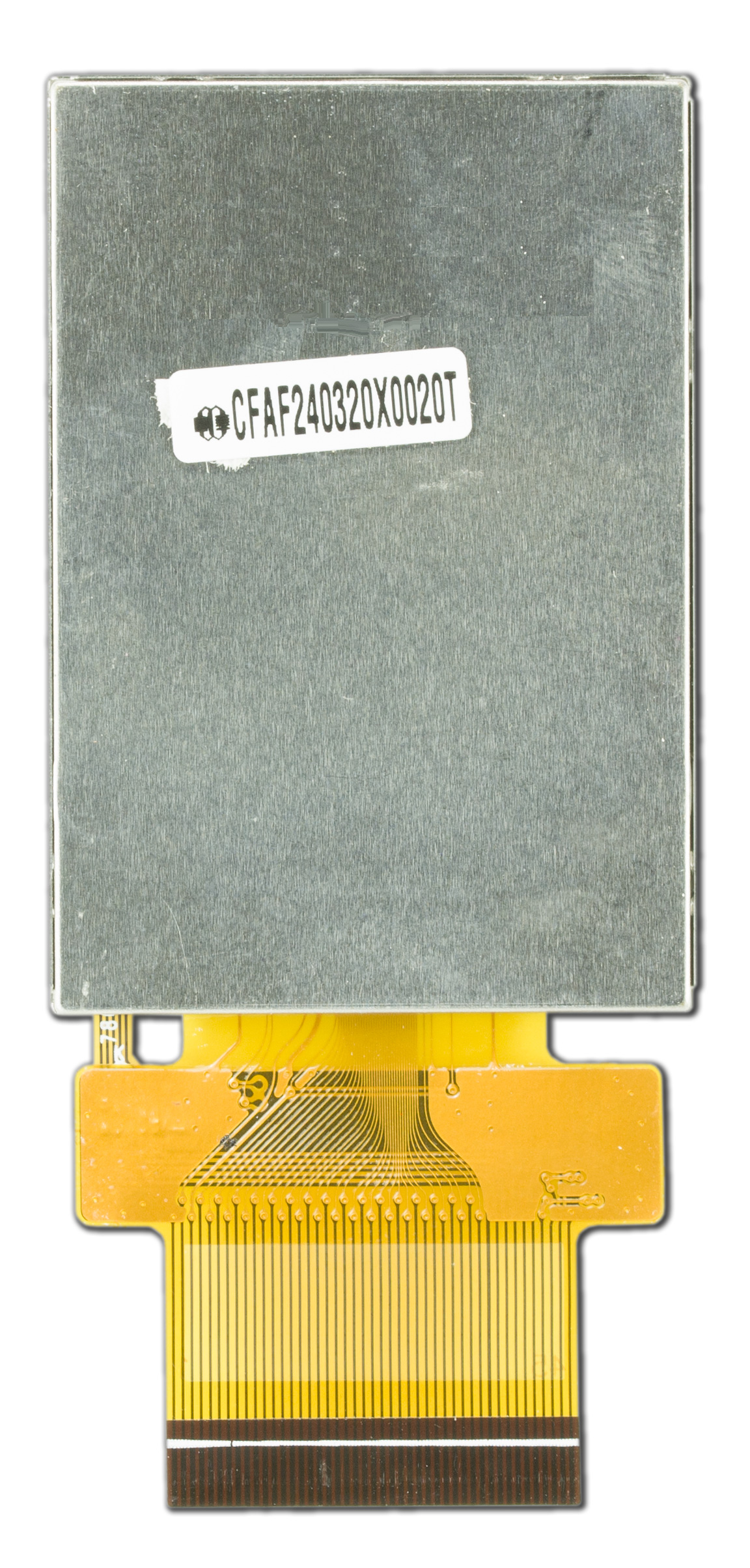

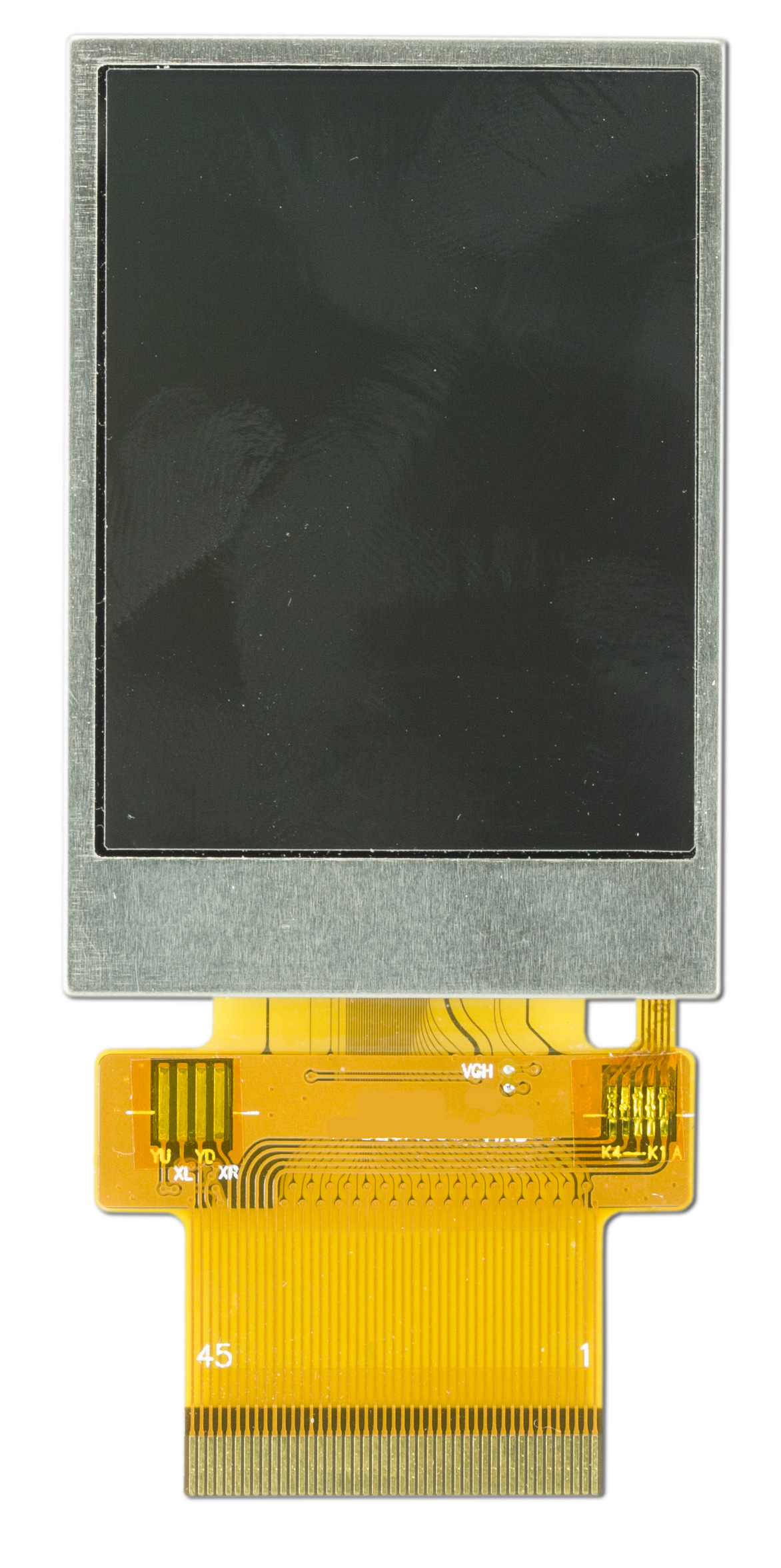

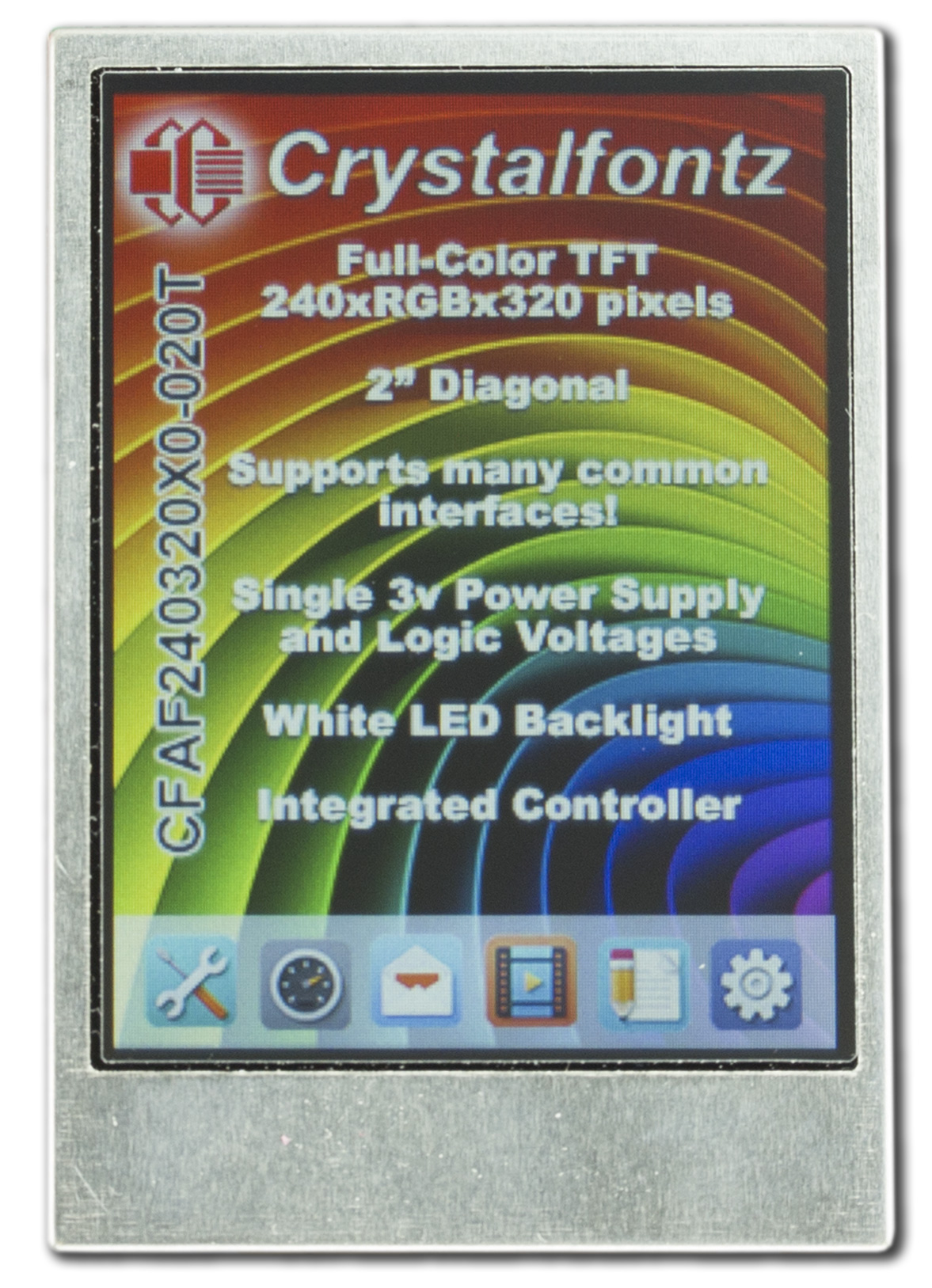

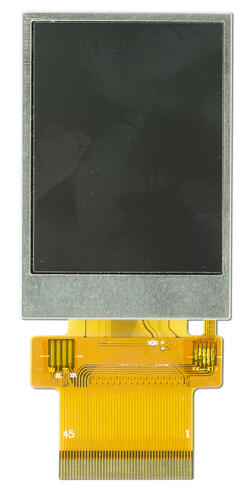

2 inch 240x320 Color TFT

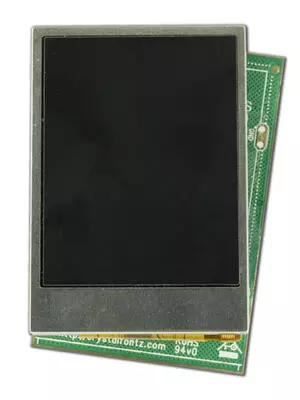

Part Number: CFAF240320X0-020T
This 2 inch TFT boasts vibrant, full color images at 200 PPI (Pixels Per Inch). Perfect for small applications and up close viewing.
This full-color TFT has an O-Film construction that gives it near IPS performance at a lower price.
This TFT display module will replace either the CFAF240320W-020T or CFAF240320V-020T, you need only change the initialization sequence in your firmware.
The CFAF240320X0-020T connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. The display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices.
This full-color TFT has an O-Film construction that gives it near IPS performance at a lower price.
This TFT display module will replace either the CFAF240320W-020T or CFAF240320V-020T, you need only change the initialization sequence in your firmware.
The CFAF240320X0-020T connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. The display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices.
- Full color.
- Can communicate with a wide variety of interfaces:
- 4-wire SPI with an 8-bit transfer.
- 3-wire SPI with a 9-bit transfer.
- Parallel interface 8, 9, 16 or 18 bits wide suitable for connecting to a micro-controller.
- 18-bit RGB/dot-clock interface for interfacing to microprocessors that have hardware framebuffer support.
- Extremely high pixel density and resolution (200 pixels per inch at 240x320).
- Integrated Sitronix ST7789V controller.
- Operates in a wide range of temperatures (-20c to +70c).
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
Compliance Documents
TECHNICAL SPECS
Physical Characteristics
| Column Dots x Row Dots | 240 x 320 |
| Module Overall | width | height | depth |
|---|---|---|---|

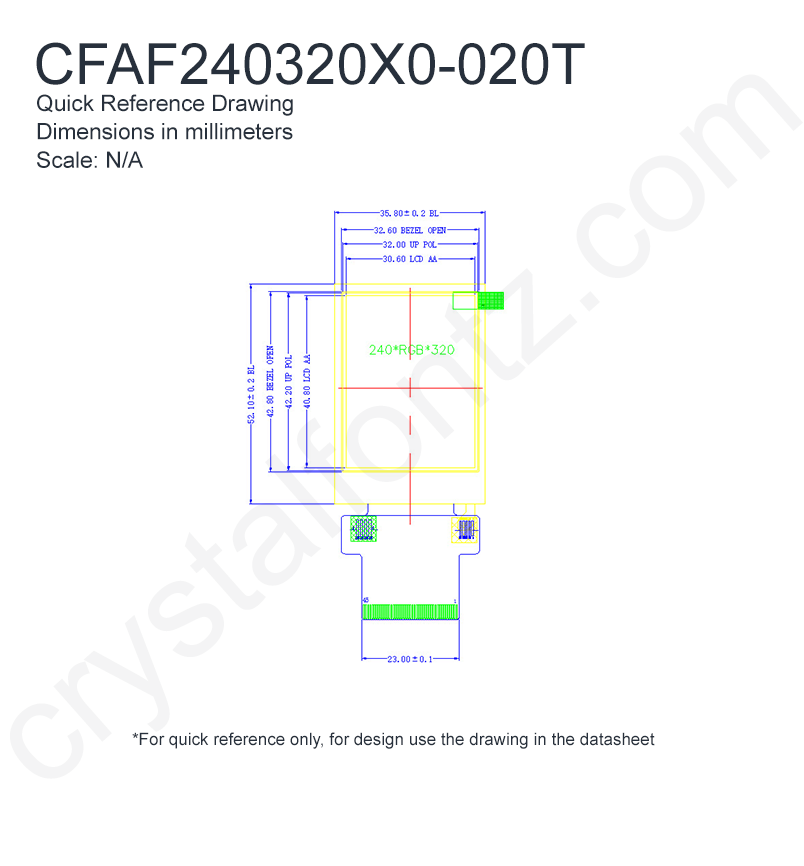

| millimeters | 35.8 | 52.1 | 2.65 |

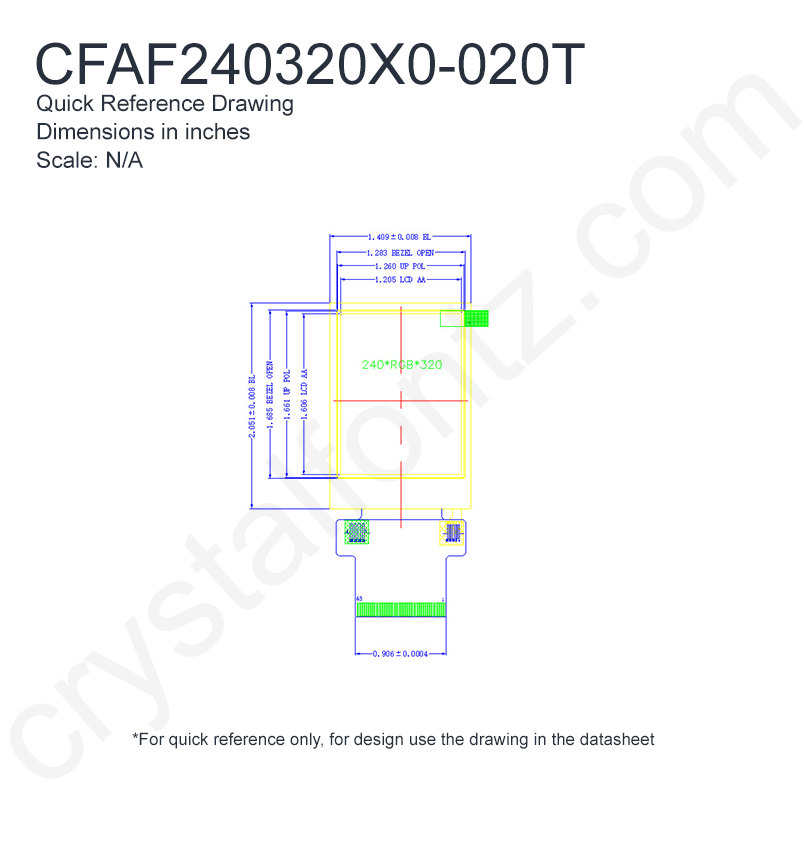

| inches | 1.409 | 2.051 | 0.104 |
| Diagonal Dimension | 2" |
| Active Area | width | height |
|---|---|---|
| millimeters | 30.6 | 40.8 |
| inches | 1.205 | 1.606 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.128 | 0.128 |
| inches | 0.0050 | 0.0050 |
| Optional Connectors | CS050Z45GB0 |
| Flexible Cable (FFC/FPC) | length |
|---|---|
| millimeters | 27.25 |
| inches | 1.073 |
| Weight | 10.9g |
Optical Characteristics
| Glass Type/Glass Color | TFT/Black |
| Polarizer | Transmissive |
| View Direction | ALL o'clock |
| Backlight Color | White |
| Backlight Type | LED |
| Foreground Color | RGB |
| Background Color | Dark |
Electrical Specifications
| Supply Voltage for Logic Minimum | 2.4V |
| Supply Voltage for Logic Maximum | 3.3V |
| Supply Voltage for Logic Typical | 3.3V |
| Supply Voltage for Driving Panel Typical | 3.3V |
| Supply Current Typical | 7mA |
Backlight Electrical Specifications
| Forward Voltage Typical | 3.2V |
| Forward Current Minimum | 60mA |
| Forward Current Typical | 80mA |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
Electronics
| Controller Documents | Sitronix ST7789V ST7789V Datasheet Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver Sitronix ST7789V Sitronix ST7789V 240RGB x 320 dot 262K Color with Frame Memory Single-Chip TFT Controller/Driver |
| Interface | 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI |
Miscellaneous
| Nits | 450 |
Additional Options

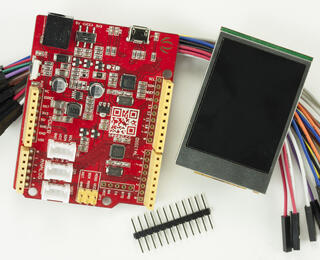

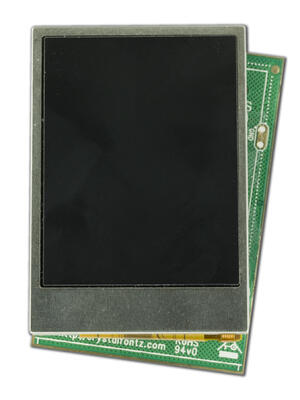

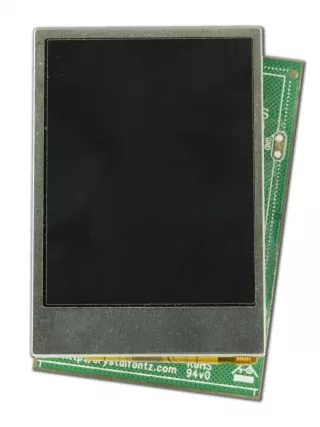

Get this 240x320 TFT display running quickly with the help of our display bundles. Purchase with a carrier board or a complete TFT LCD demonstration kit.
Part Change Notice
Subscribe to Part Change Notices by email
or RSS
Product Update #10912: (New Product!) 2" 240x320 Full-Color TFT Part Number: CFAF240320X0-020T
| New Product: | CFAF240320X0-020T |
| Date Issued: | December 18, 2017 |
| Summary: | (New Product!) 2" 240x320 Full-Color TFT Part Number: CFAF240320X0-020T |
| Description: | This 2 inch TFT boasts vibrant, full-color graphics at 200 PPI!. Perfect for small applications and up close viewing. The CFAF240320X0-020T connects to the host via a single 45-pin ZIF connector, allowing for quick and easy installation. The display supports a wide variety of interfaces, including parallel, SPI, and RGB DOT-CLK to work seamlessly with a large variety of host devices. Read the complete specs here: https://www.crystalfontz.com/product/cfaf240320x0020t-2inch-240x320-color-tft Get your samples ordered today! |
For reference only. For design purposes, please use the specifications in the datasheet.
