This product has been replaced by the 240x400 16-Bit TFT LCD with Carrier Board

240x400 16-Bit TFT LCD with Carrier Board

Part Number: CFAF240400B0-E1-1



Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400B0-E1-1 or RSS RSS feed for changes to CFAF240400B0-E1-1 for CFAF240400B0-E1-1


240x400 16-Bit TFT LCD with Carrier Board (CFAF240400B0-E1-1)
240x400 16-Bit TFT LCD with Carrier Board
Close

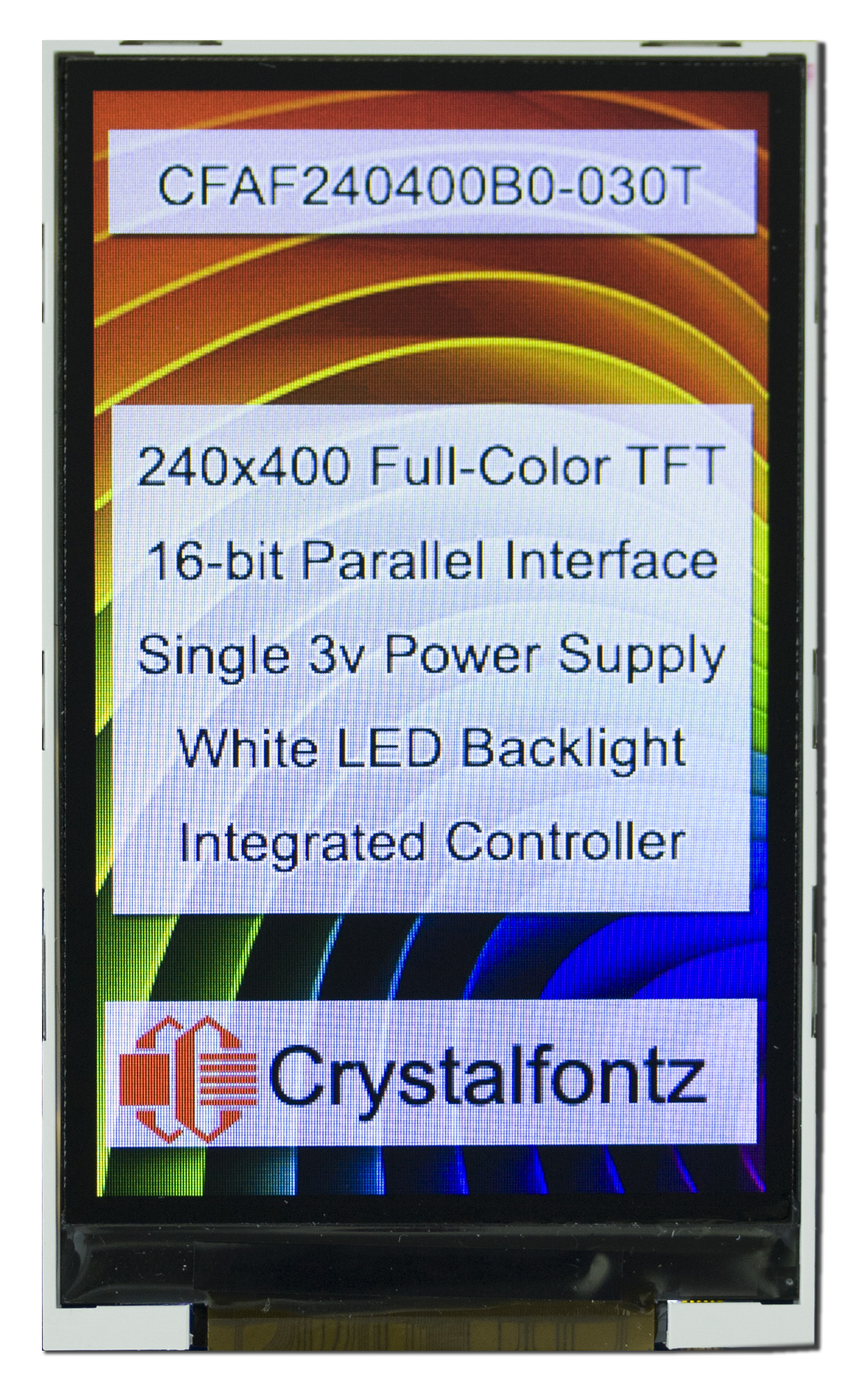

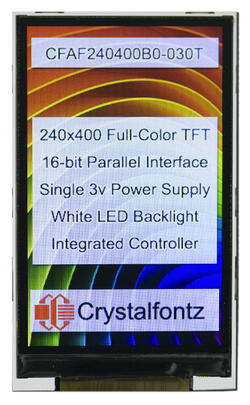

240x400 16-bit paralell TFT LCD on a carrier board.
240x400 16-bit paralell TFT LCD on a carrier board.
240x400 16-bit paralell TFT LCD on a carrier board.
Close

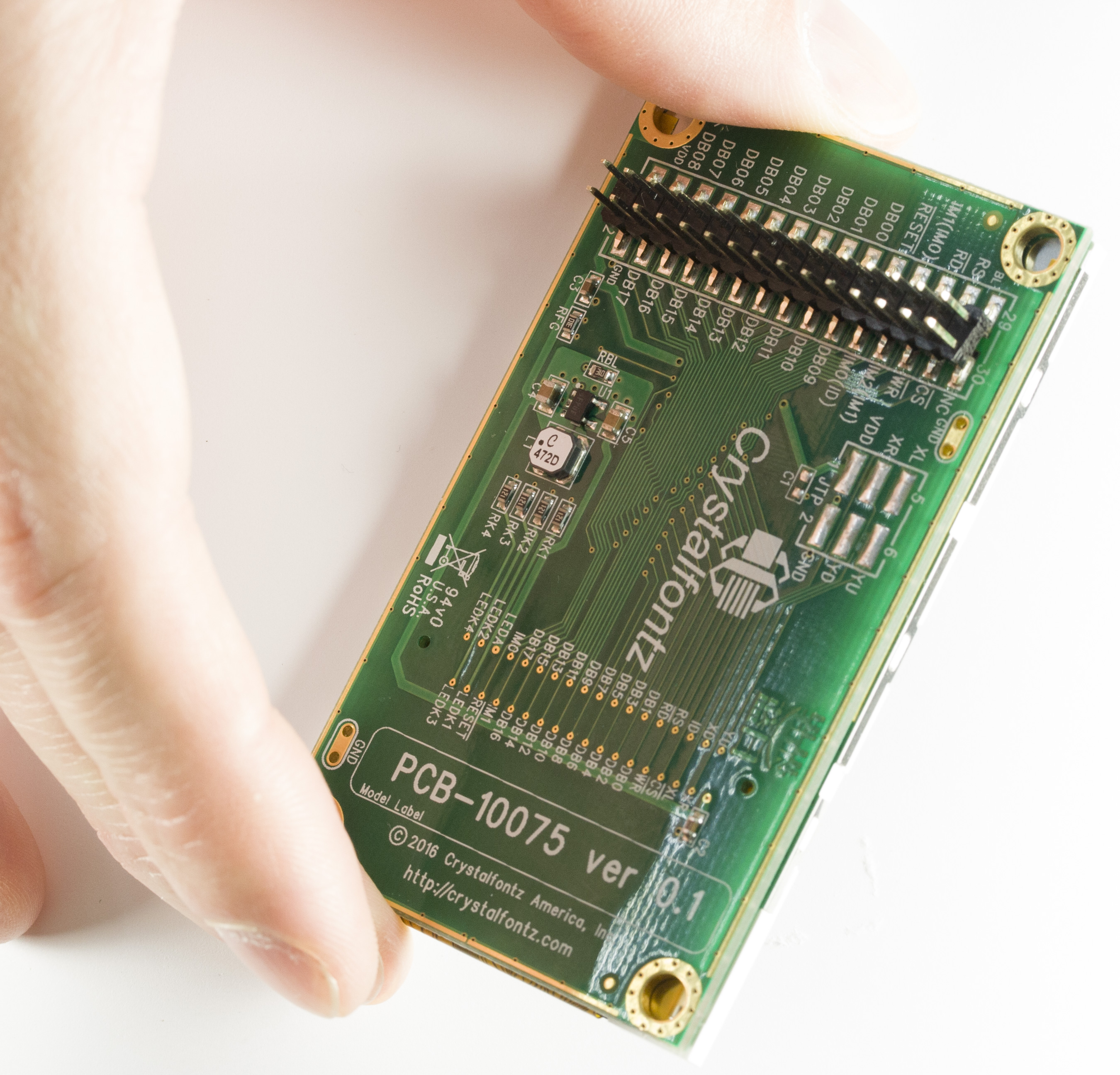

240x400 16-bit paralell TFT LCD on a carrier board. In hand to show perspective.
240x400 16-bit paralell TFT LCD on a carrier board. In hand to show perspective.
240x400 16-bit paralell TFT LCD on a carrier board. In hand to show perspective.
Close

Description

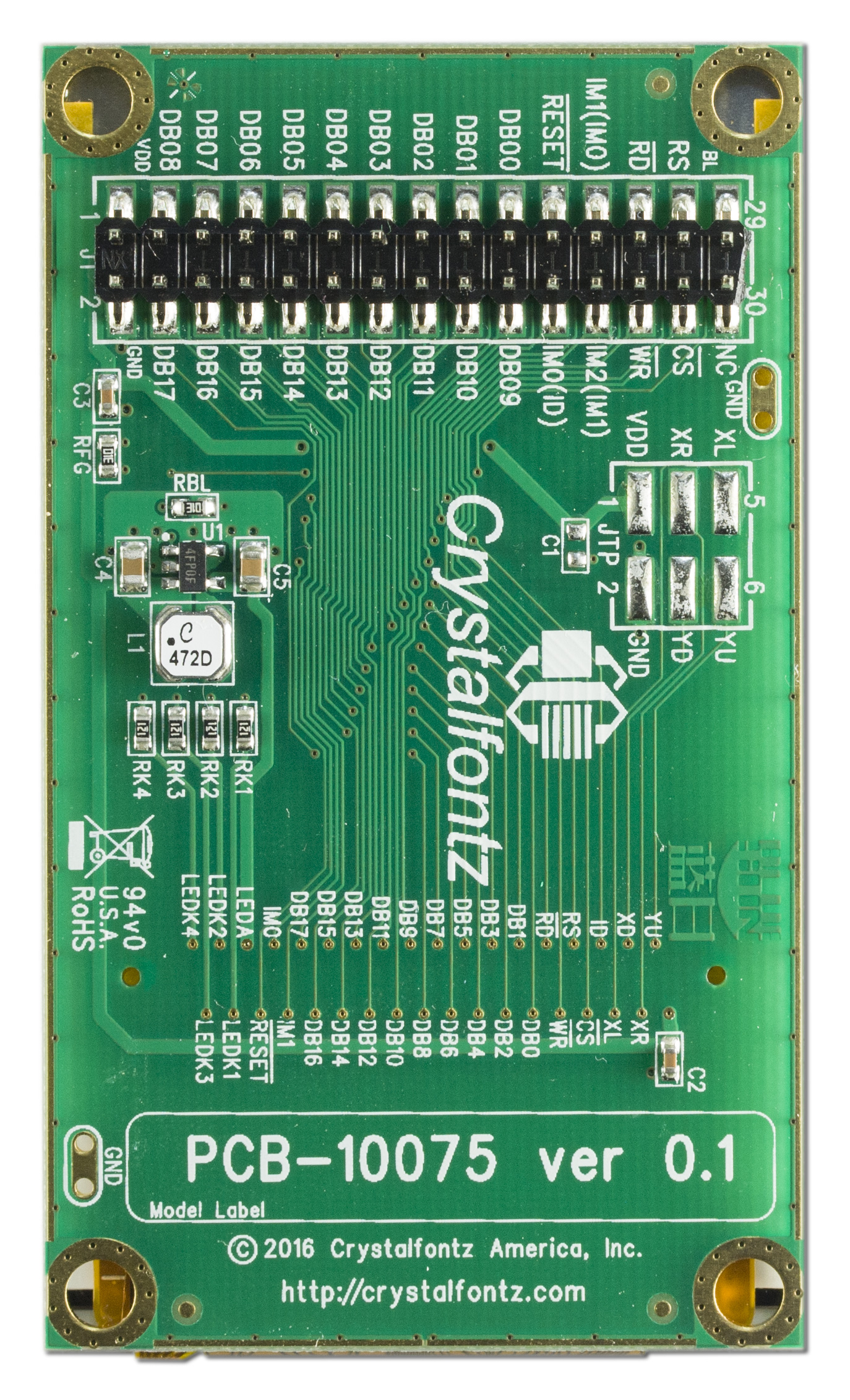

This TFT LCD kit consists of our 240x400 16-Bit TFT LCD with Carrier Board that has built-in backlight driver. This carrier board is specifically used for 16-bit parallel displays.

TECHNICAL SPECS

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height
millimeters 45.04 77
inches 1.773 3.031
Weight 30g

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400B0-E1-1 or RSS RSS feed for changes to CFAF240400B0-E1-1

Part Change Notice #11038: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.

Products Affected: CFAF240400A0-E1-1, CFAF240400A0-E2-1, CFAF240400A0-E1-2, CFAF240400B0-E1-1, CFAF240400B0-E2-1
Date Issued: February 6, 2019
Summary: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.
Reason: The backlight driver has been improved.
The backlight can now be forced on or off using solder jumpers.
Impact: The function of the board has no other changes. The default configuration will be with the backlight on.
Recommendation: Customers using this board should not see any changes in form, fit or function.
Availability: The Version 0v2 board will be available when current stocks of Version 0v1 are depleted.
