3" 16-Bit Parallel TFT LCD from Crystalfontz

Product

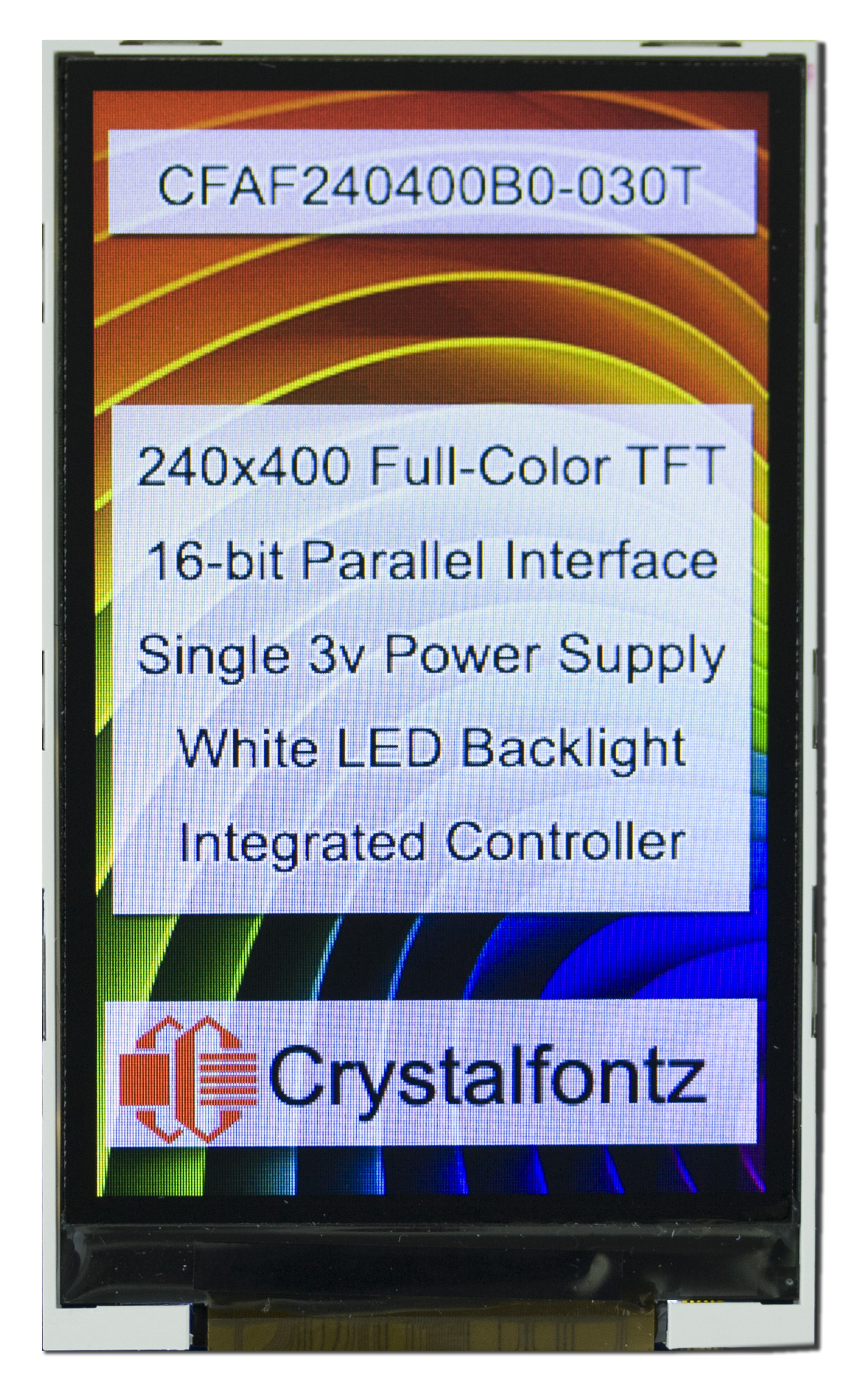

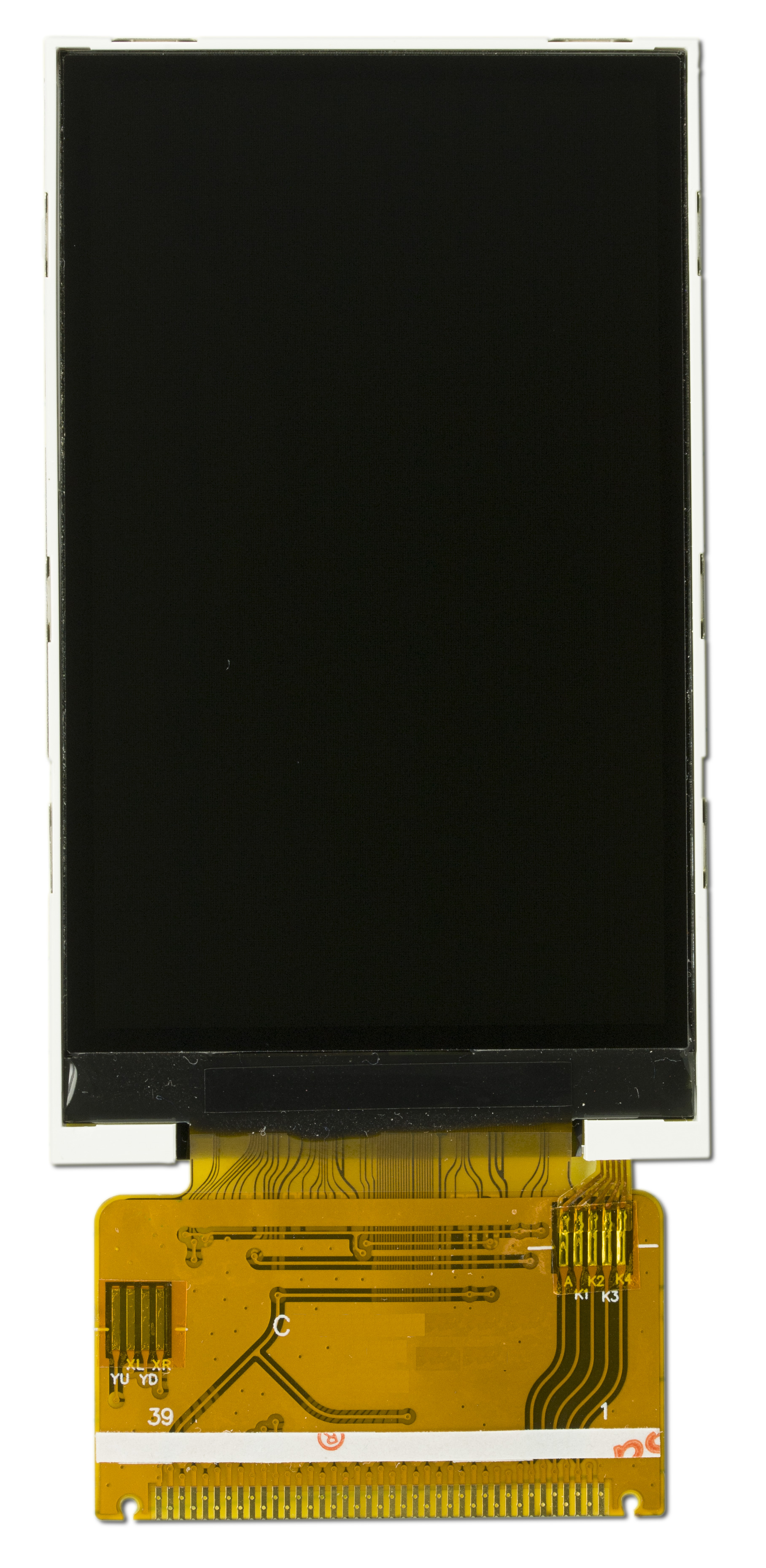

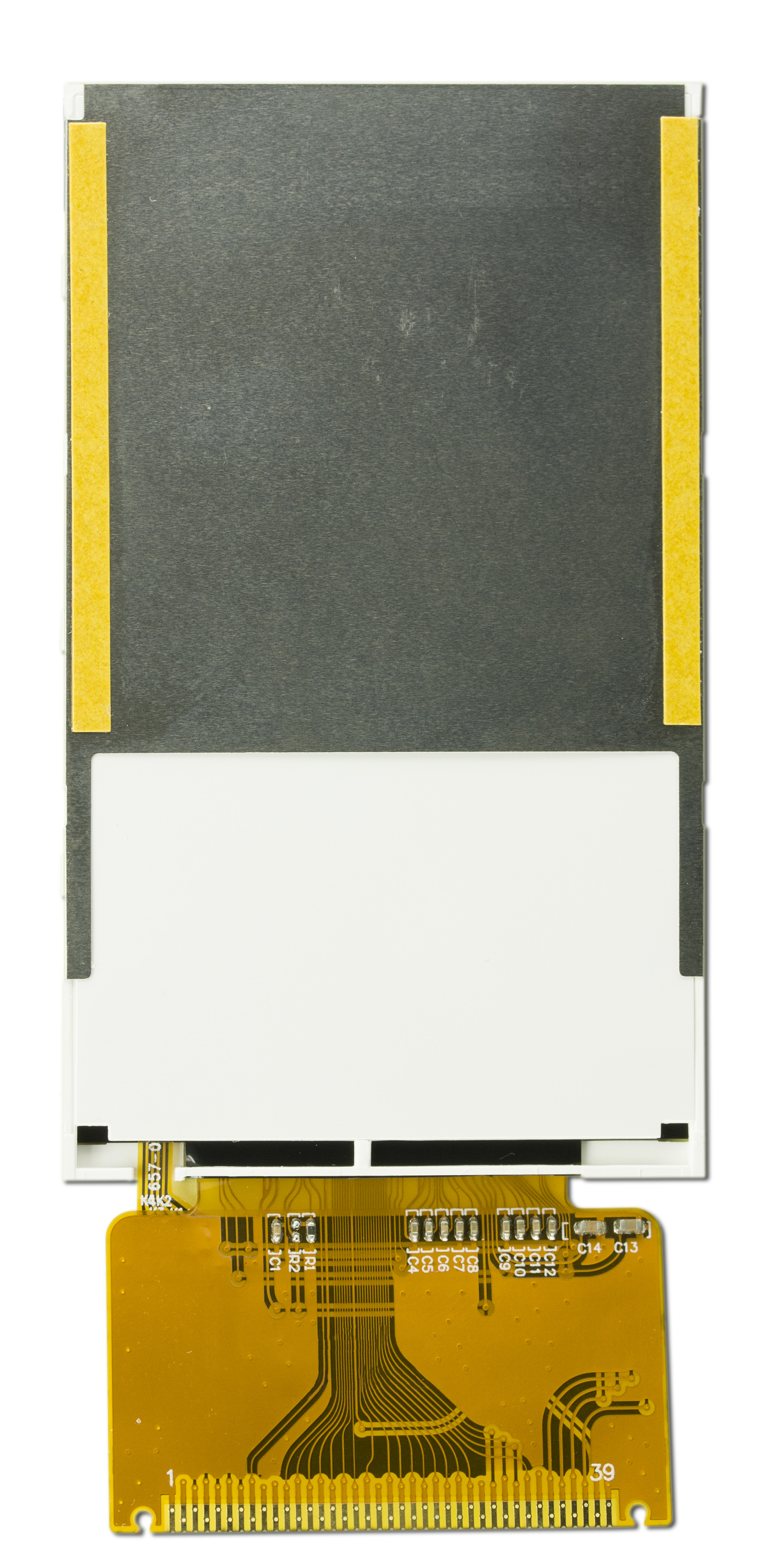

3" 16-Bit Parallel TFT LCDPart Number: CFAF240400B0-030T240x400 16-bit paralell full-color TFT LCD. This 3.0" diagonal, 240x400 pixel, full RGB color graphic TFT display module boasts a 38.88mm x 64.80mm active area.
Supports 16-bit parallel interface
The 12:00 o'clock viewing direction (polarizer viewing direction) is ideal for products viewed at or below eye level.
Can be mounted in portrait or landscape orientation.
The display's tab makes fast and easy connection possible using a hot bar soldering machine.

Need this display in 8-bit? Here's our 8-bit TFT LCD version of this display.

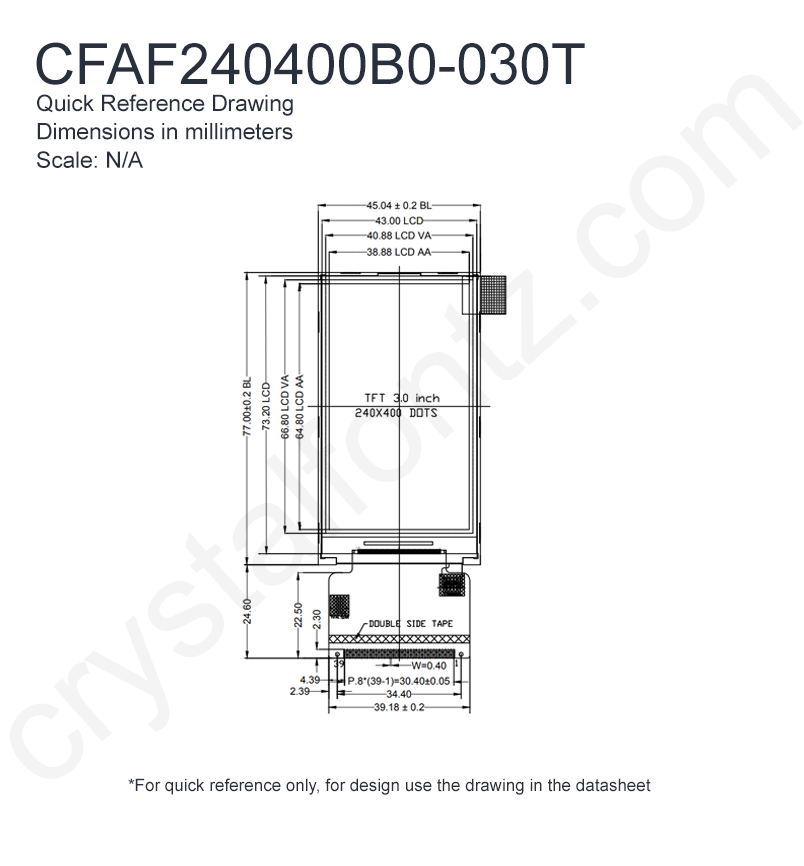

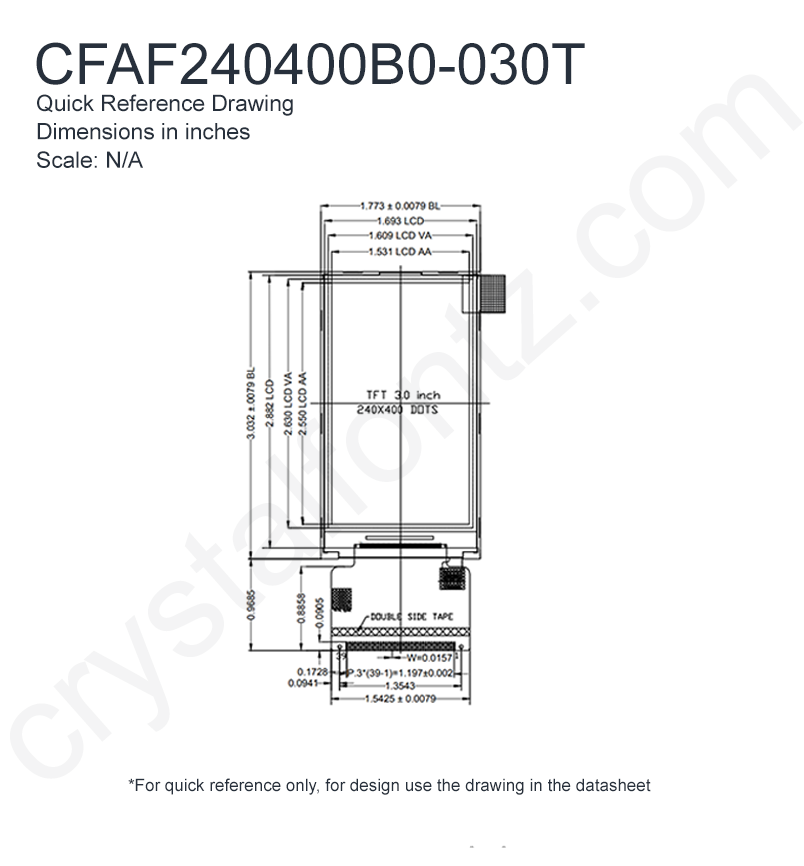

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            240 x 400


    Module Overall        width
        height
        depth


        millimeters
        45.04
        77
        2.5


        inches
        1.77
        3.03
        0.10

*width / height does not include Foldable Tab


        Diagonal Dimension
            2.98"


    Active Area        Width
        Height


        millimeters
        38.88
        64.8


        inches
        1.53
        2.55



    Dot Pitch        Width
        Height


        millimeters
        0.062
        0.062


        inches
        0.0024
        0.0024



        Weight
            15g
Pin Count
            39

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TN
Polarizer
            Transmissive
View Direction
            0.5 o'clock


        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.4V
Supply Voltage for Logic Maximum
            4.2V


        Supply Voltage for Logic Typical
            3.3V
Module Connector Pitch
            0.8mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            3.2V


        Forward Current Typical
            60mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Ilitek ILI9327
a-Si TFT LCD Single Chip Driver

240RGBx432 Resolution and 262K color
Interface
            16-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAF240400B0-030T Datasheet

download Files and Downloads
folder_zip Software Source - ATMega 2561 Demonstration Code
assured_workload Compliance Documents

picture_as_pdf Declaration
                                    of Conformity RoHS2
picture_as_pdf Declaration
                                    of Conformity REACH

















Need a written quote? Add to cart, then enter
                            your email address in the "request a quote" box.
Quantity:


Price:



            Quantity
            Unit Price


            1
            $36.93

            10
            $35.80

            20
            $34.82

            50
            $31.79

            100
            $29.67

            200
            $29.41

            300
            $27.33

            500
            $26.01

            1000 *
            $24.26

843 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.



Module Overall	width	height	depth
millimeters	45.04	77	2.5
inches	1.77	3.03	0.10
*width / height does not include Foldable Tab

Active Area	Width	Height
millimeters	38.88	64.8
inches	1.53	2.55

Dot Pitch	Width	Height
millimeters	0.062	0.062
inches	0.0024	0.0024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$36.93
10	$35.80
20	$34.82
50	$31.79
100	$29.67
200	$29.41
300	$27.33
500	$26.01
1000 *	$24.26

Additional Options

Additional Options

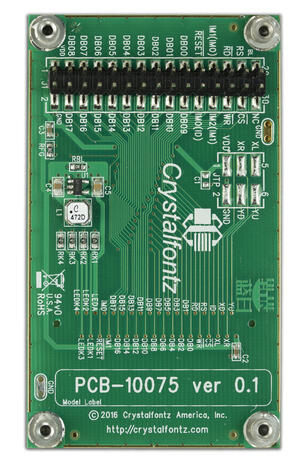

Purchase this display on a Carrier Board that provides a backlight driver for backlight control.

240x400 16-Bit TFT LCD with Carrier Board
Part Number: CFAF240400B0-E2-1

Details

Quantity	1	10	20	50	100 *	200 *	300 *	500 *	1000 *
Unit Price	$63.66	$61.84	$60.02	$57.84	$57.11	$56.75	$56.02	$55.65	$55.29

Quantity:

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAF240400B0-030T

Finding the LCD you need?

Need some help?

Search by Tech Spec
Search by size, controller, interface, etc
Ask our product support team
We're here to help! 8:30-4:30 PST 888.206.9720
Product Notices
Sign-up for part change or update notices
Newest products!
We're adding new displays all the time.

Purchasing Resources

Quick Order
Know your part number? Checkout fast!
Request a Quote
Get pricing and lead time info!
Our ISO 9001:2015 Certificate
Of course we're ISO 9001:2015 certified
Conflict Mineral Reporting Template
Download our latest CMRT
California Prop 65
Proposition 65 Information
Payment Information
We accept many payment methods

Builder Resources

Popular LCD Searches

3" 16-Bit Parallel TFT LCD

Part Number: CFAF240400B0-030T

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Additional Options

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type	TN
Polarizer	Transmissive
View Direction	0.5 o'clock

Backlight Color	White
Backlight Type	LED
Foreground Color	RGB
Background Color	Dark

Supply Voltage for Logic Minimum	2.4V
Supply Voltage for Logic Maximum	4.2V

Supply Voltage for Logic Typical	3.3V
Module Connector Pitch	0.8mm

Controller Documents	Ilitek ILI9327 a-Si TFT LCD Single Chip Driver 240RGBx432 Resolution and 262K color
Interface	16-bit Parallel

Weight	15g
Pin Count	39
