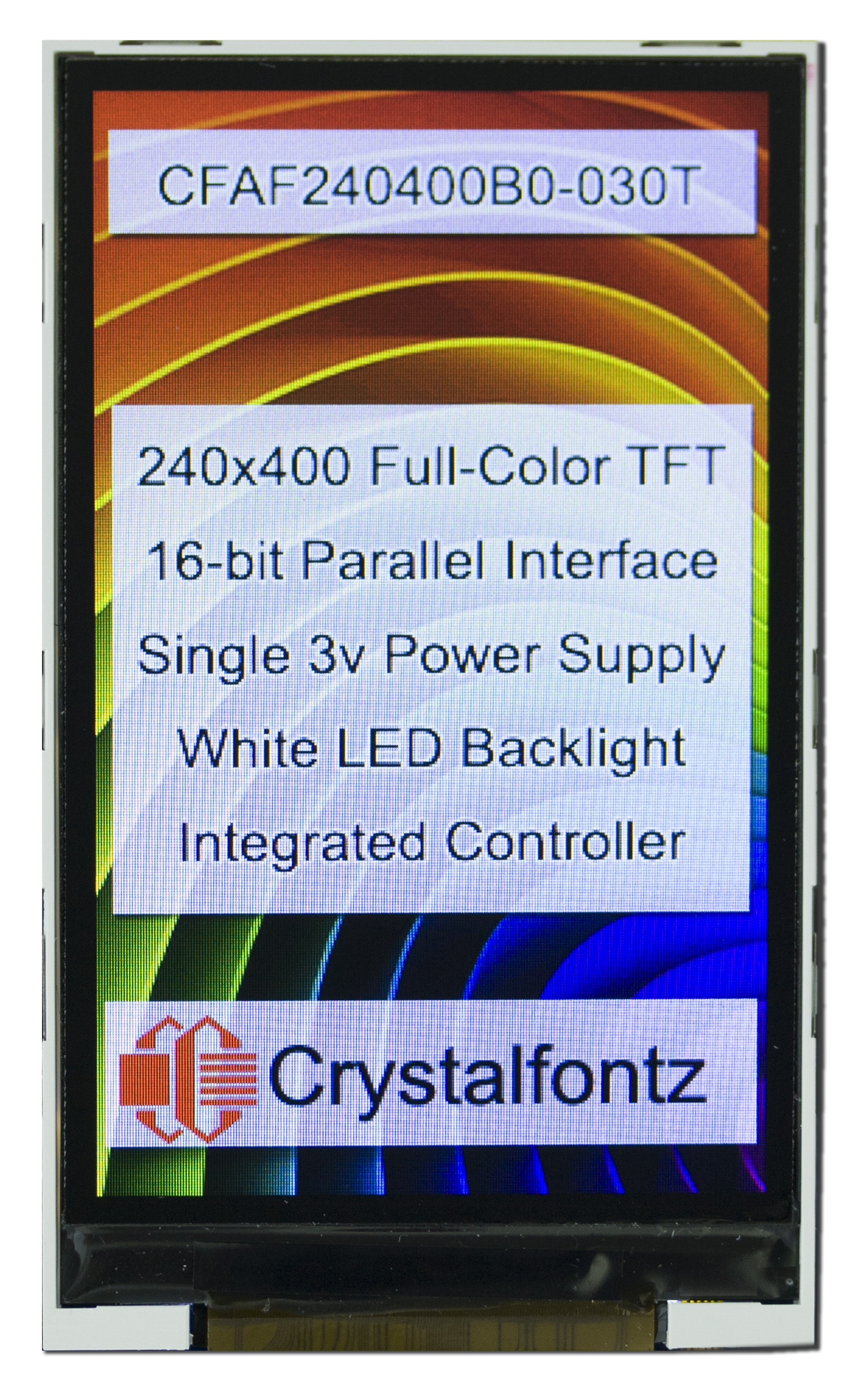

240x400 16-Bit TFT LCD with Carrier Board

Part Number: CFAF240400B0-E2-1

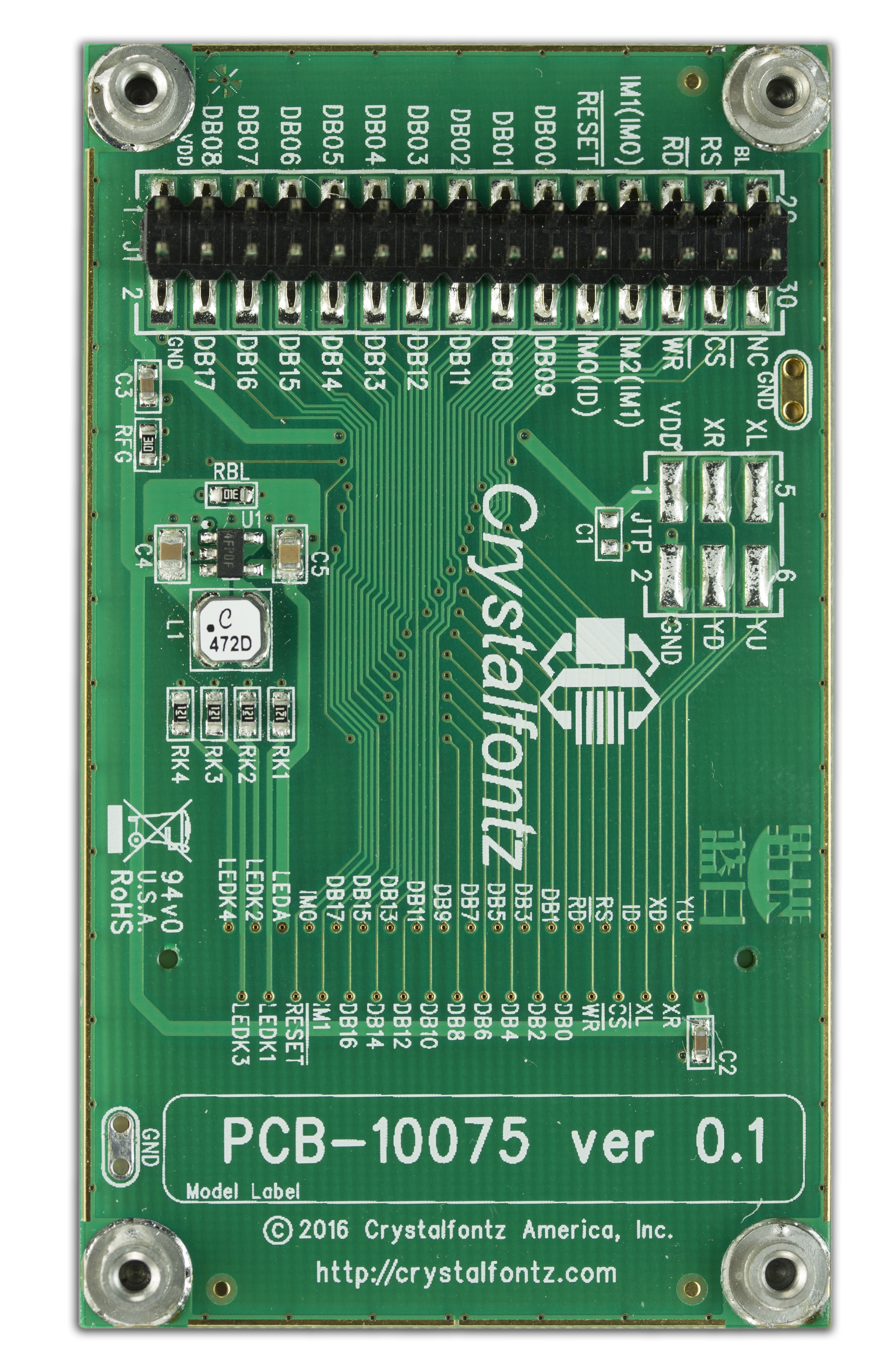

This TFT LCD Kit consists of our 240x400 16-Bit TFT LCD with Carrier Board that provides a backlight driver for backlight control. This LCD carrier board includes stand-offs for easy mounting into your product.

Physical Characteristics
Physical Characteristics

Column Dots x Row Dots 240 x 400

Module Overall width height

millimeters 45.04 77

inches 1.77 3.03

Diagonal Dimension 2.98"

Weight 40g
Files and Downloads

folder_zip Hardware Design - Carrier Board Build Package
Compliance Documents

picture_as_pdf Declaration of Conformity RoHS2

picture_as_pdf Declaration of Conformity REACH
<

Change Notices

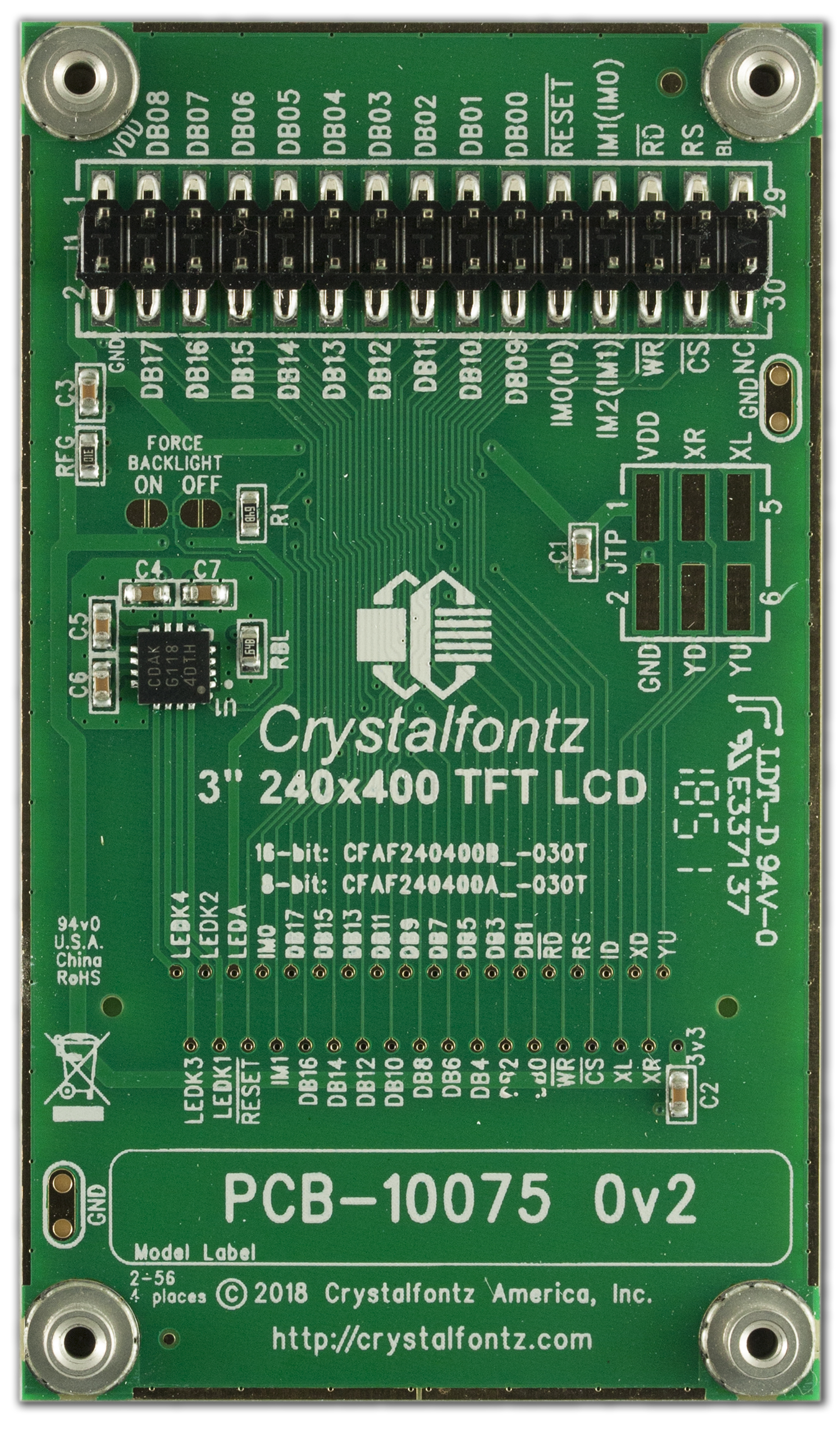

Part Change Notice #11038: The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.

Products Affected:	CFAF240400A0-E1-1, CFAF240400A0-E2-1, CFAF240400A0-E1-2, CFAF240400B0-E1-1, CFAF240400B0-E2-1
Date Issued:	February 6, 2019
Summary:	The CFA10075 Carrier Board Version 0v1 used in the parts listed is being changed. The new version will be 0v2.
Reason:	The backlight driver has been improved. The backlight can now be forced on or off using solder jumpers.
Impact:	The function of the board has no other changes. The default configuration will be with the backlight on.
Recommendation:	Customers using this board should not see any changes in form, fit or function.
Availability:	The Version 0v2 board will be available when current stocks of Version 0v1 are depleted.
