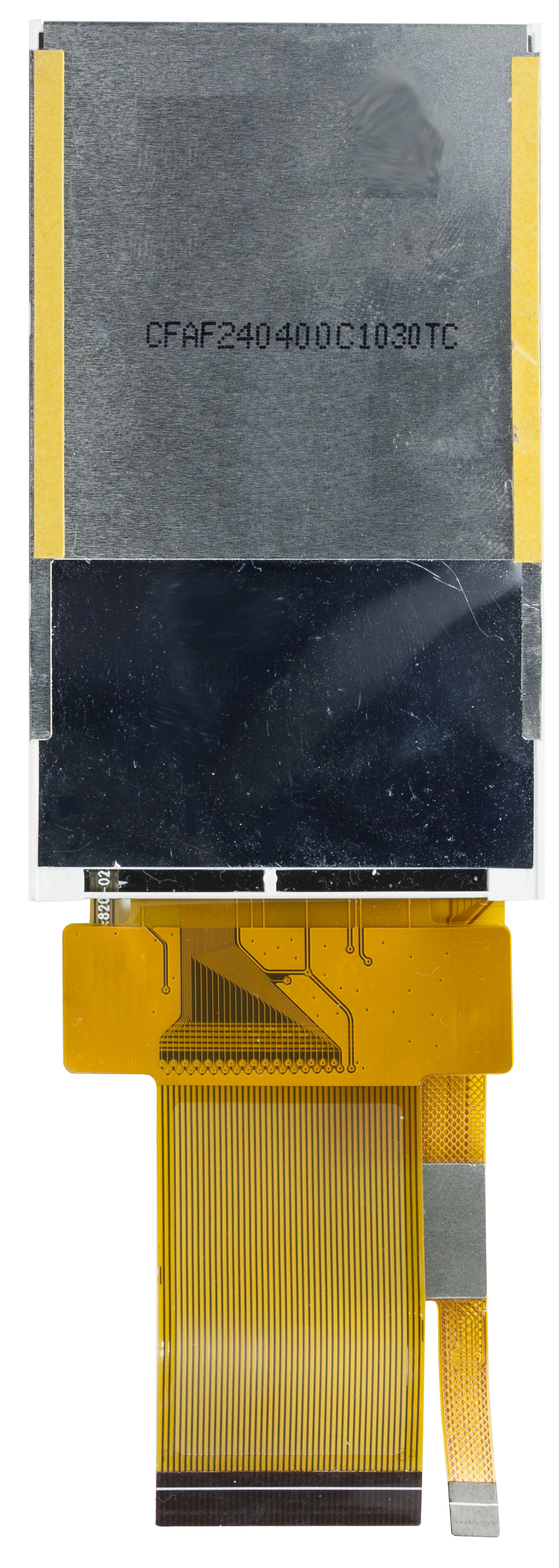

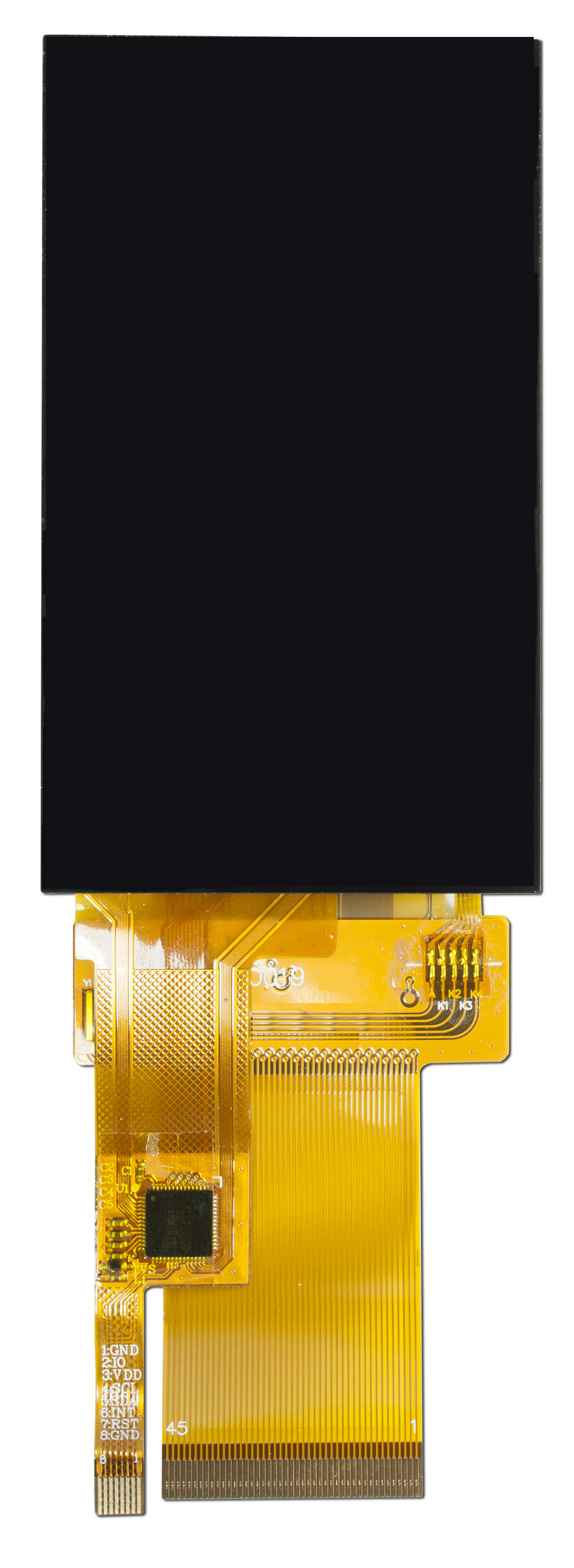

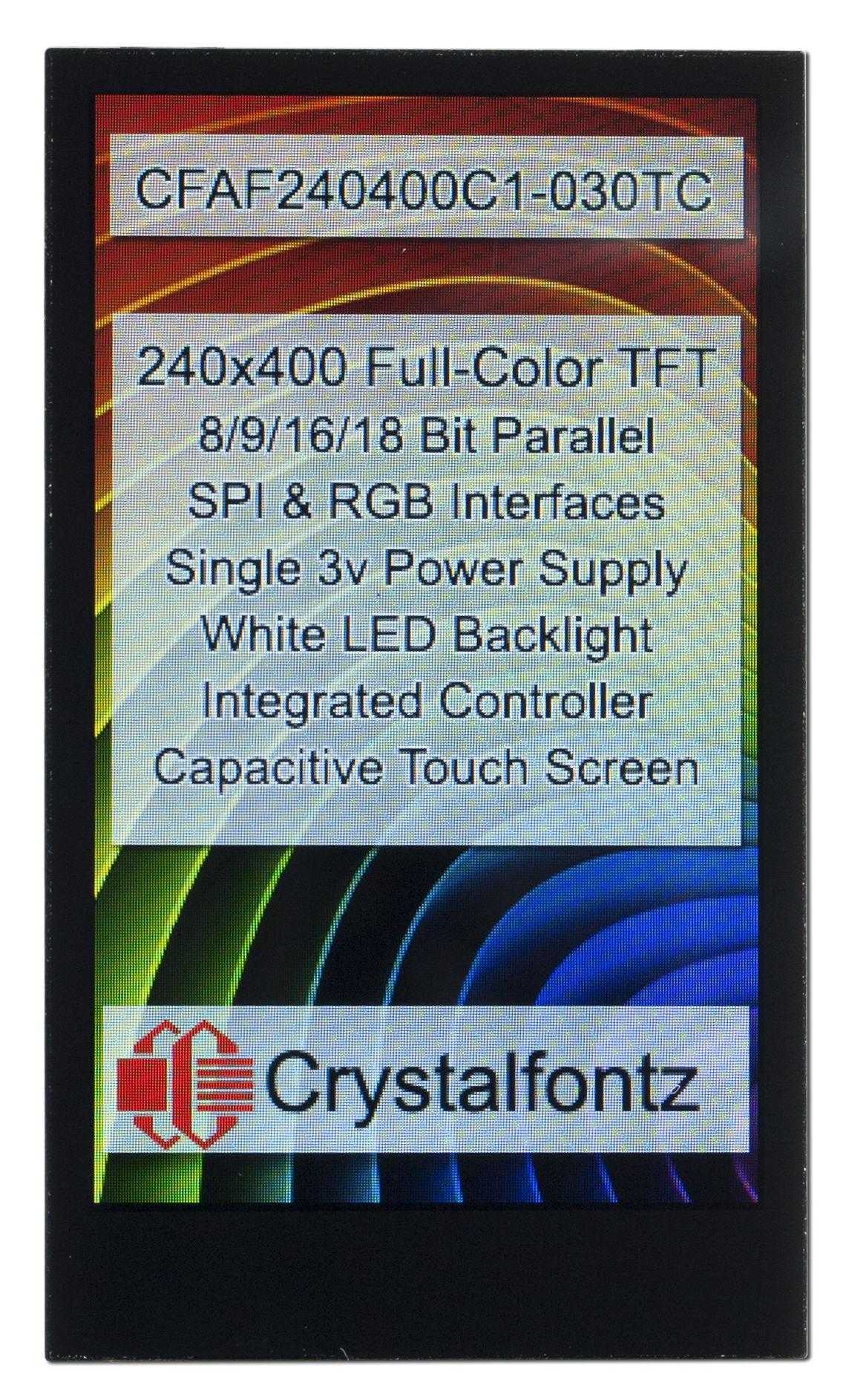

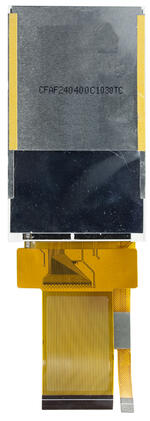

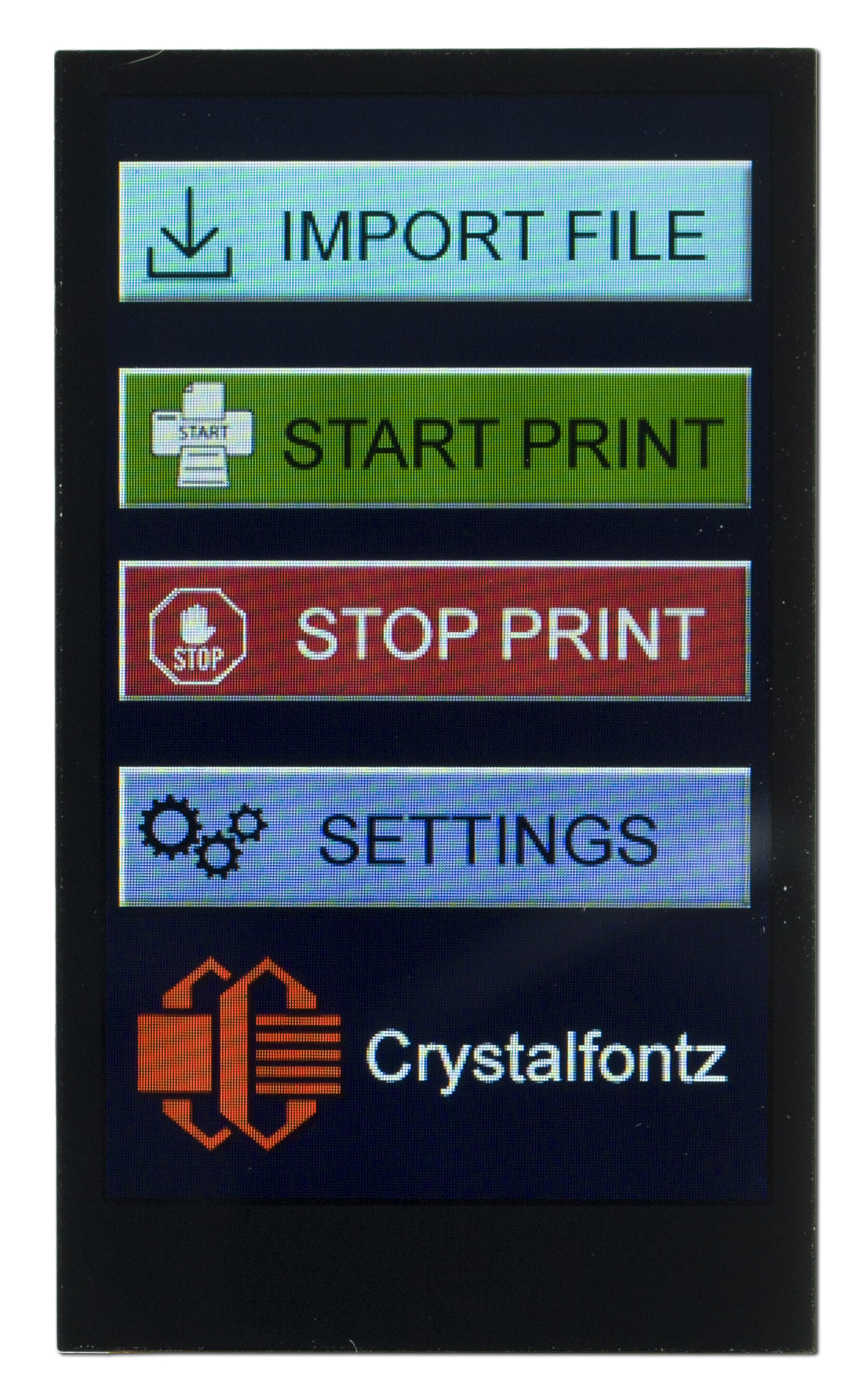

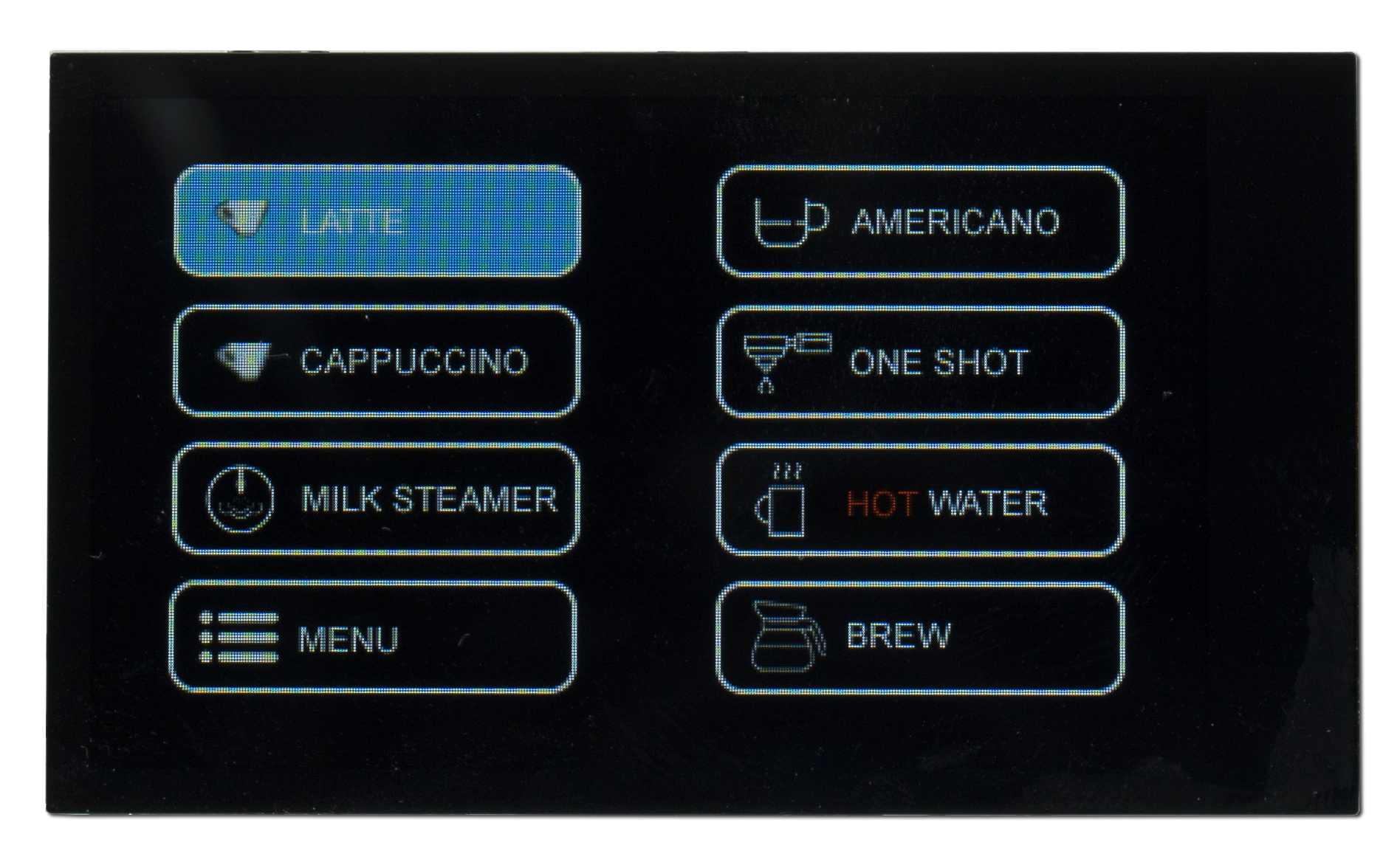

240x400 3-inch Capacitive Touchscreen TFT Display

Part Number: CFAF240400C1-030TC

3-inch, full-color (262k), IPS, TFT graphic display module with a white LED backlight and a capacitive touchscreen. The display, including the backlight, use 3.3v input.

This TFT display has a ZIF FPC tail for easy PCA integration with a ZIF socket. The large display tail is compatible with our 45-position ZIF connector. The small touchscreen tail is compatible with our 8-position ZIF connector.

This display supports a wide range of interface options:
  • 8/9/16/18-bit Parallel
  • 16/18-bit RGB with a SPI initialization
  • 3-wire or 4-wire SPI


Part Number:
CFA- Crystalfontz America
F- TFT display
240400- 240x400 pixel array
C1- Family and version number
030- 3" diagonal dimension
T- Standard Brightness (400 nits)
C- Capacitive touchscreen

Product Variants

CFAF240400C1-030TN3" 240x400 pixel TFT Display
CFAF240400C1-030TC240x400 3-inch Capacitive Touchscreen TFT Display
240x400 3-inch Capacitive Touchscreen TFT Display (CFAF240400C1-030TC)
Qty:
Quantity Price
1 $94.70
5 $79.07
10 $77.00
20 $70.47
50 $68.01
100 $63.30
200 * $62.82
300 * $58.71
500 * $54.63
1000 * $50.60
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4638 45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Need ZIF Connectors? $1.50 ea.
4627 8 Position, 0.5.mm Pitch, Gold, FCC FPC ZIF connector
Touchscreen ZIF Connector? $0.62 ea.
4757 240x400 Capacitive Touchscreen EVE TFT Display
Display integrated with an EVE? $114.80 ea.
4822 8-Position ZIF Breakout Board
Add an 8-pin ZIF Breakout Board? $6.08 ea.
4830 45-Position ZIF Breakout Board
Add a 45-pin ZIF Breakout Board? $6.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400C1-030TC or RSS RSS feed for changes to CFAF240400C1-030TC for CFAF240400C1-030TC

Compliance Documents

TECHNICAL SPECS

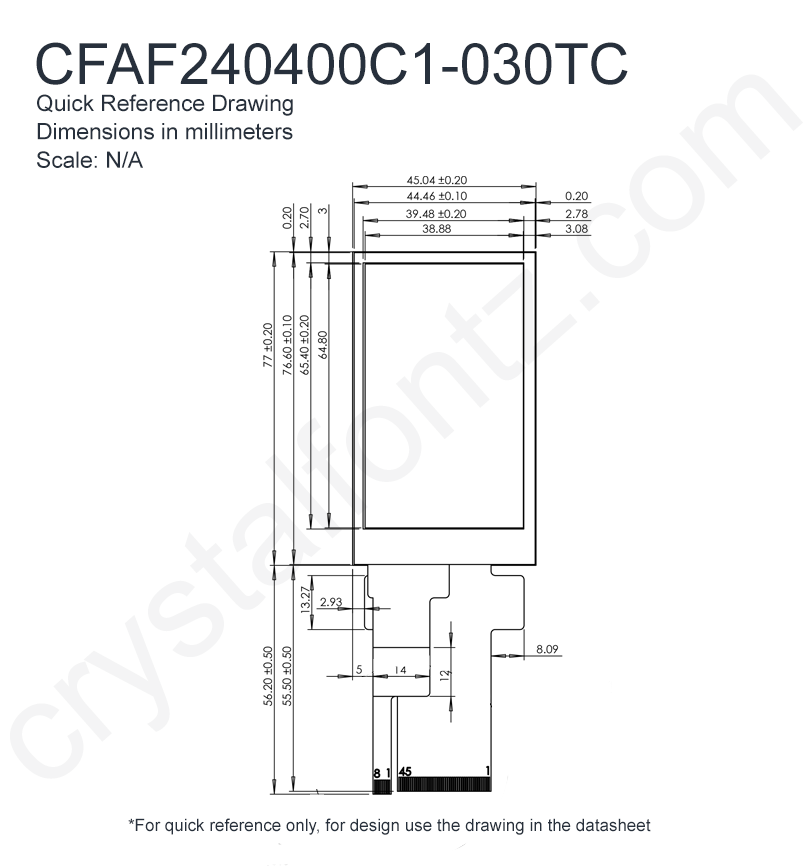

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 4.3
inches 1.773 3.031 0.169
Diagonal Dimension 3"
Viewing Area width height
millimeters 39.48 65.4
inches 1.554 2.575
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch width height
millimeters 0.162 0.162
inches 0.0064 0.0064
Weight 26g
Pin Count 45

Optical Characteristics

Glass Type TFT
Polarizer IPS Transmissive
View Angle 80°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.5V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Current Maximum 20mA
Supply Current Typical 10mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Nits 350
Touch Screen Capacitive

Additional Options

Purchase this display in an EVE development kit to speed up your prototyping.

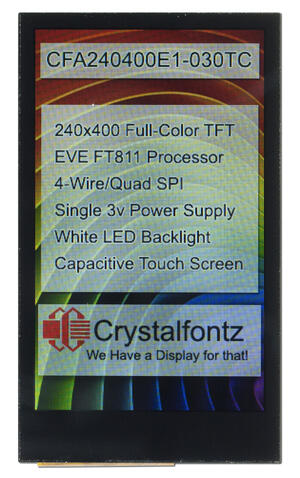

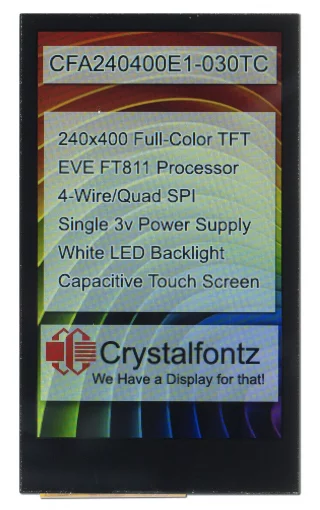

240x400 Capacitive Touchscreen EVE TFT Display
Part Number: CFA240400E1-030TC

This EVE TFT module boasts a 3" 240x400 Full-Color TFT and capacitive touchscreen controlled by an EVE graphic accelerator board. The EVE engine uses 4-wire SPI for communication via a 30-pin FPC/ZIF connection. Check out our other EVE display modules.

This module is based around the FTDI/BridgeTek FT811 Embedded Video Engine (EVE). All display, touch sensing, backlight control, and audio features are controlled via the Embedded Video Engine which appears to the host MCU as a memory-mapped SPI device. The host MCU sends commands and data using SPI. Read more about EVE on our blog.

For more info about the Embedded Video Engine, please see the FTDI FT81x Datasheet. Further information including programming examples, interface design software, and more can be found on Bridgetek's website.

To demonstrate this product quickly, we offer a full 3" EVE TFT demonstration kit. We also carry many useful parts for implementing this display module including:


This module replaces the CFAF240400C0-030SC-A1-1. Some modifications to the timing parameters are required to implement this new module. Please see the PCN.

Currently Shipping: HW Version 1v0, Firmware Version: 1v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
E - EVE
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
C - Capacitive Touch

Details
Quantity 1 5 10 20 50 100 200 * 300 * 500 * 1000 *
Price $114.80 $95.86 $93.33 $90.18 $87.03 $85.77 $85.13 $84.51 $83.88 $83.25
Quantity:

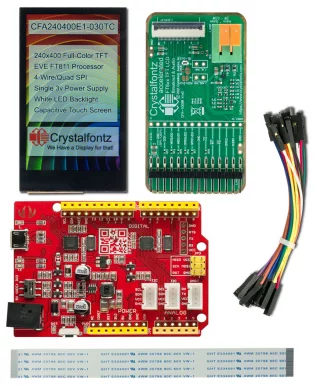

240x400 Capacitive Touch EVE Development Kit
Part Number: CFA240400E1-030TC-KIT

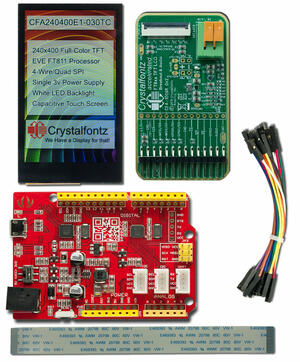

Whether you're new to EVE, or just need all the parts in one, this TFT development kit includes everything to get started with our 3" capacitive touch EVE TFT module.

A complete FTDI EVE development kit including:

If you're interested in learning more about the advantages of the EVE FTDI processor read about it on our blog.

Details
Quantity 1
Price $140.46
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400C1-030TC or RSS RSS feed for changes to CFAF240400C1-030TC

Product Update #11151: 240x400 3-inch Capacitive Touchscreen TFT Display is now available

New Product: CFAF240400C1-030TC
Date Issued: September 12, 2022
Summary: 240x400 3-inch Capacitive Touchscreen TFT Display is now available
Description: CFAF240400C1-030TC has been released on our website (https://www.crystalfontz.com/product/cfaf240400c1030tc-240x400-cap-touch-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Email support@crystalfontz.com for any technical questions.
