3" 240x400 Full-Color IPS TFT Display

Part Number: CFAF240400E0-030TN

Pricing

Quantity Price ea.
1 $20.57
10 $17.90
20 $17.26
50 $16.62
100 $16.36
200 $16.10
500 * $15.97
1000 * $14.79
* Contact us about potential lead times.
Qty:
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400E0-030TN or RSS RSS feed for changes to CFAF240400E0-030TN for CFAF240400E0-030TN

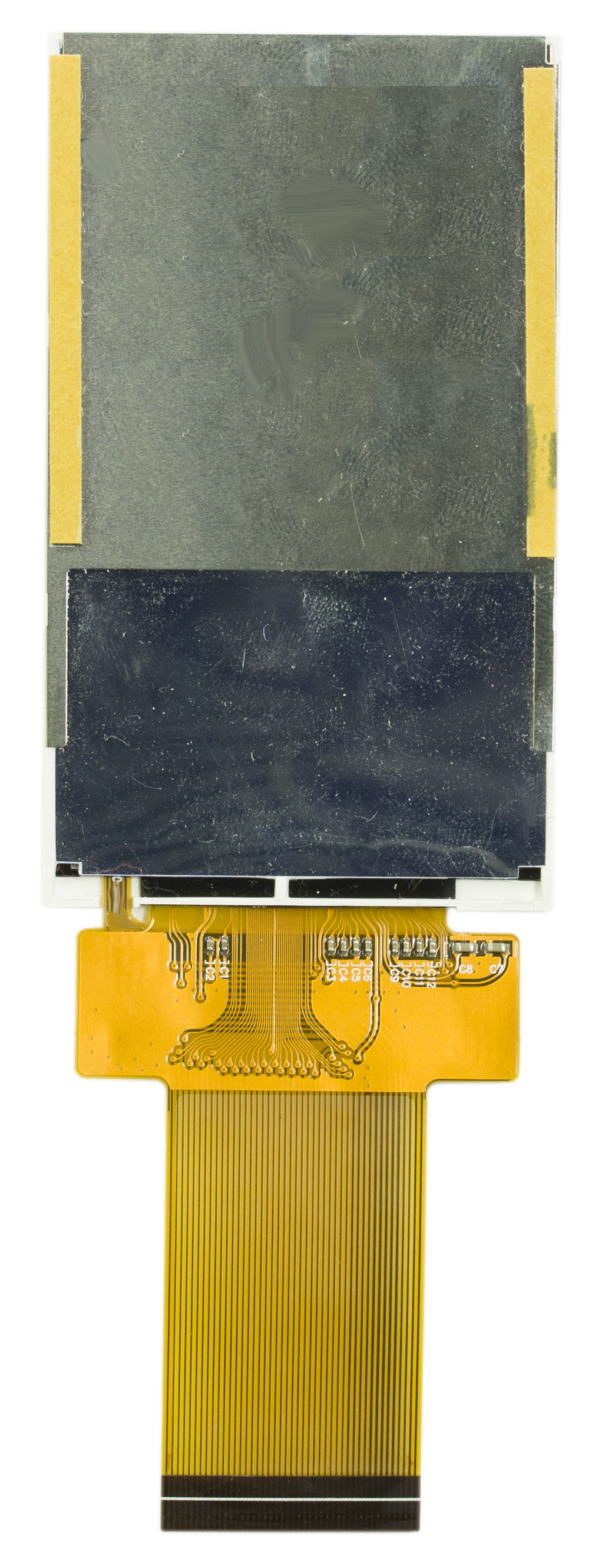

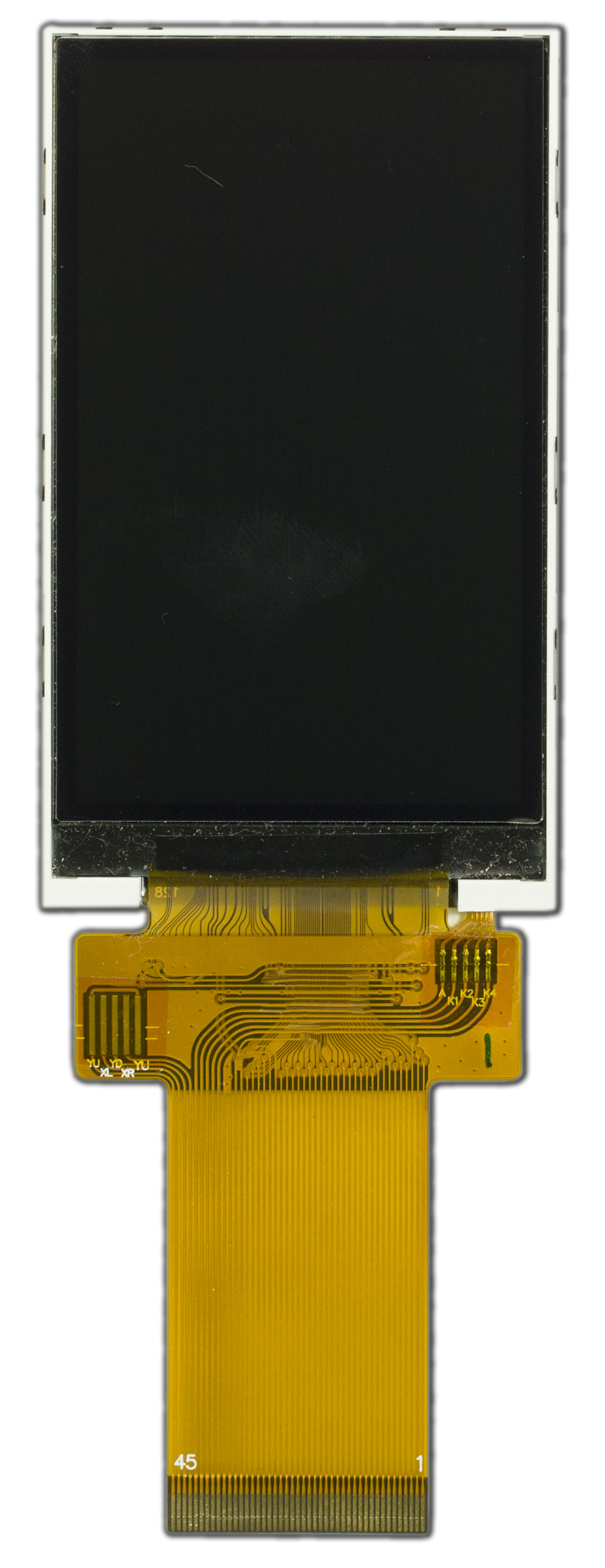

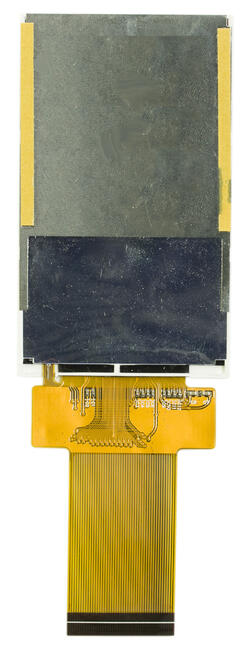

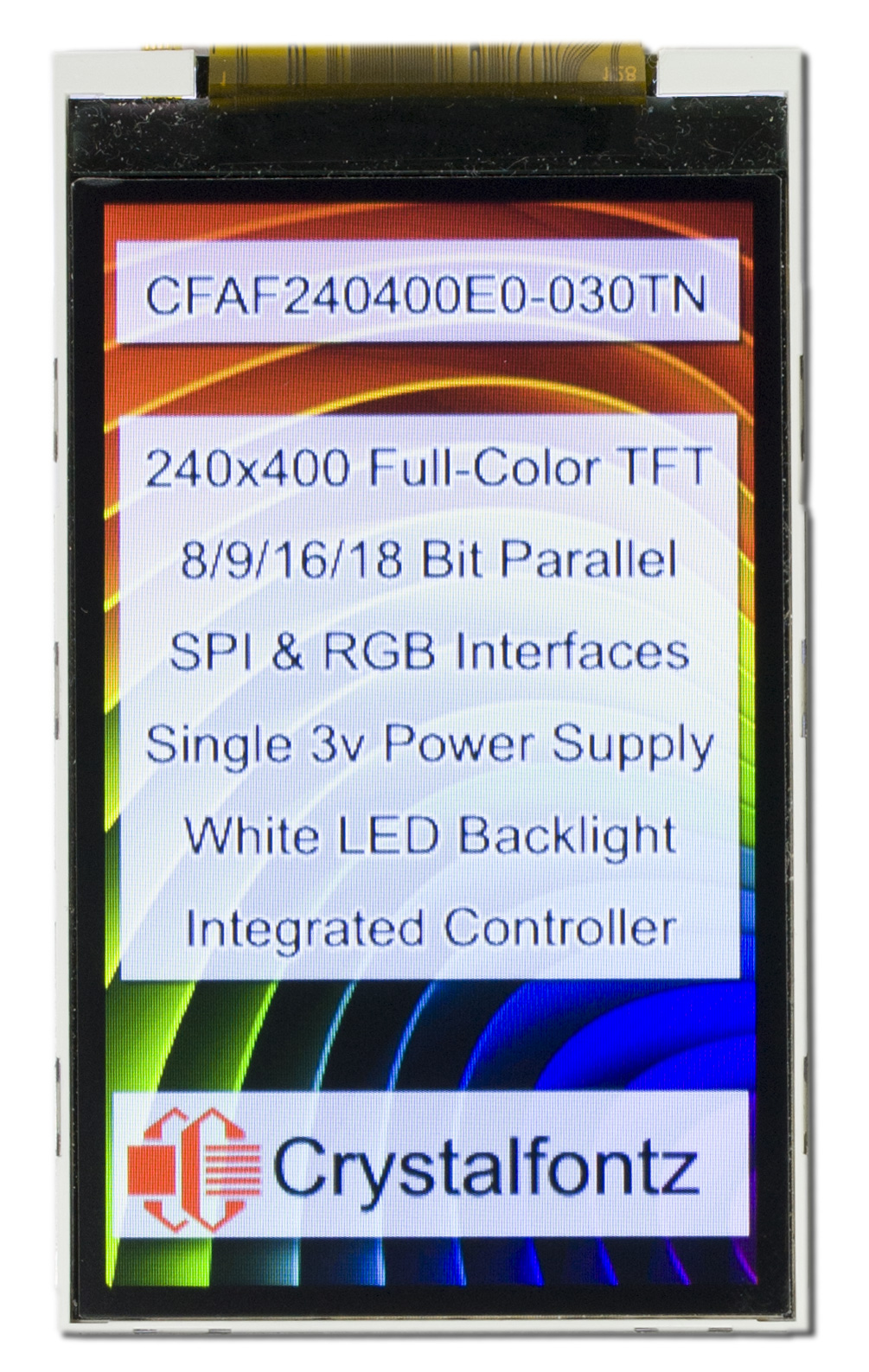

Description

Beautiful full-color, multi-interface, IPS, TFT LCD. This little display supports 8/9/16 and 18-bit parallel communication as well as SPI and RGB interfaces. It boasts a single 3.3v power to control both logic and the white LED backlight. It utilizes the Ilitek ILI9327 LCD controller.
The ZIF connector you need is a standard 45-position 0.5mm pitch. Here's a compatible connector:
45 Position, 0.50mm Pitch ZIF Connector

TECHNICAL SPECS

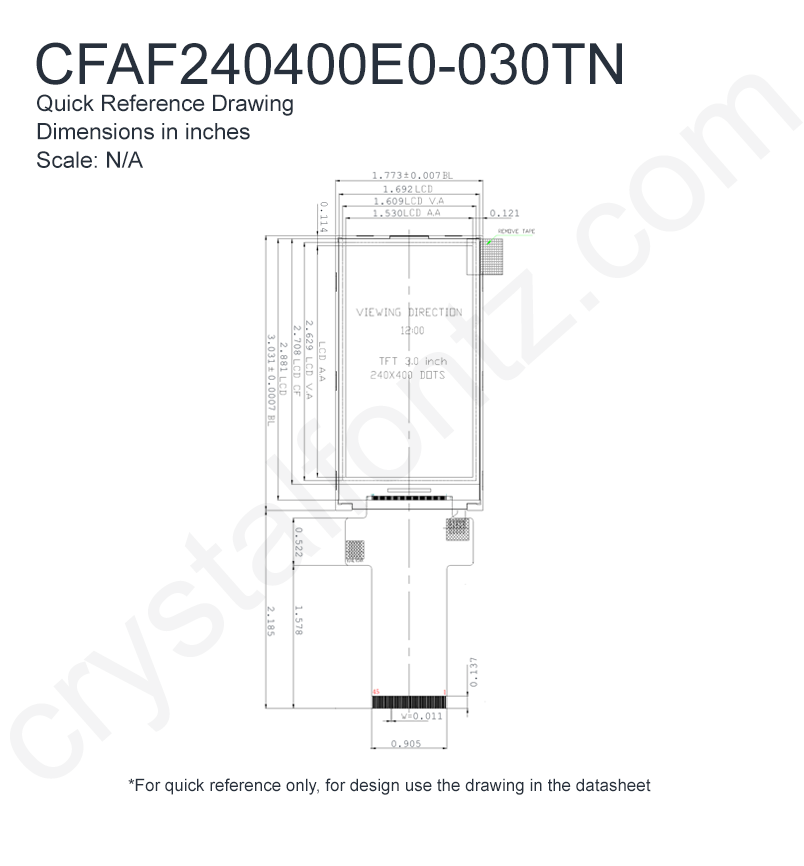

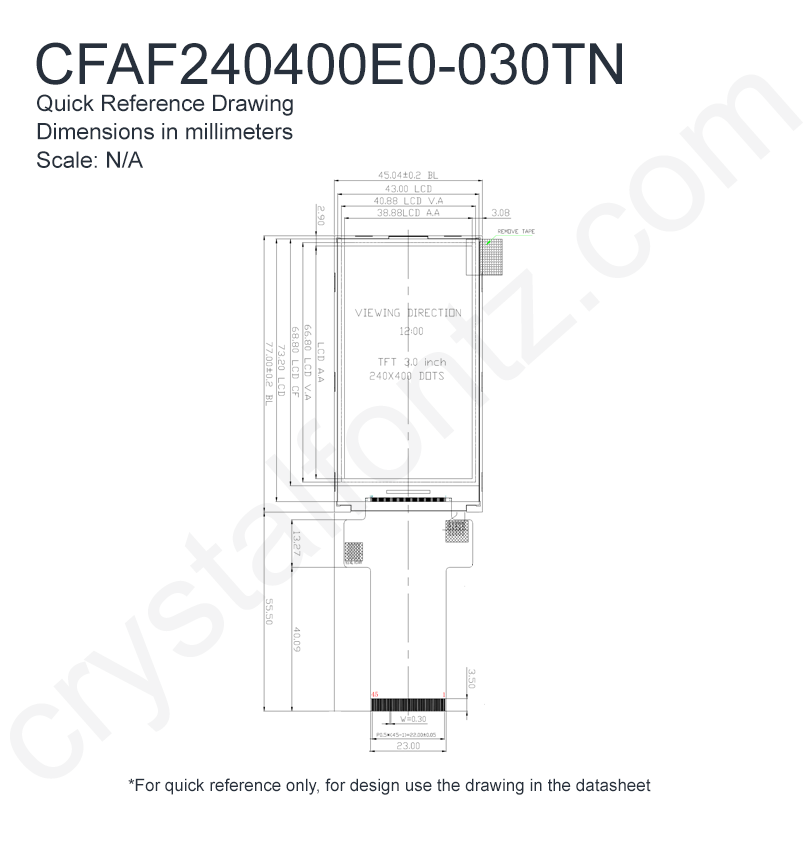

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 2.6
inches 1.773 3.031 0.102
*width / height does not include Foldable Tab
Diagonal Dimension 3.000"
Viewing Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch height
millimeters 0.162
inches 0.0064
Optional Connectors CS050Z45GB0
Flexible Cable (FFC/FPC) length
millimeters 55.5
inches 2.185
Weight 15.8g
Pin Count 45

Optical Characteristics

Glass Type/Glass Color TFT/Dark
Polarizer Transmissive
View Direction 12 o'clock
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Black

Electrical Specifications

Supply Voltage for Logic Minimum 2.5V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Ilitek ILI9327
a-Si TFT LCD Single Chip Driver
240RGBx432 Resolution and 262K color
Ilitek ILI9327
a-Si TFT LCD Single Chip Driver
240RGBx432 Resolution and 262K color
Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes

Additional Options

Add an EVE Accelerator board or a complete EVE development kit to start developing with the power of FTDI EVE.

3" 240x400 EVE IPS TFT
Part Number: CFAF240400E0-030TN-A1-1

This display module combines a 3" display with an embedded video engine (EVE) PCB for a powerful display module. The EVE PCB, powered by an FTDI/Bridgetek FT81x, accepts high-level commands, simplifying the creation of beautiful interfaces.

EVE Graphics Accelerator features include:

  • User interface design software by FTDI/Bridgetek to simplify the design process
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects
  • PWM output for display backlight dimming control
  • Support playback of motion-JPEG encoded AVI videos
  • 30-pin FPC / ZIF Connection
Find out more about the powerful EVE chip on our blog.

The TFT display included in this module is a 3" TFT with a resolution of 240x400. The display is IPS, so it can be viewed at extremely wide angles.

We have everything you need to develop with the FTDI EVE platform including 12-inch 30-pin FPC cables, 6-inch 30-pin FPC cables and an EVE breakout board and any product support you may need.

The complete 3" 240x400 Full-Color IPS EVE development kit for this module is also available. The development kit includes everything needed to get this display module working.

This model does not have a touch screen. For a 3" EVE module with touch, check out the 240x400 Touchscreen EVE TFT.

Details
Quantity 1 10 20 50 100 200 300 500 * 1000 *
Price $58.25 $46.95 $45.37 $43.78 $43.15 $42.83 $42.51 $42.19 $41.88
Quantity:
3" 240x400 Full-Color IPS EVE TFT
Part Number: CFAF240400E0-030TN-A1-2

This EVE IPS TFT development kit includes everything needed to quickly get the 3" 240x400 EVE IPS TFT up and running. This kit is perfect for engineering teams testing the display or for home users building a project that needs a display.

The kit includes the following:

The included display is a standard brightness IPS display with a resolution of 240x400.

To order just the display module, check out the 3" 240x400 Full-Color IPS TFT Display.

This kit includes a non-touch display. If you're looking for a kit with a touch screen display, check out this 240x400 EVE TFT Development Kit.

Details
Quantity 1
Price $93.28
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400E0-030TN or RSS RSS feed for changes to CFAF240400E0-030TN

Part Change Notice #11061: End-Of-Life Notification

Products Affected: CFAF240400C0-030SC, CFAF240400E0-030TN
Date Issued: February 11, 2020
Summary: End-Of-Life Notification
Reason: The glass used on these displays is no longer available
Impact: Neither part will be available when current stocks are depleted
Recommendation: The displays are being replaced by new parts with more efficient glass

CFAF240400C1-030TC replaces the CFAF240400C0-030SC
CFAF240400C1-030TN replaces the CFAF240400E0-030TN

The replacement parts are as close to "drop-in" as possible. There will be a difference in the initialization code.
Availability: The new displays will be available after the current stock of the displays being set to EOL are depleted
Price Change: TBA
Response: It is recommended that customers obtain samples of the new display to verify compatibility. Contact sales@crystalfontz.com.
For reference only. For design purposes, please use the specifications in the datasheet.
