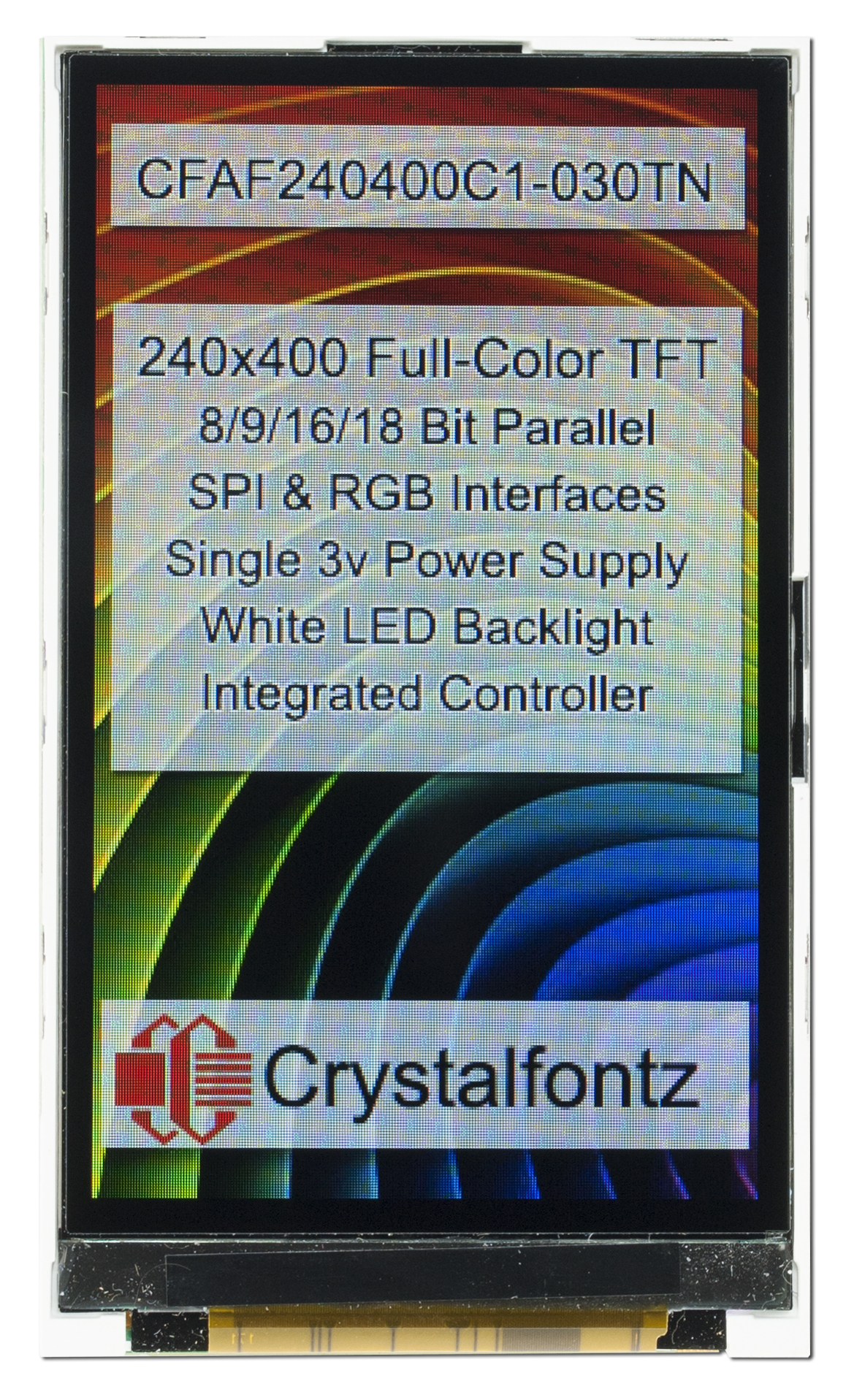

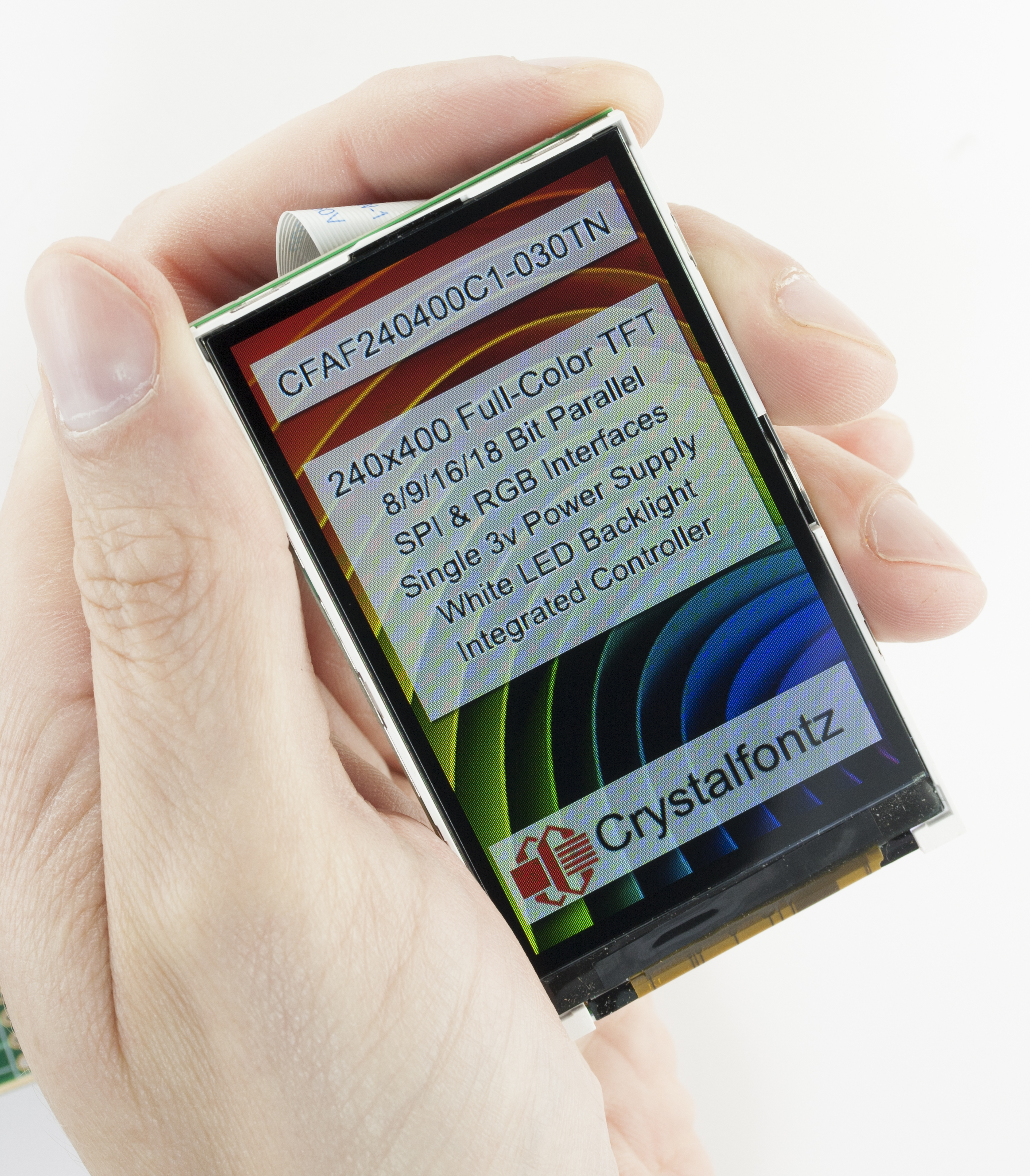

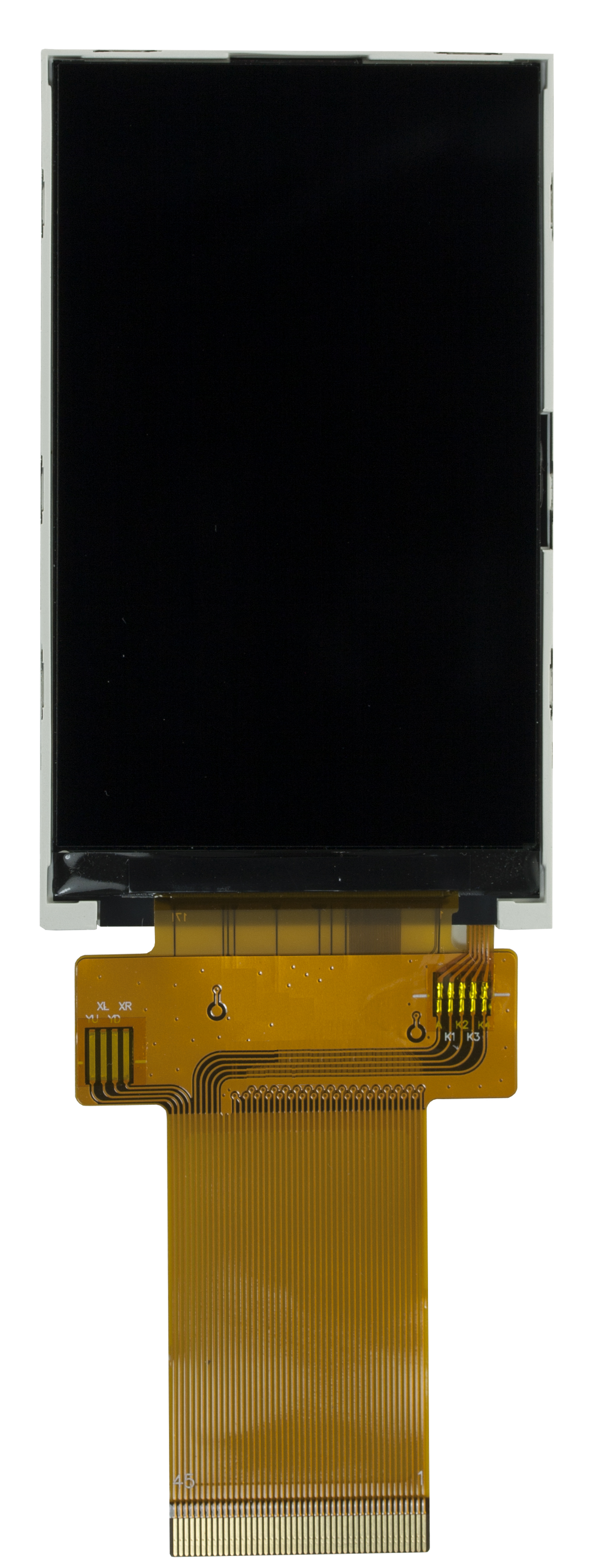

3" 240x400 pixel TFT Display

Part Number: CFAF240400C1-030TN

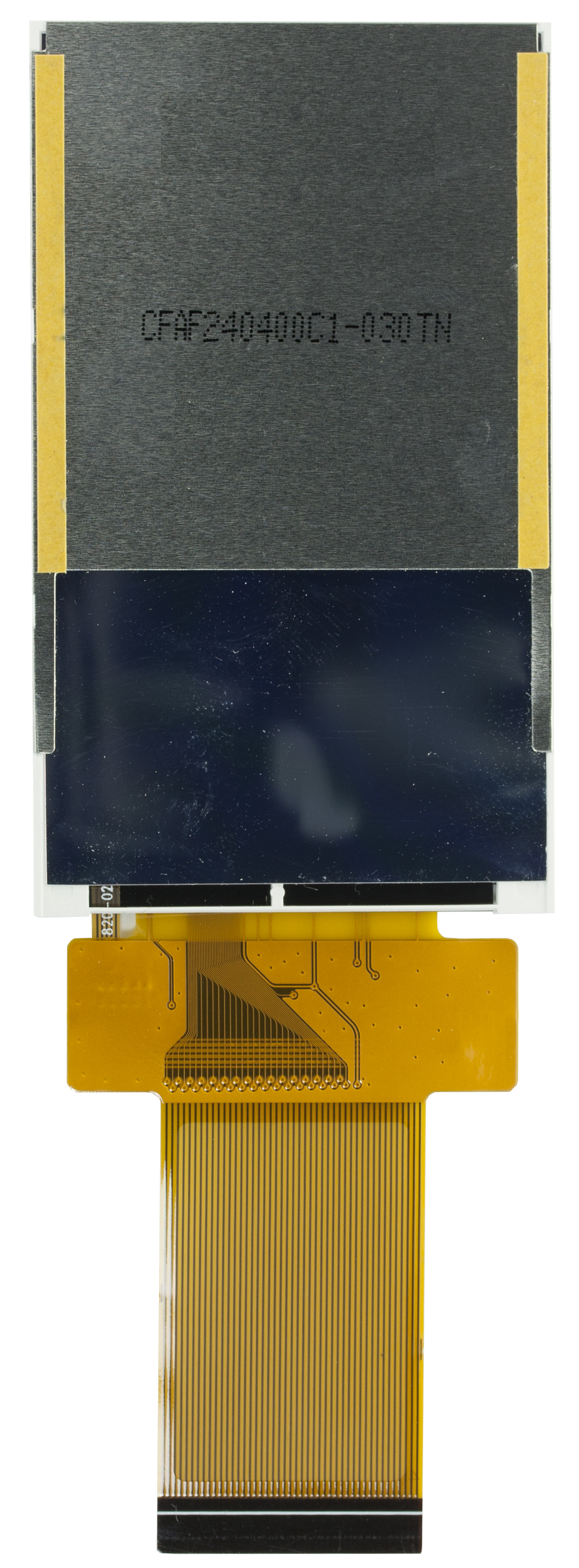

This 3" display can be used with a wide range of interfaces and has a ZIF tail, making it easy to support with any MCU and easy to integrate using a ZIF connector. The display tail is compatible with our 45-position ZIF connector.

The supported interface options:
  • 8/9/16/18-bit Parallel
  • 16/18-bit RGB with a SPI initialization
  • 3-wire or 4-wire SPI
Plus, this display looks great! It's full-color (262k), IPS, with a white LED backlight. The display, including the backlight, uses 3.3v input.

We also offer a module that uses this 3" TFT display supported by an EVE accelerated graphics chip.

Part Number:
CFA- Crystalfontz America
F- TFT display
240400- 240x400 pixel array
C1- Family and version number
030- 3" diagonal dimension
T- Standard Brightness (400 nits)
N- No touchscreen
Qty:
Quantity Price
1 $54.14
5 $45.21
10 $44.01
20 $42.53
50 * $38.95
100 * $36.32
200 * $36.05
300 * $33.75
500 * $31.48
1000 * $29.23
* For quantites over this amount the lead time may be up to 60 Days. Contact us about potential lead times.
Components worth considering
4638 45 Position, 0.50mm Pitch, Gold, FPC FCC ZIF Connector
Need ZIF Connectors? $1.50 ea.
4762 3" 240x400 EVE TFT Display
Display integrated with an EVE? $71.19 ea.
4830 45-Position ZIF Breakout Board
Add a 45-pin ZIF Breakout Board? $6.54 ea.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAF240400C1-030TN or RSS RSS feed for changes to CFAF240400C1-030TN for CFAF240400C1-030TN

TECHNICAL SPECS

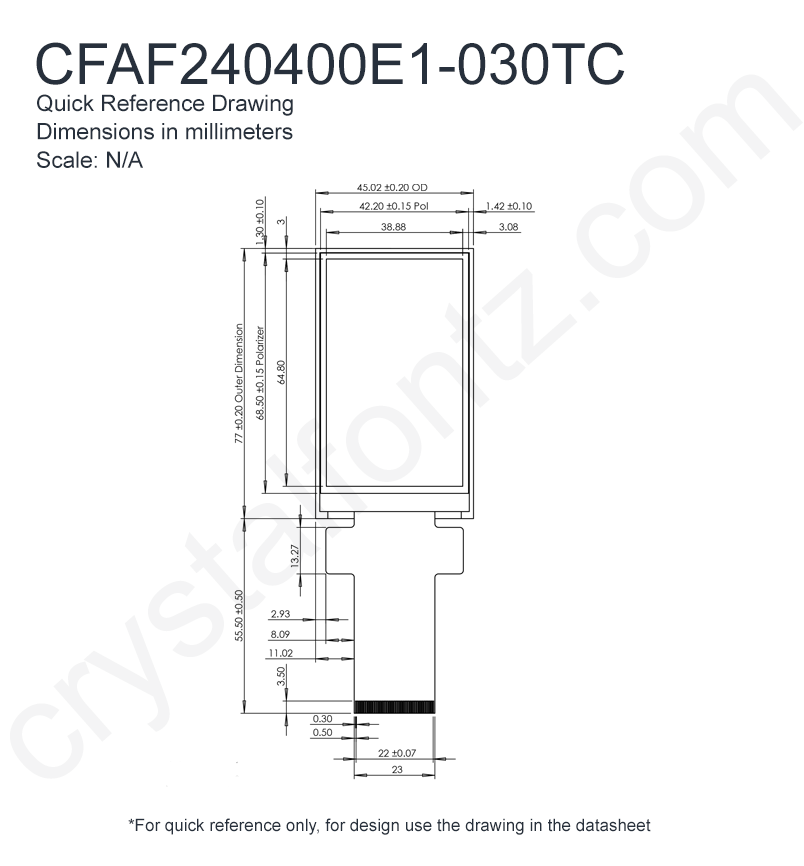

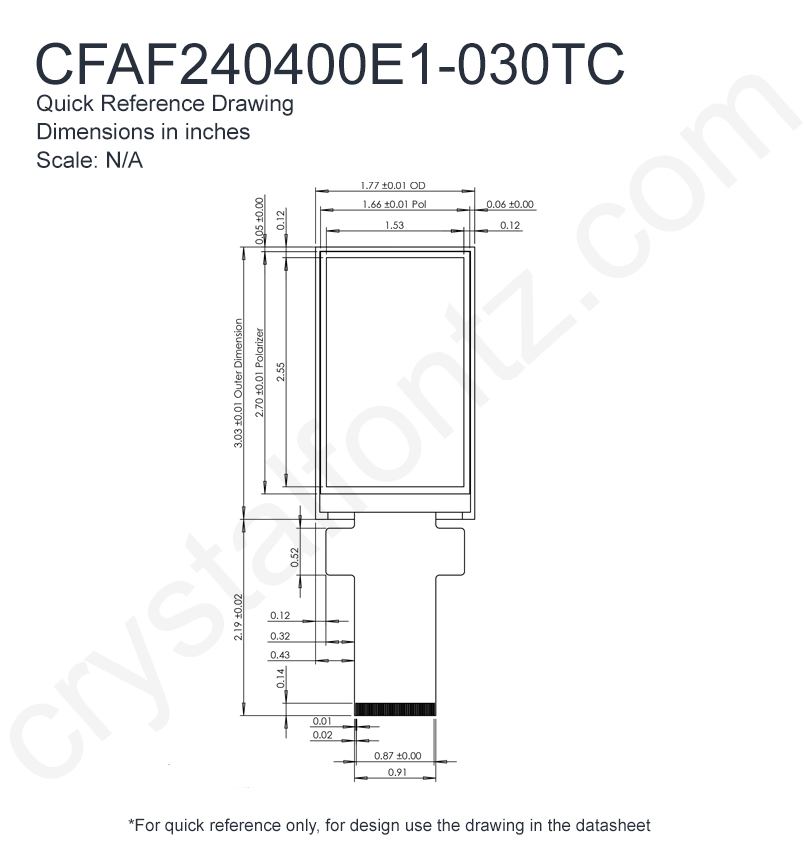

Physical Characteristics

Column Dots x Row Dots 240 x 400
Module Overall width height depth
millimeters 45.04 77 2.6
inches 1.773 3.031 0.102
*width / height does not include Foldable Tab
Diagonal Dimension 3"
Active Area width height
millimeters 38.88 64.8
inches 1.531 2.551
Dot Pitch width height
millimeters 0.162 0.162
inches 0.0064 0.0064
Weight 15g

Optical Characteristics

Polarizer Transmissive
View Angle 80°
Backlight Color White
Backlight Type LED
Foreground Color RGB
Background Color Dark

Electrical Specifications

Supply Voltage for Logic Minimum 2.5V
Supply Voltage for Logic Maximum 3.6V
Supply Voltage for Logic Typical 3.3V
Supply Voltage for Driving Panel Typical 3.3V
Module Connector Pitch 0.5mm

Backlight Electrical Specifications

Forward Voltage Typical 3.2V
Forward Current Minimum 60mA
Forward Current Typical 80mA

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Interface 16-bit Parallel, 18-bit Parallel, 8-bit Parallel, 9-bit Parallel, DOT-CLK interface / Generic RGB, SPI

Miscellaneous

Foldable Tab Yes
Nits 400

Additional Options

Purchase this display integrated with an EVE for quicker prototyping.

3" 240x400 EVE TFT Display

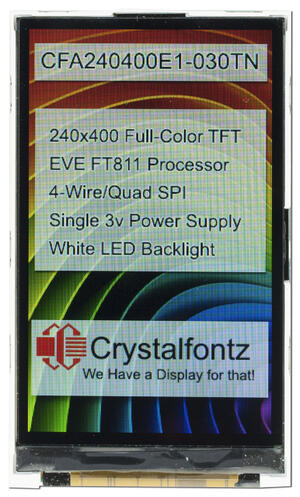

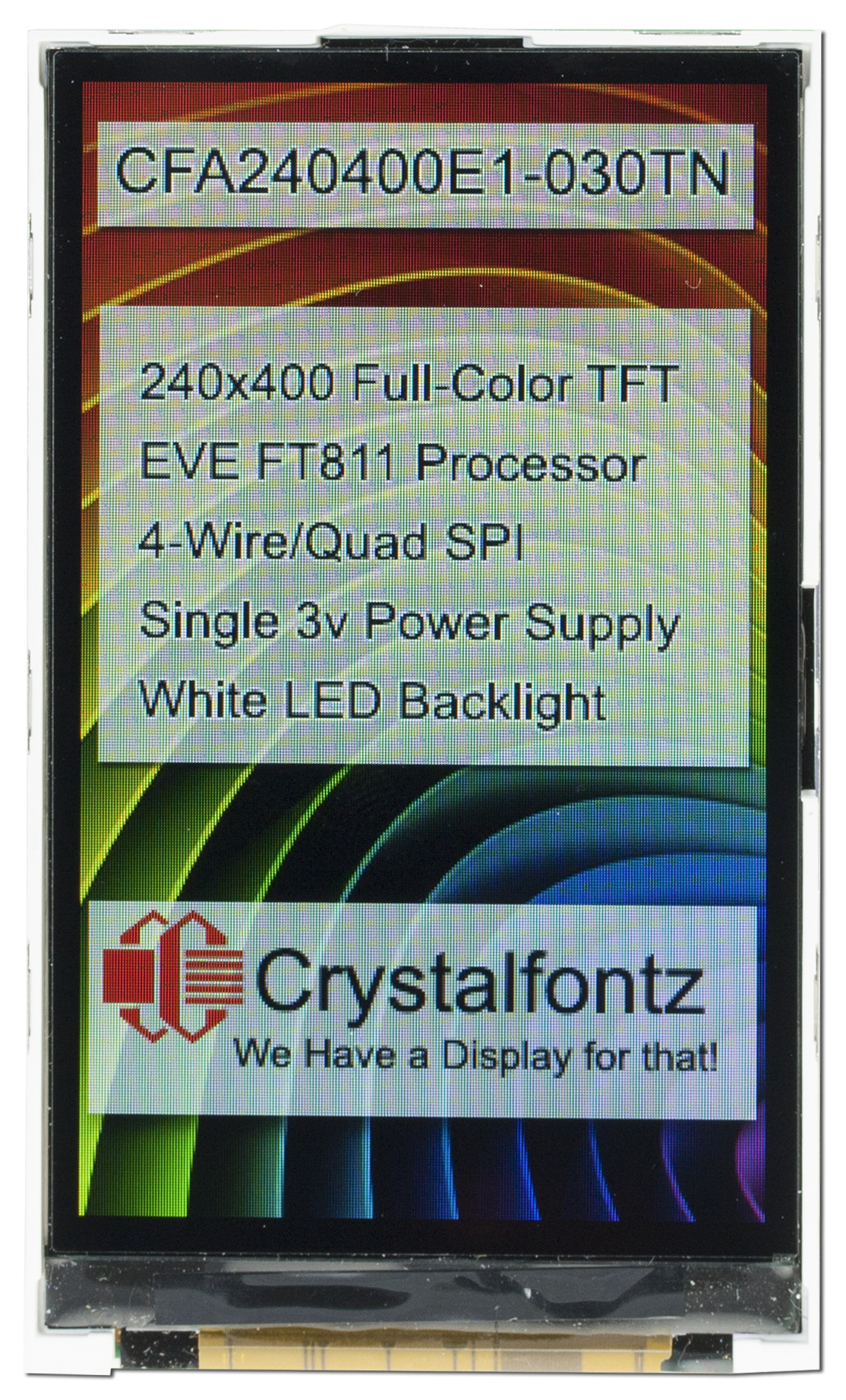

Part Number: CFA240400E1-030TN

This display module combines a 3" TFT display with an embedded video engine (EVE) PCB for a powerful display module. The EVE PCB, powered by an FTDI/Bridgetek FT81x, accepts high-level commands, simplifying the creation of beautiful interfaces.

EVE Graphics Accelerator features include:

  • User interface design software by FTDI/Bridgetek to simplify the design process
  • Enhanced sketch processing
  • Anti-aliasing of primitive displayed objects
  • PWM output for display backlight dimming control
  • Support playback of motion-JPEG encoded AVI videos
  • 30-pin FPC / ZIF Connection
Find out more about the powerful EVE chip on our blog.

The TFT display included in this module is a 3" TFT with a resolution of 240x400.

We have everything you need to develop with the FTDI EVE platform including 12-inch 30-pin FPC cables, 6-inch 30-pin FPC cables and an EVE breakout board, and any product support you may need.

The complete 3" 240x400 Full-Color EVE development kit for this module is also available. The development kit includes everything needed to get this display module working.

This model does not have a touch screen. For a 3" EVE module with touch, check out the 240x400 Touchscreen EVE TFT.

Currently Shipping: HW Version 1v0, Firmware Version: 1v1

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
E - EVE
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
N - No Touch

Details
Quantity 1 5 10 20 50 * 100 * 200 * 300 * 500 * 1000 *
Price $71.19 $59.44 $57.88 $55.92 $53.97 $53.19 $52.80 $52.41 $52.01 $51.62
Quantity:
240x400 EVE TFT Display Development Kit
Part Number: CFA240400E1-030TN-KIT

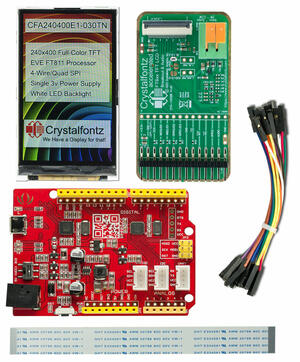

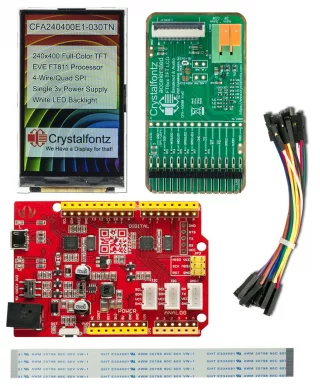

This EVE IPS TFT development kit includes everything needed to quickly get the 3" 240x400 EVE TFT up and running. This kit is perfect for engineering teams testing the display or for home users building a project that needs a display.

The kit includes the following:

To order just the display module, check out the 3" 240x400 Full-Color TFT Display.

This kit includes a non-touch display. If you're looking for a kit with a touchscreen display, check out this 240x400 EVE TFT Development Kit.

Part Number:
CFA - Crystalfontz (no 4th letter indicates a display with value-added)
240400 - Pixel Resolution
E - EVE
1 - Revision
030 - 3.0" Diagonal
T - Standard Brightness
N - No Touch
KIT - Includes Seeeduino, cables, wiring, code, etc.

Details
Quantity 1
Price $103.98
Quantity:

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF240400C1-030TN or RSS RSS feed for changes to CFAF240400C1-030TN

Product Update #11154: 3" 240x400 pixel TFT Display is now available!

New Product: CFAF240400C1-030TN
Date Issued: October 18, 2022
Summary: 3" 240x400 pixel TFT Display is now available!
Description: CFAF240400C1030TN has been released on our website (https://www.crystalfontz.com/product/cfaf240400c1030tn-240x400-3-inch-tft-display) and is now available for sale. Orders can be placed directly from our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.
For reference only. For design purposes, please use the specifications in the datasheet.
