3.5" 320x240 Capacitive Touch Screen from Crystalfontz

Product

Home » Products » TFT LCD Displays » Interface » 8-bit Parallel

                        This product is discontinued please contact support to see if there is a replacement part available.

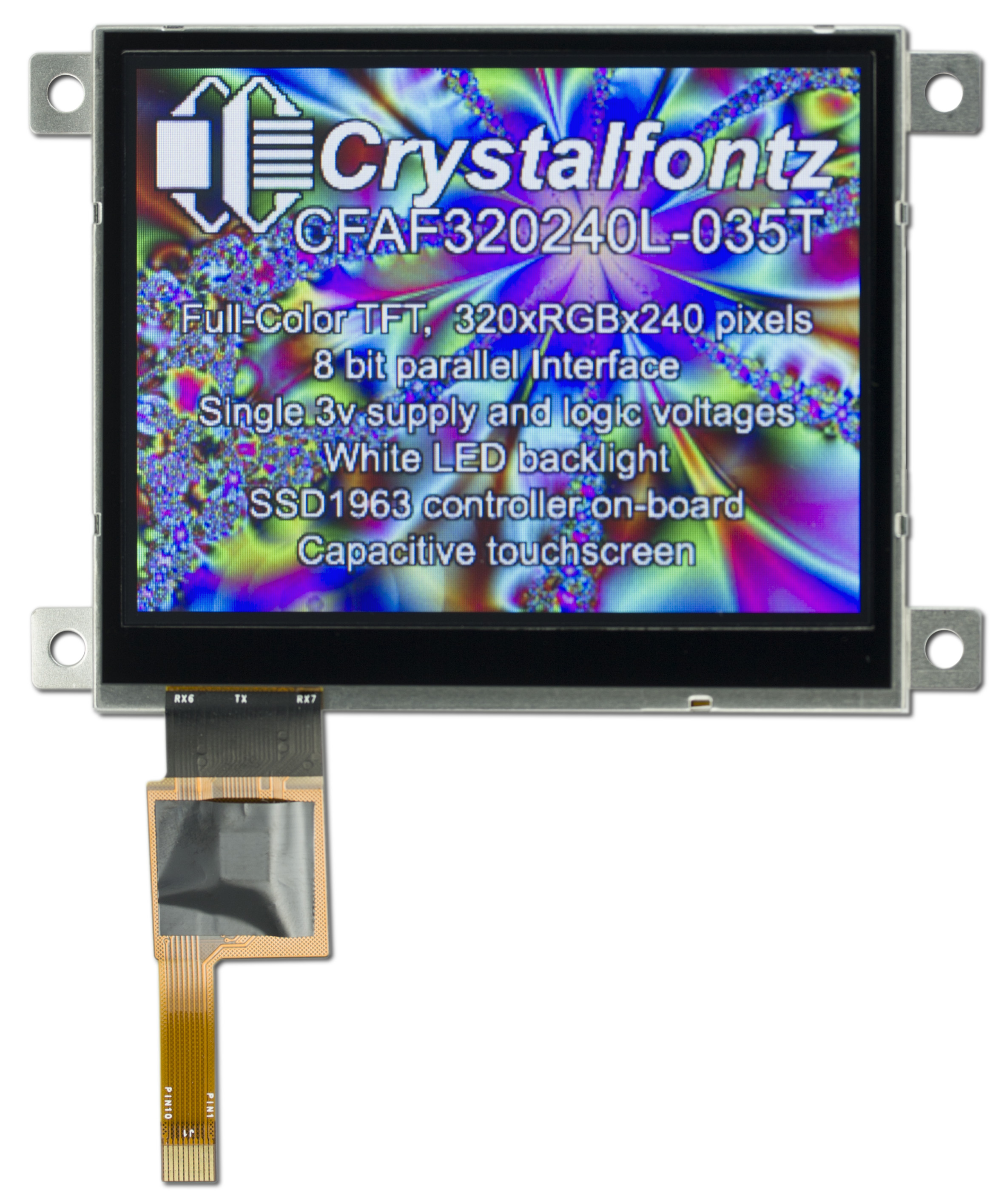

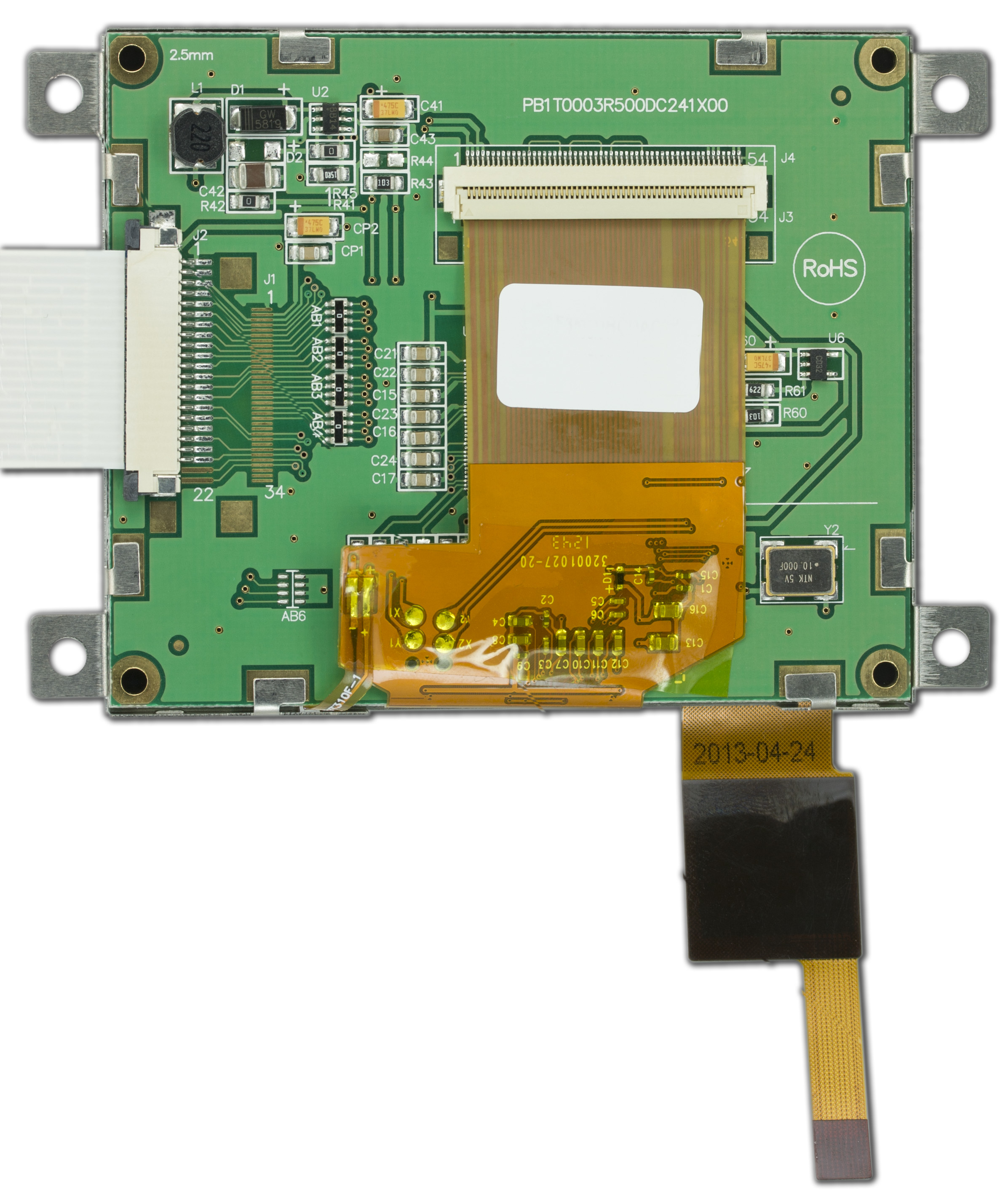

3.5" 320x240 Capacitive Touch ScreenPart Number: CFAF320240L-035T-CTSThis 3.5" 320x240 full color RGB graphic TFT LCD display module offers a capacitive touch screen.
Built-in Solomon Systech SSD1963 or compatible controller.
8-bit parallel interface.
Operating temperature range from -40°C to 70°C.
 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            320 x 240

    Module Overall        width
        height
        depth

        millimeters
        93.5
        66.44
        9.52

        inches
        3.68
        2.62
        0.38

        Diagonal Dimension
            3.5"

    Viewing Area        Width
        Height

        millimeters
        73.1
        55.6

        inches
        2.88
        2.19

    Active Area        Width
        Height

        millimeters
        70.08
        52.56

        inches
        2.76
        2.07

    Dot Size        Width
        Height

        millimeters
        0.07
        0.22

        inches
        0.003
        0.009

        Weight
            63.7g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            TFT/Black
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Typical
            213mA
Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Solomon Systech SSD1963
SSD1963 1215KB Embedded Display SRAM

LCD Display Controller (also known as KD45789)
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAF320240L035TCTS Datasheet

picture_as_pdfDatasheet

Module Overall	width	height	depth
millimeters	93.5	66.44	9.52
inches	3.68	2.62	0.38

Viewing Area	Width	Height
millimeters	73.1	55.6
inches	2.88	2.19

Active Area	Width	Height
millimeters	70.08	52.56
inches	2.76	2.07

Dot Size	Width	Height
millimeters	0.07	0.22
inches	0.003	0.009

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11036: End-of-Life Notification

Product Affected:	CFAF320240L-035T-CTS
Date Issued:	January 29, 2019
Summary:	End-of-Life Notification
Description:	This part is being set to End of Life Status.
Impact:	This part is no longer available. A replacement will not be offered.
Recommendation:	Customers looking for a 3.5-inch TFT display should consider the CFAF320240F-035T-TS or the CFAF320240F-035T
Availability:	N/A
Price Change:	N/A

Product Update #10608: (New Product) CFAF320240L-035T-CTS

New Product:	CFAF320240L-035T-CTS
Date Issued:	August 6, 2014
Summary:	(New Product) CFAF320240L-035T-CTS
Description:	TFT LCD Modules: 320x240 RGB TFT with capacitive touch panel
