This display is marked EOL so we've slashed the prices on remaining inventory.

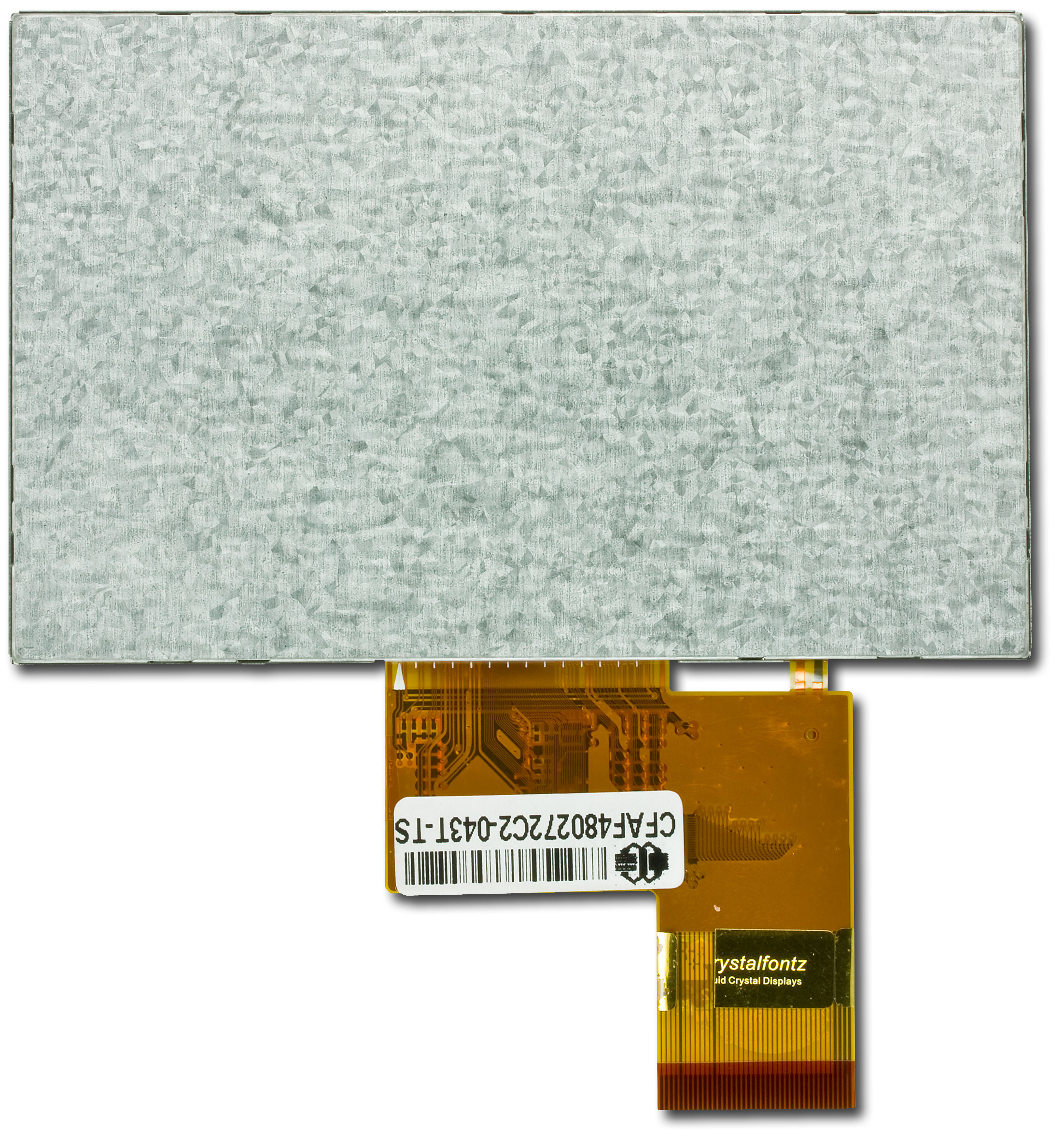

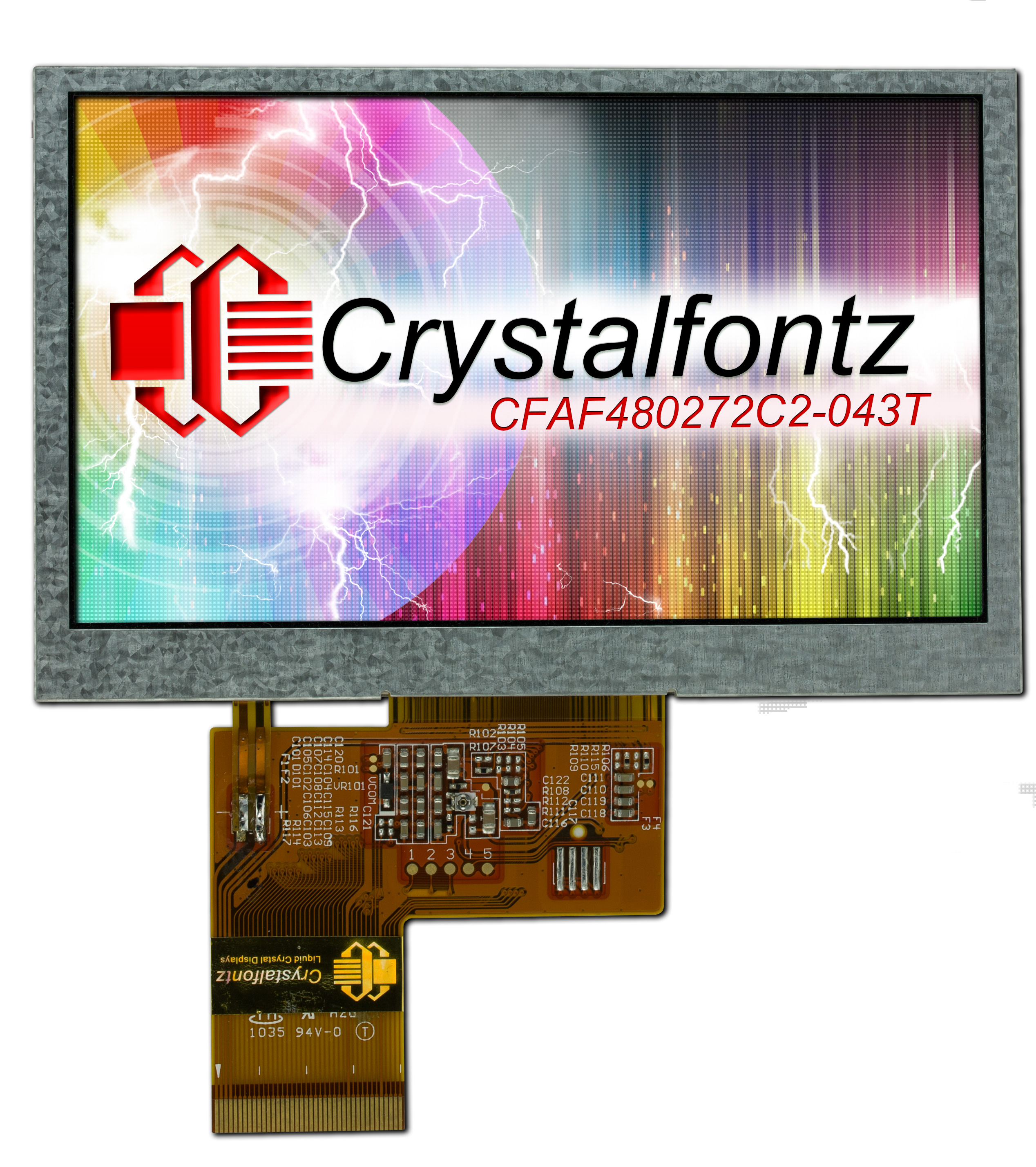

480x272 RGB Color TFT
Part Number: CFAF480272C2-043T
480xRGBx272 262K full-color graphic TFT module. This 4.3" diagonal TFT display has integrated controller and white LED backlight.
- 480x272 full color graphic TFT module.
- Operating temperature range from -20C to 70C.
- All of our TFT displays are RoHS compliant.
- Crystalfontz America, Incorporated is ISO 9001:2015 certified.
This is not recommended for new designs. For new designs use the CFAF480272H0-043SN
Pixel Grid
| Column Dots |
480 px |
| Row Dots |
272 px |
Color
| Module | Metric | Imperial |
| Overall Width |
105.00 mm |
4.134 in |
| Overall Height |
67.20 mm |
2.646 in |
| Overall Depth |
2.90 mm |
0.114 in |
| Diagonal Dimension |
4.30 in |
| Weight |
49 g |
| Shape |
Rectangle |
| Display Area | Metric | Imperial |
| Active Area Width |
95.04 mm |
3.742 in |
| Active Area Height |
53.85 mm |
2.120 in |
| Viewing Width |
98.04 mm |
3.860 in |
| Viewing Height |
56.86 mm |
2.239 in |
| Character Geometry | Metric | Imperial |
| Character Width |
0.20 mm |
0.008 in |
| Character Height |
0.20 mm |
0.008 in |
| Dot Geometry | Metric | Imperial |
| Dot Size Width |
0.20 mm |
0.008 in |
| Dot Size Height |
0.20 mm |
0.008 in |
Connectors
| Module Connector Type |
ZIF |
| Module Connector Pitch |
0.35 mm (0.01 in) |
| Foldable Tab |
Yes |
Technology
| Display Technology |
TFT |
| Display Addressing |
Active |
| Glass Type |
TFT/Black |
| Mode |
Transmissive |
| Polarizer |
Negative |
Viewing
| View Direction |
6:00 o'clock |
Display Colors
| Foreground Color |
RGB |
| Background Color |
Dark |
Backlight
| Backlight Type |
LED |
| Backlight Color |
White |
| Display | Min | Typ | Max | Unit |
| Supply Voltage - Logic |
| Supply Voltage for Logic |
3 |
3.3 |
3.6 |
V |
| Backlight | Min | Typ | Max | Unit |
| Voltage |
| Forward Voltage |
— |
19.8 |
— |
V |
| Current |
| Forward Current |
— |
40 |
— |
mA |
Available Interfaces
| Standard Interface(s) |
DOT-CLK / Generic RGB |
Temperature
| Min (°C) | Max (°C) | Min (°F) | Max (°F) |
| Operating Temperature |
-20°C |
70°C |
-4°F |
158°F |
| Storage Temperature |
-30°C |
80°C |
-22°F |
176°F |
Humidity
| Relative Humidity | 0% to 90% RH (non-condensing) |
-
DatasheetsDocuments & Files
-
-
| Products Affected: |
CFAF480272C2-043T, CFAF480272C2-043T-TS |
| Date Issued: |
September 26, 2024 |
| Summary: |
End-Of-Life Notification |
| Description: |
This product is no longer available. |
| Reason: |
This product is no longer available and is being replaced with an updated 4.3" TFT display. |
| Impact: |
Timing characteristics change
Dimensions change
Optical characteristics improvements
Electrical characteristics change |
| Recommendation: |
Non-touch - CFAF480272H0-043SN
Res touch - CFAF480272H0-043SR
|
| Availability: |
Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com. |
