This product has reached end of life

3.5" Sunlight Readable Touch Screen TFT

Part Number: CFAF480640B-035T-TS

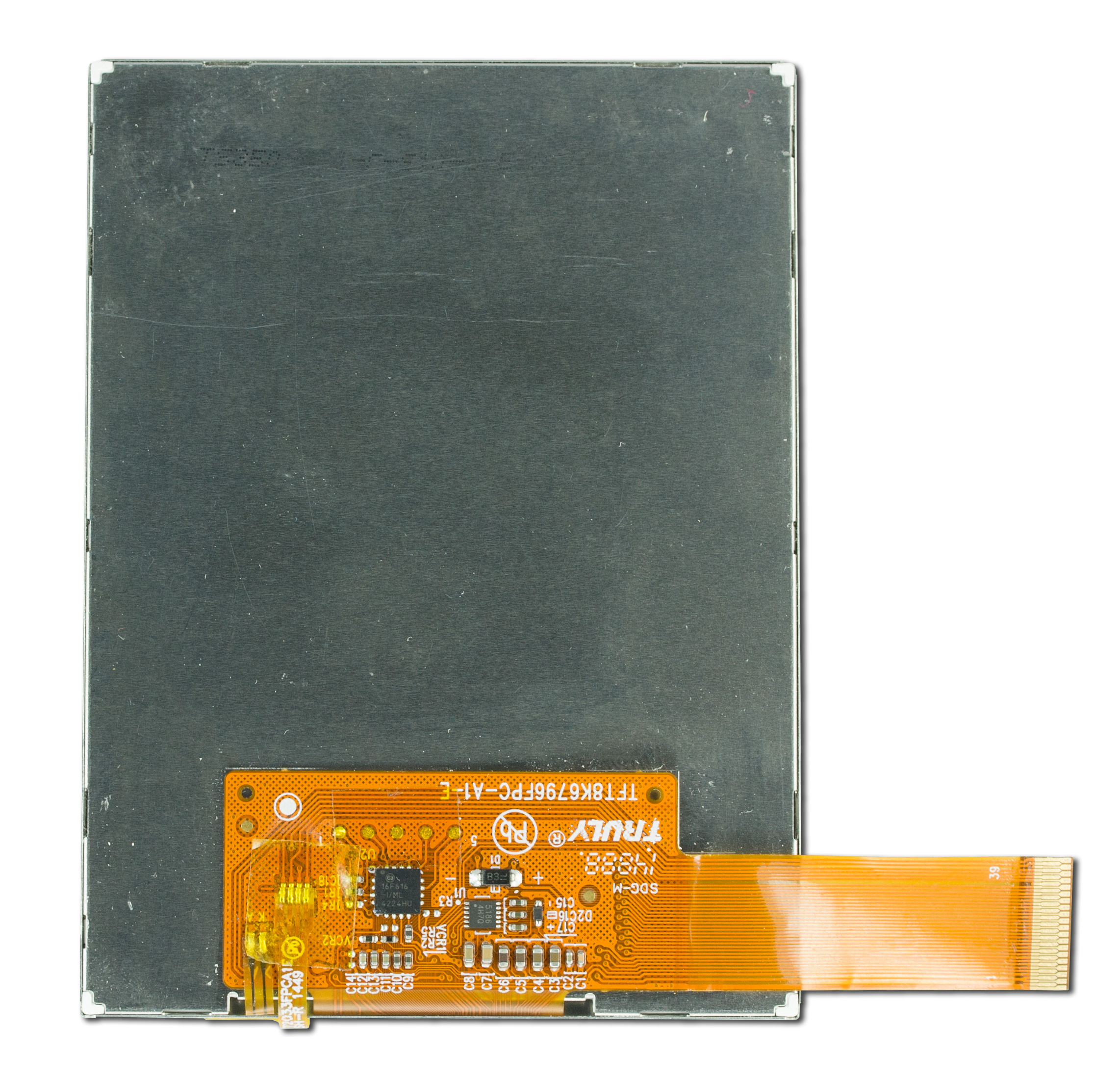

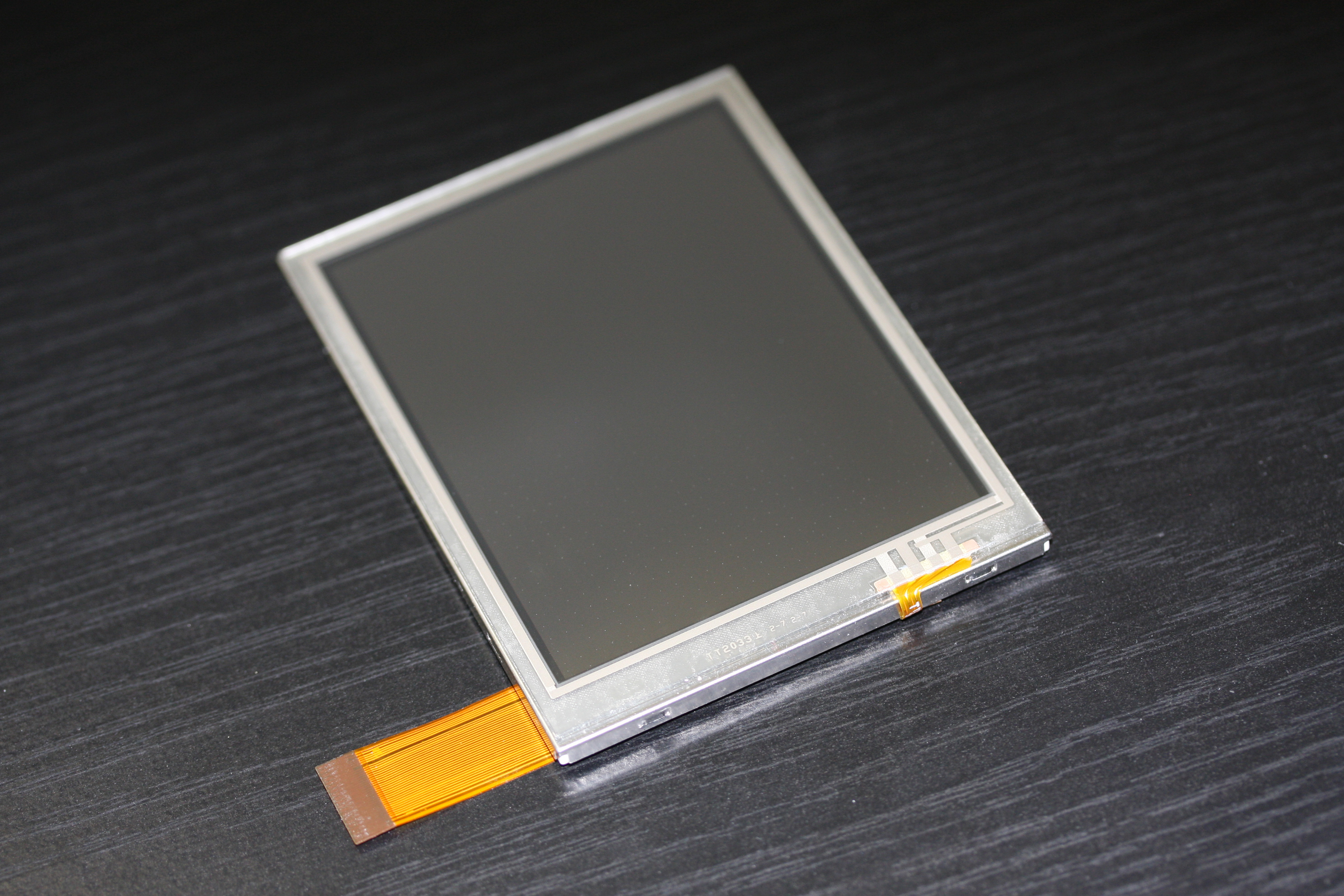

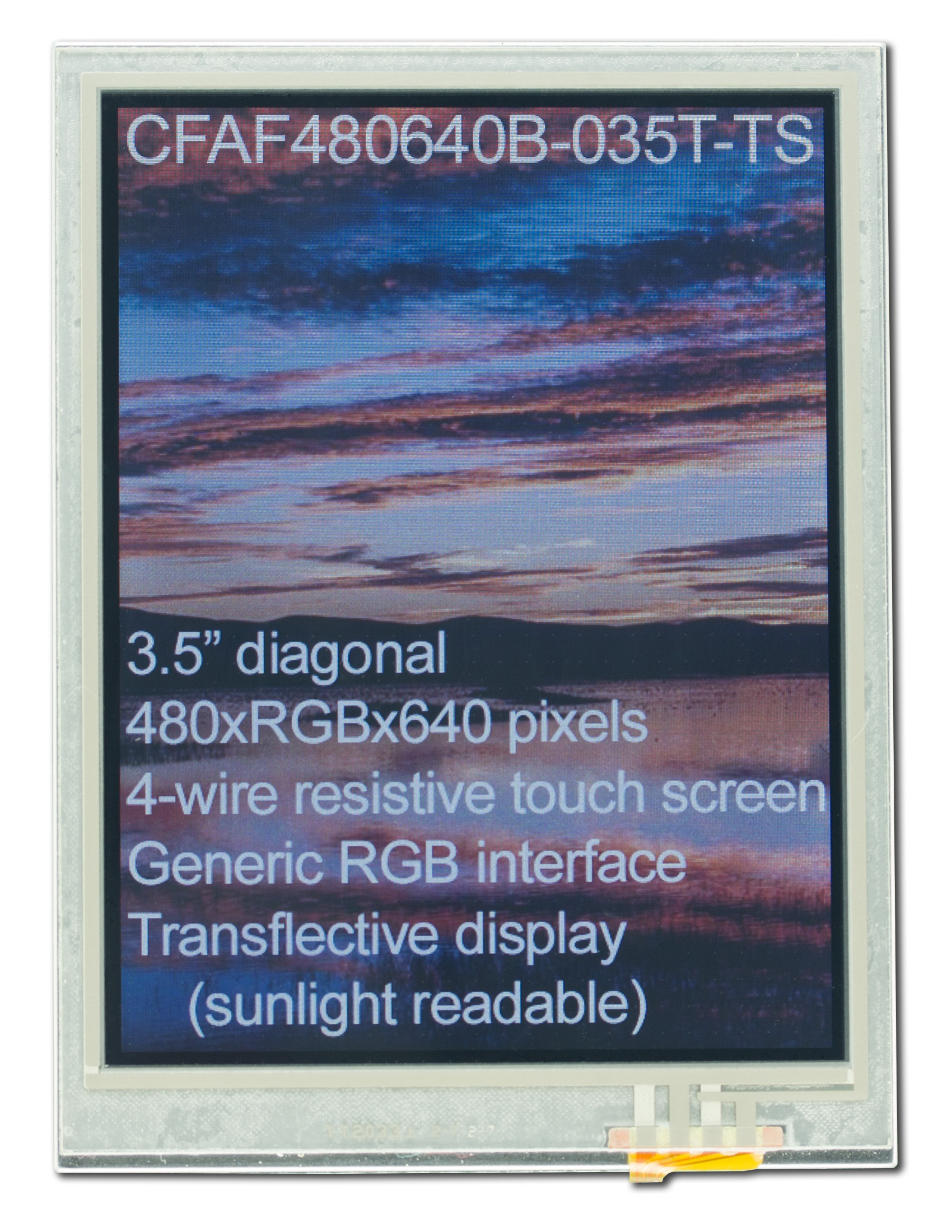

The CFAF480640B-035T-TS has a transflective polarizer, and therefore is sunlight readable. The TFT display resolution is 480x640 (portrait) 640x480 (landscape) (VGA, 480xRGBx640, 640x480xRGB), can display 262,000 colors, uses active matrix addressing, and measures 3.5" diagonally. This display also features a 4-wire resistive touch screen, which allows the use of the touch screen while wearing gloves and other insulating materials. It has 10 bright white, series LEDs and the transflective polarizer looks great both in the sun and in the dark. It uses a polarizer specifically designed to provide a wide viewing cone from all sides of the display. This TFT display is perfectly suited for both indoor and outdoor use. Did we mention that the transflective polarizer makes it fully readable in direct sunlight? That same direct sunlight makes the viewing of ordinary TFT displays extremely difficult, but the CFAF480640B-035T-TS is unaffected.

Do you like the display but don't need the touch screen? The CFAF480640A-035T is the same TFT without a touch screen. It is slightly thinner and the price is lower.

With an active area of 53.57x71.42mm and a resolution of 640 x 480 (landscape) or 480 x 640 (portrait), this display has a very high pixel density. The Himax HX8363-A or compatible controller in this sunlight readable TFT display is the HX8363A which exposes a generic RGB interface so you won't run into any trouble getting the display up and running. The logic voltage range of 2.5v to 3.3v allows direct connection to 3.3v processors.

The 10 white LED series backlight ( ~29.5v typical) will require a current-controlled boost LED driver. The series LED configuration guarantees perfect current matching across the 10 LEDs. We have an example of a suitable LED driver circuit shown in the schematic of the CFA10065 breakout board. We think you'll be pleasantly surprised to see this display looking great for its expected lifetime of at least 20,000 hours -- longer if you dim or turn off the backlight when not in use.

This display is perfect for situations with changing levels of ambient light from darkness to direct sunlight. Examples include in dash or dash mounted electronics, exterior status displays, software keypads, and hypersonic railgun coordinate entry systems.

This display is available as a standalone part but it can also be purchased with a Breakout Board + Display below. This breakout board brings LCD connections out to 0.1" center pins, and includes the current controlled backlight driver. Perfect for prototyping into your project.

Alternatively, if you need something you can take out of the box and plug in, our Demonstration Kit is for you. Simply plug in the supplied power adapter and the demonstration board will start displaying a slide show on the display. No soldering or coding required.

  • square_foot Physical Characteristics

    Physical Characteristics

    Column Dots x Row Dots 480 x 640
    Module Overall width height depth
    millimeters 63.5 85.5 4.33
    inches 2.50 3.37 0.17
    Diagonal Dimension 3.5"
    Viewing Area Width Height
    millimeters 55.57 73.42
    inches 2.19 2.89
    Active Area Width Height
    millimeters 53.57 71.42
    inches 2.11 2.81
    Dot Pitch Width Height
    millimeters 0.1116 0.1116
    inches 0.0044 0.0044
    Weight 49g
  • visibility Optical Characteristics

    Optical Characteristics

    Glass Type TN
    Polarizer Transflective
    View Direction 12 o'clock
    Sunlight Readable Yes
    Backlight Color White
    Backlight Type LED
  • electric_bolt Electrical Specification

    Electrical Specifications

    Supply Voltage for Logic Minimum 2.5V
    Supply Voltage for Logic Maximum 3.3V
    Supply Voltage for Logic Typical 3.3V
  • electric_bolt Backlight Specification

    Backlight Electrical Specifications

    Forward Voltage Minimum 26V
    Forward Voltage Maximum 33V
    Forward Voltage Typical 29.5V
    Forward Current Typical 20mA
  • nature Enviromental


    Operating Temperatures min max
    Celsius -10° 60°
    Fahrenheit 14° 140°
    Storage Temperatures min max
    Celsius -20° 70°
    Fahrenheit -4° 158°
    Humidity min max
    Non-condensing 0% 90%
  • cable Electronics


    Controller Documents Himax HX8363-A
    480xRGBx864 dot, 16.7M color, TFT Mobile Single Chip Driver, v0.3
    Himax HX8363-A
    480xRGBx864 dot, 16.7M color, TFT Mobile Single Chip Driver, v0.3
    Interface DOT-CLK interface / Generic RGB
  • picture_as_pdf Datasheets
  • download Files and Downloads

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAF480640B-035T-TS or RSS RSS feed for changes to CFAF480640B-035T-TS
  • text_snippet
    Product Update #10752: Last Time Buy
    Product Affected: CFAF480640B-035T-TS
    Date Issued: January 13, 2017
    Summary: Last Time Buy
    Description: This displays will be going end-of-life on January 27th, 2017. If you would like to make any last time purchases before this display is permanently unavailable please place your orders before 1/27/2017.
    Reason: This part is going end-of-life and will no longer be available.
    Impact: Immediately - Last time buy by 1/27/2017
    Recommendation: N/A
    Availability: Last time buy available until 1/27/2017
  • text_snippet
    Product Update #10654: (New Product) CFAF480640B-035T-TS
    New Product: CFAF480640B-035T-TS
    Date Issued: May 5, 2015
    Summary: (New Product) CFAF480640B-035T-TS
    Description: TFT LCD Modules: 3.5" diagonal VGA (480x640) sunlight-readable transflective TFT with white LED backlight, generic RGB+SPI interface, and 4-wire resistive touchscreen.
