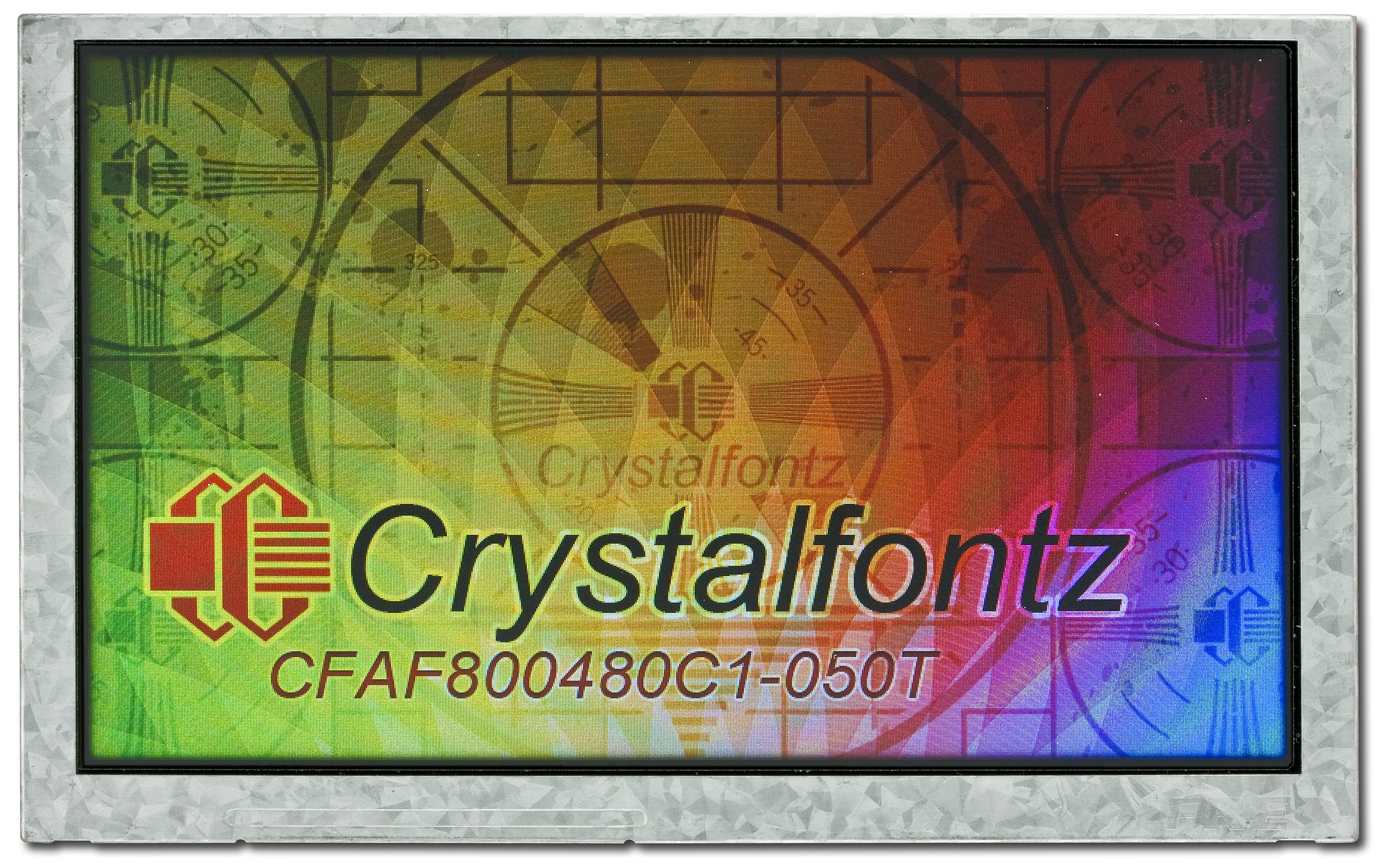

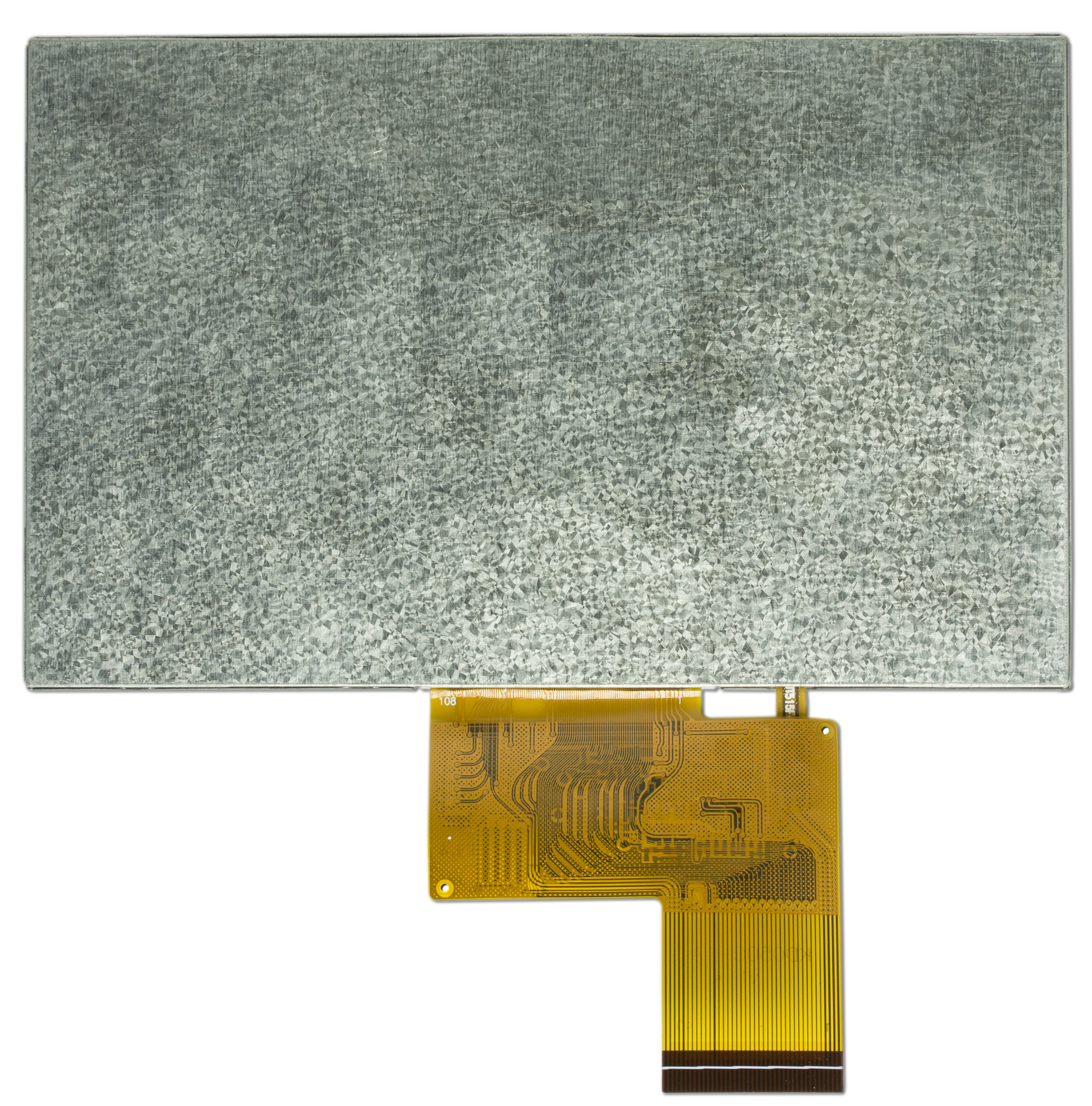

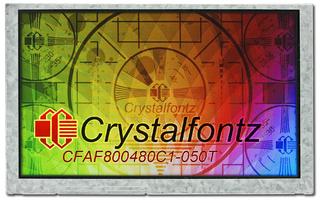

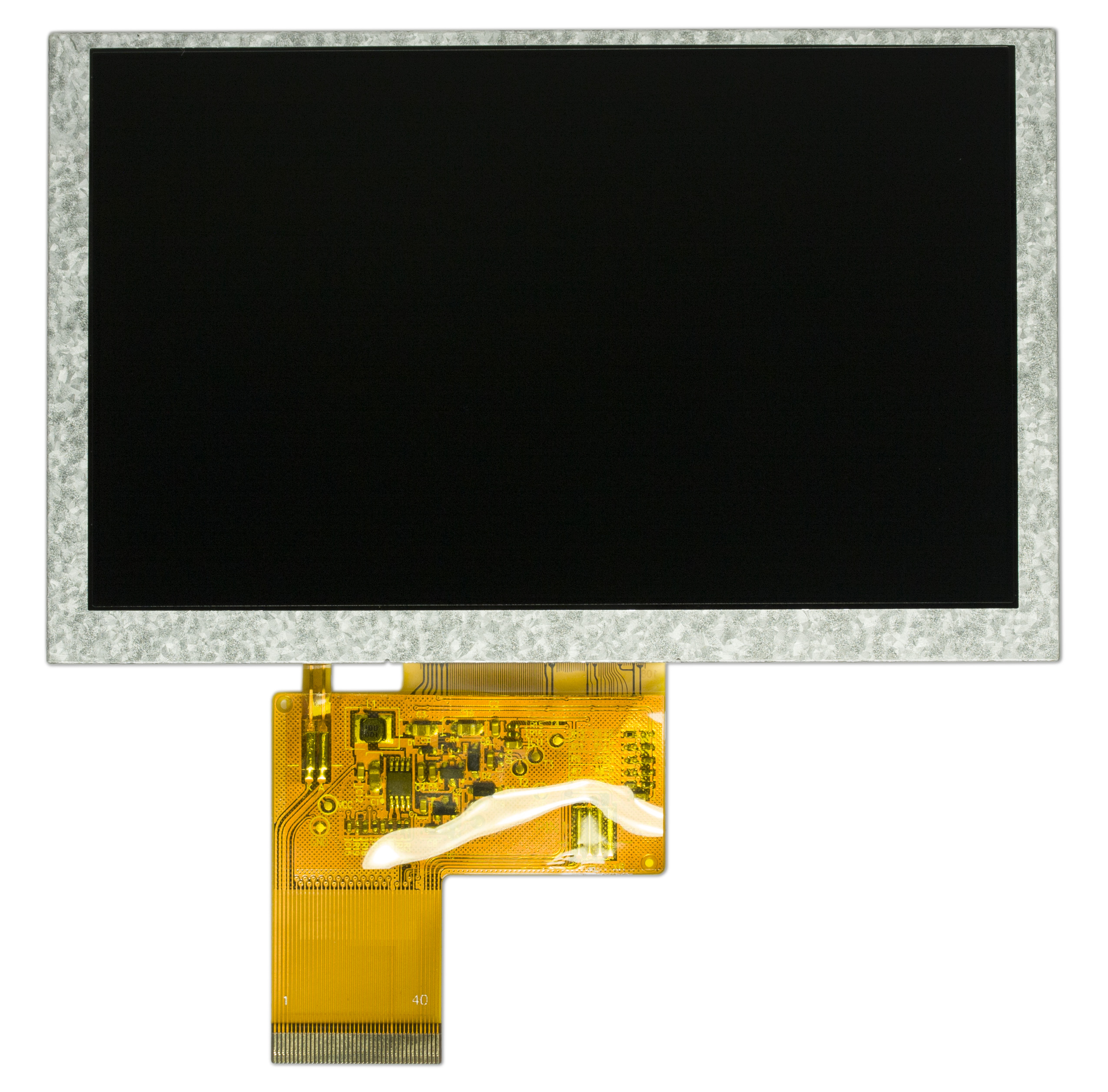

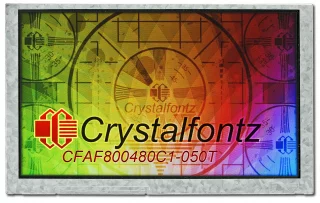

800x480 5.0" Full Color TFT LCDPart Number: CFAF800480C1-050TWith a generously sized 5-inch, 800x480 lcd, this active-matrix display is perfect for when you need to display a lot of information.
Key SpecificationsFull-color (262K) 800x480 RGB display module consists of a TFT panel, a driver IC, an FFC/FPC flexible cable, and an LED backlight. This TFT LCD display module does not include an on-board LCD controller.
Requires a 5v supply.
Host interface is DOT-CLK interface / Generic RGB.
12:00 o'clock viewing direction (polarizer viewing direction) can be rotated for portrait or landscape orientation.
Operating temperature range is from -20°C to +70°C.
Every TFT LCD display module comes with a limited 1-year warranty  and free technical support.
Product Variations

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            800 x 480

    Module Overall        width
        height
        depth

        millimeters
        121
        76
        3.7

        inches
        4.76
        2.99
        0.15

*width / height does not include Foldable Tab

        Diagonal Dimension
            4.96"

    Viewing Area        Width
        Height

        millimeters
        110.3
        68.5

        inches
        4.34
        2.70

    Active Area        Width
        Height

        millimeters
        108
        64.8

        inches
        4.25
        2.55

    Dot Size        Width
        Height

        millimeters
        0.14
        0.14

        inches
        0.006
        0.006

        Optional Connectors
            CS050Z40GB0

        Weight
            66g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type
            TFT
Polarizer
            Transmissive
View Direction
            12 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            RGB
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            3.6V
Supply Voltage for Logic Typical
            3.3V

        Supply Current Maximum
            220mA
Module Connector Pitch
            0.5mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Typical
            23.1V

        Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Interface
            DOT-CLK interface / Generic RGB

picture_as_pdf Datasheets
picture_as_pdfCFAF800480C1050Tv1.0.pdf
(Datasheet V 1.0)
Previous Versions of Datasheetspicture_as_pdfCFAF800480C1-050T Datasheet Release 2016-09-13.pdf

picture_as_pdfCFAF800480C1-050T Data Sheet 2012-10-20

download Files and Downloads
folder_zip Software Source - ATMega2561 16-Bit Sample Code

Module Overall	width	height	depth
millimeters	121	76	3.7
inches	4.76	2.99	0.15
*width / height does not include Foldable Tab

Viewing Area	Width	Height
millimeters	110.3	68.5
inches	4.34	2.70

Active Area	Width	Height
millimeters	108	64.8
inches	4.25	2.55

Dot Size	Width	Height
millimeters	0.14	0.14
inches	0.006	0.006

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11274: End-Of-Life Notification

Product Affected:	CFAF800480C1-050T
Date Issued:	June 12, 2024
Summary:	End-Of-Life Notification
Description:	This product is end-of-life. Once current stock is depleted it will no longer be available.
Recommendation:	Please contact support@crystalfontz.com for a suitable replacement.
