This product is discontinued and has been replaced by CFAG12232D-YYH-VA

32x122 Parallel Graphic LCD

Part Number: CFAG12232D-YYH-N

Datasheet

Files

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAG12232D-YYH-N or RSS RSS feed for changes to CFAG12232D-YYH-N for CFAG12232D-YYH-N

Compliance Documents

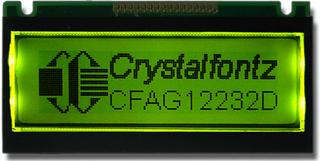

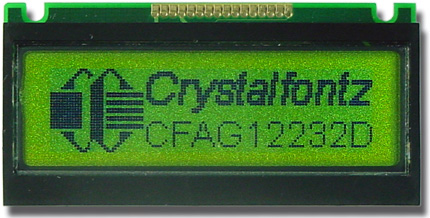

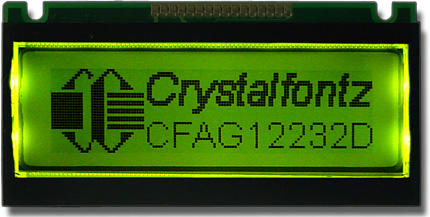

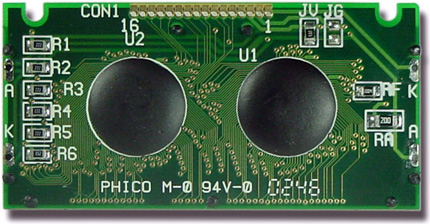

32x122 Parallel Graphic LCD (CFAG12232D-YYH-N)

Description

Note: This part may be substituted with the CFAG12232D-YYH-VA which is fit, form, and function compatible with the CFAG12232D-YYH-N., Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00

  • 122x32 graphic LCD module
  • Small form factor
  • Built-in Avant SBN1661G or compatible controller (SED1520 compatible)

TECHNICAL SPECS

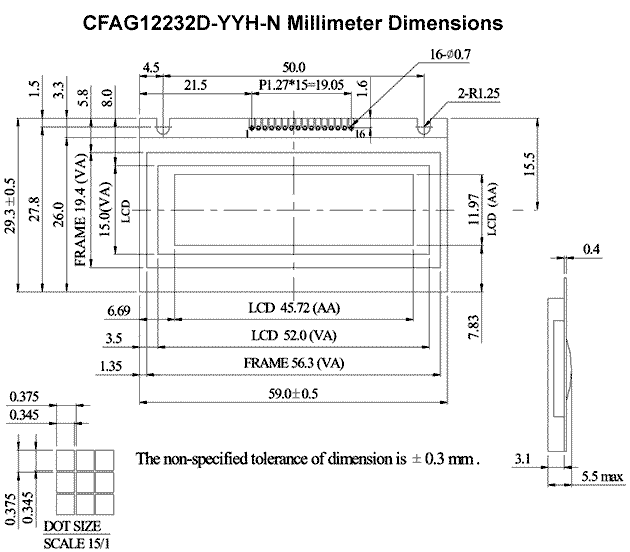

Physical Characteristics

Column Dots x Row Dots 32 x 122
Module Overall width height
millimeters 59 29.3
inches 2.323 1.154
PCB Outline width height
millimeters 59 29.3
inches 2.323 1.154
Viewing Area width height
millimeters 52 15
inches 2.047 0.591
Active Area width height
millimeters 45.72 11.97
inches 1.800 0.471

Optical Characteristics

Glass Type/Glass Color STN/Yellow-Green
Polarizer Transflective
View Direction 6 o'clock
Sunlight Readable Yes
Backlight Color Yellow-Green
Backlight Type LED
Mode Positive
Foreground Color Dark
Background Color Yellow-Green

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°

Electronics

Controller Documents Avant SBN1661G
SBN1661G_M18,
SBN1661G_M02,
SBN0080G_S18,
SBN0080G_S02
Dot-matrix STN LCD Driver
with 32-row x 80-column
Display Data Memory
Interface 8-bit Parallel
For reference only. For design purposes, please use the specifications in the datasheet.
