Black on Gray 122x32 Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

                To keep this display in production over the long term, we are revising it to the CFAG12232J1TFHTJ. Please contact support with any questions.
See PCN

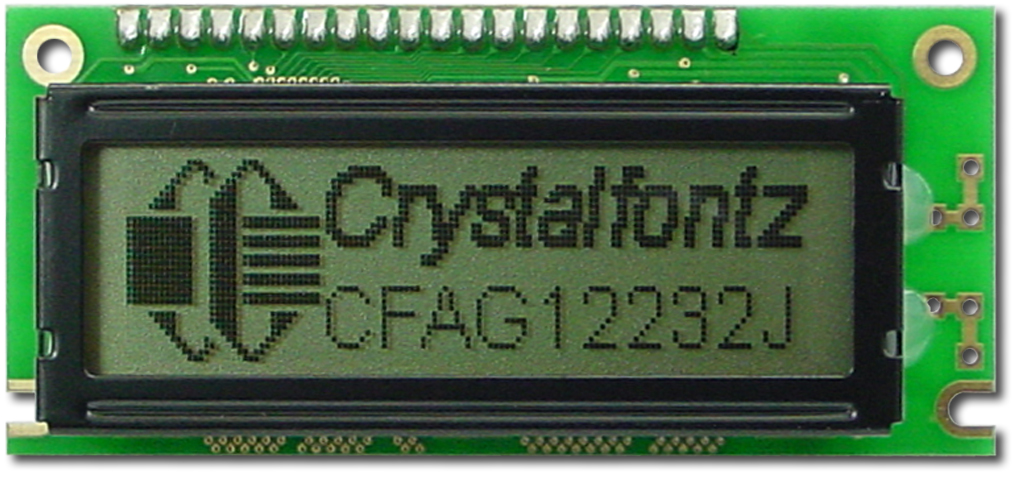

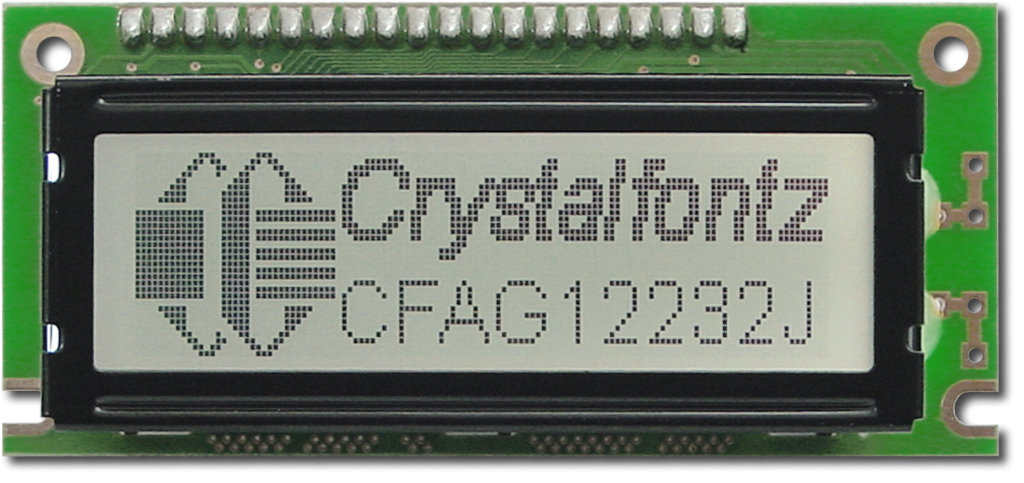

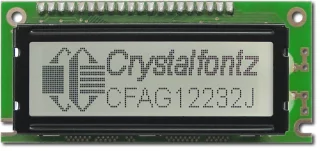

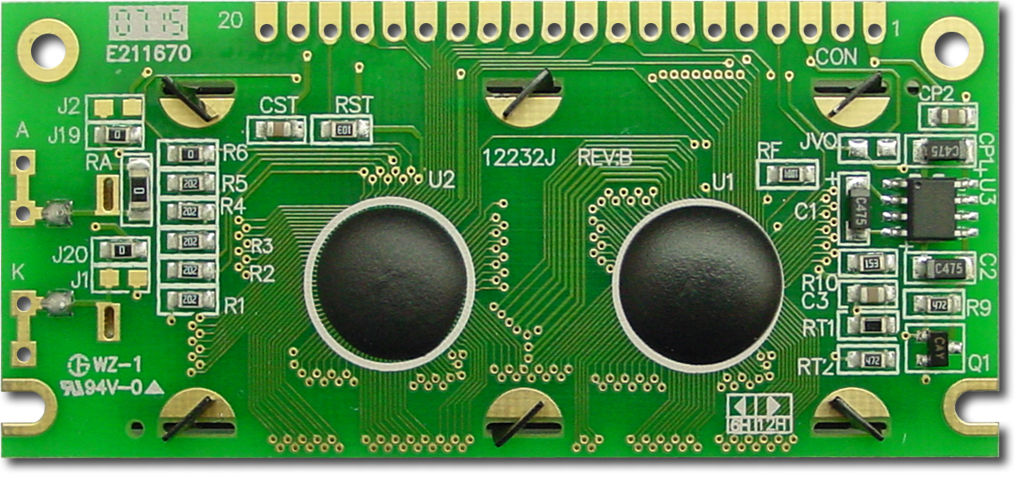

Black on Gray 122x32 Graphic LCDPart Number: CFAG12232J-TFH-TA122x32 Graphic LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00
122x32 graphic LCD module
Available in several variations of backlight and polarizer  (minimum order may be required)
Built-in Avant SBN1661G or compatible controller (SED1520 compatible)
8-bit parallel interface
Product Variations

 square_foot Physical Characteristics

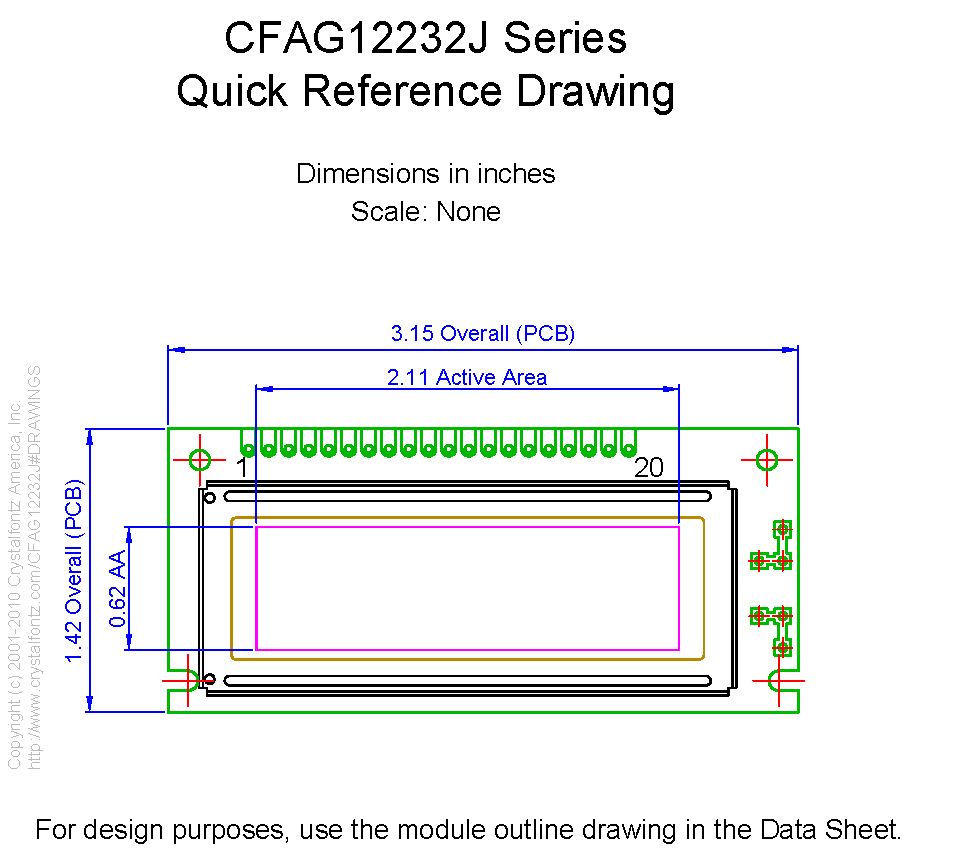

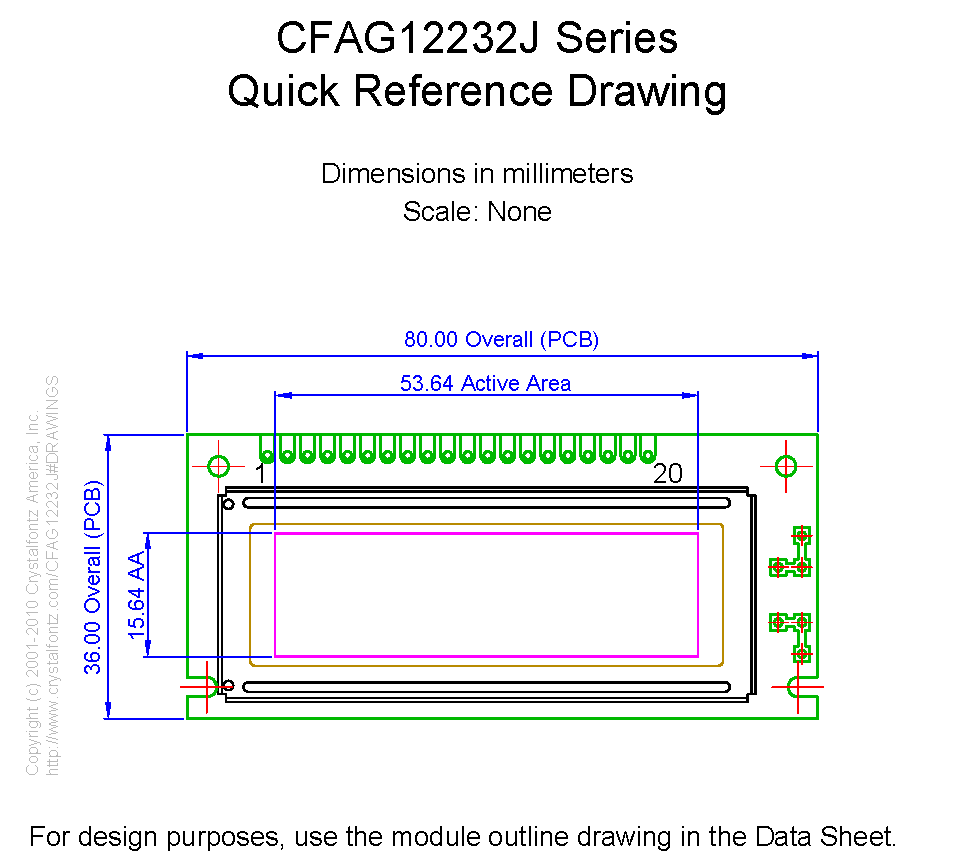

Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        80
        36
        13.7


        inches
        3.15
        1.42
        0.54



    PCB Outline        width
        height
        depth


        millimeters
        80
        36
        13.7


        inches
        3.15
        1.42
        0.54



        Diagonal Dimension
            2.2"


    Viewing Area        Width
        Height


        millimeters
        60
        18


        inches
        2.36
        0.71



    Active Area        Width
        Height


        millimeters
        53.64
        15.64


        inches
        2.11
        0.62



    Dot Size        Width
        Height


        millimeters
        0.4
        0.45


        inches
        0.016
        0.018



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.49


        inches
        0.017
        0.019



        Weight
            37g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            White

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            2.7V
Supply Voltage for Logic Maximum
            3.3V
Supply Voltage for Logic Typical
            3V
Supply Voltage for Driving Panel Typical
            4.35V


        Supply Current Minimum
            1.2mA
Supply Current Maximum
            1.8mA
Supply Current Typical
            1.5mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Minimum
            24mA
Forward Current Maximum
            40mA
Forward Current Typical
            32mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232JTFHTA Datasheet

 download Files and Downloads
folder_zip CAD Export - CFAG12232J 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232J 1 TO 1.PDF



















Module Overall	width	height	depth
millimeters	80	36	13.7
inches	3.15	1.42	0.54

PCB Outline	width	height	depth
millimeters	80	36	13.7
inches	3.15	1.42	0.54

Viewing Area	Width	Height
millimeters	60	18
inches	2.36	0.71

Active Area	Width	Height
millimeters	53.64	15.64
inches	2.11	0.62

Dot Size	Width	Height
millimeters	0.4	0.45
inches	0.016	0.018

Dot Pitch	Width	Height
millimeters	0.44	0.49
inches	0.017	0.019

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Products Affected:	CFAG12232J-TFH-TA, CFAG12232J-TMI-TA, CFAG12232J-YYH-TA, CFAG12232K-YYH-TA, CFAG12232A-YYH-TA, CFAG12232A-TMI-TA, CFAG12232D-NYG-VA, CFAG12232D-YYH-VA
Date Issued:	November 7, 2022
Summary:	Avant SBN1661G End-Of-Life Notification
Description:	The Avant SBN1661G (https://www.crystalfontz.com/controllers/Avant/SBN1661G) controller is no longer available. We will be providing replacement options that use the I-CORE AiP31520 controller. For more information on the replacement parts, contact support@crystalfontz.com.
Reason:	The Avant SBN1661G controller is no longer available.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
