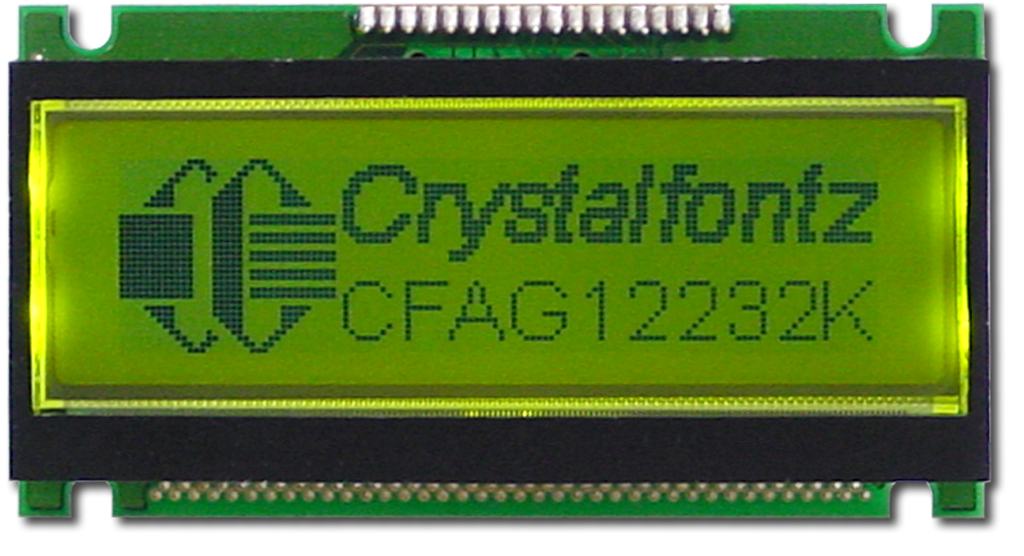

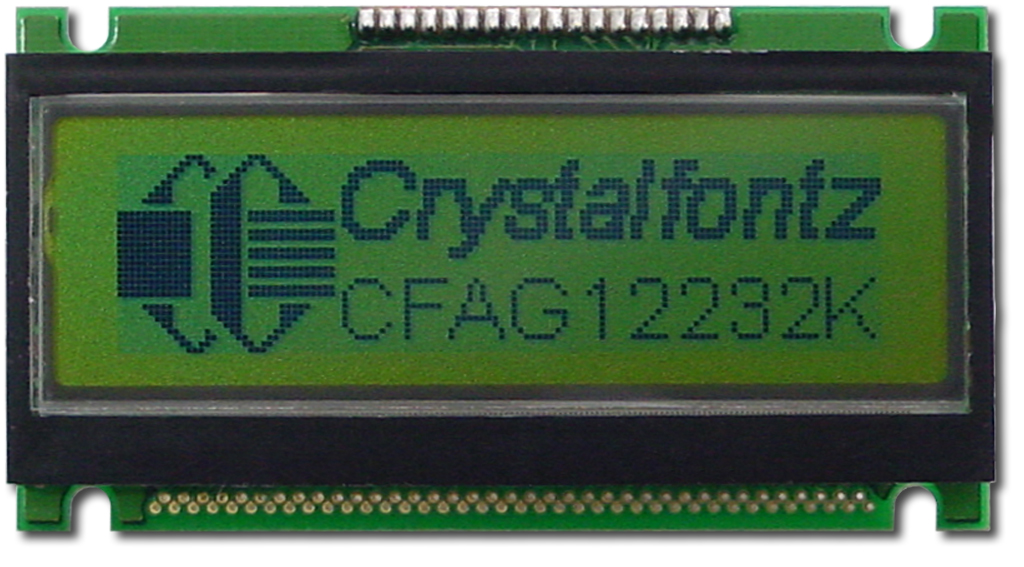

122x32 Transflective Graphic LCDPart Number: CFAG12232K-YYH-TA122x32 Graphic LCD, RoHS Compliant, Yellow/Green LED Backlight, STN Positive, Yellow/Green, Transflective -20°C to +70°C 6:00
122x32 graphic LCD module
Built-in Avant SBN1661G or SED1520 compatible controller
8-bit parallel interface
Ultra thin ( < 6mm )

Order Soon! We only have 6 left! square_foot Physical Characteristics

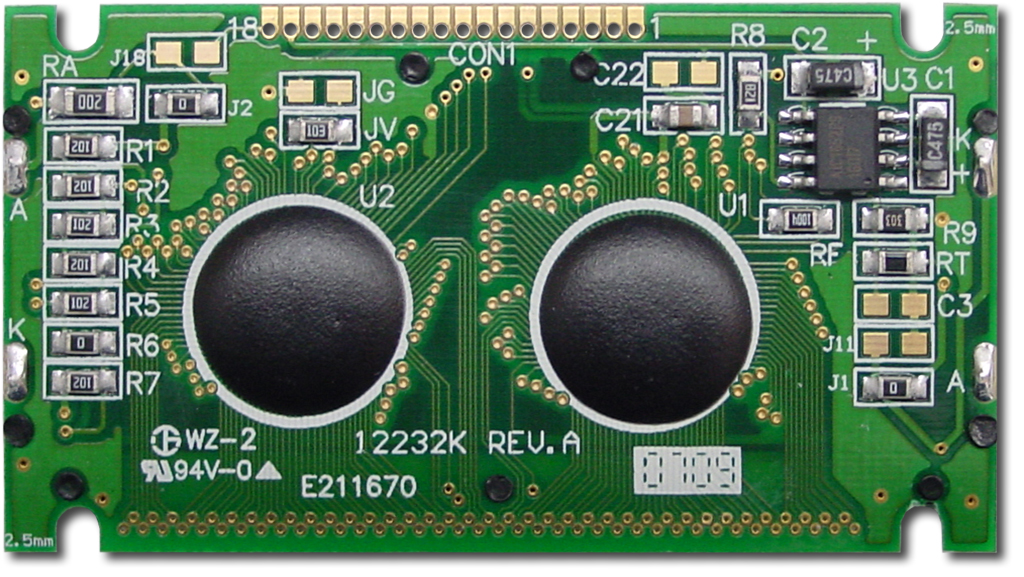

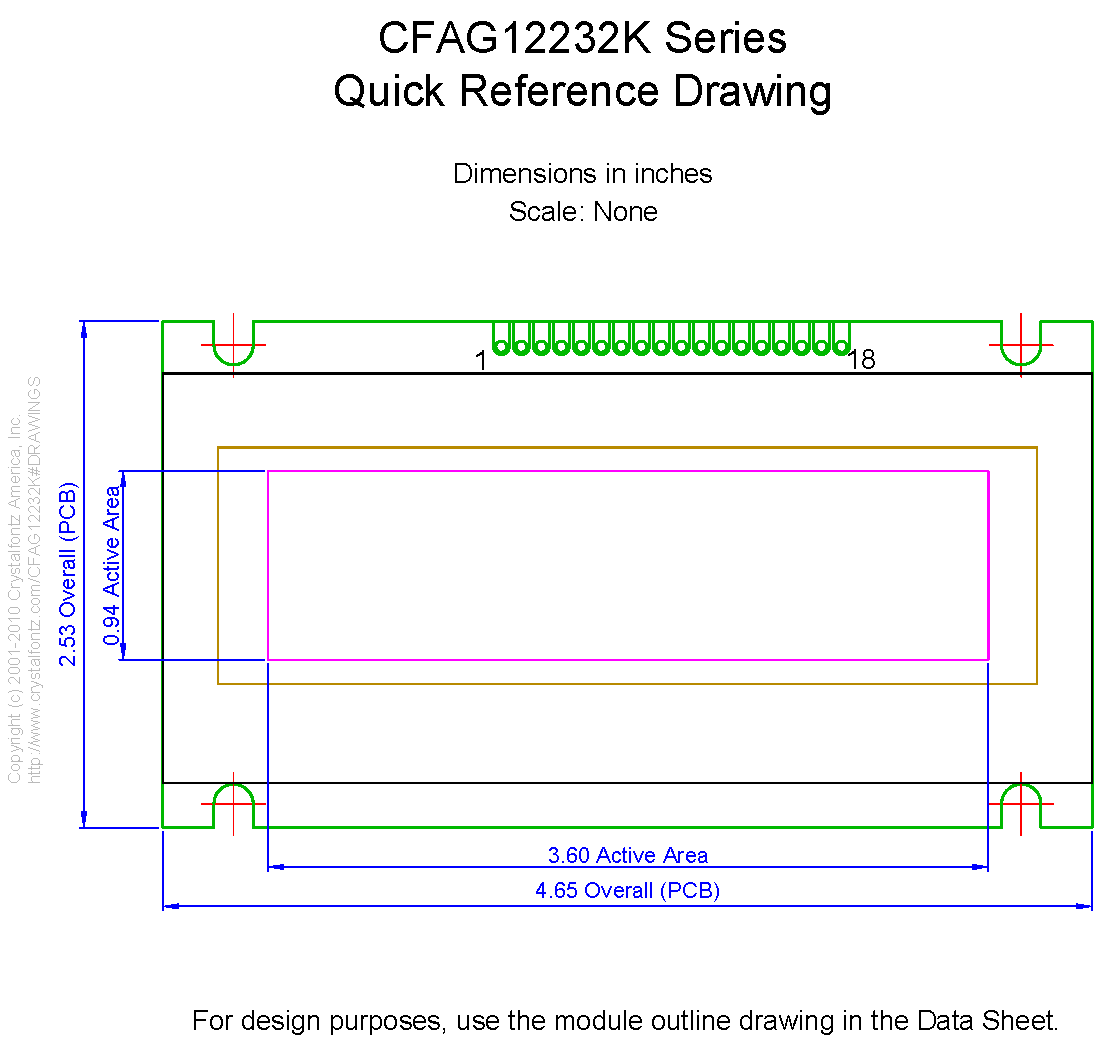

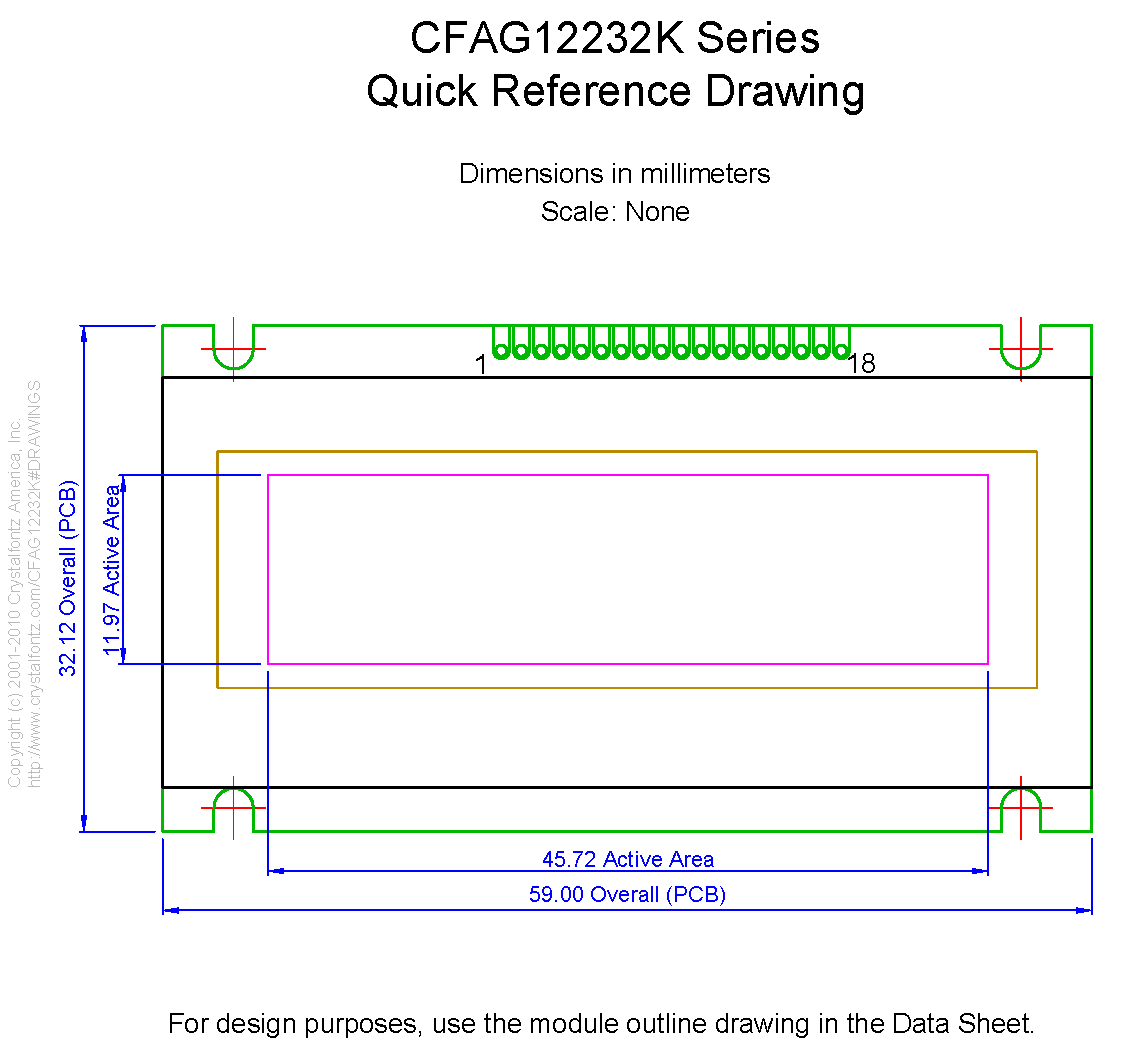

Physical Characteristics

        Column Dots x Row Dots
            122 x 32


    Module Overall        width
        height
        depth


        millimeters
        59
        32.1
        5.5


        inches
        2.32
        1.26
        0.22



    PCB Outline        width
        height
        depth


        millimeters
        59
        32.1
        5.5


        inches
        2.32
        1.26
        0.22



        Diagonal Dimension
            1.86"


    Viewing Area        Width
        Height


        millimeters
        52
        15


        inches
        2.05
        0.59



    Active Area        Width
        Height


        millimeters
        45.72
        11.97


        inches
        1.80
        0.47



    Dot Size        Width
        Height


        millimeters
        0.35
        0.35


        inches
        0.014
        0.014



    Dot Pitch        Width
        Height


        millimeters
        0.38
        0.38


        inches
        0.015
        0.015



        Weight
            10g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Voltage for Driving Panel Typical
            4.7V
Supply Current Typical
            0.7mA
Module Connector Pitch
            0.05mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4.9V
Forward Voltage Maximum
            5.1V
Forward Voltage Typical
            5V


        Forward Current Minimum
            32mA
Forward Current Maximum
            60mA
Forward Current Typical
            40mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Avant SBN1661G
SBN1661G_M18,

SBN1661G_M02,

SBN0080G_S18,

SBN0080G_S02

Dot-matrix STN LCD Driver

with 32-row x 80-column

Display Data Memory
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12232KYYHTA Datasheet

 download Files and Downloads
folder_zip Software Source - ATMega2561 8-bit Demo Code
folder_zip CAD Export - CFAG12232K 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12232K 1 TO .PDF
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $14.63

6 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.





Module Overall	width	height	depth
millimeters	59	32.1	5.5
inches	2.32	1.26	0.22

PCB Outline	width	height	depth
millimeters	59	32.1	5.5
inches	2.32	1.26	0.22

Viewing Area	Width	Height
millimeters	52	15
inches	2.05	0.59

Active Area	Width	Height
millimeters	45.72	11.97
inches	1.80	0.47

Dot Size	Width	Height
millimeters	0.35	0.35
inches	0.014	0.014

Dot Pitch	Width	Height
millimeters	0.38	0.38
inches	0.015	0.015

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$14.63

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Products Affected:	CFAG12232J-TFH-TA, CFAG12232J-TMI-TA, CFAG12232J-YYH-TA, CFAG12232K-YYH-TA, CFAG12232A-YYH-TA, CFAG12232A-TMI-TA, CFAG12232D-NYG-VA, CFAG12232D-YYH-VA
Date Issued:	November 7, 2022
Summary:	Avant SBN1661G End-Of-Life Notification
Description:	The Avant SBN1661G (https://www.crystalfontz.com/controllers/Avant/SBN1661G) controller is no longer available. We will be providing replacement options that use the I-CORE AiP31520 controller. For more information on the replacement parts, contact support@crystalfontz.com.
Reason:	The Avant SBN1661G controller is no longer available.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAG12232K-YYH-TA

122x32 Transflective Graphic LCD

Part Number: CFAG12232K-YYH-TA

Order Soon! We only have 6 left!

Physical Characteristics

Optical Characteristics

Electrical Specifications

Backlight Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11157: Avant SBN1661G End-Of-Life Notification

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	STN/Yellow-Green
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	Yellow-Green
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Yellow-Green

Supply Voltage for Logic Minimum	4.5V
Supply Voltage for Logic Maximum	5.5V
Supply Voltage for Logic Typical	5V

Supply Voltage for Driving Panel Typical	4.7V
Supply Current Typical	0.7mA
Module Connector Pitch	0.05mm

Forward Voltage Minimum	4.9V
Forward Voltage Maximum	5.1V
Forward Voltage Typical	5V

Forward Current Minimum	32mA
Forward Current Maximum	60mA
Forward Current Typical	40mA

Controller Documents	Avant SBN1661G SBN1661G_M18, SBN1661G_M02, SBN0080G_S18, SBN0080G_S02 Dot-matrix STN LCD Driver with 32-row x 80-column Display Data Memory
Interface	8-bit Parallel
