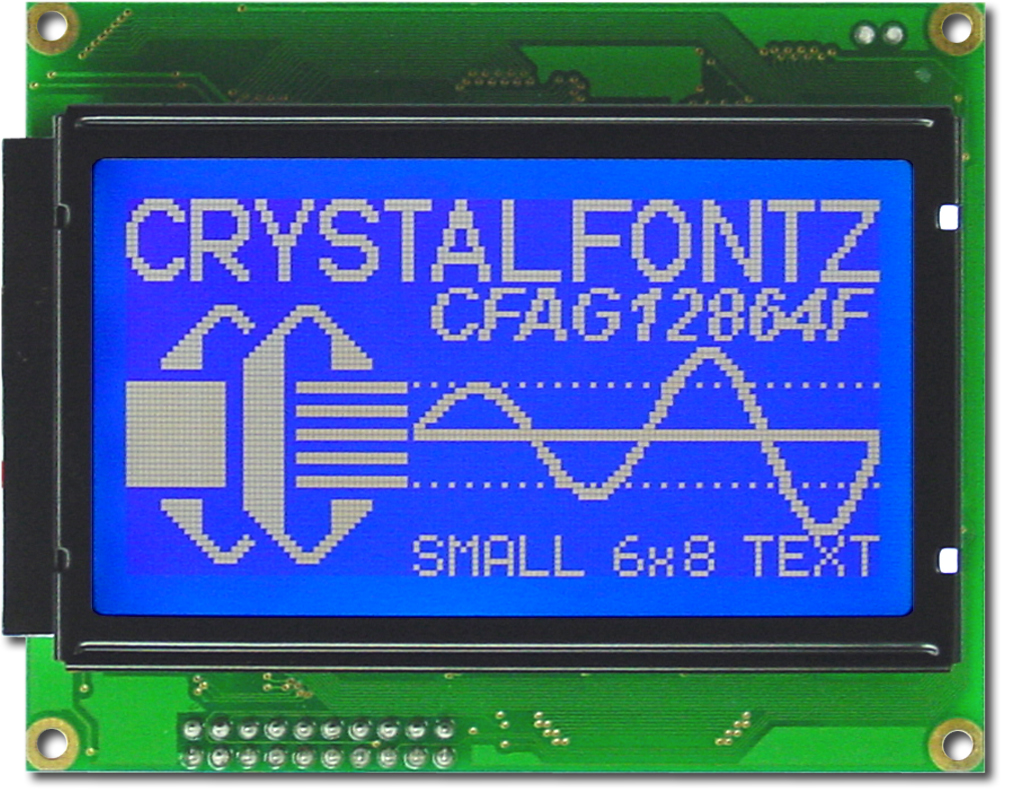

[EOL] 128x64 T6963C Graphic LCD from Crystalfontz

Product

                This product has reached end of life
[EOL] 128x64 T6963C Graphic LCDPart Number: CFAG12864F-TMI-TYBlue 128x64 Graphic LCD
White Edge LED Backlight
STN Negative, Blue, Transmissive
-20°C to +70°C Operating Temperature
6:00 viewing direction
Negative Voltage Generator
Temperature Compensation
Built-in Toshiba T6963C or compatible controller

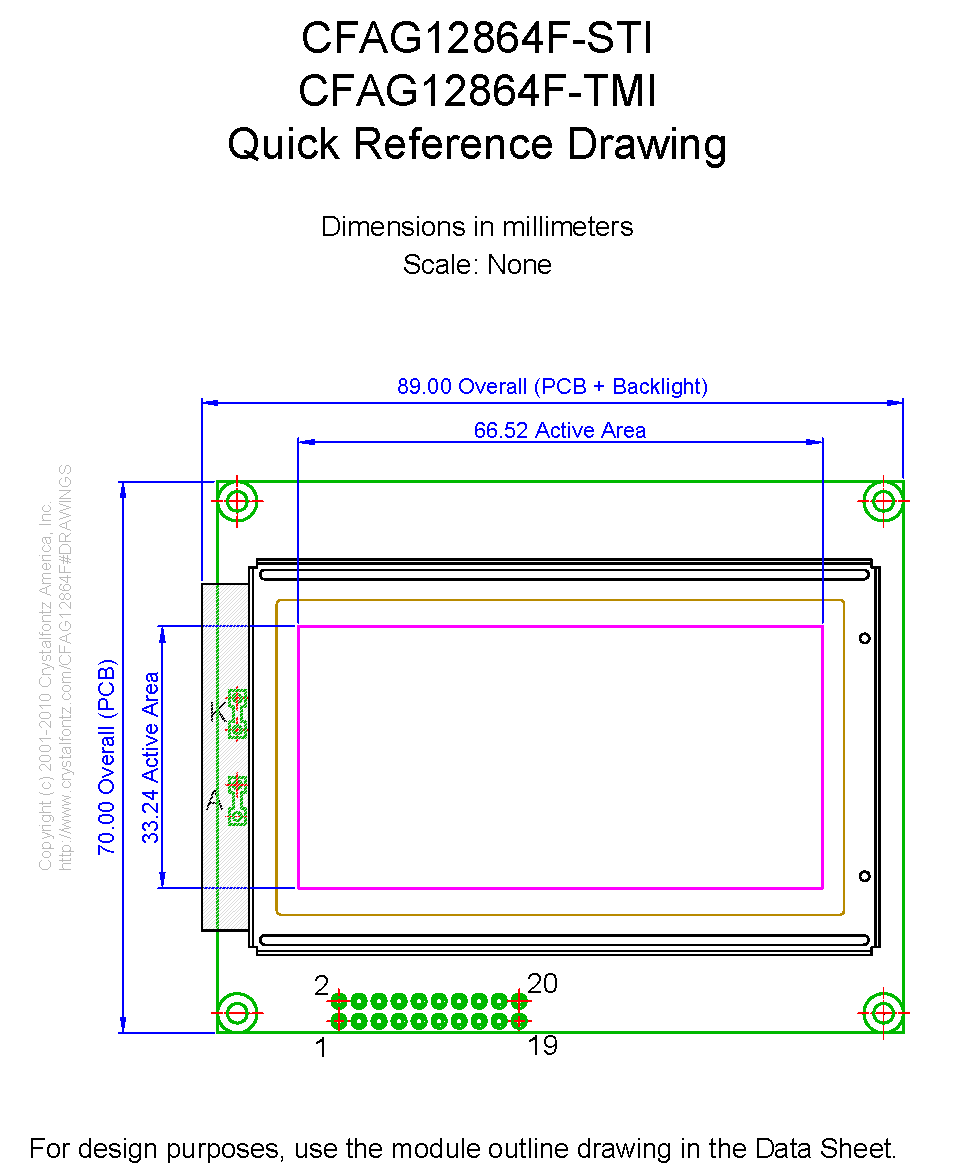

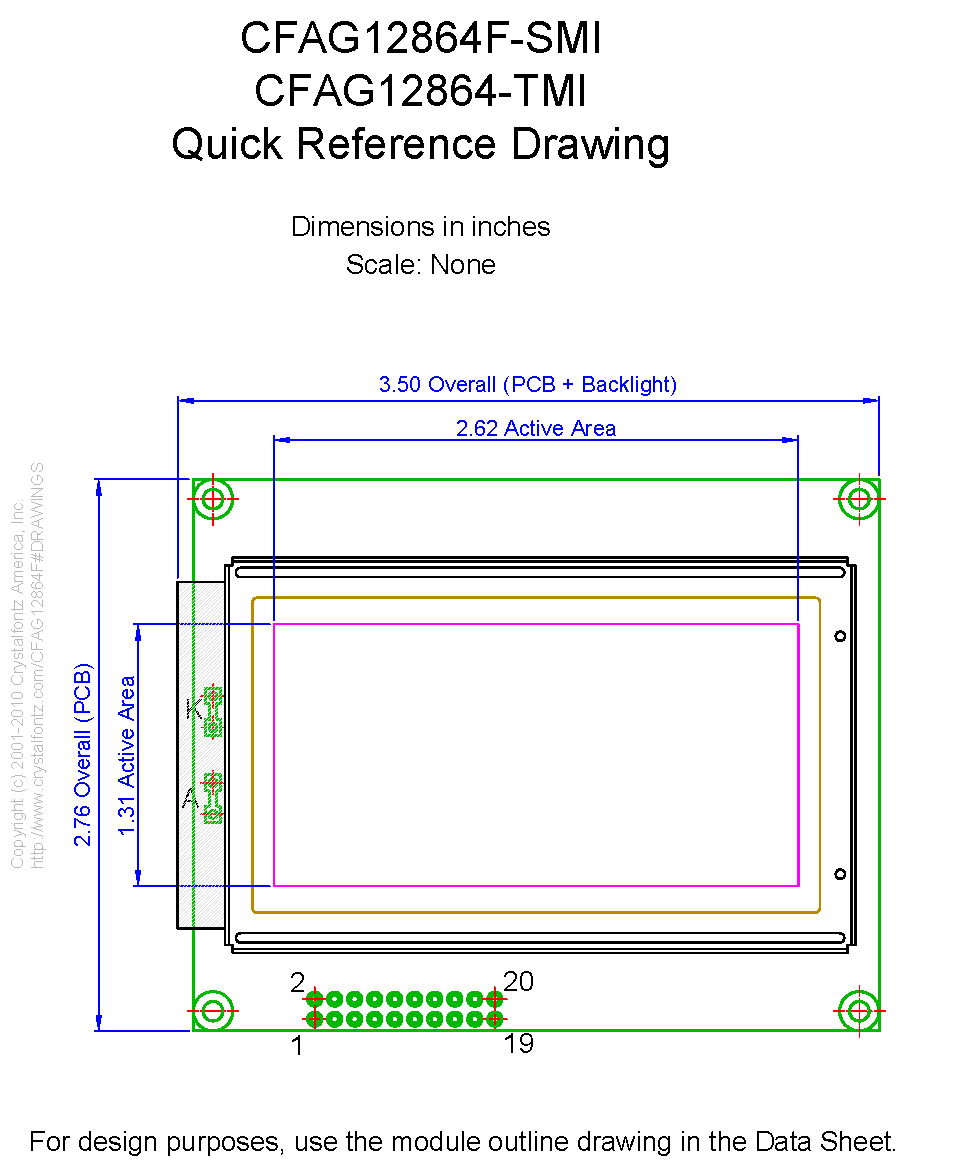

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        87
        70
        13.6

        inches
        3.43
        2.76
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        87
        70
        13.6

        inches
        3.43
        2.76
        0.54

        Diagonal Dimension
            2.93"

    Viewing Area        Width
        Height

        millimeters
        72
        40

        inches
        2.84
        1.58

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            81g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864FTMITY.pdf

 download Files and Downloads
folder_zip CAD Export - CFAG12864F-STI-TMI 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864F-STI-TMI 1 TO 1.PDF

Module Overall	width	height	depth
millimeters	87	70	13.6
inches	3.43	2.76	0.54

PCB Outline	width	height	depth
millimeters	87	70	13.6
inches	3.43	2.76	0.54

Viewing Area	Width	Height
millimeters	72	40
inches	2.84	1.58

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A
