                        This display is end-of-life and no longer available. See our other 128x64 graphic LCD displays for a potential replacement.

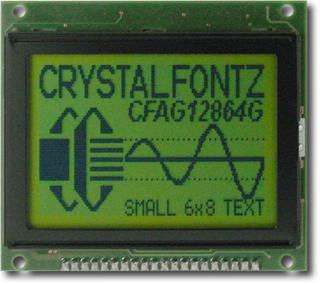

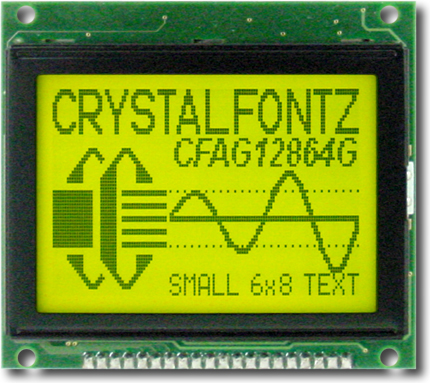

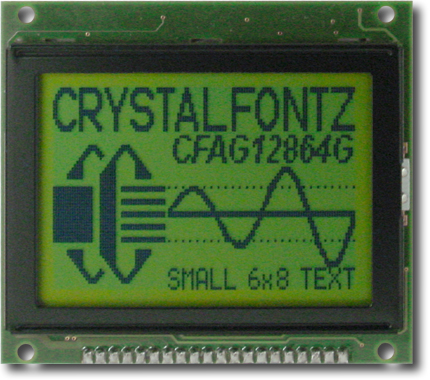

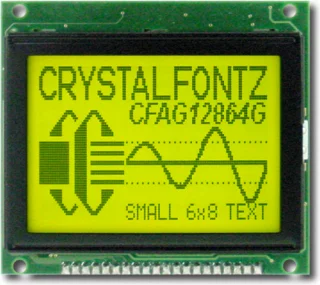

Black on Green 128x64 Graphic LCDPart Number: CFAG12864G-YYH-TYSunlight readable 128x64 yellow-green graphic LCD, on-board negative voltage generator and temperature compensation.
Glass: STN Positive, Transflective
Backlight: Yellow-green LED
Compliance: RoHS Compliant
Resolution: 128x64 pixels
Controller: Toshiba T6963C
Operating Temp:  -20°C to +70°C
Optics:  6:00 viewing direction
Readability: Sunlight readable

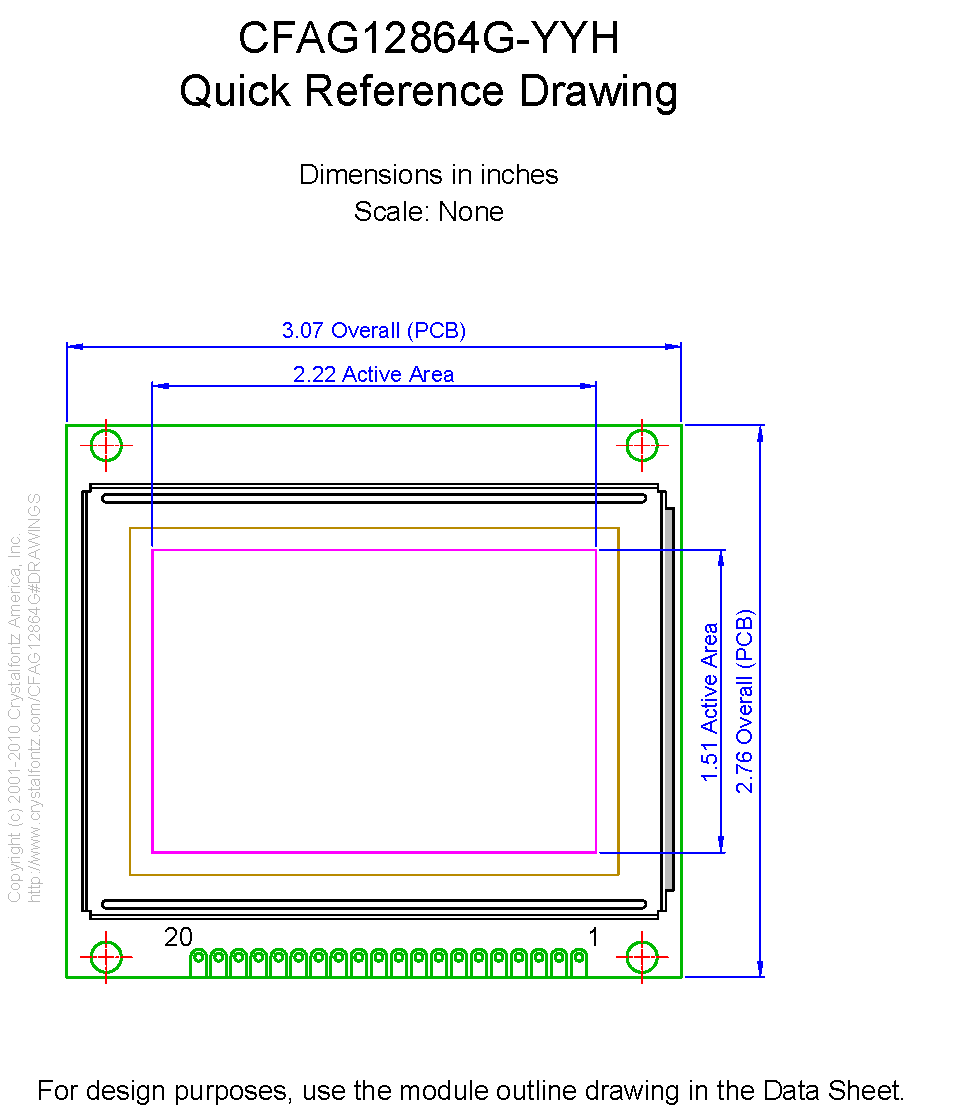

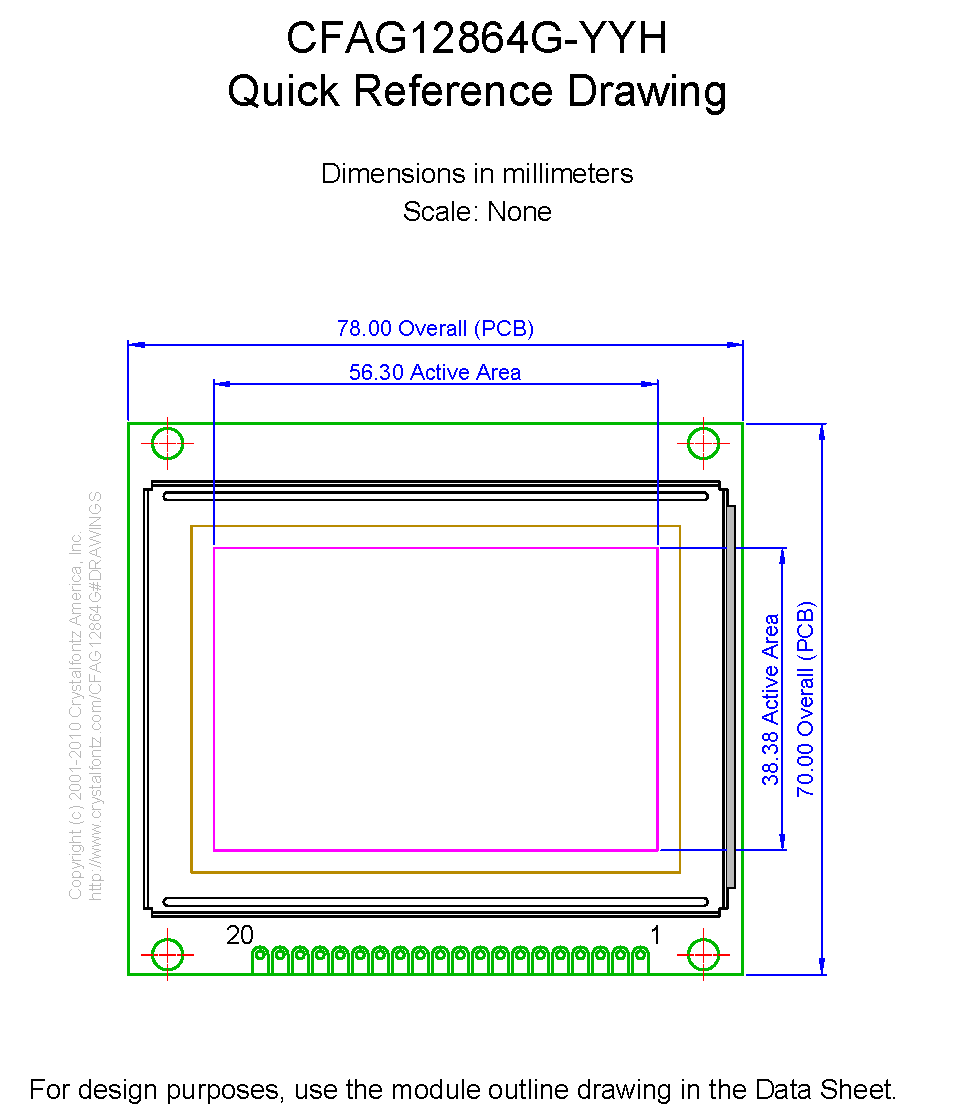

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64


    Module Overall        width
        height
        depth


        millimeters
        78
        70
        12.1


        inches
        3.07
        2.76
        0.48



    PCB Outline        width
        height
        depth


        millimeters
        78
        70
        12.1


        inches
        3.07
        2.76
        0.48



        Diagonal Dimension
            2.68"


    Viewing Area        Width
        Height


        millimeters
        62
        44


        inches
        2.44
        1.73



    Active Area        Width
        Height


        millimeters
        56.3
        38.38


        inches
        2.22
        1.51



    Dot Size        Width
        Height


        millimeters
        0.42
        0.58


        inches
        0.017
        0.023



    Dot Pitch        Width
        Height


        millimeters
        0.44
        0.6


        inches
        0.017
        0.024



        Weight
            74g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            3V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Driving Panel Typical
            8.5V
Supply Current Minimum
            11mA


        Supply Current Maximum
            13mA
Supply Current Typical
            12:00mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            4V
Forward Voltage Maximum
            4.3V
Forward Voltage Typical
            4.1V


        Forward Current Minimum
            432mA
Forward Current Maximum
            576mA
Forward Current Typical
            480mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG12864GYYHTY Datasheet

download Files and Downloads
folder_zip CAD Export - CFAG12864G-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG12864G-YYH 1 TO 1.PDF



















Module Overall	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

PCB Outline	width	height	depth
millimeters	78	70	12.1
inches	3.07	2.76	0.48

Viewing Area	Width	Height
millimeters	62	44
inches	2.44	1.73

Active Area	Width	Height
millimeters	56.3	38.38
inches	2.22	1.51

Dot Size	Width	Height
millimeters	0.42	0.58
inches	0.017	0.023

Dot Pitch	Width	Height
millimeters	0.44	0.6
inches	0.017	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.

Part Change Notice #11090: End-of-Life Notification

Products Affected:	CFAG12864G-TMI-TY, CFAG12864G-YYH-TY
Date Issued:	June 8, 2021
Summary:	End-of-Life Notification
Description:	This product is going EOL. Last-time buys can be made before 2021/06/21 by contacting sales@crystalfontz.com or placing the order online.
Reason:	The controller for the display is going End-of-life and can no longer be sourced. At this time, there are no drop-in replacement controllers for this product for a replacement.
