White on Blue Graphic LCD on Arduino ShieldPart Number: CFAG12864Q1-TMI-E1

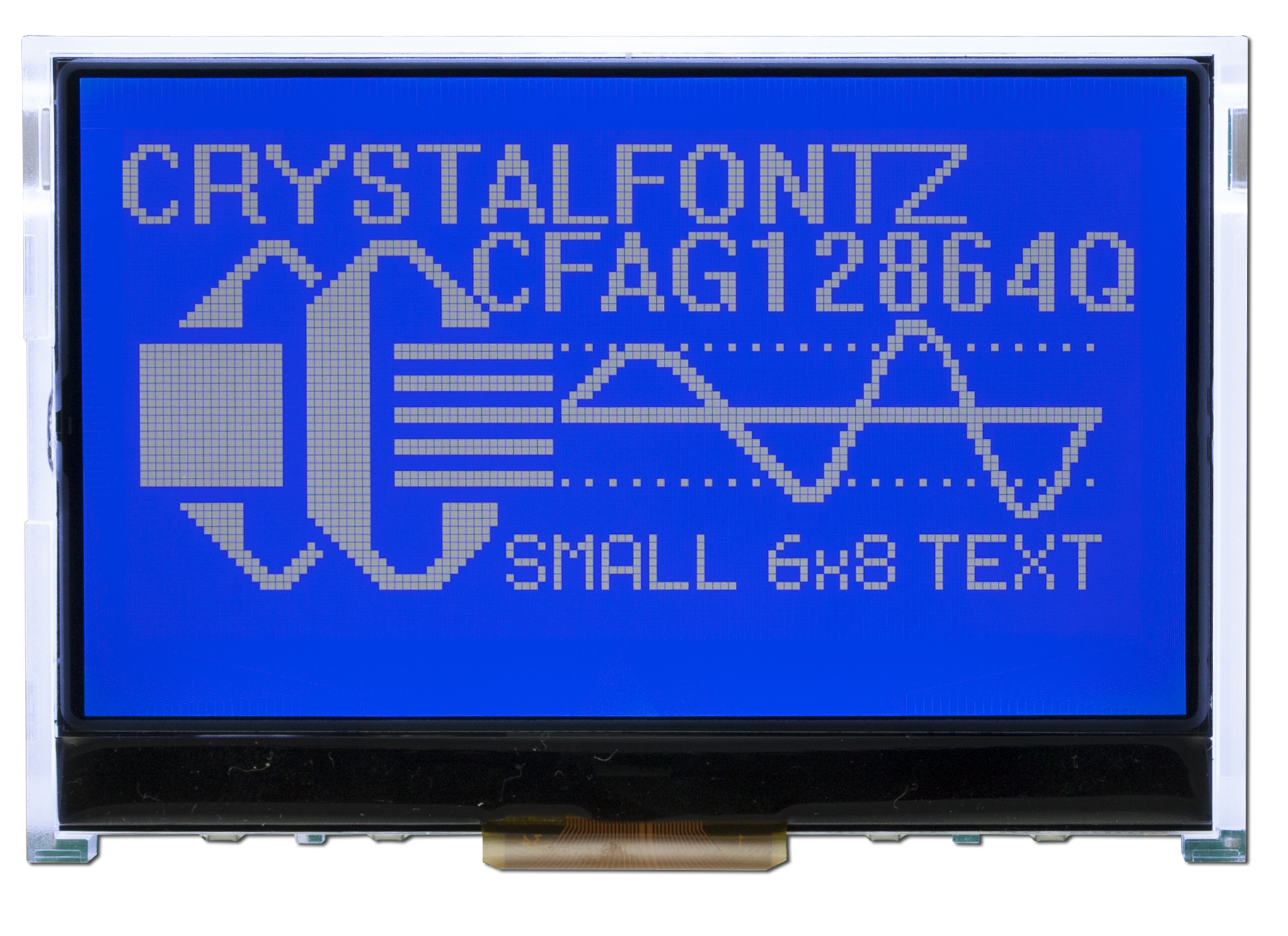

         An Arduino Uno shield-style display module which comprises a graphic LCD mounted on a carrier board. This module is specifically designed to simply presses onto a controller with the Arduino Uno form factor, making it easy to begin designing with this display.

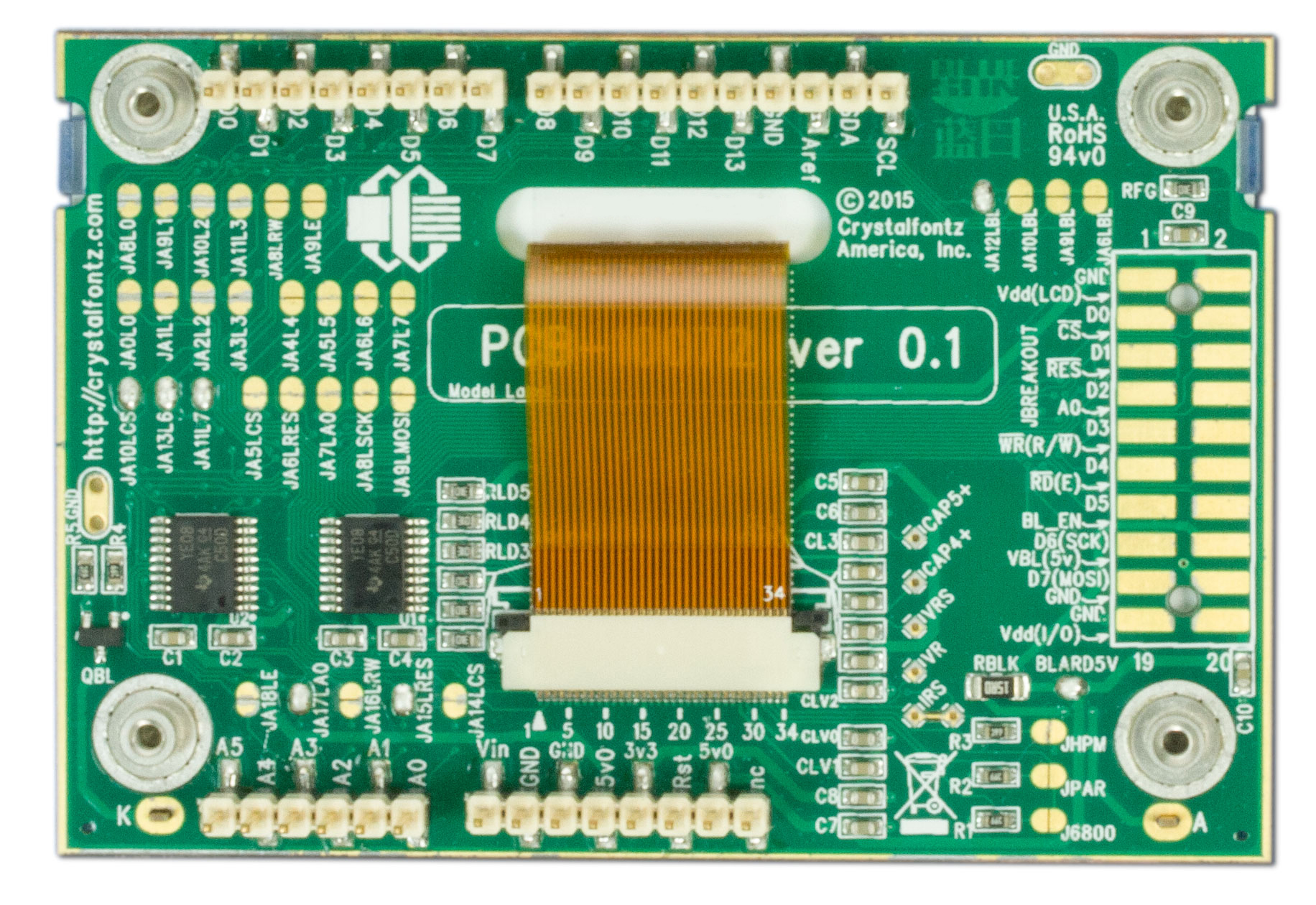

The carrier board also offers pads for a 2x10 20-pin connector, threaded mounting stand-offs, and a matching outline with the display.

The design files and demo code are open source and available in the side bar of this product page.

This module is also available with a dark-on-light LCD screen, or pre-connected to a Seeeduino.Product VariationsColorsDark on Gray
White LED BacklightLight on Blue
White LED Backlight

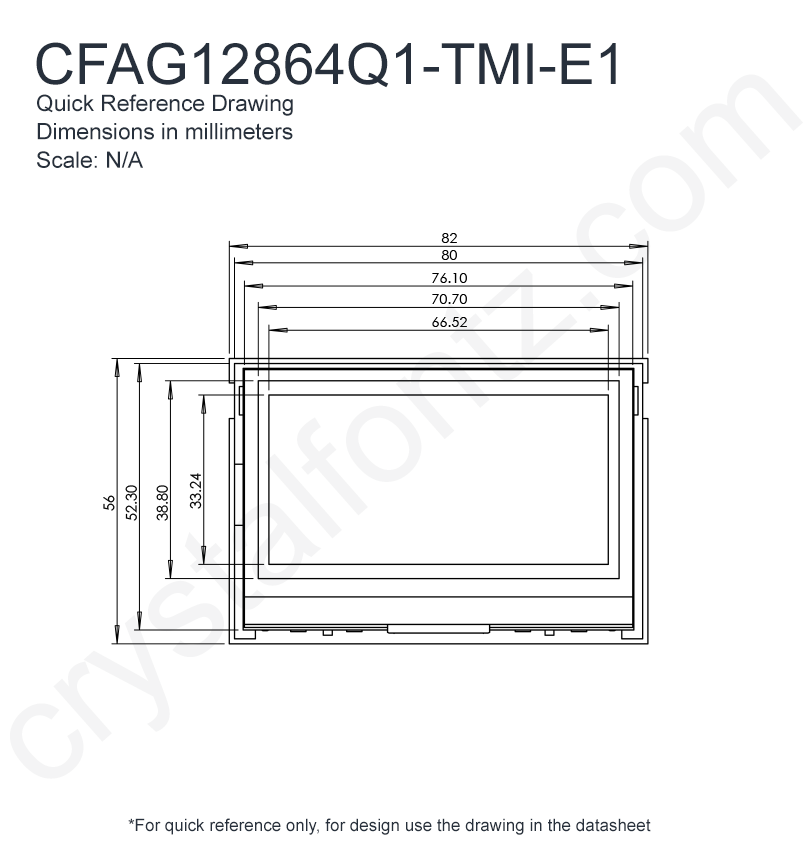

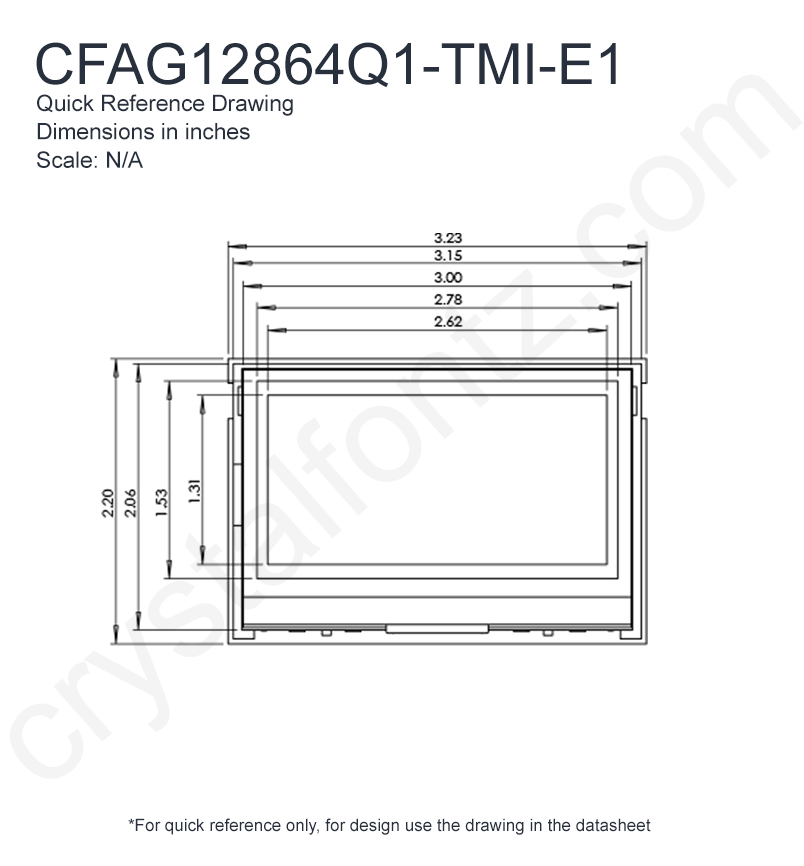

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            128 x 64

    Module Overall        width
        height
        depth

        millimeters
        82
        56
        11.5

        inches
        3.23
        2.21
        0.45

    Viewing Area        Width
        Height

        millimeters
        70.7
        38.8

        inches
        2.78
        1.53

    Active Area        Width
        Height

        millimeters
        66.52
        33.24

        inches
        2.62
        1.31

    Dot Size        Width
        Height

        millimeters
        0.48
        0.48

        inches
        0.019
        0.019

    Dot Pitch        Width
        Height

        millimeters
        0.52
        0.52

        inches
        0.020
        0.020

        Weight
            56g
Pin Count
            20

 visibility Optical Characteristics
Optical Characteristics

        Polarizer
            Transmissive
Sunlight Readable
            No

        Backlight Color
            White
Backlight Type
            LED
Foreground Color
            Light
Background Color
            Blue

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7567
ST7567

65 x 132 Dot Matrix LCD Controller/Driver
Interface
            8-bit Parallel, SPI

 picture_as_pdf Datasheets
picture_as_pdfCFAG12864Q1-E1 Series Datasheet

 download Files and Downloads
folder_zip Hardware Design - 3D Model
folder_zip Other Document - CFA 10072v0p1 BUILD PACKAGE
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $64.10

            10 *
            $62.43

            20 *
            $60.34

            50 *
            $58.26

            100 *
            $57.42

            200 *
            $57.01

            300 *
            $56.58

            500 *
            $56.17

            1000 *
            $55.75

6 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						USB-A to Micro-B Cable
Need a USB Cable? $5.75 ea.

						Seeeduino 4.3
Need a microcontroller? $10.00 ea.

Colors	Dark on Gray White LED Backlight Light on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	82	56	11.5
inches	3.23	2.21	0.45

Viewing Area	Width	Height
millimeters	70.7	38.8
inches	2.78	1.53

Active Area	Width	Height
millimeters	66.52	33.24
inches	2.62	1.31

Dot Size	Width	Height
millimeters	0.48	0.48
inches	0.019	0.019

Dot Pitch	Width	Height
millimeters	0.52	0.52
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Quantity	Unit Price
1	$64.10
10 *	$62.43
20 *	$60.34
50 *	$58.26
100 *	$57.42
200 *	$57.01
300 *	$56.58
500 *	$56.17
1000 *	$55.75

Additional Options

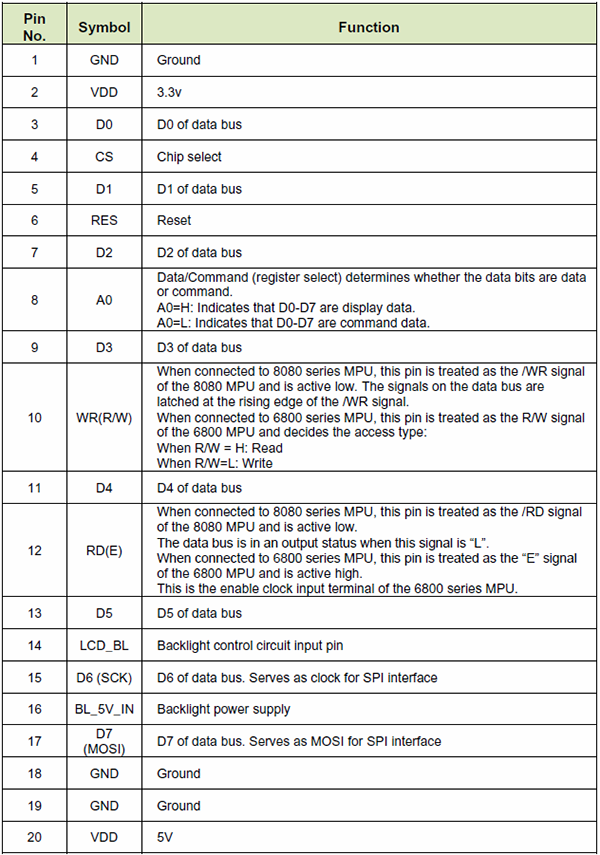

Pin Table
Notices

Additional Options

Purchase with a Seeeduino microcontroller and get everything delivered wired and running our demo code.

Low Power Graphic LCD Arduino Kit
Part Number: CFAG12864Q1-TMI-E1-2

Details

Quantity	1
Unit Price	$91.54

Quantity:

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #11135: Low Power Graphic LCD Display Module Now Available!

New Products:	CFAG12864Q1-TMI-E1, CFAG12864Q1-TMI-E1-2
Date Issued:	June 21, 2022
Summary:	Low Power Graphic LCD Display Module Now Available!
Description:	The CFAG12864Q1-TMI-E1 and CFAG12864Q1-TMI-E1-2 our now available on our website for purchase. Low Power Graphic LCD Arduino Module https://www.crystalfontz.com/product/cfag12864q1tmie12-128x64-low-power-grapic-arduino-module White on Blue Graphic LCD on Arduino Shield https://www.crystalfontz.com/product/cfag12864q1tmie1-128x64-graphic-lcd-arduino-module Contact support@crystalfontz.com with any questions.
