                This display is not recommended for new designs. We've reduced the price by 20%, once the current stock is depleted it will no longer be available.

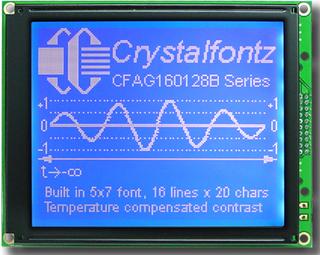

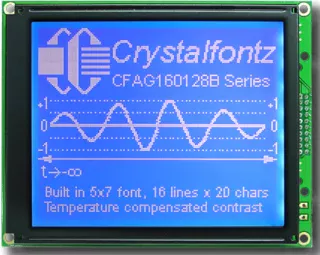

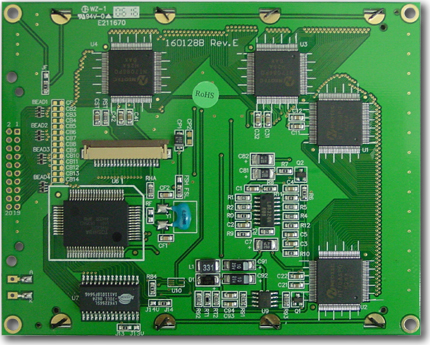

160x128  Parallel Graphic LCDPart Number: CFAG160128B-TMI-TZWhite on blue 160x128 graphic LCD with temperature compensation and negative voltage generator
Resolution: 160x128 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word CG(Character Generator)
ROM for ASCII, Japanese or numeric display in text mode
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

Order Soon! We only have 9 left!Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

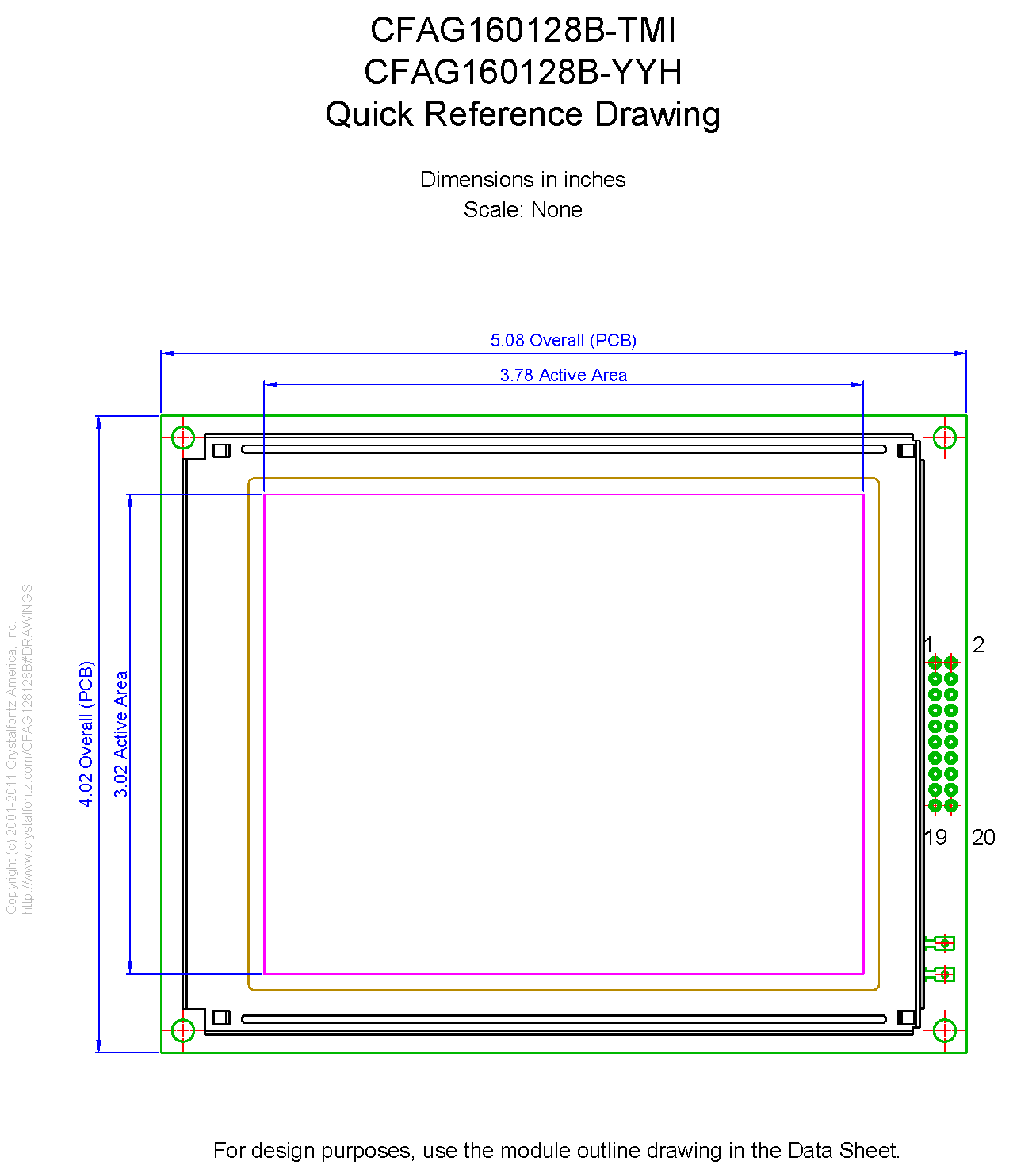

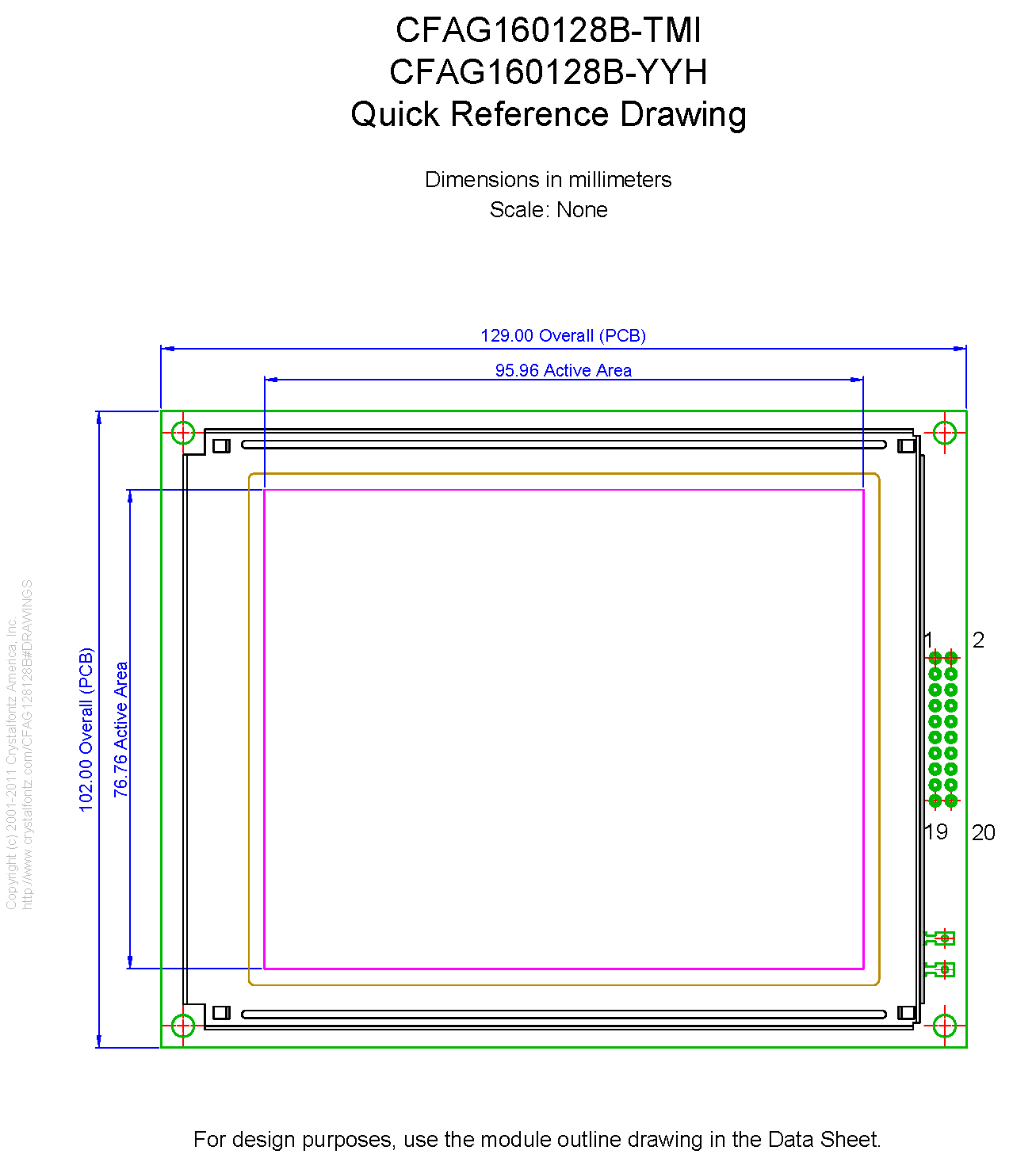

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128


    Module Overall        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



    PCB Outline        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



        Diagonal Dimension
            4.84"


    Viewing Area        Width
        Height


        millimeters
        101
        82


        inches
        3.98
        3.23



    Active Area        Width
        Height


        millimeters
        95.96
        76.76


        inches
        3.78
        3.02



    Dot Size        Width
        Height


        millimeters
        0.56
        0.56


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            185g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160128BTMITZ Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 8 bit parallel interface
folder_zip CAD Export - CFAG160128B 2D CAD
picture_as_pdf 1 to 1 Template - CFAG160128B-TMI-YYH 1 TO 1 .PDF
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH











Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $88.06

            10 *
            $76.58

            20 *
            $75.45

            50 *
            $74.31

            100 *
            $72.61

            200 *
            $71.47

            500 *
            $66.95

            1000 *
            $61.57

9 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.






						72 Pin Header
Add (5) 72-pin headers?  $0.66 ea.





Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

PCB Outline	width	height	depth
millimeters	129	102	16.5
inches	5.08	4.02	0.65

Viewing Area	Width	Height
millimeters	101	82
inches	3.98	3.23

Active Area	Width	Height
millimeters	95.96	76.76
inches	3.78	3.02

Dot Size	Width	Height
millimeters	0.56	0.56
inches	0.022	0.022

Dot Pitch	Width	Height
millimeters	0.6	0.6
inches	0.024	0.024

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$88.06
10 *	$76.58
20 *	$75.45
50 *	$74.31
100 *	$72.61
200 *	$71.47
500 *	$66.95
1000 *	$61.57

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Part Change Notice #11096: End-Of-Life Notification

Products Affected:	CFAG160128B-YYH-TZ, CFAG160128B-TMI-TZ, CFAG128128A-TMI-TZ, CFAG128128A-YYH-TZ, CFAG12864D-YYH-TZ, CFAG12864G-TMI-TY, CFAG12864G-YYH-TY, CFAG128128I-TFH-VZ, CFAG128128I-TMI-VZ, CFAG128128I-YYH-VZ
Date Issued:	July 30, 2021
Summary:	End-Of-Life Notification
Description:	The current display controller is going EOL and being replaced by RA6963-N1. The replacement parts will be posted on the product web page of the original part.
Reason:	The controller RA6963-N has gone EOL.
