160x128 Sunlight Readable Graphic LCD from Crystalfontz

Product

Home » Products » Sunlight Readable Displays » Graphic

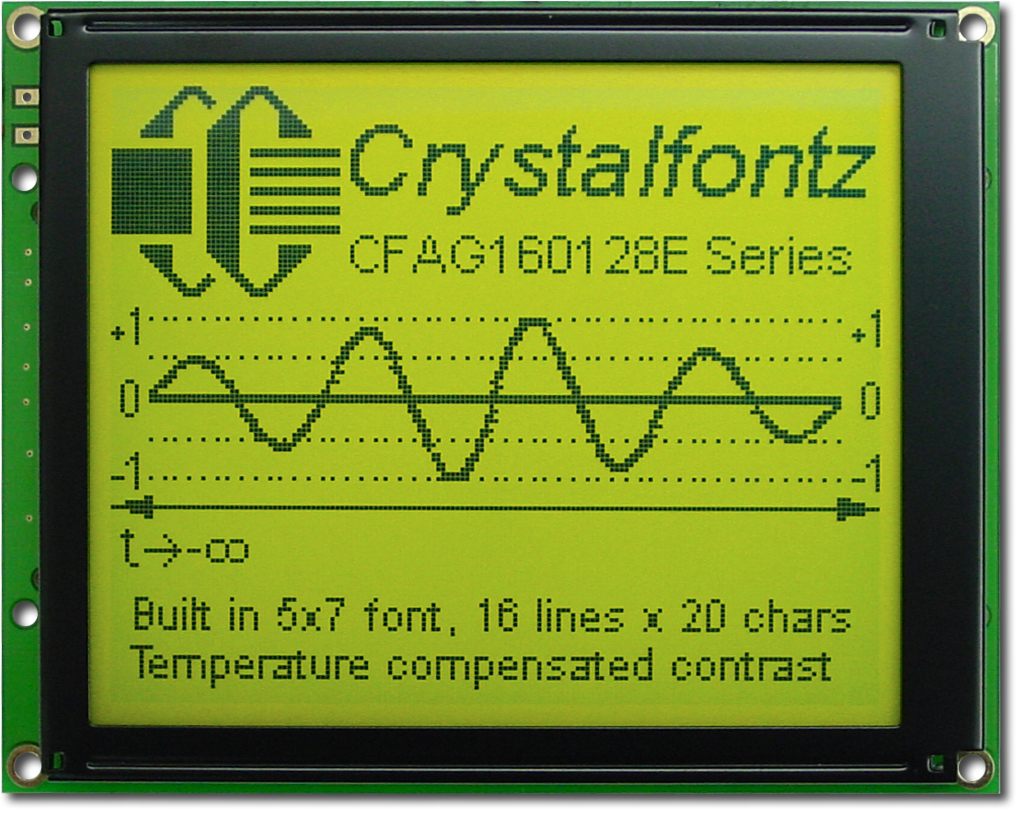

160x128 Sunlight Readable Graphic LCDPart Number: CFAG160128E-YYH-TZSunlight readable 160x128 graphic LCD with temperature compensation and negative voltage generator
Resolution: 160x128 pixels
Optics: 6:00 viewing direction

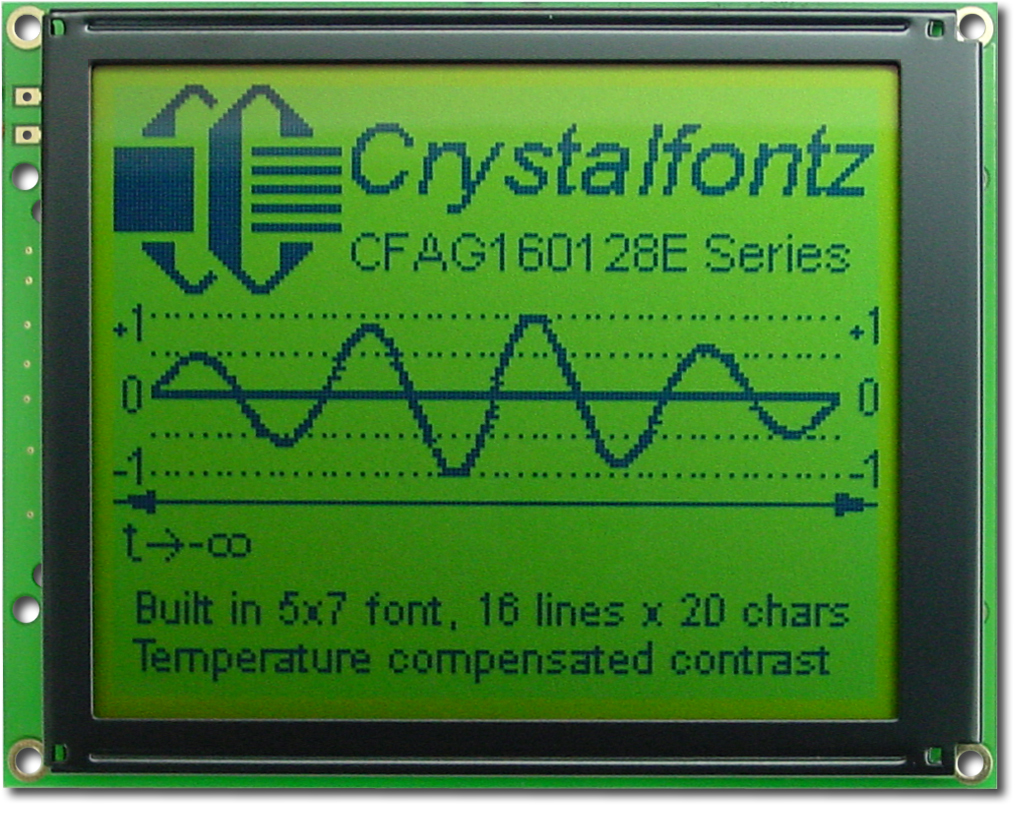

Backlight: Yellow-green LED
Glass: STN Positive, Transflective

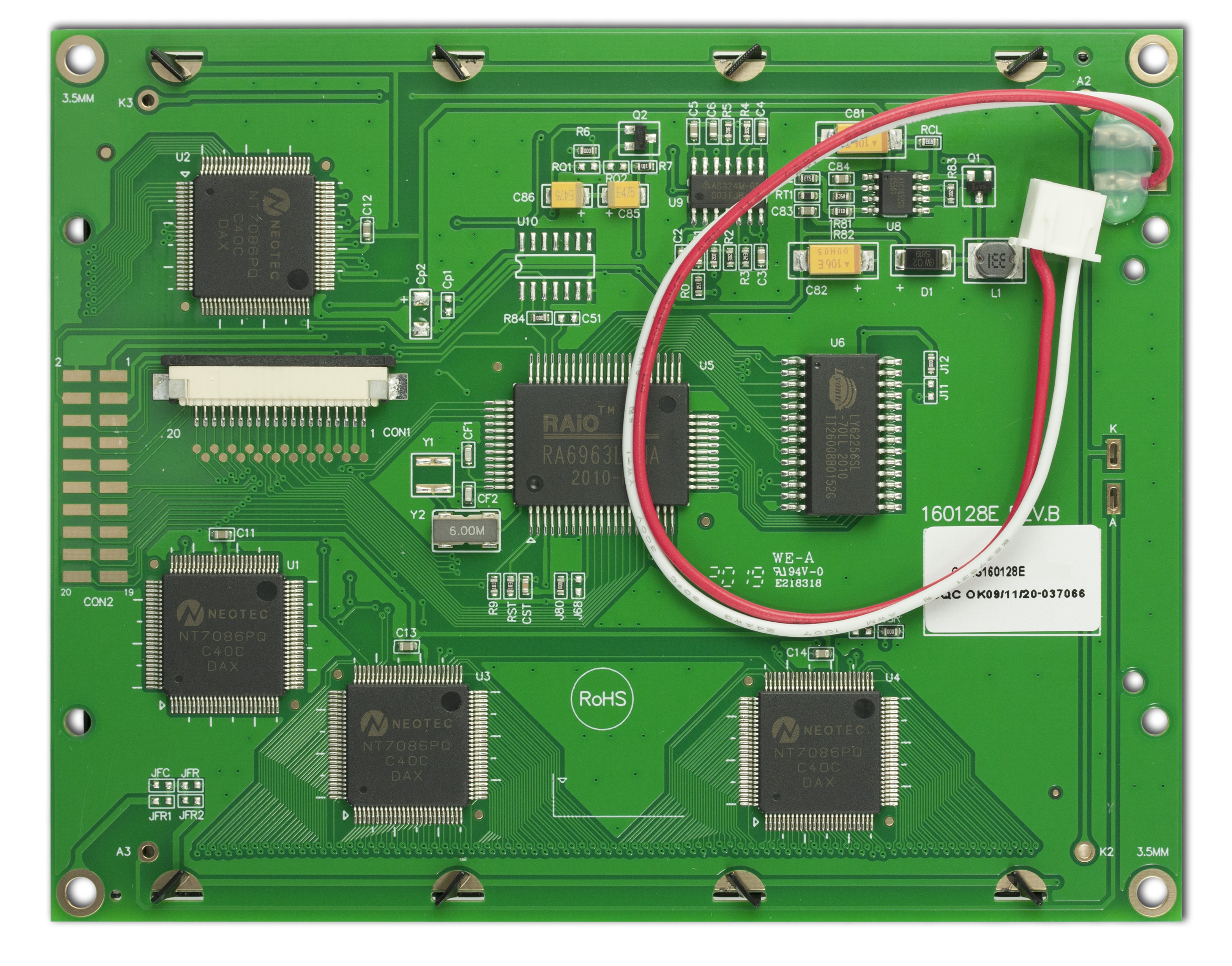

Controller: RAiO Technology RA6963 (Toshiba T6963C Compatible)
Character Generator: 128-word CG(Character Generator)
ROM for ASCII or numeric display in text mode
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

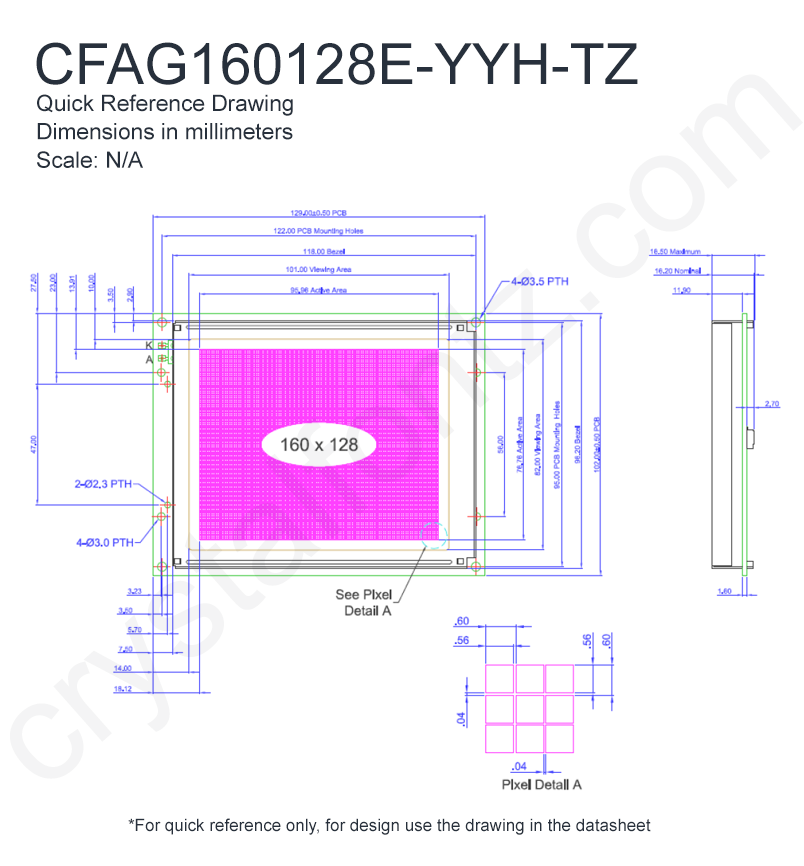

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            160 x 128


    Module Overall        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



    PCB Outline        width
        height
        depth


        millimeters
        129
        102
        16.5


        inches
        5.08
        4.02
        0.65



        Diagonal Dimension
            4.84"


    Viewing Area        Width
        Height


        millimeters
        101
        82


        inches
        3.98
        3.23



    Active Area        Width
        Height


        millimeters
        92.76
        74.2


        inches
        3.65
        2.92



    Dot Size        Width
        Height


        millimeters
        0.56
        0.56


        inches
        0.022
        0.022



    Dot Pitch        Width
        Height


        millimeters
        0.6
        0.6


        inches
        0.024
        0.024



        Weight
            185g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes


        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Raio Technology RA6963
RA6963 Dot Matrix LCD Controller Specification
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG160128EYYHTZ Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 8 bit parallel interface
folder_zip CAD Export - CFAG160128E-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG160128E-YYH 1 to 1.pdf
link RA6963 Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH














Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $101.26

            10
            $89.50

            20
            $86.48

            50 *
            $83.46

            100 *
            $82.25

            200 *
            $81.65

            300 *
            $77.53

            500 *
            $76.95

            1000 *
            $71.16

41 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
