Yellow-Green 192x32 Serial Graphic LCD from Crystalfontz

Product

Home » Products » Character LCD Displays » Character X Lines » 40x4 Character

                This part has been replaced with the CFAG19232C1-YYH-TT. Please contact support with any questions.

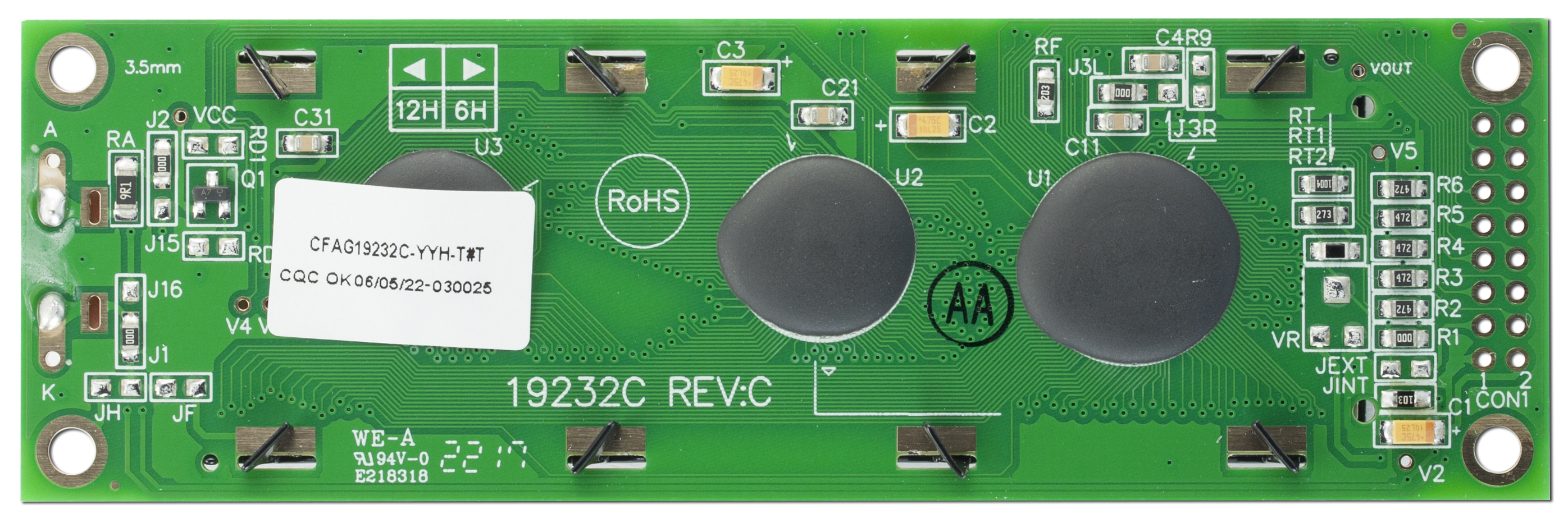

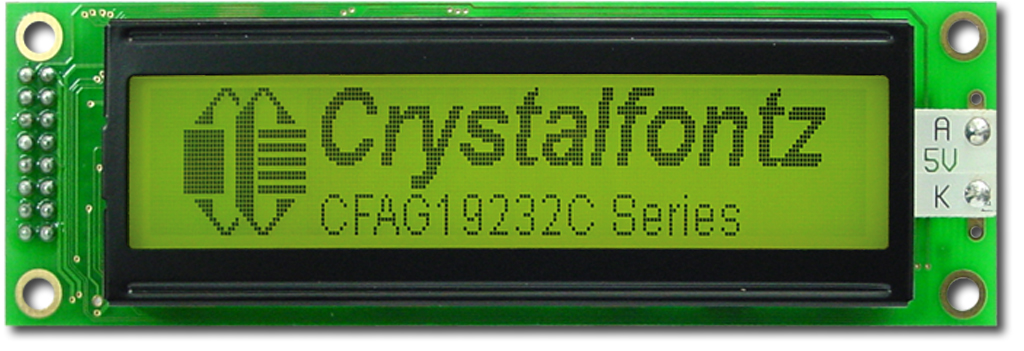

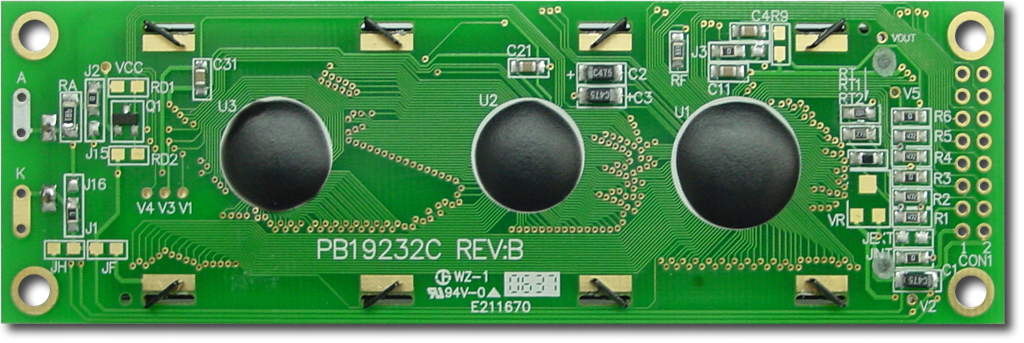

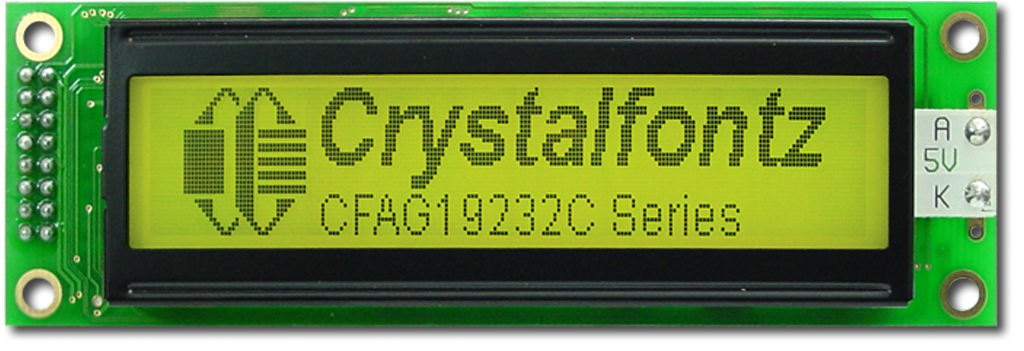

Yellow-Green 192x32 Serial Graphic LCDPart Number: CFAG19232C-YYH-TT192x32 sunlight readable graphic LCD with negative voltage generator and temperature compensation.
Resolution: 192x32 pixels
Optics: 6:00 viewing direction
Backlight: Yellow-green LED
Glass: STN Positive, Transflective
Controller: Sitronix ST7920 (Hitachi HD44780 Compatible) Controller
Character Generator: Chinese and English
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant

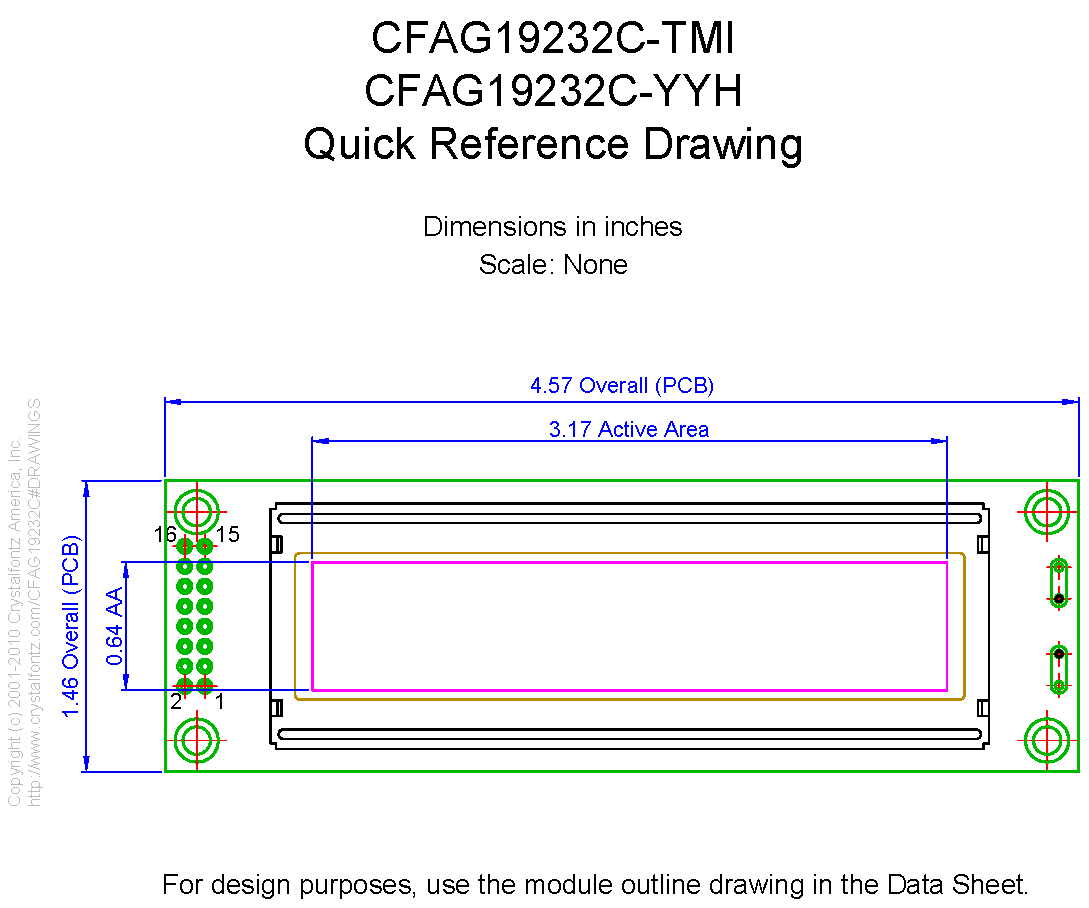

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            192 x 32

    Module Overall        width
        height
        depth

        millimeters
        116
        37
        13.9

        inches
        4.57
        1.46
        0.55

    PCB Outline        width
        height
        depth

        millimeters
        116
        37
        13.9

        inches
        4.57
        1.46
        0.55

        Diagonal Dimension
            3.24"

    Viewing Area        Width
        Height

        millimeters
        85
        18.6

        inches
        3.35
        0.73

    Active Area        Width
        Height

        millimeters
        80.6
        16.28

        inches
        3.17
        0.64

    Dot Size        Width
        Height

        millimeters
        0.38
        0.46

        inches
        0.015
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.42
        0.5

        inches
        0.017
        0.020

        Weight
            53g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Yellow-Green
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            Yellow-Green
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Yellow-Green

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7920
ST7920

Chinese Fonts built in LCD controller/driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG19232CYYHTT Datasheet

 download Files and Downloads
folder_zip Software Source - Example code - ATMEGA2561 and SPI interface
folder_zip CAD Export - CFAG19232C-TMI-YYH 2D CAD
picture_as_pdf 1 to 1 Template - CFAG19232C-TMI-YYH 1 TO 1.pdf
picture_as_pdf Other Document - UniCode to ST7920-0C CGROM Mapping

Module Overall	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

PCB Outline	width	height	depth
millimeters	116	37	13.9
inches	4.57	1.46	0.55

Viewing Area	Width	Height
millimeters	85	18.6
inches	3.35	0.73

Active Area	Width	Height
millimeters	80.6	16.28
inches	3.17	0.64

Dot Size	Width	Height
millimeters	0.38	0.46
inches	0.015	0.018

Dot Pitch	Width	Height
millimeters	0.42	0.5
inches	0.017	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11304: Part Change Complete, CFAG19232C1-YYH-TT is now available

Product Affected:	CFAG19232C-YYH-TT
Date Issued:	October 25, 2024
Summary:	Part Change Complete, CFAG19232C1-YYH-TT is now available
Description:	The change sent in PCN11269 has been completed and the replacement part, CFAG19232C1-YYH-TT, has been released for sale on our website (https://www.crystalfontz.com/product/cfag19232c1yyhtt-graphic-192x32-lcd-module). Orders for CFAG19232C1-YYH-TT can be placed directly on our website or by submitting a purchase order to sales@crystalfontz.com. Contact support@crystalfontz.com for any technical questions.

End-Of-Life #11269: Backlight Modification Requiring New Part Numbers

Products Affected:	CFAG19232C-YYH-TT, CFAH1604A-TMI-JT, CFAH2002A-TFH-JT, CFAH2002A-TMI-JT, CFAH2002A-YMI-JT, CFAH2002A-YMI-JTV, CFAH2002A-YYH-JT, CFAH2002A-YYH-JTV
Date Issued:	May 7, 2024
Summary:	Backlight Modification Requiring New Part Numbers
Description:	The backlight is being modified to improve manufacturability. The part numbers are being updated to reflect this change. Contact support@crystalfontz.com for comprehensive details on the change.
Reason:	To improve the manufacturability of these displays.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.

Yellow-Green 192x32 Serial Graphic LCD

Part Number: CFAG19232C-YYH-TT

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11304: Part Change Complete, CFAG19232C1-YYH-TT is now available

End-Of-Life #11269: Backlight Modification Requiring New Part Numbers
