[EOL] Dark 192x64 Parallel Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                        This product has reached end of life.  You might try CFAG19264ATMITN or CFAG19264AYYHTN instead.

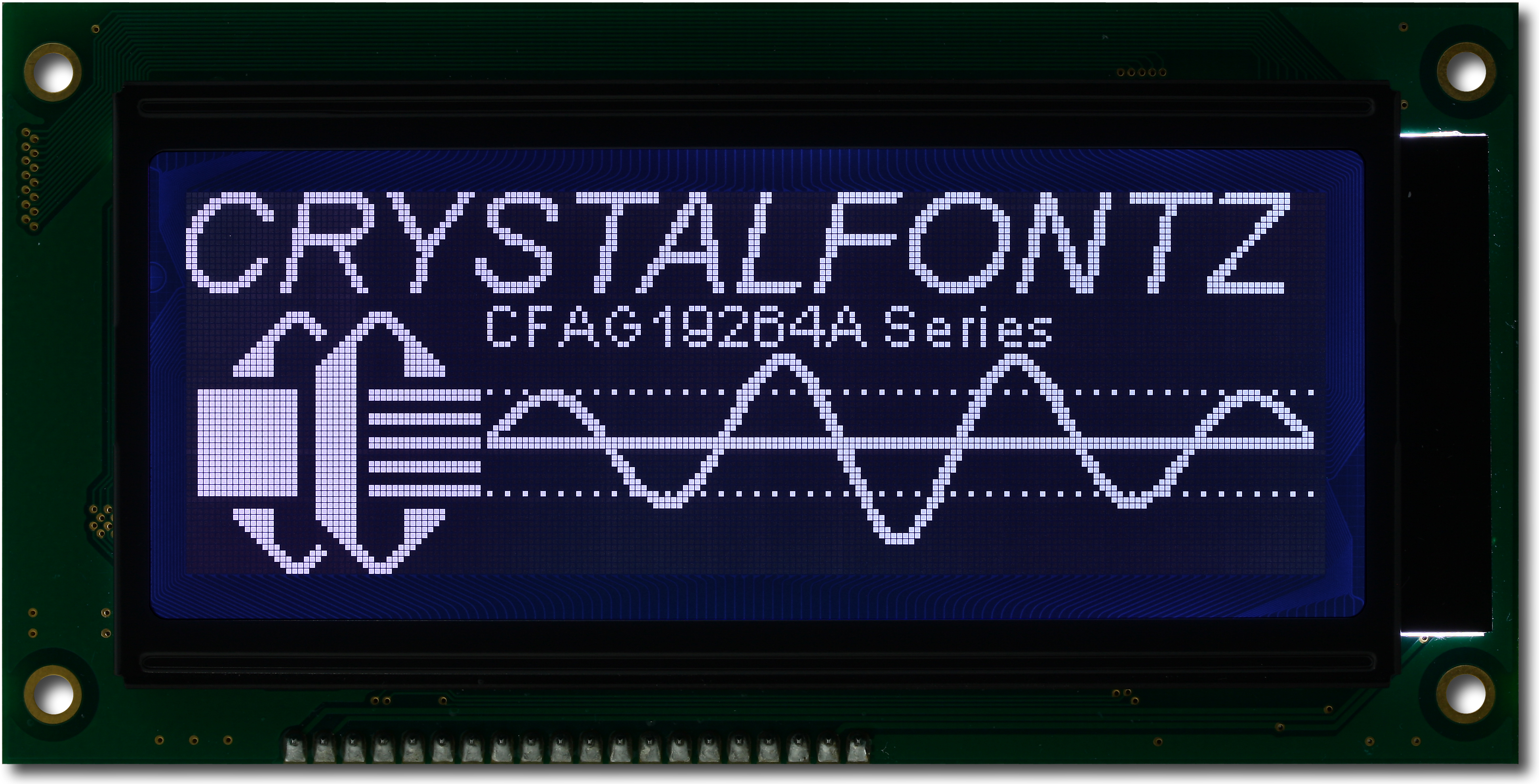

[EOL] Dark 192x64 Parallel Graphic LCDPart Number: CFAG19264A-STI-TNWhite on black 192x64 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 192x64 pixels
Optics: 6:00 viewing direction
Backlight: White LED
Glass: STN Negative, Transmissive
Controller: Neotec NT7108
Operating Temp:  -20°C to +70°C
Compliance: REACH & RoHS Compliant
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Column Dots x Row Dots
            192 x 64

    Module Overall        width
        height
        depth

        millimeters
        130
        65
        12.4

        inches
        5.12
        2.56
        0.49

    PCB Outline        width
        height
        depth

        millimeters
        130
        65
        12.4

        inches
        5.12
        2.56
        0.49

        Diagonal Dimension
            3.98"

    Viewing Area        Width
        Height

        millimeters
        102
        39

        inches
        4.02
        1.54

    Active Area        Width
        Height

        millimeters
        95.96
        31.96

        inches
        3.78
        1.26

    Dot Size        Width
        Height

        millimeters
        0.46
        0.46

        inches
        0.018
        0.018

    Dot Pitch        Width
        Height

        millimeters
        0.5
        0.5

        inches
        0.020
        0.020

        Weight
            105g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Black
Polarizer
            Transmissive
View Direction
            6 o'clock

        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Dark

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Neotec NT7108
NT7108

LCD Driver
Interface
            8-bit Parallel

picture_as_pdf Datasheets
picture_as_pdfCFAG19264A-STI-TN Datasheet

download Files and Downloads
folder_zip CAD Export - CFAG19264A 2D CAD
picture_as_pdf 1 to 1 Template - CFAG19264A 1 TO 1.PDF

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight

Module Overall	width	height	depth
millimeters	130	65	12.4
inches	5.12	2.56	0.49

PCB Outline	width	height	depth
millimeters	130	65	12.4
inches	5.12	2.56	0.49

Viewing Area	Width	Height
millimeters	102	39
inches	4.02	1.54

Active Area	Width	Height
millimeters	95.96	31.96
inches	3.78	1.26

Dot Size	Width	Height
millimeters	0.46	0.46
inches	0.018	0.018

Dot Pitch	Width	Height
millimeters	0.5	0.5
inches	0.020	0.020

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

Product Update #10910: End-of-Life Notification

Products Affected:	CFAG14432A-YYH-TT, CFAG20232C-YYH-TT, CFAG14432A-TFH-TT, CFAG320240K-YYH-TZ, CFAG14432C-TFH-TT, CFAG12864I-TMI-TN, CFAG12864F-STI-TY, CFAG12864F-TMI-TY, CFAG12864G-STI-TY, CFAH0801Z-YYH-JP, CFAG19264A-STI-TN
Date Issued:	December 13, 2017
Summary:	End-of-Life Notification
Description:	The parts listed have been set to End of Life Status.
Reason:	Critical components have been discontinued by the manufacturer.
Impact:	No replacements have been identified
Recommendation:	These parts are not recommended for new designs.
Availability:	Once current stock is depleted, these parts will no longer be available
Price Change:	N/A

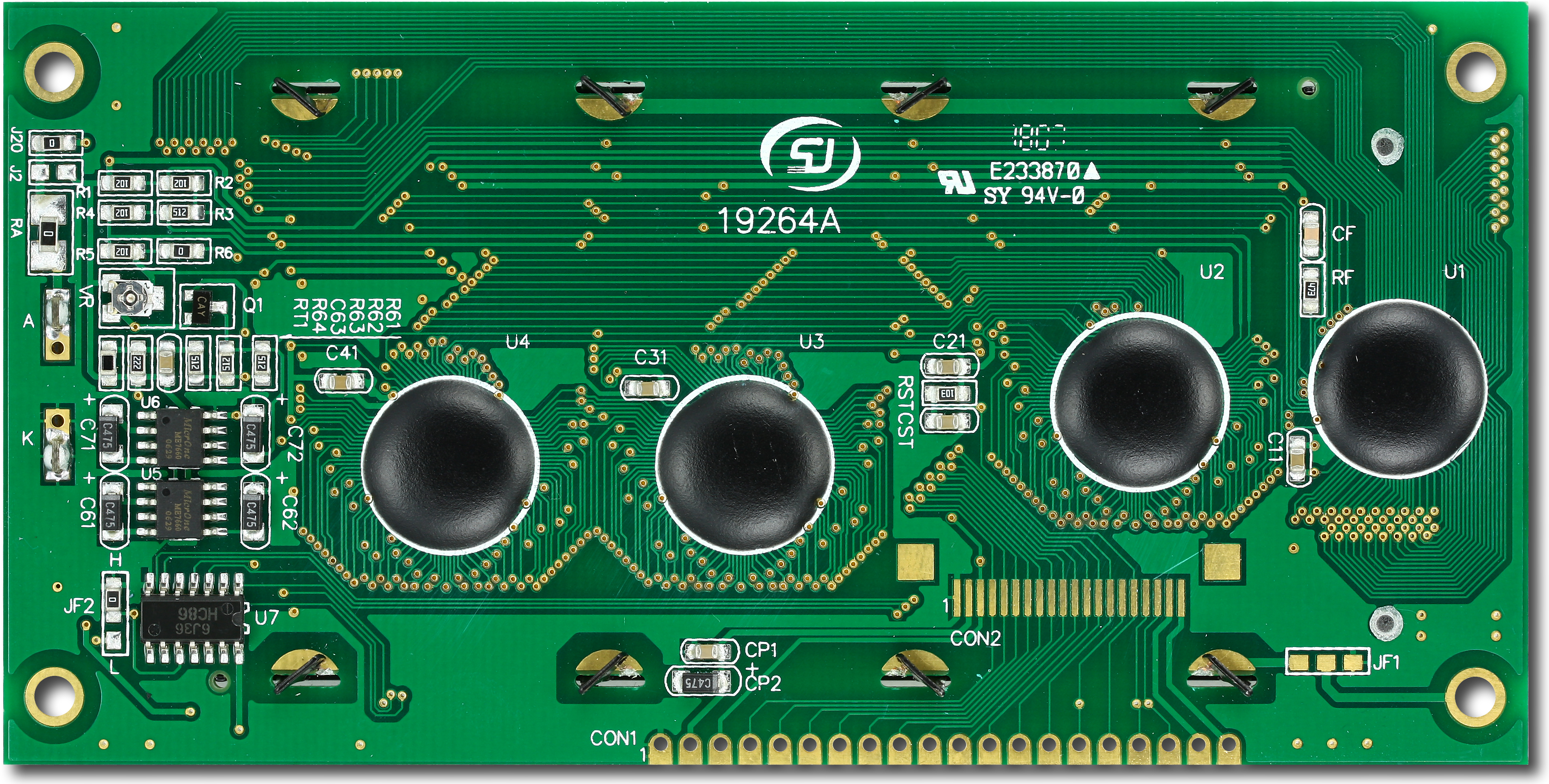

Product Update #10484: CFAG19264A family PCB Rev

Products Affected:	CFAG19264A-STI-TN, CFAG19264A-TMI-TN, CFAG19264A-YYH-TN
Date Issued:	April 23, 2013
Summary:	CFAG19264A family PCB Rev
Last revision:	Rev C
Description:	CFAG19264A family will be manufactured and shipped with a revised PCB. Current Rev is "C" or older, new rev will be "D".
Reason:	The New PCB is a layout change for more space around the mounting holes. Negative Voltage and Temperature compensation layout now has better support and range.
Impact:	New PCB Rev is compatible with current shipping versions. A difference in contrast settings may be apparent due to the wider range of the NV generator.
Availability:	Rev D PCB based modules will begin shipping when Rev C PCB based modules have exhausted inventory.
Price Change:	There is no schedule price change at this time (2013-04-23)
