Blue 240x128 Standard Graphic LCD from Crystalfontz

Product

Home » Products » Graphic LCD Displays » Interface » 8-bit Parallel

                In order to keep this display in production over the long term, we are revising it to the CFAG240128L1-TMI-TZ.  Please contact support with any questions.



This part number is going end-of-life. We have reduced the price 30% on the remaining inventory.

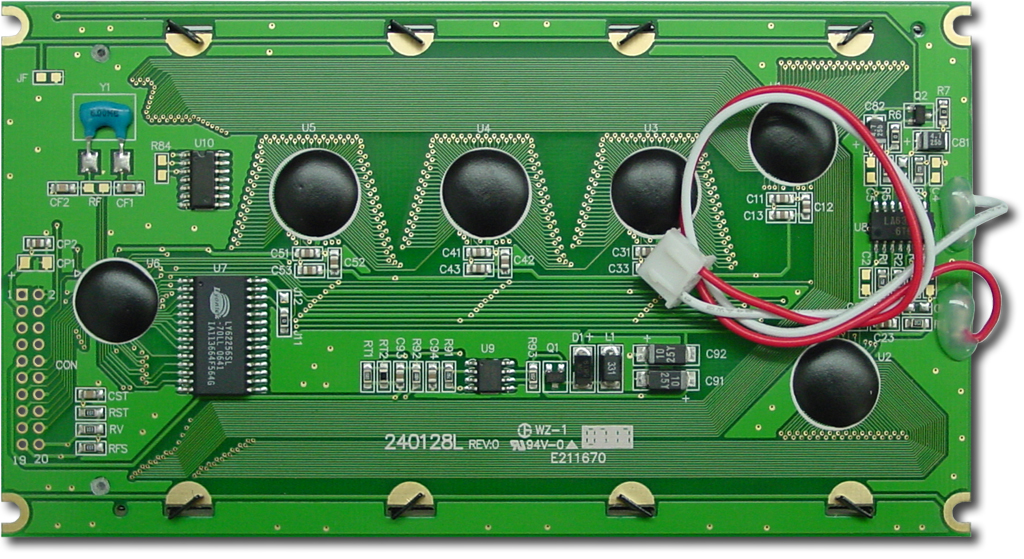

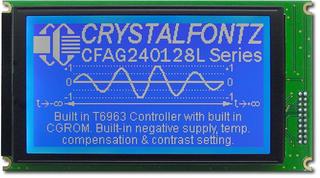

Blue 240x128 Standard Graphic LCDPart Number: CFAG240128L-TMI-TZWhite on blue 240x128 graphic LCD with negative voltage generator and temperature compensation.
Resolution: 240x128 pixels
Optics: 6:00 viewing direction
Backlight: White Edge LED
Glass: STN Negative, Transmissive
Controller: Toshiba T6963C (RAiO Technology RA6963 Compatible) Controller
Operating Temp: -20°C to +70°C
Compliance: REACH & RoHS Compliant

Order Soon! We only have 23 left! square_foot Physical Characteristics

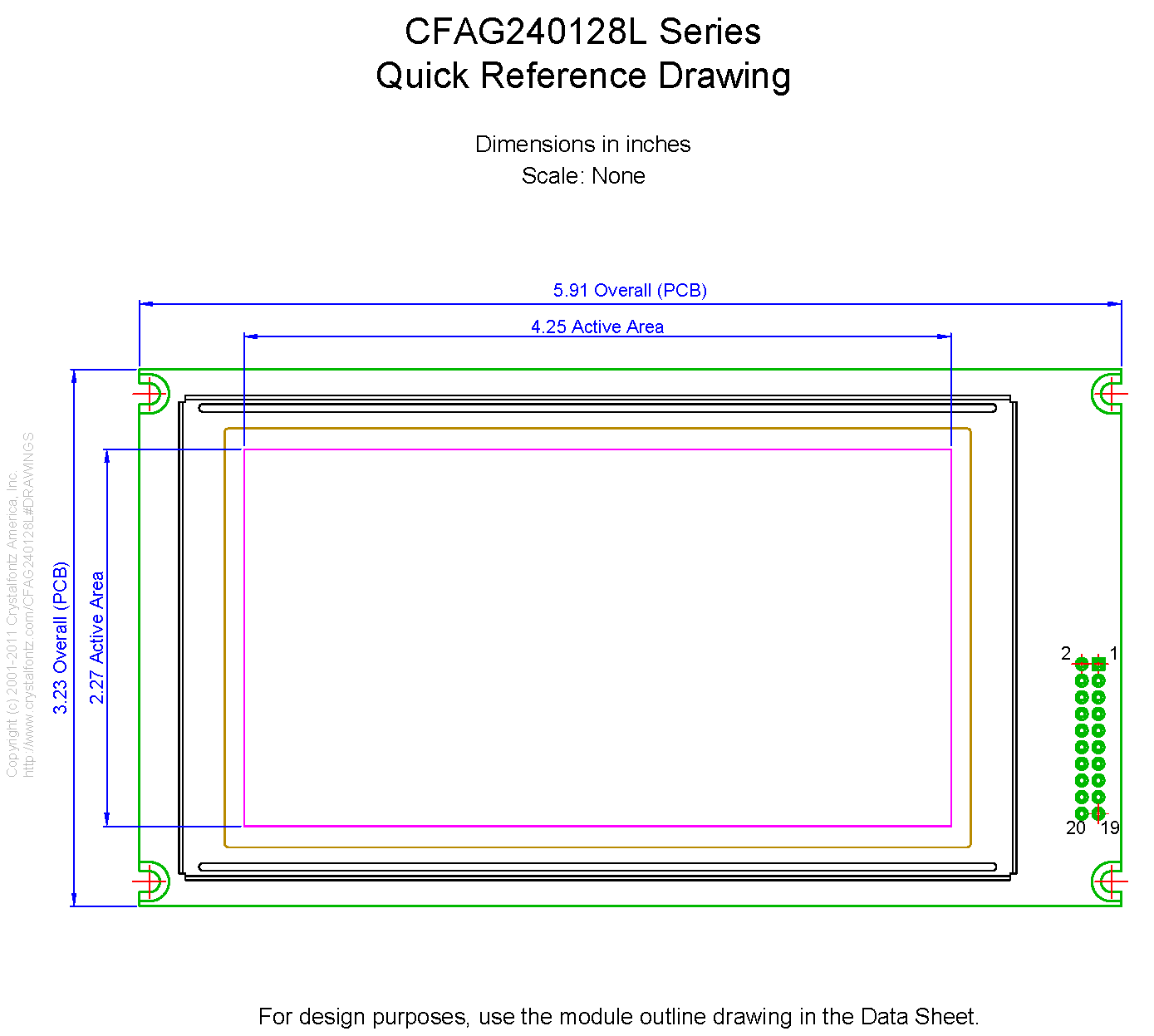

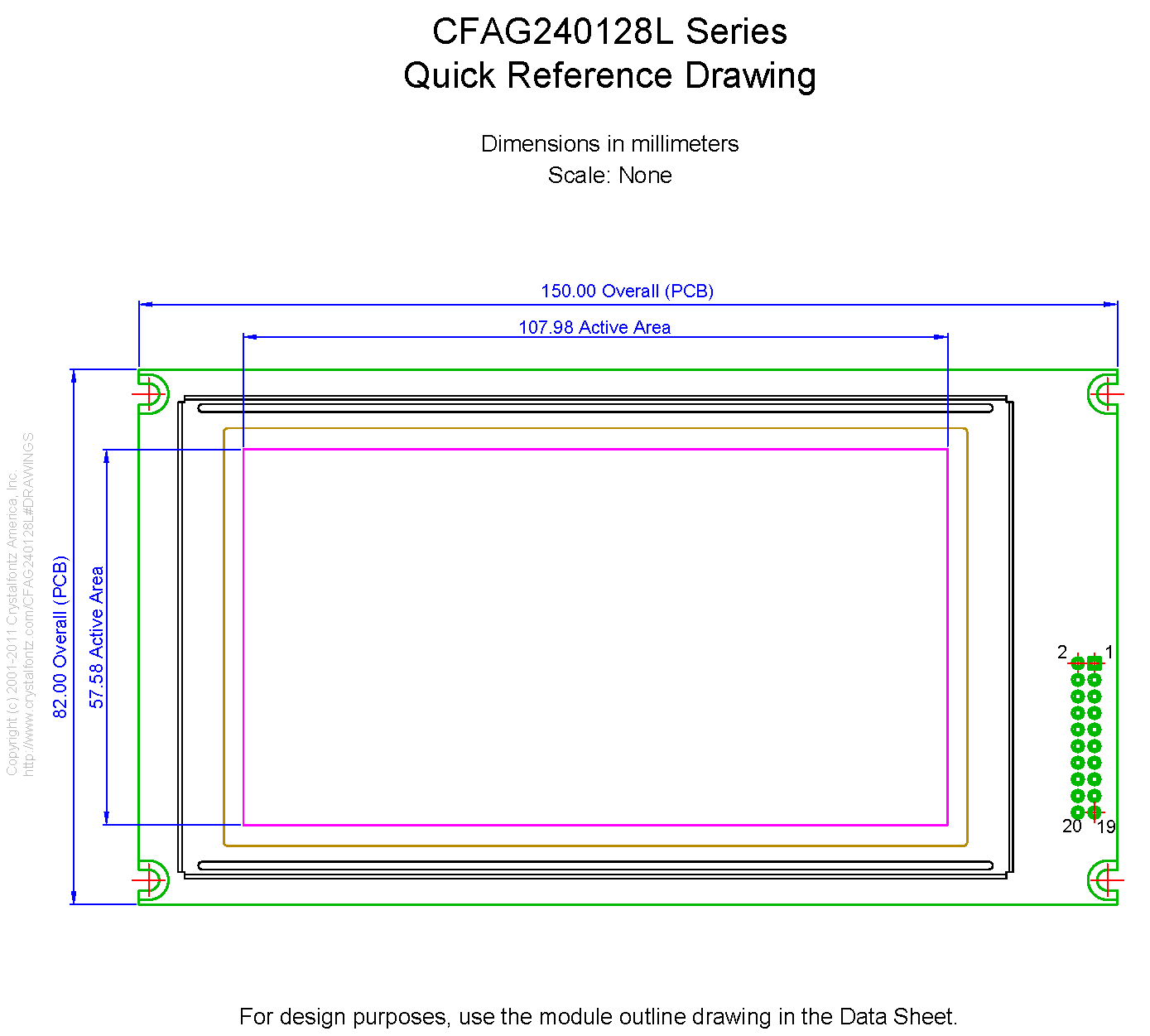

Physical Characteristics

        Column Dots x Row Dots
            240 x 128


    Module Overall        width
        height
        depth


        millimeters
        150
        82
        14.3


        inches
        5.91
        3.23
        0.56



    PCB Outline        width
        height
        depth


        millimeters
        150
        82
        14.3


        inches
        5.91
        3.23
        0.56



        Diagonal Dimension
            4.82"


    Viewing Area        Width
        Height


        millimeters
        114
        64


        inches
        4.49
        2.52



    Active Area        Width
        Height


        millimeters
        107.98
        57.58


        inches
        4.25
        2.27



    Dot Size        Width
        Height


        millimeters
        0.43
        0.43


        inches
        0.017
        0.017



    Dot Pitch        Width
        Height


        millimeters
        0.45
        0.45


        inches
        0.018
        0.018



        Weight
            188g

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            STN/Blue
Polarizer
            Transmissive
View Direction
            6 o'clock


        Backlight Color
            White
Backlight Type
            LED
Mode
            Negative
Foreground Color
            White
Background Color
            Blue

 electric_bolt Electrical Specification
Electrical Specifications

        Supply Voltage for Logic Minimum
            4.5V
Supply Voltage for Logic Maximum
            5.5V
Supply Voltage for Logic Typical
            5V


        Supply Voltage for Driving Panel Typical
            18.9V
Supply Current Typical
            28.2mA
Module Connector Pitch
            0.1mm

 electric_bolt Backlight Specification
Backlight Electrical Specifications

        Forward Voltage Minimum
            3.4V
Forward Voltage Maximum
            3.6V
Forward Voltage Typical
            3.5V


        Forward Current Maximum
            180mA
Forward Current Typical
            144mA

 nature Environmental
Environmental

    Operating Temperatures        min
        max


        Celsius
        -20°
        70°


        Fahrenheit
        -4°
        158°



    Storage Temperatures        min
        max


        Celsius
        -30°
        80°


        Fahrenheit
        -22°
        176°



    Humidity        min
        max


        Non-condensing
        0%
        90%


 cable Electronics
Electronics

        Controller Documents
            Toshiba T6963C
T6963C

DOT MATRIX LCD CONTROLLER LSI
Interface
            8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAG240128LTMITZ Datasheet

Previous Versions of Datasheetspicture_as_pdfCFAG240128LTMITZ vPreliminary 3.0.pdf
(Datasheet V Preliminary_3.0)
picture_as_pdfCFAG240128LTMITZ vPrelim2.pdf
(Datasheet V Preliminary2)
picture_as_pdfCFAG240128LTMITZ.pdf

 download Files and Downloads
folder_zip Software Source - Arduino Demo Code
folder_zip CAD Export - cfag240128L 2D CAD
picture_as_pdf 1 to 1 Template - CFAG240128L 1 to 1.pdf
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH










Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:


Price:



            Quantity
            Unit Price


            1
            $52.14

            10
            $50.77

            20
            $49.05

            50 *
            $47.34

23 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering


						LCD Starter Kit with Potentiometer
Everything you need to connect $11.06 ea.






						72 Pin Header
Add (5) 72-pin headers? $0.66 ea.





Module Overall	width	height	depth
millimeters	150	82	14.3
inches	5.91	3.23	0.56

PCB Outline	width	height	depth
millimeters	150	82	14.3
inches	5.91	3.23	0.56

Viewing Area	Width	Height
millimeters	114	64
inches	4.49	2.52

Active Area	Width	Height
millimeters	107.98	57.58
inches	4.25	2.27

Dot Size	Width	Height
millimeters	0.43	0.43
inches	0.017	0.017

Dot Pitch	Width	Height
millimeters	0.45	0.45
inches	0.018	0.018

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$52.14
10	$50.77
20	$49.05
50 *	$47.34

Notices

Part Change Notices

Subscribe to Part Change Notices by email or RSS

End-Of-Life #11188: End-of-Life Notification

Products Affected:	CFAG240128L-STI-TZ, CFAG240128L-TMI-TZ, CFAG240128L-TMI-TZTS
Date Issued:	March 28, 2023
Summary:	End-of-Life Notification
Description:	The controller used on these displays is changing from the NT7086E to NT7086G. Contact support@crystalfontz.com for the latest information on replacement options.
Reason:	Controller chip going EOL.
Availability:	Contact Crystalfontz Support for up-to-date information by emailing support@crystalfontz.com.
