This part is NOT RECCOMMENDED for new designs, as it's controller is going end-of-life.

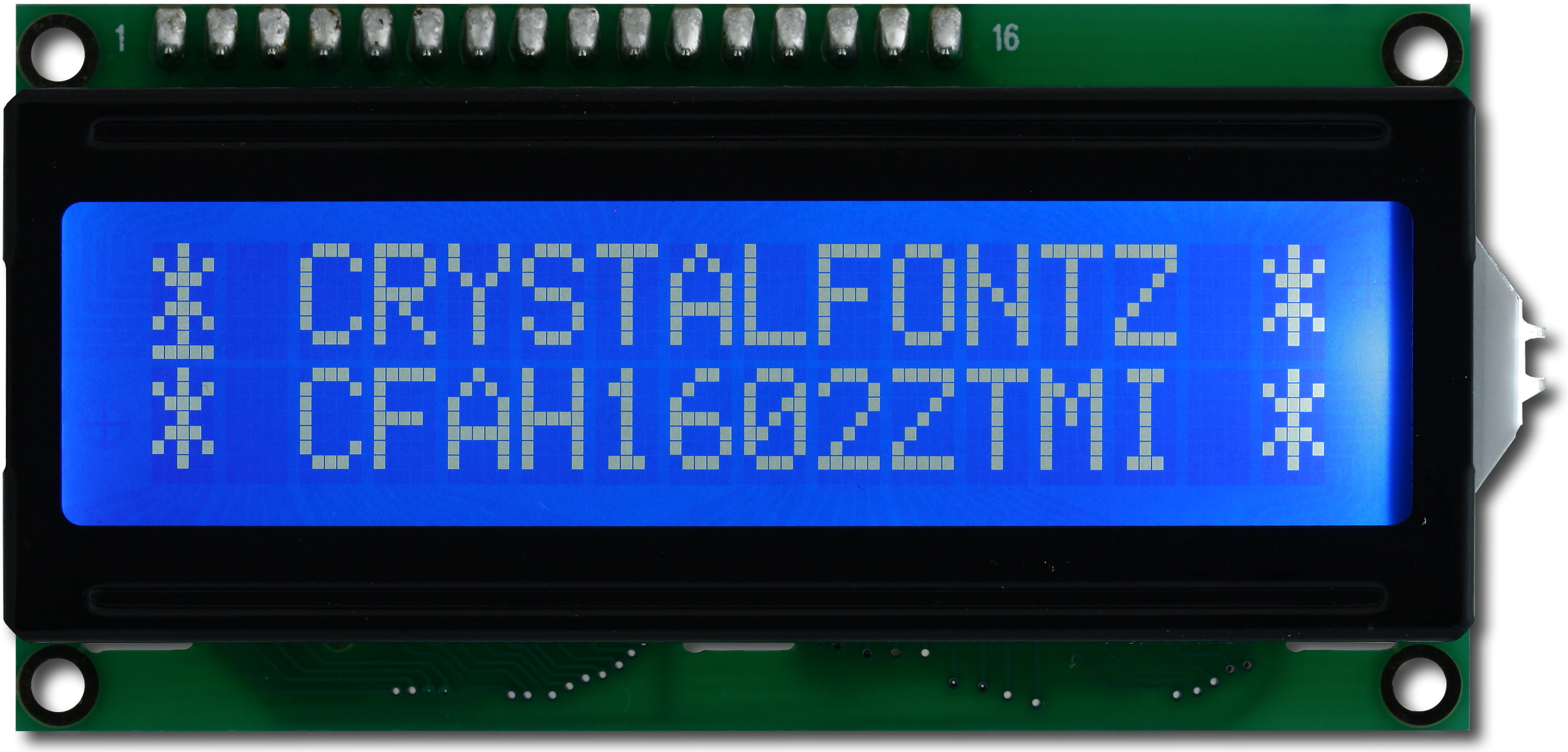

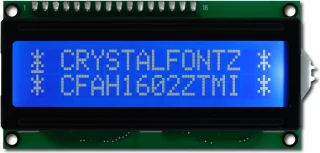

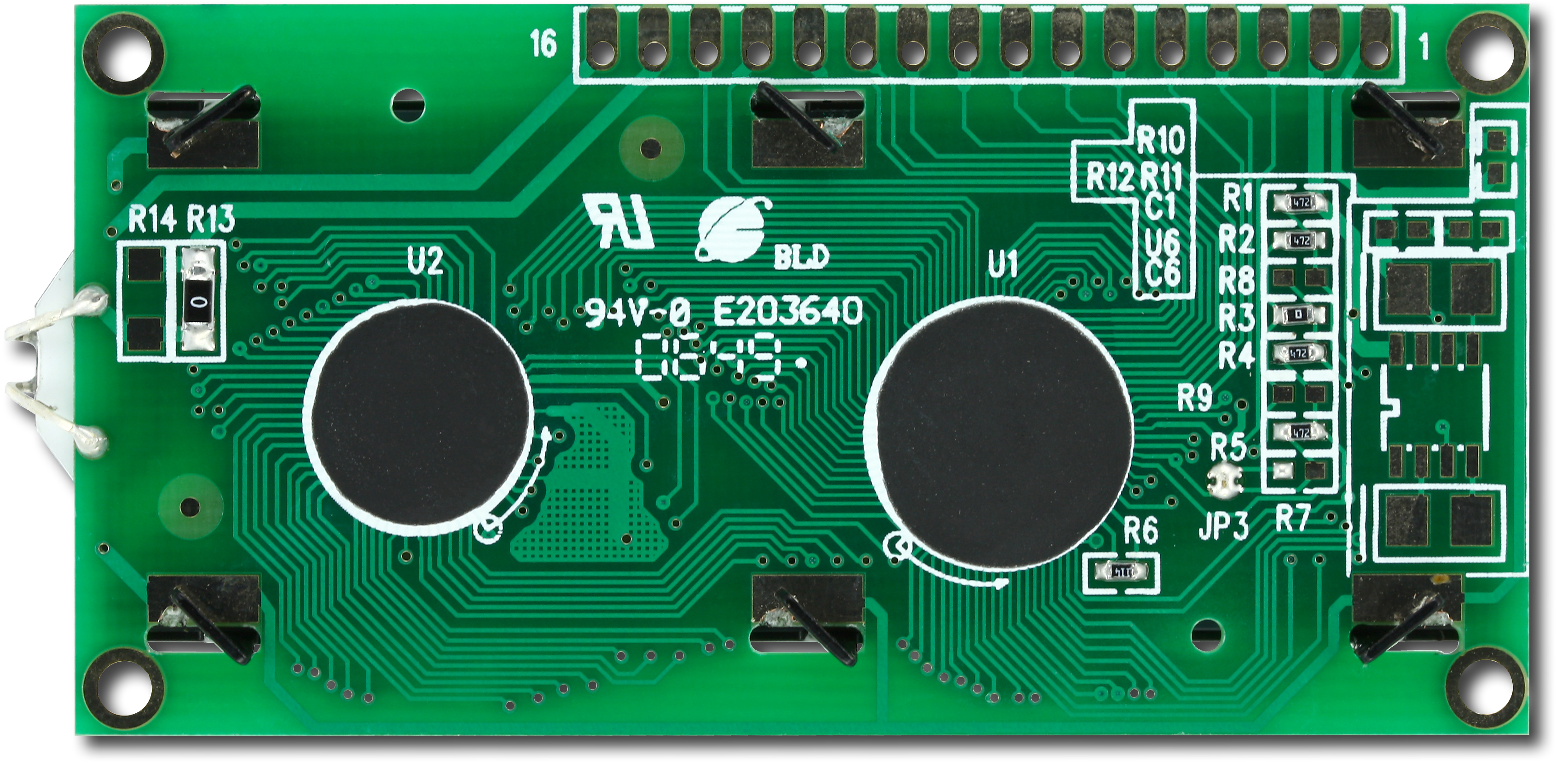

Standard 16x2 White on Blue LCD

Part Number: CFAH1602Z-TMI-ET

Standard Parallel Character LCD 16x2, RoHS Compliant, White Edge LED Backlight, STN Negative, Blue, Transmissive -20°C to +70°C 6:00

  • Available in several variations of backlight and polarizer (minimum order may be required)
  • 8-bit or 4-bit parallel interface
  • Industry-standard HD44780 compatible controller
Qty:
Quantity Price
1 $10.13
10 $9.83
20 $8.25
50 $7.08
100 $6.22
200 * $5.59
* Pricing is subject to change. Contact us about potential lead times.
Need a written quote? Add to cart, then enter your email address in the "request a quote" box.

Part Change Notices

Subscribe to Part Change Notices by
email Email subscription for changes to CFAH1602Z-TMI-ET or RSS RSS feed for changes to CFAH1602Z-TMI-ET for CFAH1602Z-TMI-ET

TECHNICAL SPECS

Physical Characteristics

Characters x Lines 16 x 2
Module Overall width height depth
millimeters 77.5 36 14
inches 3.051 1.417 0.551
PCB Outline width height depth
millimeters 77.5 36 14
inches 3.051 1.417 0.551
Diagonal Dimension 2.26"
Viewing Area width height
millimeters 51 14.8
inches 2.008 0.583
Active Area width height
millimeters 47.56 11
inches 1.872 0.433
Character Size width height
millimeters 2.95 4.9
inches 0.116 0.193
Character Pitch width height
millimeters 3.55 5.59
inches 0.140 0.220
Dot Size width height
millimeters 0.55 0.65
inches 0.022 0.026
Dot Pitch width height
millimeters 0.6 0.7
inches 0.024 0.028
Weight 35g
Pin Count 16

Optical Characteristics

Glass Type/Glass Color STN/Blue
Polarizer Transmissive
View Direction 6 o'clock
Backlight Color White
Backlight Type LED
Mode Negative
Foreground Color White
Background Color Blue

Electrical Specifications

Module Connector Pitch 0.1mm

Environmental

Operating Temperatures min max
Celsius -20° 70°
Fahrenheit -4° 158°
Storage Temperatures min max
Celsius -30° 80°
Fahrenheit -22° 176°
Humidity min max
Non-condensing 0% 90%

Electronics

Controller Documents Sunplus SPLC780D
16COM/40SEG Controller/Driver
Interface 4-bit Parallel, 8-bit Parallel

Part Change Notice

Subscribe to Part Change Notices by email Email subscription for changes to CFAH1602Z-TMI-ET or RSS RSS feed for changes to CFAH1602Z-TMI-ET

Product Update #10875: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.

Products Affected: CFAH2002Z-YYH-JP, CFAH1602W-RTI-JP, CFAH1602W-YTI-JP, CFAH1602Z-NYG-ET, CFAH1602Z-TMI-ET
Date Issued: September 13, 2017
Summary: This part will soon be End of Life and no longer available. There is no cross reference or substitute part.
Description:
Reason: The Sunplus display controller is being discontinued by the manufacturer.
Impact: No replacements will be offered for these parts.
Recommendation: Contact support@crystalfontz.com to explore other modules that may work for you.
Availability: Once current stocks are depleted these products will no longer be available.

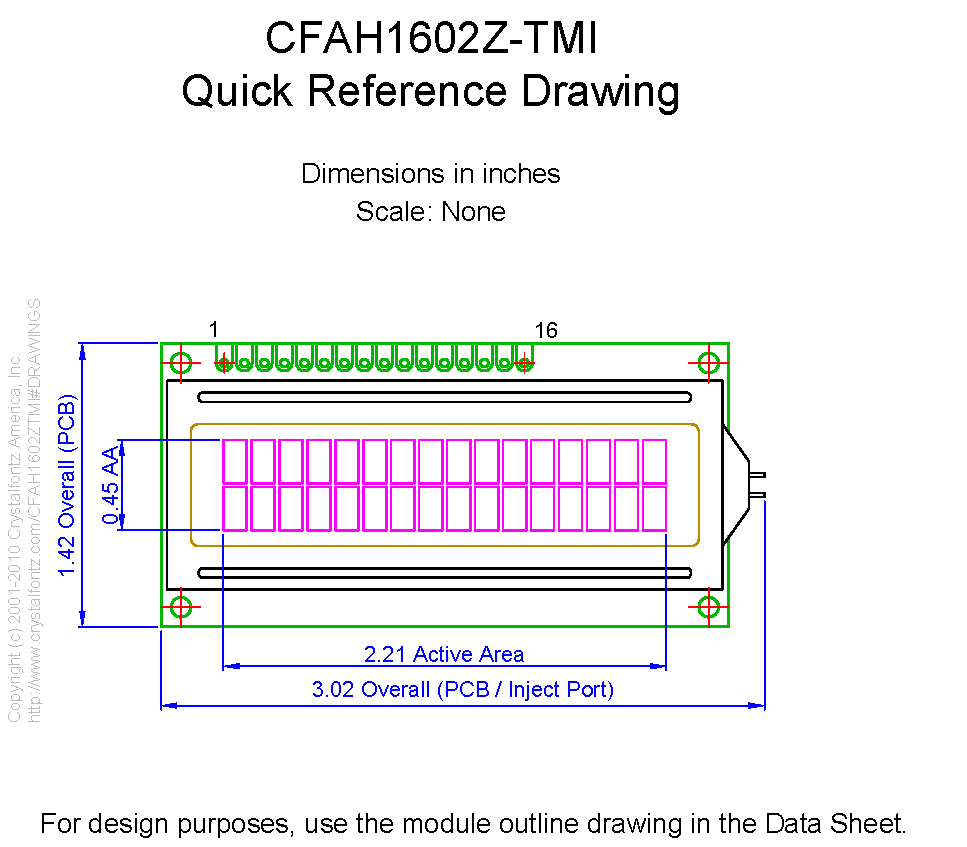

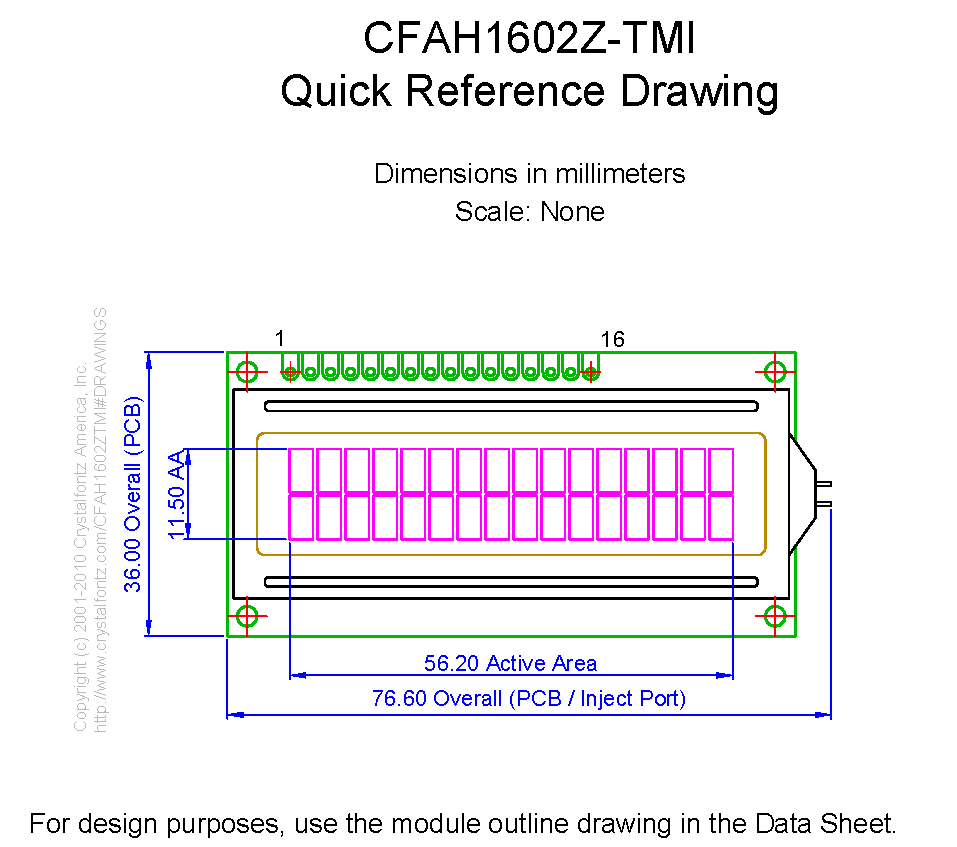

For reference only. For design purposes, please use the specifications in the datasheet.
