20x2 Parallel Character LCD [EOL]
Part Number: CFAH2002Y-GDI-ET
- Possibly form compatible with the thicker (but same height and width) CFAG19232C Series of Graphic LCD modules. Upgrade your product that uses this CFAH2002Y character display by switching to the graphic CFAG19232C
- Available in several variations of backlight and polarizer (minimum order may be required)
- Ultra-thin construction -- this backlit module has the same depth as most non-backlit LCD modules.
- Wide temperature range: -20°C to 70°C (-4°F to 158°F)
- 8-bit or 4-bit parallel interface
- Industry-standard HD44780 compatible controller
- RoHS Compliant

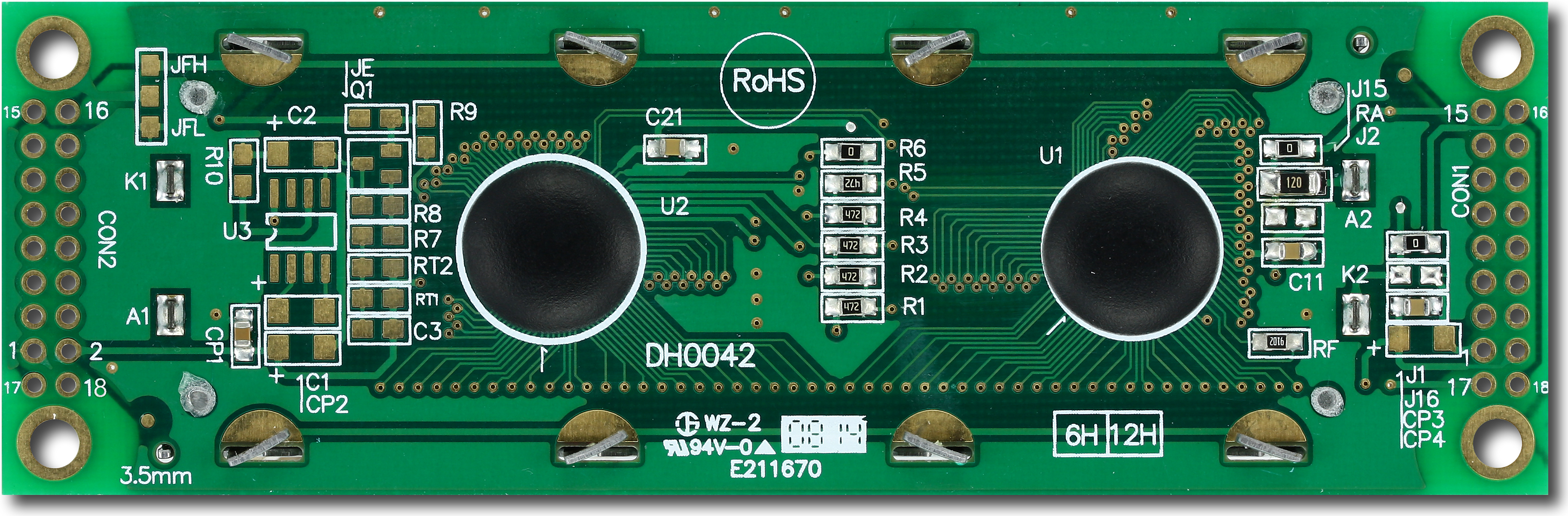

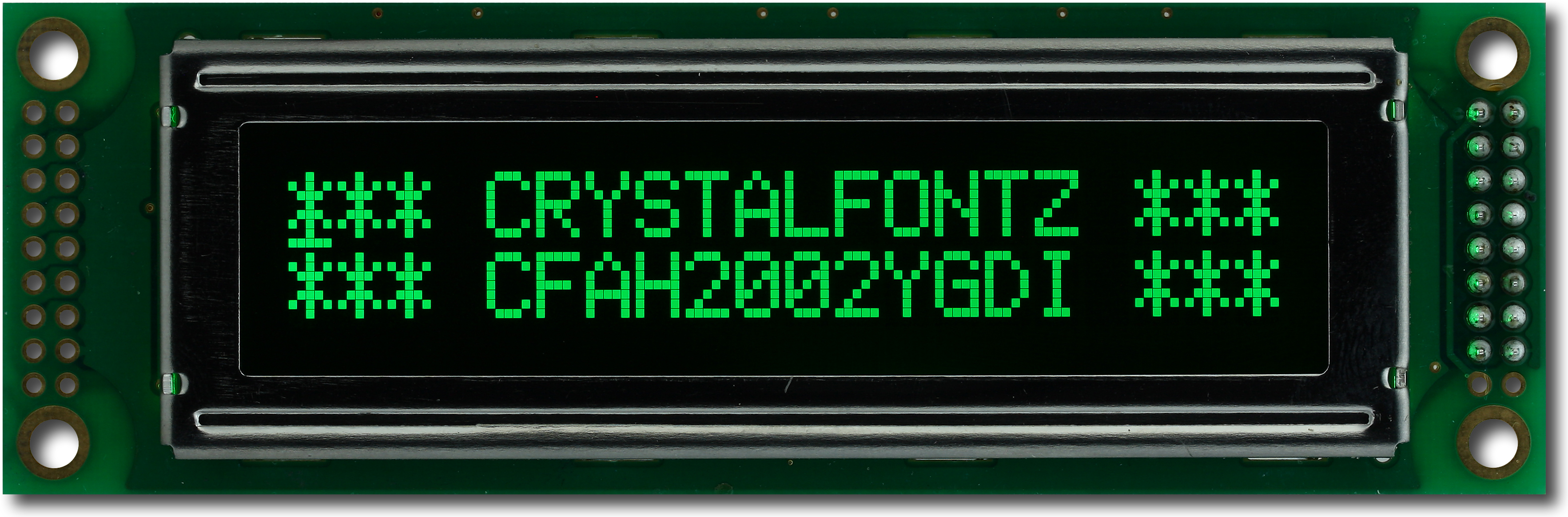

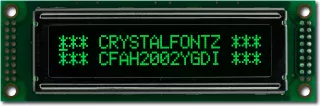

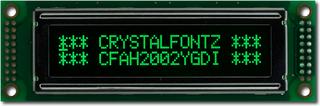

![20x2 Parallel Character LCD [EOL] (CFAH2002Y-GDI-ET)](/images/products/CFAH2002YGDIET/CFAH2002YGDI_large.jpg)
Datasheet
TECHNICAL SPECS

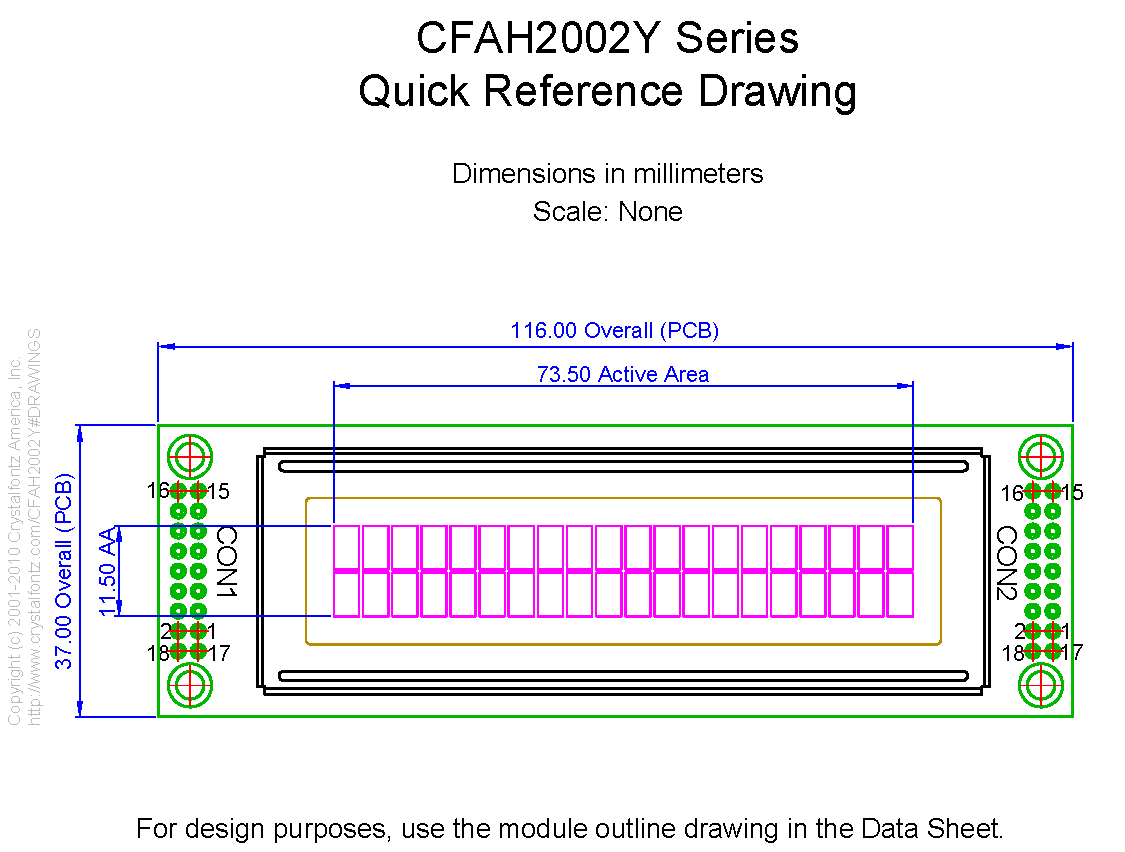

Physical Characteristics
| Characters x Lines | 20 x 2 |
| Module Overall | width | height | depth |
|---|---|---|---|
| millimeters | 116 | 37 | 9.5 |
| inches | 4.567 | 1.457 | 0.374 |
| PCB Outline | width | height | depth |
|---|---|---|---|
| millimeters | 116 | 37 | 9.5 |
| inches | 4.567 | 1.457 | 0.374 |
| Viewing Area | width | height |
|---|---|---|
| millimeters | 80.6 | 18.6 |
| inches | 3.173 | 0.732 |
| Active Area | width | height |
|---|---|---|
| millimeters | 73.5 | 11.5 |
| inches | 2.894 | 0.453 |
| Character Size | width | height |
|---|---|---|
| millimeters | 3.2 | 5.55 |
| inches | 0.126 | 0.219 |
| Character Pitch | width | height |
|---|---|---|
| millimeters | 3.7 | 5.95 |
| inches | 0.146 | 0.234 |
| Dot Size | width | height |
|---|---|---|
| millimeters | 0.6 | 0.65 |
| inches | 0.024 | 0.026 |
| Dot Pitch | width | height |
|---|---|---|
| millimeters | 0.6 | 0.7 |
| inches | 0.024 | 0.028 |
| Weight | 42g |
Optical Characteristics
| Glass Type/Glass Color | FFSTN/Black |
| Polarizer | Transmissive |
| View Direction | 6 o'clock |
| Backlight Color | Green |
| Backlight Type | LED |
| Mode | Negative |
| Foreground Color | Green |
| Background Color | Dark |
Electrical Specifications
| Module Connector Pitch | 0.1mm |
Environmental
| Operating Temperatures | min | max |
|---|---|---|
| Celsius | -20° | 70° |
| Fahrenheit | -4° | 158° |
| Storage Temperatures | min | max |
|---|---|---|
| Celsius | -30° | 80° |
| Fahrenheit | -22° | 176° |
| Humidity | min | max |
|---|---|---|
| Non-condensing | 0% | 90% |
Electronics
| Controller Documents | Sitronix ST7066U ST7066U Dot Matrix LCD Controller/Driver Sitronix ST7066U Sitronix ST7066U Dot Matrix LCD Controller/Driver |
| Interface | 4-bit Parallel, 8-bit Parallel |
Compatible Software:
Possibly form compatible with these 192x32 graphic modules:
For reference only. For design purposes, please use the specifications in the datasheet.
Product Notes
This product is End-of-Life and has limited availability. This display is not recommended for new designs. While we do not offer any direct replacements, perhaps one of our many other displays will fit your needs. Please contact our Tech Support team for assistance.
