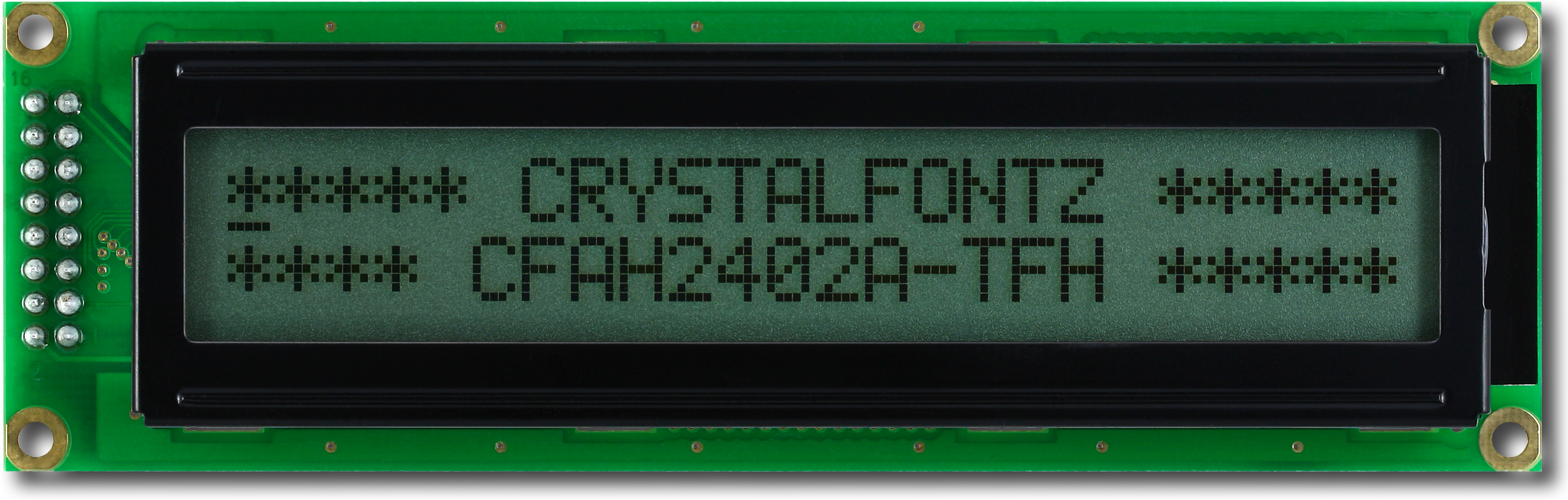

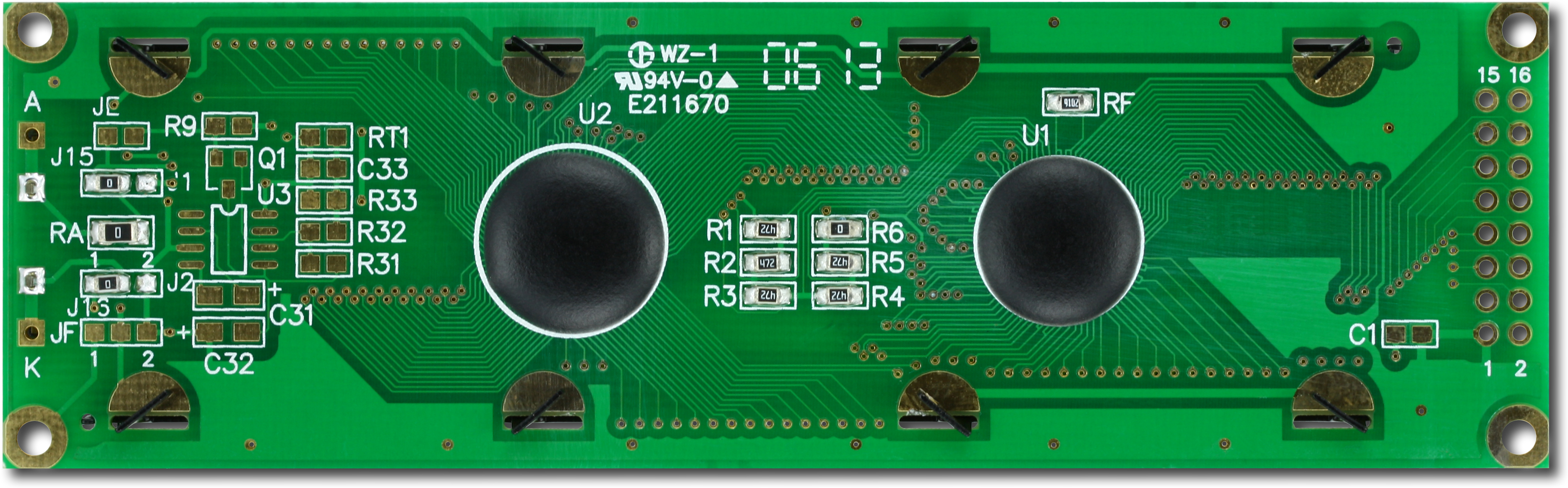

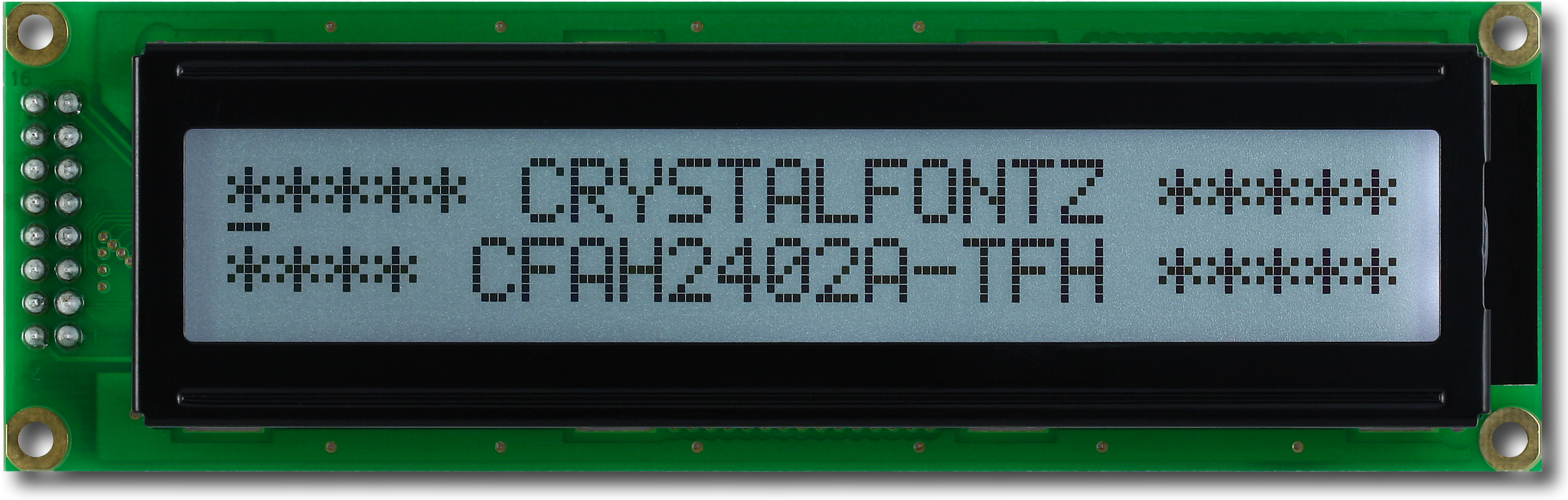

24x2 Character LCDPart Number: CFAH2402A-TFH-JT24x2 Character LCD, RoHS Compliant, White Edge LED Backlight, FSTN Positive, Transflective -20°C to +70°C 6:00, 16-pin, Parallel interface.
Sunlight Readable!
8-bit or 4-bit parallel interface
Industry-standard HD44780 compatible LCD controller
Product VariationsColorsDark on Yellow-Green
Yellow-Green LED BacklightWhite on Blue
White LED BacklightDark on Light Gray
White LED Backlight

 square_foot Physical Characteristics
Physical Characteristics

        Characters x Lines
            24 x 2

    Module Overall        width
        height
        depth

        millimeters
        118
        36
        13.6

        inches
        4.65
        1.42
        0.54

    PCB Outline        width
        height
        depth

        millimeters
        118
        36
        13.6

        inches
        4.65
        1.42
        0.54

        Diagonal Dimension
            3.51"

    Viewing Area        Width
        Height

        millimeters
        94.5
        16

        inches
        3.72
        0.63

    Active Area        Width
        Height

        millimeters
        88.3
        11.5

        inches
        3.48
        0.45

    Character Size        Width
        Height

        millimeters
        3.2
        5.55

        inches
        0.126
        0.219

    Character Pitch        Width
        Height

        millimeters
        3.7
        5.95

        inches
        0.146
        0.234

    Dot Size        Width
        Height

        millimeters
        0.6
        0.65

        inches
        0.024
        0.026

    Dot Pitch        Width
        Height

        millimeters
        0.65
        0.7

        inches
        0.026
        0.028

        Weight
            58g
Pin Count
            16

 visibility Optical Characteristics
Optical Characteristics

        Glass Type/Glass Color
            FSTN/Light Gray
Polarizer
            Transflective
View Direction
            6 o'clock
Sunlight Readable
            Yes

        Backlight Color
            White
Backlight Type
            LED
Mode
            Positive
Foreground Color
            Dark
Background Color
            Light Gray

 electric_bolt Electrical Specification
Electrical Specifications

        Module Connector Pitch
            0.1mm

 nature Environmental
Environmental

    Operating Temperatures        min
        max

        Celsius
        -20°
        70°

        Fahrenheit
        -4°
        158°

    Storage Temperatures        min
        max

        Celsius
        -30°
        80°

        Fahrenheit
        -22°
        176°

    Humidity        min
        max

        Non-condensing
        0%
        90%

 cable Electronics
Electronics

        Controller Documents
            Sitronix ST7066U
Dot Matrix LCD Controller/Driver
Interface
            4-bit Parallel, 8-bit Parallel

 picture_as_pdf Datasheets
picture_as_pdfCFAH2402ATFHJT Datasheet

Previous Versions of Datasheetpicture_as_pdfCFAH2402ATFHJP.pdf

 download Files and Downloads
folder_zip CAD Export - CFAH2402A 2D CAD
picture_as_pdf 1 to 1 Template - CFAH2402A 1 TO 1.PDF
link Demo Code Repository on Github
 assured_workload Compliance Documents
 picture_as_pdf Declaration of Conformity RoHS2
 picture_as_pdf Declaration of Conformity REACH

Need a written quote? Add to cart, then enter your email address in the "request a quote" box.
 Quantity:

Price:

            Quantity
            Unit Price

            1
            $17.03

            5
            $15.72

            10
            $13.85

            20
            $13.44

            50
            $12.95

            100 *
            $12.79

            200 *
            $12.71

            300 *
            $11.99

            500 *
            $11.97

            1000 *
            $11.29

94 Units In-Stock & Ready To Ship
 Pricing is subject to change.
* Contact us about potential lead times.
Other components worth considering

						8x2 Pin Dual Row Header
Add header pins? (5pk) $0.28 ea.

Colors	Dark on Yellow-Green Yellow-Green LED Backlight White on Blue White LED Backlight Dark on Light Gray White LED Backlight

Module Overall	width	height	depth
millimeters	118	36	13.6
inches	4.65	1.42	0.54

PCB Outline	width	height	depth
millimeters	118	36	13.6
inches	4.65	1.42	0.54

Viewing Area	Width	Height
millimeters	94.5	16
inches	3.72	0.63

Active Area	Width	Height
millimeters	88.3	11.5
inches	3.48	0.45

Character Size	Width	Height
millimeters	3.2	5.55
inches	0.126	0.219

Character Pitch	Width	Height
millimeters	3.7	5.95
inches	0.146	0.234

Dot Size	Width	Height
millimeters	0.6	0.65
inches	0.024	0.026

Dot Pitch	Width	Height
millimeters	0.65	0.7
inches	0.026	0.028

Operating Temperatures	min	max
Celsius	-20°	70°
Fahrenheit	-4°	158°

Storage Temperatures	min	max
Celsius	-30°	80°
Fahrenheit	-22°	176°

Humidity	min	max
Non-condensing	0%	90%

Quantity	Unit Price
1	$17.03
5	$15.72
10	$13.85
20	$13.44
50	$12.95
100 *	$12.79
200 *	$12.71
300 *	$11.99
500 *	$11.97
1000 *	$11.29

Part Change Notices

Subscribe to Part Change Notices by
email or RSS for CFAH2402A-TFH-JT

24x2 Character LCD

Part Number: CFAH2402A-TFH-JT

Product Variations

Colors

Physical Characteristics

Optical Characteristics

Electrical Specifications

Environmental

Electronics

Part Change Notices

LCD Software

User Forum

Tech Support

Glass Type/Glass Color	FSTN/Light Gray
Polarizer	Transflective
View Direction	6 o'clock
Sunlight Readable	Yes

Backlight Color	White
Backlight Type	LED
Mode	Positive
Foreground Color	Dark
Background Color	Light Gray

Controller Documents	Sitronix ST7066U Dot Matrix LCD Controller/Driver
Interface	4-bit Parallel, 8-bit Parallel

Weight	58g
Pin Count	16
